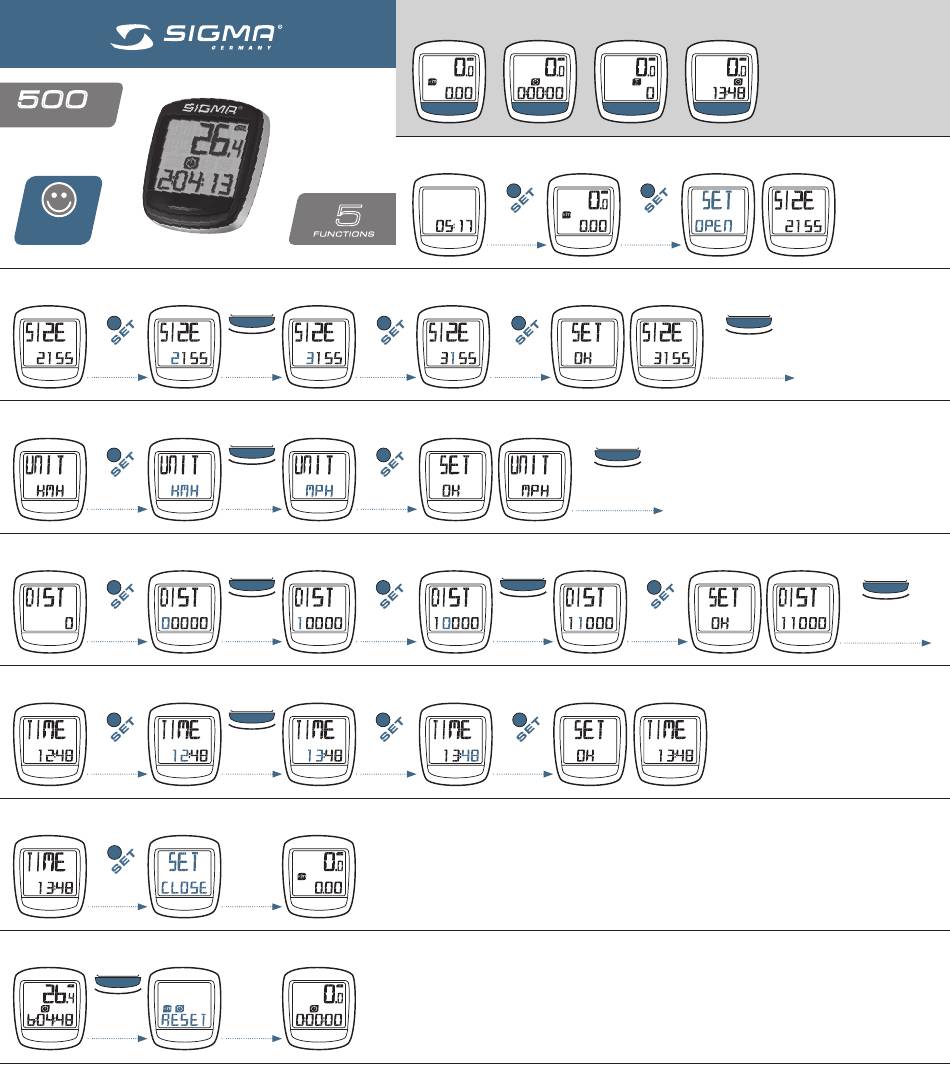

500
BIKE COMPUTER
EASY ICONS
Set wheel size / Eingabe Radumfang / Reglage de la circonference de la roue
x 1
Set Unit of Measurement / Einheit festlegen / Définir l'unité
x 1
Set total distance / Gesamtstrecke einstellen / Régler la distance totale
x 1
Set clock / Uhrzeit einstellen / Régler l'heure
x 1
Exit Setting Menu / Einstellungsmenü verlassen / Quitter le mode de réglages
Press and
hold for
3 sec.
Reset / Löschen / Remise à zéro
Press and
hold for
3 sec.
Functions / Funktionen / Fonctions
Setting menu / Einstellungsmenü / Menu réglages
5
FUNCTIONS
x 1
x 1
x 1
x 1
x 1
x 1
x 1
x 1
"SET" press
"Menu"
and hold for
x 1
3 sec.
x 3
Press mode button
to advance to
next setting.
x 1
x 4
x 1
Press mode button
to advance to
next setting.
Press mode button
to advance to
next setting.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 500 and is the answer not in the manual?

Questions and answers

Related Manuals for Sigma 500

Summary of Contents for Sigma 500

  • Page 1 Functions / Funktionen / Fonctions BIKE COMPUTER Setting menu / Einstellungsmenü / Menu réglages “SET” press EASY ICONS “Menu” and hold for FUNCTIONS 3 sec. Set wheel size / Eingabe Radumfang / Reglage de la circonference de la roue Press mode button to advance to next setting.
  • Page 2 No Speed, or incorrect speed displayed: – Was the metal sleeve installed over the magnet? – Computer fully twisted into mount? (is “SIGMA” on the mount facing forward?) – Distance to magnet and sensor checked? – Two magnets mounted? (Or did you put your front wheel on backwards?) –...
  • Page 3 For assembly on the stem release the 4 screws on the back, turn the plate by 90° and secure again. 90° eat, “SIGMA” faces the front of the bike Installation of the wired sensor Installation of the bracket  Remove the yellow foil...
  • Page 4     90°  Note: Wire comes towards the bike seat, “SIGMA” faces the front of the bike e package is set up for handlebar m release the 4 screws on the back, ain. Installation of the wired sensor  To achieve the required distance, you may have to mount...
  • Page 5  Note: Wire comes towards the bike seat, “SIGMA” faces the front o Installation of the bracket  Remove the yellow foil ded in the package is set up for handlebar the stem release the 4 screws on the back, ecure again.
  • Page 6 Installation of the wired sensor  To achieve the required distance, you may have to mount the magnet and transmitter toward the center of the wheel! (i.e. suspension forks) Max. 5 mm (1/4“) Battery change Wheel size  If measuring in inches: inches x 25.4 x 3.14 km/h: WS = mm x 3,14...
  • Page 7 Wheel size  If measuring in inches: inches x 25.4 x 3.14 Battery change km/h: WS = mm x 3,14 mm x 3,14 mph: WS = mm x 3,14 km/h: WS = mm mph: WS = mm Note: 1 inch = 25.4 mm = WS (mm) Tire size ETRO...
  • Page 8 EU-Declaration of Conformity We, SIGMA-ELEKTRO GmbH, Dr.-Julius-Leber-Str. 15, D-67433 Neustadt/Weinstraße, declare under our responsibility that the product BC 500 is compliant with the essential requirements and other relevant requirements of the EMC Directive 2014/30/EU and the RoHS Directive 2011/65/EU. The declaration of conformity can be found at: ce.sigmasport.com/baseline500...
