The Alcatel-Lucent Integrated Service Adaptor Ethernet Switch (ISA-ES) series circuit packs provide
feature-rich Ethernet service capabilities for the undisputed market leaders of multiservice networks,
the Alcatel-Lucent Optical Multiservice Network (OMSN) products.
ISA-ES1 and ES4 variants provide native Fast Ethernet (FE) and Gigabit Ethernet (GigE) interfaces
and Ethernet over SDH (EoS) ports within 1-Gb to 2.5-Gb switching engines.
ISP1
RNC
OMSN/OMSG
Core
Edge
Access
SAN
UMTS
WDM
ISP2
ATM
POS
OMSN
ATM
DSL
GigE
Residential
Enterprise
Radio
ATM
LMDS
Eth
Enterprise
Carrier network
management
Ethernet service
management
Advertisement
Table of Contents
Related Manuals for Alcatel-Lucent ES4 Series
Summary of Contents for Alcatel-Lucent ES4 Series

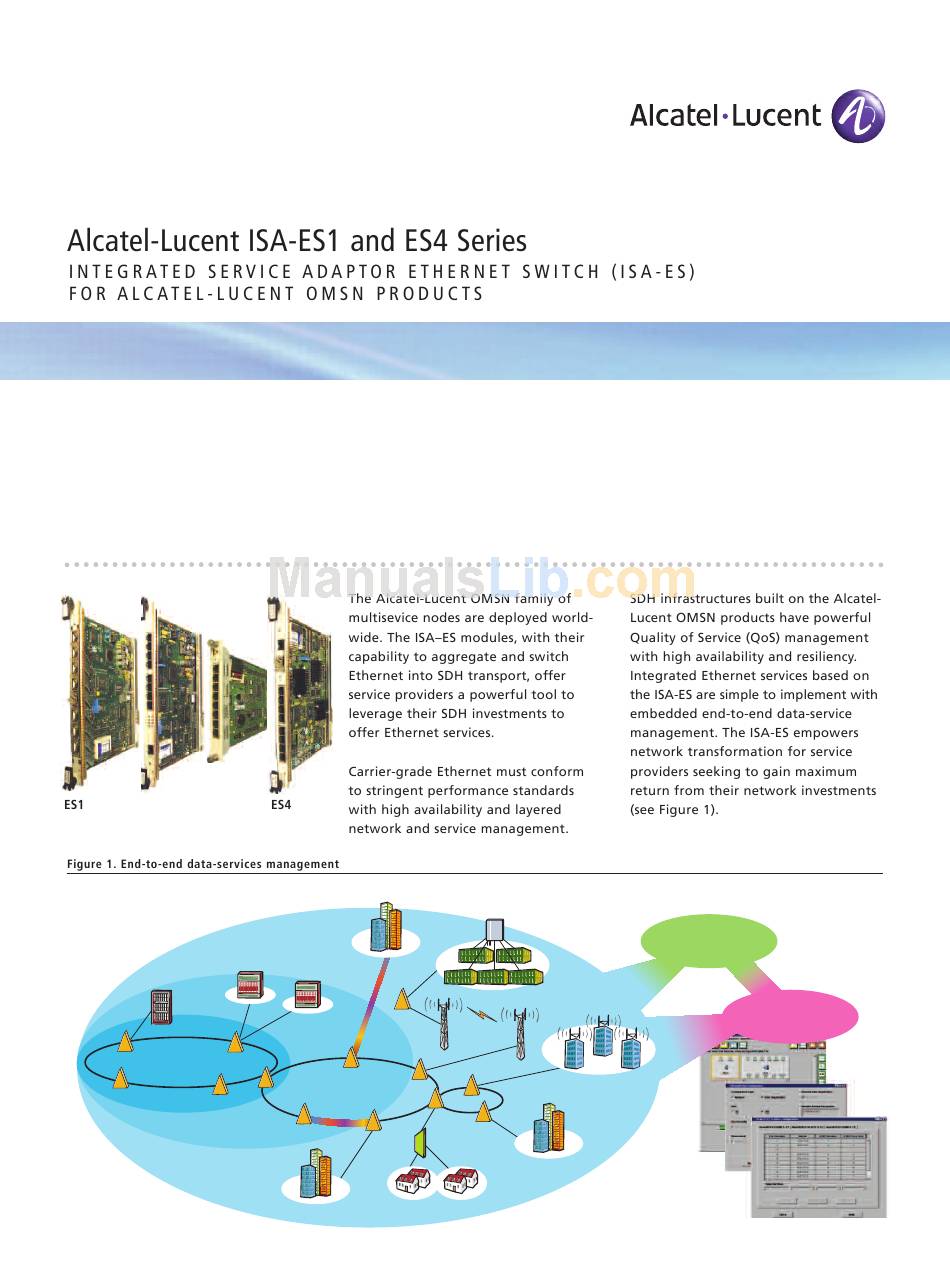

- Page 1 The Alcatel-Lucent Integrated Service Adaptor Ethernet Switch (ISA-ES) series circuit packs provide feature-rich Ethernet service capabilities for the undisputed market leaders of multiservice networks, the Alcatel-Lucent Optical Multiservice Network (OMSN) products. ISA-ES1 and ES4 variants provide native Fast Ethernet (FE) and Gigabit Ethernet (GigE) interfaces and Ethernet over SDH (EoS) ports within 1-Gb to 2.5-Gb switching engines.
