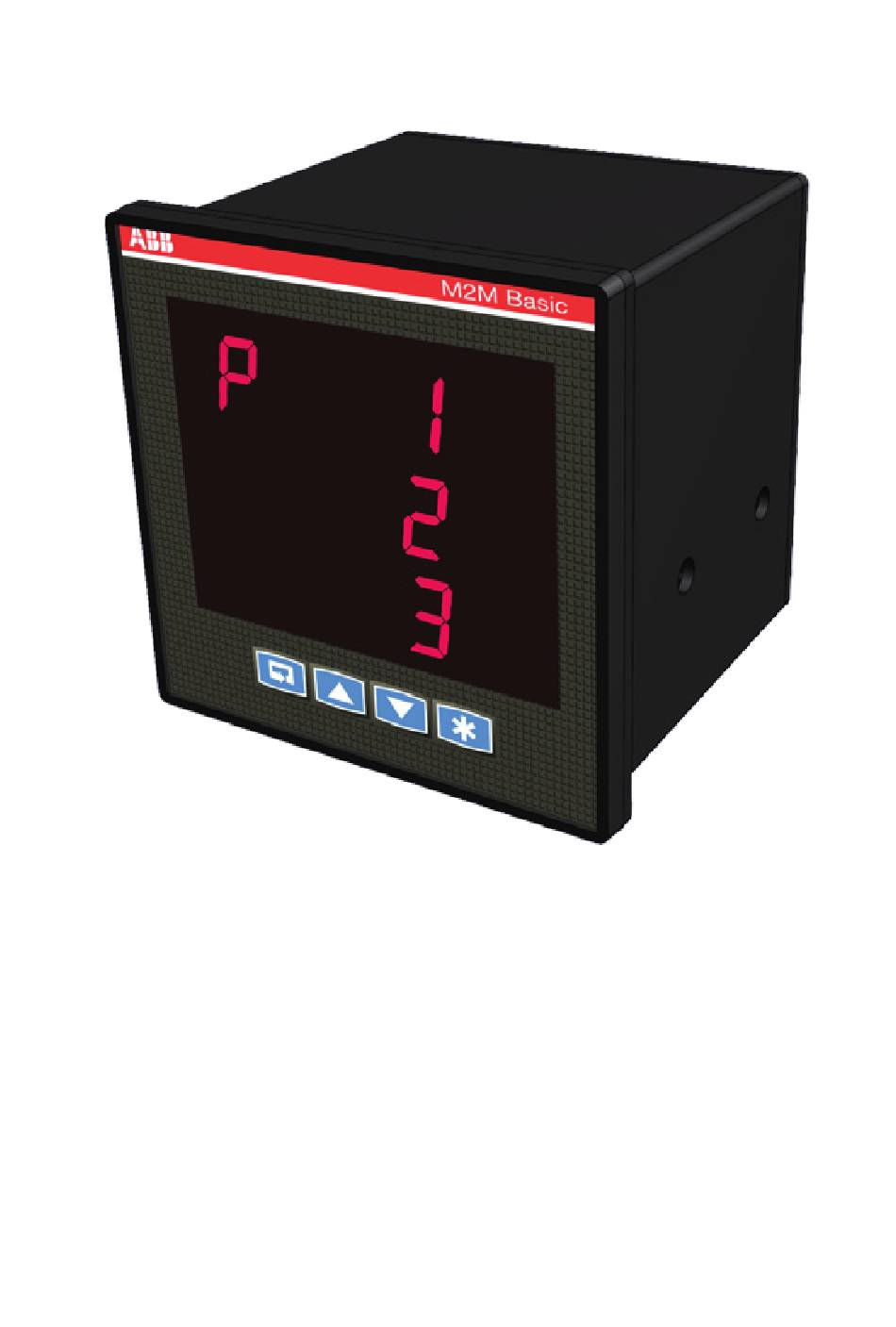

M2M Basic
INSTALLATION MANUAL
ABB

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M2M Basic and is the answer not in the manual?

Questions and answers

Related Manuals for ABB M2M Basic

Summary of Contents for ABB M2M Basic

  • Page 1 M2M Basic INSTALLATION MANUAL...
  • Page 2 1 Mounting 1.1 Assembly M2M Basic is mounted on the panel door by a pair of clamps. Figure below shows the mounting diagrams and panel cut. IEC 61554 1.2 Connection - 3P + N + 3 CTs TV3 TV2 TV1...

  • Page 3: Single Phase Connection

    1.4 Three phase + 2 CTs Fuse Load 1.5 Three phase + 1 CTs Fuse Load 1.6 Single phase connection Fuse Load 2 Basic setting 2.1 HMI Button Function Access the menu Down Enter 2.2 Symbol instructions Symbol Action Press this button Number of keystrokes Setting sequence...

  • Page 4: Configuration Mode

    2.3 Data entry Press to increase the numerical characters from 0 to 9, until the required character is obtained; Press to move the cursor in order to add a second digit to the number; Press to confirm the number. How to: Go back to a previous number If during the data entry the desired number is exceeded by mistake, it is needed to press until data entry starts again from 0.

  • Page 5: Type Of Connection

    3.3 Secondary of the CT From the starting page, enter the menu: Then, choose the desired option with , according to the table beside: Parameter Description 3.4 Primary of the VT From the starting page, enter the menu: Enter the value as explained in section 2.3 3.5 Secondary of the VT From the starting page, enter the menu: Enter the value as explained in section 2.3...

  • Page 6: Technical Data

    4 Technical data Voltage range 85 - 265 V a.c. / 90 - 300 V d.c. supply T 0,5 A Protection fuse Frequency range 45 - 65 Hz Power consumption 3 VA max Measurement type Sampling TRMS Voltage accuracy ±0.5% reading value According IEC 61557-12 Current accuracy ±0.5% reading value According IEC...
  • Page 7 ABB. ABB assumes no responsibility for any errors that may appear in this document. In no event shall ABB be liable for direct, indirect, special, incidental or consequential damages of any nature or kind arising from the use of this document,...
  • Page 8 Contact us ABB S.p.A Electrification Products Division Viale dell’Industria, 18 20010 Vittuone (MI) Italy www.abb.com/lowvoltage www.abb.com...
