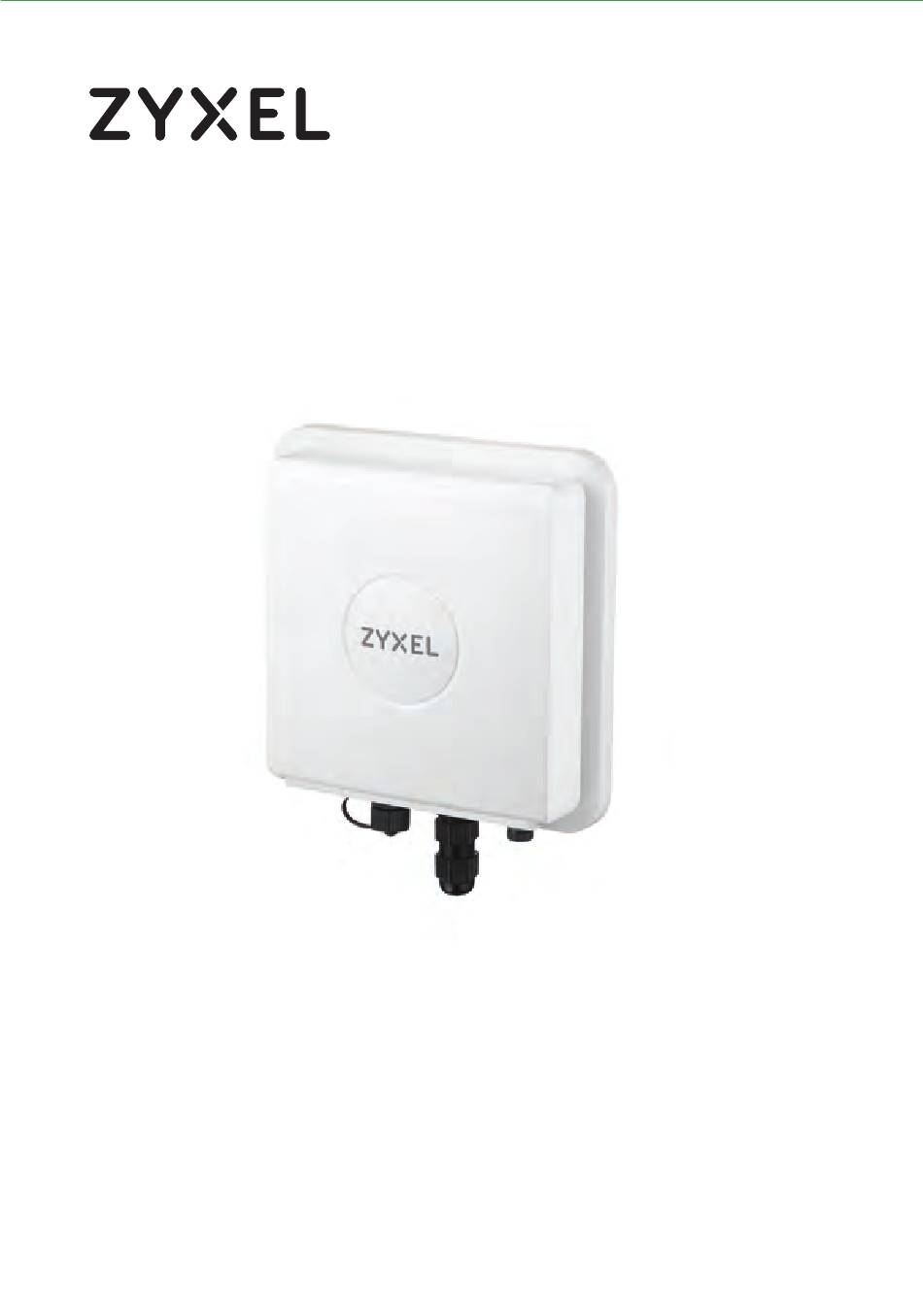

- Page 1 WAC6552D-S 802.11 ac Unified Pro Outdoor Access Point with Sector Smart Antenna Quick Start Guide ENGLISH | DEUTSCH | ESPAÑOL | FRANÇAIS...
- Page 2 Hardware Installation Hardware Installation CONSOLE UPLINK CONSOLE UPLINK CONSOLE UPLINK CONSOLE UPLINK Connect the UPLINK port to an AP Controller (AC), router or computer through a PoE injector (30W, lightning protection 6kV). Connect the CONSOLE port to your computer using a RJ-45-to-DB9 console cable (not included) for troubleshooting.
- Page 3 See the NXC Series User's Guide for more information. default IP address is https://192.168.1.1) and access its web Note: If they are in different networks, the WAC6552D-S stays in configurator. See the NXC Series User's Guide for more information.
- Page 4 Ethernet cable to connect your computer to the WAC6552D-S or (192.168.1.2) to access the web configurator. Make sure your the router. Use its DHCP-assigned IP or default static IP address computer IP address is in the same subnet as the WAC6552D-S's.
- Page 5 Note: It takes 1 to 2 minutes to apply your wizard changes. Check WAC6552D-S the Dashboard screen and note down the WAC6552D-S's IP address Note: It takes 1 to 2 minutes to apply your wizard changes. Check in case you need to access it's web configurator again.
- Page 6 Attach the rotating bracket to the mounting main frame using spacers, washers and nuts. Note: Do not tighten the nuts until after you mount the WAC6552D-S to a pole and adjust the mounting angle. Note: Do not tighten the nuts until after you mount the WAC6552D-S to a pole and adjust the mounting angle.
- Page 7 WAC6552D-S. desired coverage area. Adjust the angle so that the WAC6552D-S is encompassing the Note: It is recommended the WAC6552D-S should not exceed a +15 desired coverage area. or -15 degree angle relative to the pole. Note: It is recommended the WAC6552D-S should not exceed a +15 Note: The pole diameter cannot exceed 6.35 cm.
-
Page 8: Support Information
EU Importer Zyxel Communications A/S Gladsaxevej 378, 2. th. 2860 Søborg, Denmark http://www.zyxel.dk US Importer Zyxel Communications, Inc 1130 North Miller Street Anaheim, CA 92806-2001 http://www.us.zyxel.com Copyright © 2018 Zyxel Communications Corp. All Rights Reserved.
