Summary of Contents for Pioneer DEH-S520BT

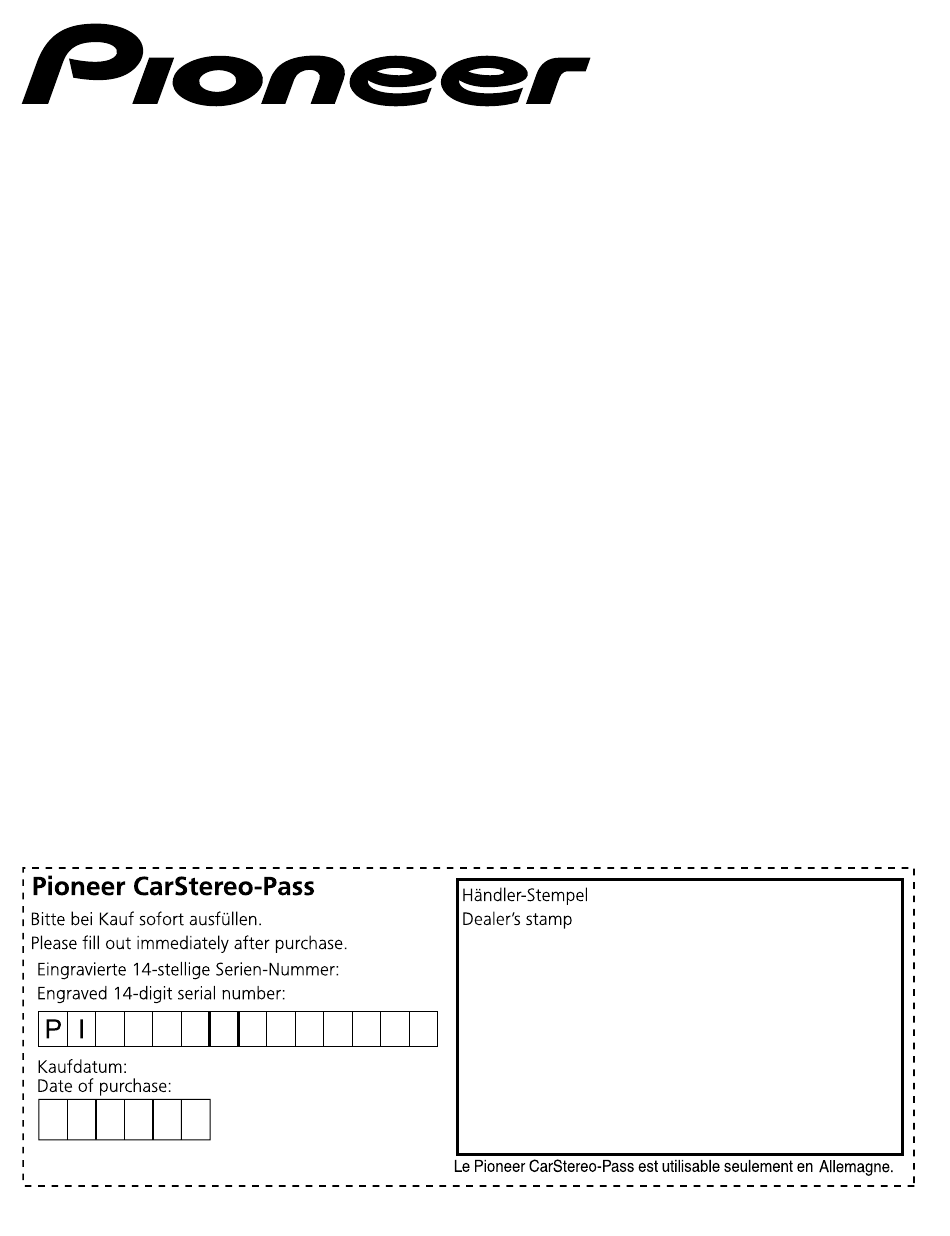

- Page 1 CD RDS RECEIVER AUTORADIO CD RDS SINTOLETTORE CD RDS RECEPTOR DE CD CON RDS CD RDS-EMPFÄNGER CD RDS-ONTVANGER DEH-S520BT Quick start guide Guide de démarrage rapide Guida rapida all’uso Guía de iniciación rápida Schnellstartanleitung Snelstartgids QRD3754-A...
- Page 2 - Safety requirements, IEC 60065. CAUTION This product is a Class 1 laser product classified under the safety standard, IEC 60825-1:2014. If you experience problems Should this unit fail to work properly, please contact your dealer or nearest authorized PIONEER Service Station.
- Page 3 Connections In the following, “NW” represents network mode and “STD” represents standard mode. According to the connections you have established, change the speaker mode to standard mode (STD) or network mode (NW). WARNING Important • When installing this unit in a vehicle without an ACC (accessory) position on the ignition switch, failure to connect the red cable to the terminal that detects operation of the ignition key may...
- Page 4 − Do not shorten any cables. − Never cut the insulation of the power cable of this unit in order to share the power with other devices. The current capacity of the cable is limited. − Use a fuse of the rating prescribed. −...
-
Page 5: Power Cord
Power cord To power cord input Depending on the kind of vehicle, the function of may be different. In this case, be sure to connect Yellow Back-up (or accessory) Yellow Connect to the constant 12 V supply terminal. Accessory (or back-up) Connect to terminal controlled by the ignition switch (12 V DC). -
Page 6: Power Amp (Sold Separately)
left (NW) Gray: Front right (STD) or high range right (NW) Gray/black: Front right (STD) or high range right (NW) Green: Rear left (STD) or middle range left (NW) Green/black: Rear left (STD) or middle range left (NW) Violet: Rear right (STD) or middle range right (NW) Violet/black: Rear right... -
Page 7: Installation
To front output (STD) or high range output (NW) Front speaker (STD) or high range speaker (NW) To subwoofer output Subwoofer Installation Important • Check all connections and systems before final installation. • Do not use unauthorized parts as this may cause malfunctions. - Page 8 Dashboard Mounting sleeve • Make sure that the unit is installed securely in place. An unstable installation may cause skipping or other malfunctions. When not using the supplied mounting sleeve Determine the appropriate position where the holes on the bracket and the side of the unit match.
-
Page 9: Installing The Microphone
• When reattaching the trim ring, point the side with the notched tab down. Insert the supplied extraction keys into both sides of the unit until they click into place. Pull the unit out of the dashboard. Installing the microphone The microphone should be placed directly in front of the driver at a suitable distance to pick up their voice clearly. - Page 10 Microphone clip To install on the steering column Slide the microphone base to detach it from the microphone clip. Microphone Microphone clip Microphone base Install the microphone on the rear side of the steering column. Double-sided tape...
-
Page 11: Basic Operation
Basic operation DEH-S520BT M.C. (multi-control) dial USB port Disc loading slot (eject) SRC (source)/OFF DISP (display) BAND/ Display window (navigation)/LIST Detach button AUX input jack (3.5 mm stereo jack) About the main menu You can adjust various settings in the main menu. -
Page 12: Setup Operation
Frequently used operations Purpose Operation Press SRC/OFF to turn on the Turn on the power power. Press and hold SRC/OFF to turn off the power. Turn the M.C. dial. Adjust the volume Press SRC/OFF repeatedly. Select a source Press DISP repeatedly. Change the display information Press BAND/ Return to the previous display/list... - Page 13 Turn the M.C. dial to select the options, then press to confirm. To proceed to the next menu option, you need to confirm your selection. Menu Item Description LANGUAGE Select the language to display the text information from a compressed audio file. [ENG](English), [РУС](Russian), [TUR](Turkish),...
-
Page 14: Tuner Operation
Tuner operation Receiving preset stations Press SRC/OFF to select [RADIO]. Press BAND/ to select the band. [FM1] [FM2] [FM3] [MW]/[LW] Press a number button (1/ to 6/ ). Best stations memory (BSM) After selecting the band, press the M.C. dial to display the main menu. - Page 15 CD/USB/iPhone®/AUX operation (iPhone source is not available when [USB MTP] is set to [ON] in the SYSTEM settings.) Insert a disc into the disc loading slot with the label side up. To eject a disc, stop playback first then press . USB/iPhone Open the USB port cover.
-
Page 16: Bluetooth Connection
Bluetooth connection Up to two Bluetooth telephones can be connected simultaneously. Turn on the Bluetooth function of the device. Select the unit name shown in the device display. Make sure the same 6-digit number appears on this unit and the device. - Page 17 Making a connection with Pioneer Smart Sync Pioneer Smart Sync is the application that intelligently brings your maps, messages, and music together in the vehicle. WARNING Do not attempt to operate the application while driving. Make sure to pull off the road and park your vehicle in a safe location before attempting to use the controls on the application.
-
Page 18: Listening To Spotify
− For devices other than the USB-connected Android device, press SRC/OFF to select any source and press and hold the M.C. dial. − For iPhone, launch Pioneer Smart Sync on the mobile device. Listening to Spotify® (Not available when [USB MTP] is set to [ON] in the SYSTEM settings.) Update the firmware of the Spotify application to the latest version before use. - Page 19 Suomi: Español: Pioneer vakuuttaa, että radiolaitetyyppi [*] on direktiivin Por la presente, Pioneer declara que el tipo de equipo 2014/53/EU mukainen. radioeléctrico [*] es conforme con la Directiva 2014/53/UE. EU-vaatimustenmukaisuusvakuutuksen täysimittainen El texto completo de la declaración UE de conformidad teksti on saatavilla seuraavassa internetosoitteessa: http:// está...
