Chapter 4. Configuring the LVS Routers with Piranha Configuration Tool
Note
The first time you visit this screen, it displays an "inactive" Backup status and an
ENABLE button. To configure the backup LVS router, click on the ENABLE button so that
the screen matches

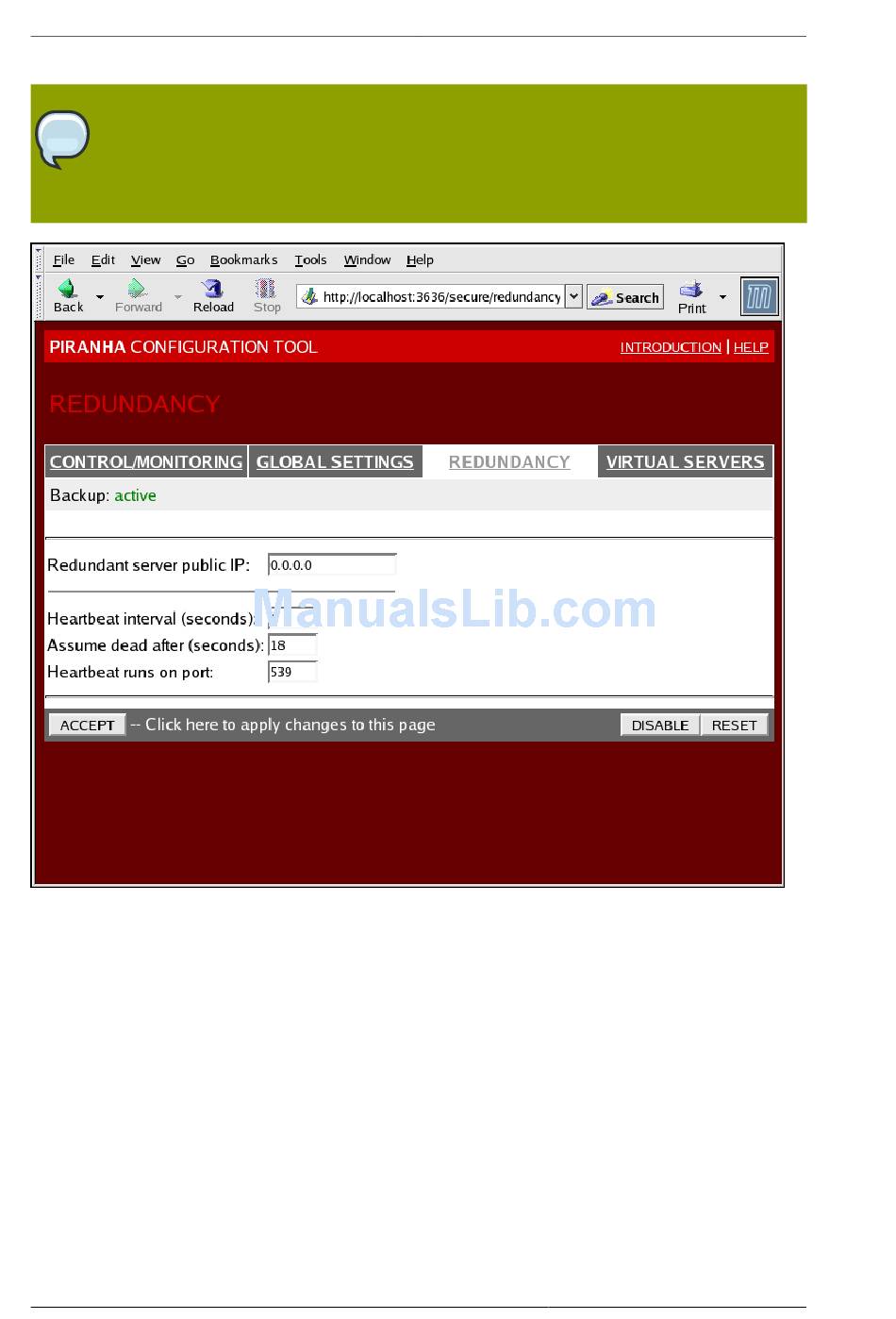

Figure 4.4. The REDUNDANCY Panel
Redundant server public IP
Enter the public real IP address for the backup LVS router node.
Redundant server private IP
Enter the backup node's private real IP address in this text field.
If you do not see the field called Redundant server private IP, go back to the GLOBAL
SETTINGS panel and enter a Primary server private IP address and click ACCEPT.
The rest of the panel is devoted to configuring the heartbeat channel, which is used by the backup
node to monitor the primary node for failure.
36
Figure 4.4, "The REDUNDANCY
Panel".
