84
Once you have all of your partitions created as software RAID partitions, follow these steps:
1. Select the RAID button on the Disk Druid main partitioning screen (refer to Figure 12-4).
2. Figure 12-2 will appear. Select Create a RAID device.

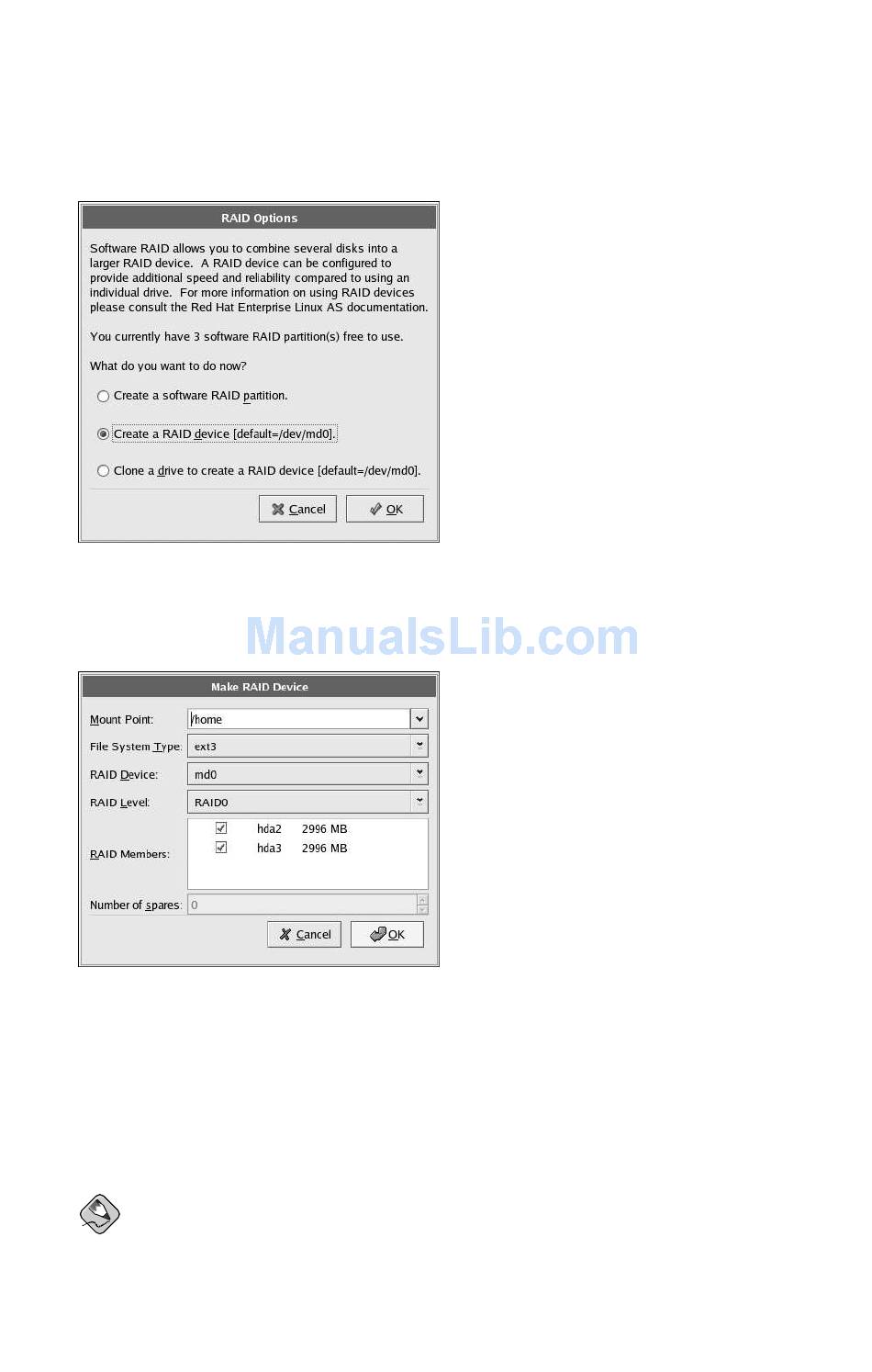

Figure 12-2. RAID Options
3. Next, Figure 12-3 will appear, where you can make a RAID device.
Figure 12-3. Making a RAID Device
4. Enter a mount point.
5. Choose the file system type for the partition.
6. Select a device name such as md0 for the RAID device.
7. Choose your RAID level. You can choose from RAID 0, RAID 1, and RAID 5.
Note
If you are making a RAID partition of
one of the first two drives (IDE first, SCSI second). If you are not creating a RAID partition of
Chapter 12. Software RAID Configuration
, you must choose RAID level 1, and it must use
/boot
