SERVICE MANUAL
ON/OFF
MODE
SPEED
TIMER
TEMP/TIME
TEMP/TIME
WARNING
All right reserved .Unauthorized copying and distribution is a violation of law
Haier Group

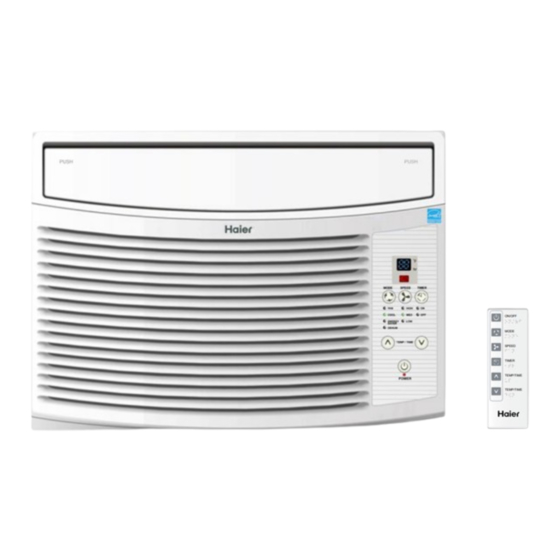

Model No. ESA410J
Feature
Top Discharge Airflow Pattern
Modern Family-look Design
3 Cool Settings, 3 Fan Settings
Easy-to-ins tall Mounting Kit
Easy-Access Washable Filter
Digital Time & Temperature Display
24 Hour on/off Timer
©2009 (Qingdao Haier Air Conditioner General corp.,Ltd)
Order No.AC0907S005V0

Advertisement

loading
Need help?

Need help?

Do you have a question about the ESA410J and is the answer not in the manual?

Questions and answers

Related Manuals for Haier ESA410J

Summary of Contents for Haier ESA410J

  • Page 1 ©2009 (Qingdao Haier Air Conditioner General corp.,Ltd) All right reserved .Unauthorized copying and distribution is a violation of law...
  • Page 2 ESA410J Table of Contents Table of Contents 1. Product Code Illumination and Series introduction........2. Specifications....................3. Safety and Precaution..................4 4. Warning and Cautions..................5 5. Installation and Accessory Parts..............6 6. Parts and Functions..................14 7. Abnormity Diagnose..................18 8.
  • Page 3 ESA410J Table of Contents 1. Product Code Illumination and Series Introduction 1). Model identification: □ □□ □ A: Abbre viation of Energy Star B: The type of refrigerant 4:R410A C: Nominal cooling capacity (BTU/h) with the first two numbers based on one thousand unit...
  • Page 4 ESA410J Specification 2. Specification Item Unit ESA410J Cooling capacity BTU/h 10000 Heating capacity BTU/h Power supply Ph,V, Hz 1, 115, 60 Power input Cooling Running current BTU/(h.w) 10.8 Power input Heating Running current BTU/(h.w) ndoor side dB(A) Sound Level Outdoor side...
  • Page 5 ESA410J Safety and Precaution 3. Safety and Precaution WARNING: Following these basic precautions will reduce the risk of fire ,electrical shock ,injury or death when using your air conditioner . 1) Air conditioner must be connected to proper electrical outlet with the correct electrical supply .
  • Page 6 ESA410J Warning and Cautions 4.Warning and Cautions WARNINGS: Following the safety messages is very important. These messages can save you from being injured or killed. Warning symbols alert you to be careful and means Danger . Always follow instructions to be safe and reduce chances of injury or death .
  • Page 7 ESA410J Installation and Accessory Parts 5. Installation and Accessory Parts Check the following before you install your air conditioner: 1) The unit is free of all obstructions inside and outside the room e.g. drapes, curtains, furniture, plants, shrubs, bushes, trees, other structures like building, garage etc.
  • Page 8 ESA410J Installation and Accessory Parts Window Installation Window opening measurements: A. Width B. Height MODEL ESA410J ESA406J Dimension 25”(63.5cm) A(inch) Min 24 ½ ”(62.2cm) A(inch) Max 38”(96.5cm) 36”(91.4cm) B(inch) Max 149/16”(37cm) 13 ³⁄8 ”(34cm) Prepare Air Conditioner for Installation Install Top Channel 1.
  • Page 9 ESA410J Installation and Accessory Parts Install Side Curtains NOTE: Attach curtains to the air conditioner before placing the air conditioner in window. 1. Place the tabbed side of the side curtain in the track on the right-hand side of the air conditioner cabinet.
  • Page 10 Installation and Accessory Parts ESA410J 4. Slide the side curtain frame as close to the air conditioner as necessary to lock the side curtain to the frame. Repeat above steps for the left-hand side curtain and frame. Prepare Window for Installation Measure the width of the window opening.
  • Page 11 Installation and Accessory Parts ESA410J A. Side curtain against window channel B. Window sash behind top channel C. Bottom channel in behind windowsill 2. Loosen the screw on the right-hand side of the air conditioner cabinet near the bottom. Slide the side bracket over the screw.
  • Page 12 Installation and Accessory Parts ESA410J 5. Use ¹⁄8” drill bit to drill a starter hole through the holes in the side bracket and windowsill. 6. Using two ³¹⁄32” screws, attach the side bracket to the windowsill. 7. Repeat for side bracket installation on the left-hand side of the air conditioner.
  • Page 13 Installation and Accessory Parts ESA410J Top View Bottom View Complete Installation 1. Insert the foam seal behind the top of the lower window sash and against the glass of the upper window. A. Top of lower window sash B. Foam seal 2.
  • Page 14 ESA410J Installation and Accessory Parts Parts Check that all parts are included in parts package. ON/OFF MODE SPEED TIMER TEMP/TIME TEMP/TIME A. Top channel ESA406J,ESA406J-L(3) B. Foam seal ESA406J-T,ESA408J-T(3) C. Side brackets (2) F. ³¹⁄32 ” screws (9) D.Window lock bracket G.
  • Page 15 ESA410J Partd and Functions 6.Partd and Functions Mode Press MODE until you see the indicator light glow for the desired setting. 2. Choose Fan, Cool, Energy Saver or Dehum. Fan—Only the fan runs. Press SPEED to select High, Med or Low fan speed. The display shows the ■...
  • Page 16 ESA410J Partd and Functions TEMP/TIME ■ Press the TEMP/TIME down arrow button to lower the temperature. Each time you press or hold the TEMP/TIME down arrow button, the temperature will go down 1ºF until it reaches 61°F (16°C). NOTE: After 5 seconds, the display will show the current room temperature.
  • Page 17 ESA410J Partd and Functions While the display is showing the remaining time, press the up or down TEMP/TIME button to increase or decrease the time. After 5 seconds, the display will show the current room temperature. Using the Remote Control NOTE:Remote control may differ in appearance.
  • Page 18 ESA410J Partd and Functions Timer To set the Timer for a 1-hour to 24-hour delay before the air conditioner is turned off (the air conditioner must be On): 1. Press TIMER. Timer On indicator light on the air conditioner control panel will flash.
  • Page 19 ESA410J Abnormity Diagnose 7. Abnormity Diagnose 1. Sensor Diagnose: 2 seconds after the sensors open circuit or short circuit, the unit will turn off automatically and the LED will show E0 until the sensors resume. Firstly check whether Terminal CN2 on...
  • Page 20 ESA410J Abnormity Diagnose 2. Keystroke circuit error diagnose: When power on for the first time, the PCB will check the keystroke circuit, is the sampling value is defferent with the theory value, the LED will show E1, which means failed keystroke circuit. The keyboard is locked and so invalid, but the remote control is working normally.
  • Page 21 ESA410J System Flow Chart 8. System Flow Chart Domestic Air Conditioner16...
  • Page 22 ESA410J Circuit Diagram 9. Circuit Diagram Domestic Air Conditioner...
  • Page 23 ESA410J Circuit Diagram Domestic Air Conditioner...
  • Page 24 ESA410J Wiring Diagram 10. Wiring Diagram WIRING DIAGRAM 0010519540 COMPRESSOR TRANSFORMER MOTOR HEAT PROTECTOR CAPACITOR HERM R BL L M H COMPRESSOR B(NO RIBBED) LIGHT G(Y/G) GR: GRAY BR: BROWN W(RIBBED) BL: BLUE R: RED B: BLACK POWER SUPPLY W: WHITE...
  • Page 25 ESA410J The End Sincere Forever Haier Group Haier Industrial Park, No.1, Haier Road Edited by: Zhanglingling Lihao 266101, Qingdao, China E-mail: hractech@haier.com Signed by: YaoHongfang Tel: +86 532 87636960 Http://www.haier.com Approved by: WangXiBo Domestic Air Conditioner...
