Shelly PRO 1 User And Safety Manuallines

USER AND SAFETY GUIDE
DIN MOUNTABLE LAN & WI-FI SMART RELAY
SHELLY® PRO 1
Read before use
This document contains important technical and safety infor-
mation about the device, its safety use and installation.
⚠CAUTION!
guide and any other documents accompanying the device care-
fully and completely. Failure to follow the installation procedures
could lead to malfunction, danger to your health and life, violation
of the law or refusal of legal and/or commercial guarantee (if
any). Allterco Robotics EOOD is not responsible for any loss or
damage in case of incorrect installation or improper operation
of this device due to failure of following the user and safety in-
structions in this guide.
Product Introduction
Shelly® is a line of innovative microprocessor-managed de-
vices, which allow remote control of electric circuits through a
mobile phone, tablet, PC, or home automation system. Shelly®
devices can work standalone in a local Wi-Fi network or they
can also be operated through cloud home automation services.
Shelly Cloud is a service that can be accessed using either An-
droid or iOS mobile application, or with any internet browser at
https://home.shelly.cloud/. Shelly® devices can be accessed,
controlled and monitored remotely from any place where the
User has internet connectivity, as long as the devices are con-
nected to a Wi-Fi router and the Internet. Shelly® devices have
embedded Web Interface accessible at
when connected directly to the device access point, or at the
device IP address on the local Wi-Fi network. The embedded
Web Interface can be used to monitor and control the device, as
well as adjust its settings.
Shelly® devices can communicate directly with other Wi-Fi
devices through HTTP protocol. An API is provided by All-
terco Robotics EOOD. For more information, please visit:
https://shelly-api-docs.shelly.cloud/#shelly-family-overview.
Shelly® devices are delivered with factory-installed firmware.
If firmware updates are necessary to keep the devices in con-
formity, including security updates, Allterco Robotics EOOD will
provide the updates free of charge through the device embed-
ded Web Interface or Shelly Mobile Application, where the in-
formation about the current firmware version is available. The
choice to install or not the device firmware updates is user's
sole responsibility. Allterco Robotics EOOD shall not be liable
for any lack of conformity of the device caused by failure of the
user to install the provided updates in a timely manner.
Control your home with your voice
Shelly® devices are compatible with Amazon Alexa and Google
Home supported functionalities. Please see our step-by-step
guide on: https://shelly.cloud/support/compatibility/.
Shelly® Pro Series
Shelly® Pro series is a line of devices suitable for homes, offic-
es, retail stores, manufacturing facilities, and other buildings.
Shelly® Pro devices are DIN mountable inside the breaker box,
and highly suitable for new building construction. All Shelly®
Pro devices can be controlled and monitored through Wi-Fi and
LAN connections. Bluetooth connection can be used for the
inclusion process.
Shelly® Pro 1 (the Device) is a DIN rail mountable smart relay.
Enhanced with the second generation firmware flexibility and
LAN connectivity, it provides the professional integrators with
much more options for end customer solutions.

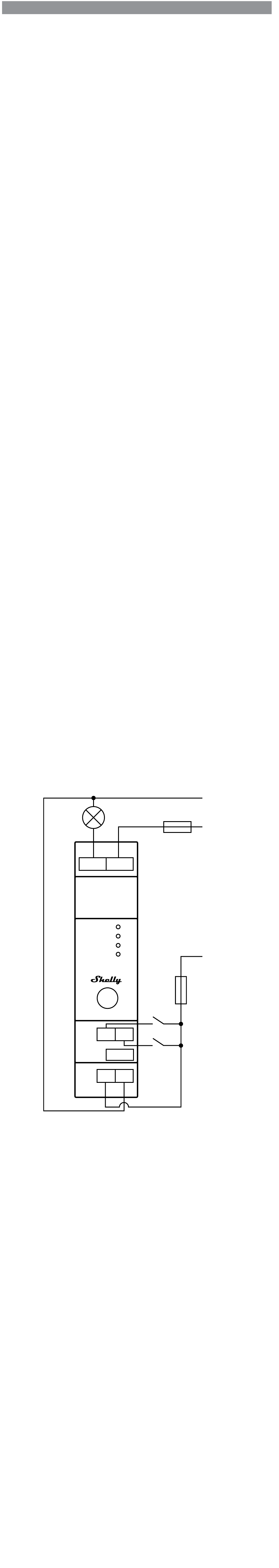

Schematic
Legend
Device terminals:
• O: Load output terminal
• I: Load input terminal
• SW1, SW2: Switch input terminals controlling O*
• L: Live (110-240 VAC) terminal
• N: Neutral terminal
• LAN: Local Area Network RJ 45 connector
Cables:
• N: Neutral cable
• L: Live (110-240 VAC) cable
• L1(A): Load circuit live (110-240 VAC) cable
• L2(B): Device power supply live (110-240 VAC) cable
* Can be reconfigured in the Device settings
Installation Instructions
⚠CAUTION!
the Device to the power grid has to be performed with caution, by
a qualified electrician.
⚠CAUTION!
nections has to be done after ensuring there is no voltage pres-
ent at the Device terminals.
⚠CAUTION!
ances which comply with all applicable regulations. A short cir-
cuit in the power grid or any appliance connected to the Device
may damage the Device.
⚠CAUTION!
ing the given max load!
⚠CAUTION!
instructions. Any other method could cause damage and/or in-
jury.
⚠CAUTION!
to get wet.
⚠CAUTION!
device if you expect currents higher than 5 A per channel.
⚠RECOMMENDATION
gle-core cables with increased insulation heat resistance not
less than PVC T105°C.
Before beginning the installation, please read this
O
Power
Wi-Fi
LAN
Out
Reset
SW1 SW2
LAN
L
Danger of electrocution. Mounting/installation of
Danger of electrocution. Every change in the con-
Use the Device only with a power grid and appli-
Do not connect the Device to appliances exceed-
Connect the Device only in the way shown in these
Do not install the device at a place that is possible
Allow at least 10 mm of space around each Pro
Connect the Device using solid sin-
EN
I
N
Fig. 1
http://192.168.33.1
N
L1(A)
L2(A)
