USER & SAFETY GUIDE
Shelly Plus 1PM
This document contains important technical and safety infor-
mation about the device and its safety use and installation.
Before beginning the installation, please read this guide and
any other documents accompanying the device carefully and
completely. Failure to follow the installation procedures could
lead to malfunction, danger to your health and life, violation of
the law or refusal of legal and/or commercial guarantee (if any).
Allterco Robotics is not responsible for any loss or damage in
case of incorrect installation or improper operation of this de-
vice due to failure of following the user and safety instructions
in this guide.
Introduction to Shelly
Shelly® is a line of innovative Devices, which allow remote con-
trol of electric appliances through a mobile phone, tablet, PC, or
home automation system. Shelly® may work standalone on the
local WiFi network, without being managed by a home automa-
tion controller, or it can also work through cloud home automa-
tion services. Shelly® devices can be accessed, controlled, and
monitored remotely from any place the User has Internet con-
nectivity, as long as the devices are connected to a WiFi router
and the Internet. Shelly® has an integrated web server, through
which the User may adjust, control and monitor the Device. The
cloud function could be used, if it is activated through the web
server of the Device or the settings in the Shelly Cloud mobile
application. The User can register and access Shelly Cloud us-
ing either Android or iOS mobile application, or with any internet
browser at https://my.shelly.cloud/
Shelly® Devices have two WiFi modes - Access Point (AP) and
Client mode (CM). To operate in Client Mode, a WiFi router must
be located within the range of the Device. Devices can commu-
nicate directly with other WiFi devices through HTTP protocol.
An API can be provided by the Manufacturer.
Shelly® Plus series offers PM products for real-time precise
power measurement.
⚠CAUTION!
accompanying documentation carefully and completely. Failure
to follow recommended procedures could lead to malfunction,
danger to your life or violation of the law. Allterco Robotics is not
responsible for any loss or damage in case of incorrect installa-
tion or operation of this Device.
Legend
• N - Neutral input (Zero)
• L - Line input (110-240V)
• O - Output
• SW - Switch (input) controlling O
Installation Instructions
The WiFi Relay Switch Shelly® Plus 1PM may control 1 elec-
trical circuit up to 3.5 kW. It is intended to be mounted into
a standard in-wall console, behind power sockets and light
switches or other places with limited space. Shelly may work
as a standalone Device or as an accessory to another home
automation controller.
⚠CAUTION!
tion of the Device should be done by a qualified person (elec-
trician).
⚠CAUTION!
ing the given max load!
⚠CAUTION!
instructions. Any other method could cause damage and/or in-
jury.
⚠CAUTION!
ances which comply with all applicable regulations. short circuit
in the power grid or any appliance connected to the Device may
damage the Device.
⚠RECOMMENDATION!
may control electric circuits and appliances only if they comply
with the respective standards and safety norms.
⚠RECOMMENDATION!
id single-core cables with increased heat resistance to insulation
not less than PVC T105°C.
Before installing/mounting the Device ensure that the grid is
powered off (turned down breakers). Connect the Relay to the
power grid and install it in the console behind the switch/power
socket following the scheme that suites the desired purpose:

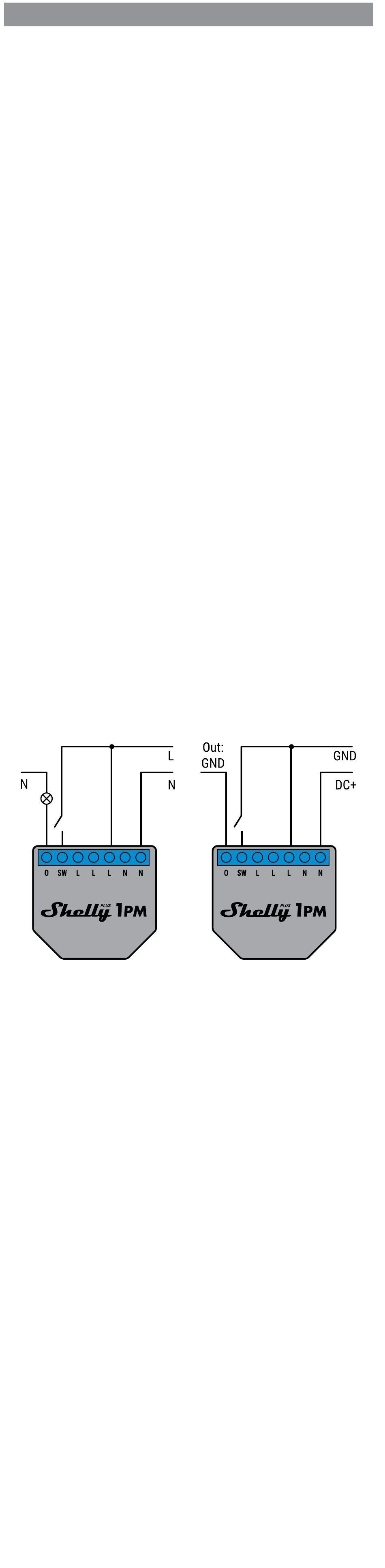

Connecting to the power grid with power supply 110-240V AC
Before beginning the installation please read the
fig.1
Danger of electrocution. The mounting/installa-
Do not connect the Device to appliances exceed-
Connect the Device only in the way shown in these
Use the Device only with a power grid and appli-
Тhe Device may be connected to and
The Device may be connected with sol-
EN
fig.2
