- Page 1 VoiceTone E1 USER’S MANUAL BEDIENUNGSANLEITUNG MANUAL DE INSTRUCCIONES MANUALE D’USO MODE D’EMPLOI...
-
Page 2: Important Safety Instructions
Important Safety Instructions 1 Read these instructions. 2 Keep these instructions. 3 Heed all warnings. 4 Follow all instructions. 5 Do not use this apparatus near water. 6 Clean only with dry cloth. 7 Do not block any ventilation openings. Install in ac- cordance with the manufacturer’s instructions. 8 Do not install near heat sources such as radiators, heat registers, stoves, or other apparatus (including ampli- fiers) that produce heat. - Page 3 Warning! • To reduce the risk of fire or electrical shock, do not expose this equipment to dripping or splashing and ensure that no objects filled with liquids, such as vases, are placed on the equipment. • Do not install in a confined space. Service • All service must be performed by qualified personnel. Caution: You are cautioned that any change or modifications not expressly approved in this manual could void your authority to operate this equipment. EMC/EMI This equipment has been tested and found to comply with the limits for a Class B Digital device, pursuant to part 15 of the FCC rules.
-
Page 4: (En) Introduction

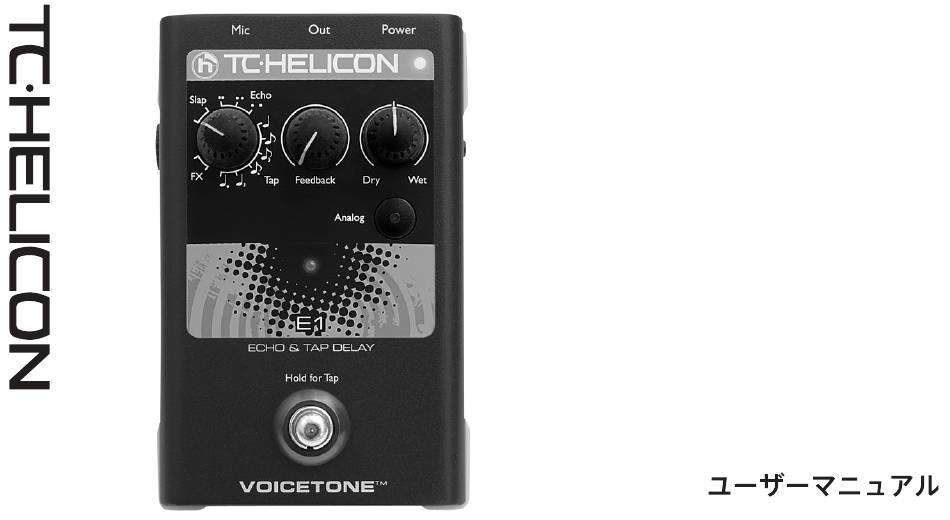

VoiceTone E1 adds depth to live vocals with a wide range of echo effects Vocal echo and slapback have long been used to create a sense of acoustic space in vocal recordings and live performance. VoiceTone E1 offers singers the ability to recreate these effects in an affordable and easy-to-use effect pedal. - Page 5 1 - Effect on/off footswitch 2 - MIC GAIN input level control 3 - Style selector (13 positions) 4 - Feedback: Controls echo duration 5 - MIC: Balanced XLR mic input 6 - OUT: Balanced XLR mono output 7 - Power in 8 - USB connector to computer 9 - Input level LED;...
- Page 6 Connecting MIC jack - Connect your mic here using a balanced XLR cable. Phantom power is always on. OUT jack - Connect to your PA mixer, another VoiceTone pedal or powered speaker. Power in - Connect the supplied 12VDC power supply. Optional: USB - Connect to a computer running the TC-Helicon Voice- Support application for registration, latest version and tips. Download VoiceSupport at www.tc-helicon.com • Turn down your PA when making all connections • The latest version of VoiceSupport is available free from www.tc-helicon.com\voicesupport • The USB connection does not provide power to the unit...
-
Page 7: Phantom Power
Phantom Power There is no switch to enable phantom power on the VoiceTone singles. Phantom power is available when the product is powered up. Microphones that don’t require phantom power will operate properly. First Setup and Use 1. Turn down your PA’s master volume. 2. Connect and power up unit. You can cycle the footswitch to light the LED and confirm unit is powered. 3. Connect your mic and PA as shown in the diagram. For live performance, a USB connection to a computer is not required. 4. Sing into your mic while adjusting the MIC GAIN control so that the input level LED flashes green to orange. Brief flashes of red on the LED on your loudest singing are ok. 5. Set the Dry/Wet knob to the center notch. - Page 8 Echo: The timing of these 3 styles is independent of the Tap delay time. They are intended to offer gen- eralized non-tempo-matched echo sounds. Tap: These 6 styles can be used when you want the echo repeats to land on the beats or on beat divi- sions of your song.
- Page 9 The Tap Styles The Tap styles are shown in standard musical notation as follows. The following assumes a tempo of 120 Beats Per Minute (BPM). Quarter Note. Echo time is 500 ms. Echoes land directly on the beat. Eighth Note. 250 ms. Straight eighths feel. Triplet Eighth. 166 ms. Dense shuffle feel. Dotted Eighth. 375 ms. Think “Get Back” by the Beatles Quarter Note Triplet. 333 ms. Sparse shuffle feel. Dotted Quarter. 750 ms. Sparse syncopation feel. The Feedback Control This controls the number of repeats and thus the duration of the echo effect.
- Page 10 (fully left) position. The order of the pedals is important. See the following for signal flow. Microphone > T1 > C1 > D1 > H1 > X1 > E1 > R1 > To PA Using the Mic Control Feature Mic Control allows you to turn the main effect on and off from the optional TC-Helicon MP-75 mic. Each VoiceTone Single pedal has a switch labelled MIC CONTROL that can be pushed in allowing remote on/off control for that pedal. Mic Control can be used for single or multiple pedals on any or all pedals.
- Page 11 Can I use the product on an auxilliary send/return? Yes. Ensure that the MIC GAIN knob is set to minimum to accept the line level signal from your mixer. Note that the noise floor may rise slightly in this setup. Will I need a DI box to connect to a mixer? Why is the product turning the effect on and off by itself? This can happen when you have the MIC CONTROL knob pushed in and the Mic input is connected to a mixer send with “pseudo balanced” outputs. Unless you are using only the TC-Helicon MP-75 mic with the Mic Control feature, the MIC CONTROL knob should be out.
