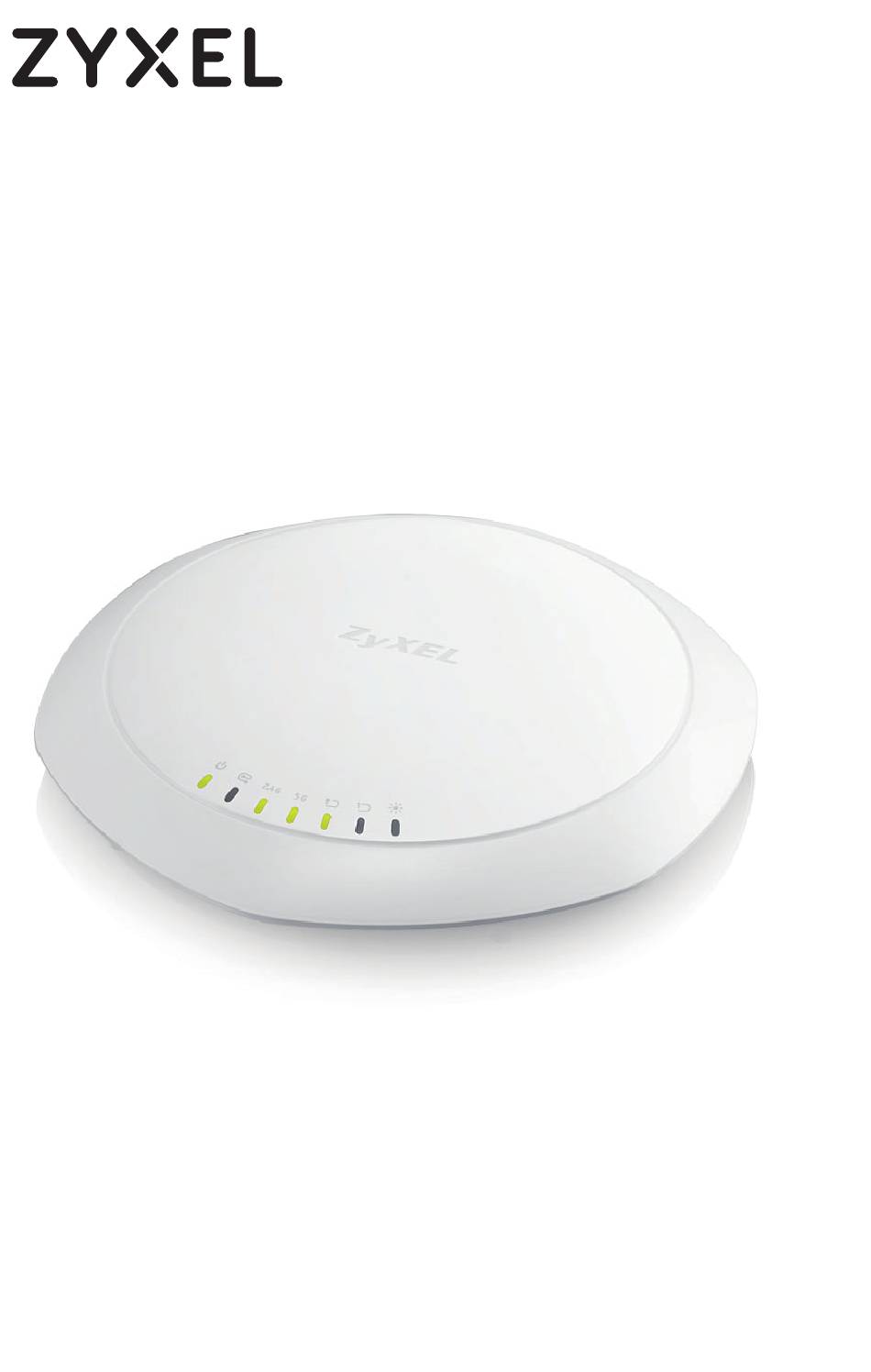

- Page 1 NWA1123-AC PRO 802.11ac Dual-Radio Dual-Mount PoE Access Point Quick Start Guide ENGLISH | DEUTSCH | ESPAÑOL | FRANÇAIS...
-
Page 2: Hardware Installation
Hardware Installation Wait until the power LED turns steady green PoE Injector PoE Switch Router Power Outlet Connect the UPLINK/PoE port to a router network through a PoE switch or a PoE injector (30W). Note: The management LED keeps blinking green until cloud management or standalone configuration is finished. -
Page 3: Cloud Management
.com Email Password Submit Follow the steps below to manage the NWA1123-AC PRO through the Zyxel cloud-based network management system. Note: Make sure the connected router has Internet access. Go to the Zyxel Nebula Control Center (NCC) website (https://nebula.zyxel.com). Click Login and you will be redirected to the... - Page 4 Code Create an organization and a site (network) in the NCC. Enter the NWA1123-AC PRO's LAN MAC address and serial number (S/N) (see the label on the device) in the NCC configuration screen. Note: The NWA1123-AC PRO will go into cloud management mode automatically and restart after it is registered to a site.
-
Page 5: Web Configurator
Create an organization and site or select an existing site. Scan the NWA1123-AC PRO's QR code to add it to the site. (You can find the QR code in its web configurator dashboard or on a label on the device or its box manufactured after December 15, 2017.) -
Page 6: Standalone Configuration
Password 1234 (default) Login If you don't want to manage the NWA1123-AC PRO through the Zyxel NCC, follow the steps below to configure the NWA1123-AC PRO (in standalone mode). From a WiFi enabled computer, search for the NWA1123-AC PRO's default WiFi network name (Zyxel-xxxx, where xxxx is the last four characters of the MAC address) and connect to it. - Page 7 Use an Ethernet cable to connect your computer to the LAN1 port of the NWA1123-AC PRO. Use its DHCP-assigned IP or default static IP address "http://192.168.1.2" to access the web configurator. Make sure your computer IP address is in the same subnet as the NWA1123-AC PRO's.
- Page 8 Note 1 The wizard appears automatically. Use the wizard to set up your NWA1123-AC PRO. Note: It takes 1 to 2 minutes to apply your wizard changes. The power LED will blink red and green alternatively. The power and WiFi LEDs then turn steady green when the system is ready. Check the Dashboard screen and note down the NWA1123-AC PRO's IP address in case you need to access it's web configurator again.
-
Page 9: Wall / Ceiling Mounting
Wall / Ceiling Mounting Wall mounting: Set the NWA1123-AC PRO’s antenna switch to the WALL position. Drill two holes for the plastic wall plugs (A), 64.1 mm apart. Insert the plugs into the wall. Ceiling mounting: Set the NWA1123-AC PRO’s antenna switch to the CEILING position. - Page 10 After the bracket is attached to the wall/ceiling, line up the UPLINK/PoE port on the NWA1123-AC PRO with the tab of the mounting bracket (B). Push the NWA1123-AC PRO in and turn it to the right until it clicks into place.
-
Page 11: Support Information
EU Importer Zyxel Communications A/S Gladsaxevej 378, 2. th. 2860 Søborg, Denmark http://www.zyxel.dk US Importer Zyxel Communications, Inc 1130 North Miller Street Anaheim, CA 92806-2001 http://www.us.zyxel.com Copyright © 2018 Zyxel Communications Corp. All Rights Reserved.
