Description
3.7 Design
Interfaces for connecting operator panels / displays

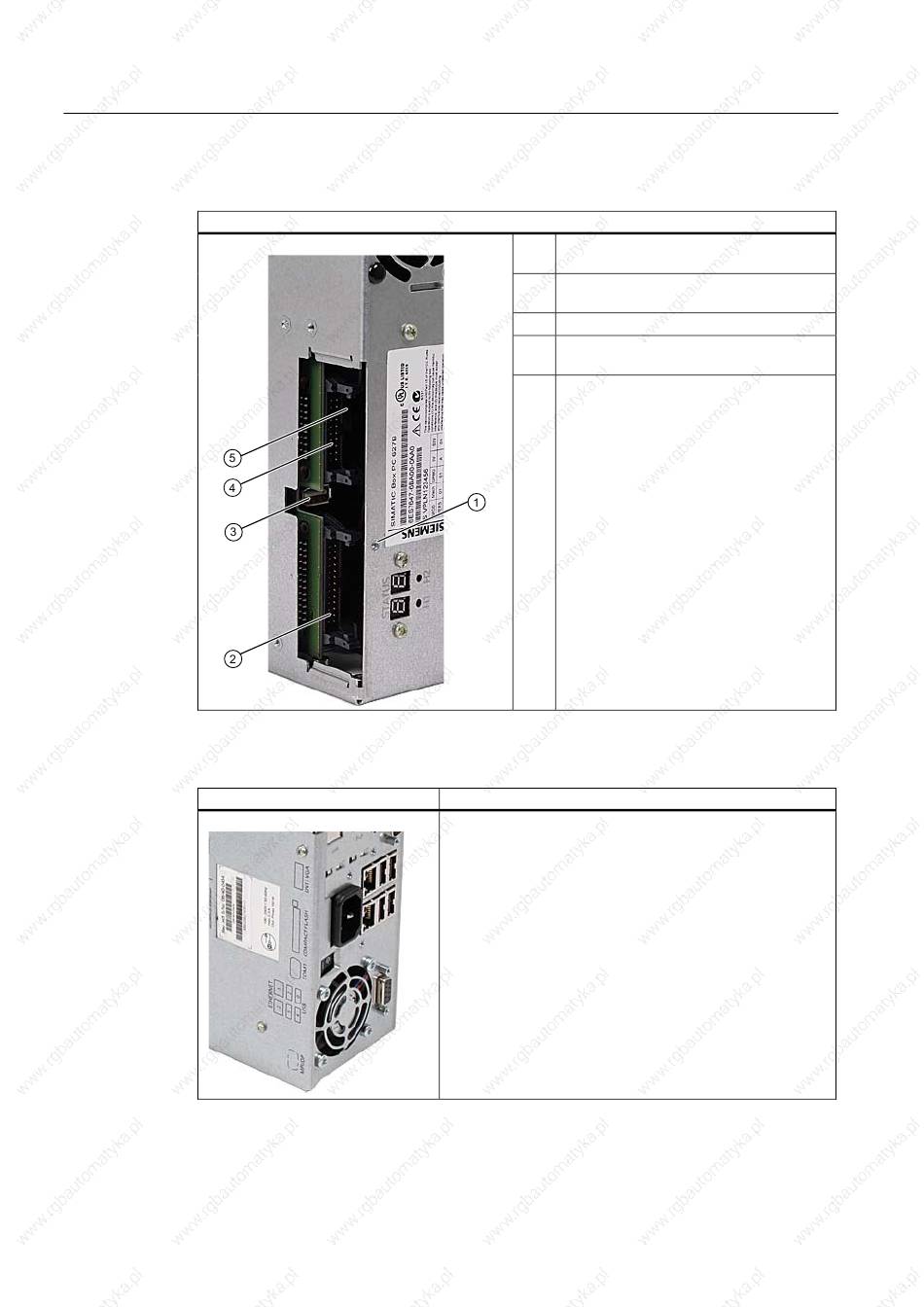

Arrangement of the ports

AC power supply

Position of the IEC power connector
24
(1) Retaining screw for the steel cover plate
that covers the interfaces described below.
(2) I/O interface for connecting front panel
components
(3) USB 2.0 for front
(4) LVDS display interface
for TFT displays up to 1024 x 768 pixels
(5) Access to 2nd LVDS display interface for
TFT displays up to 1280 x 1024
Description
IEC power connector to AC power supply of the device. The
maximum permitted power range is 100 V AC to 240 V AC.
Operating Instructions, 06/2008, A5E00927393-02
SIMATIC Box PC 627B
