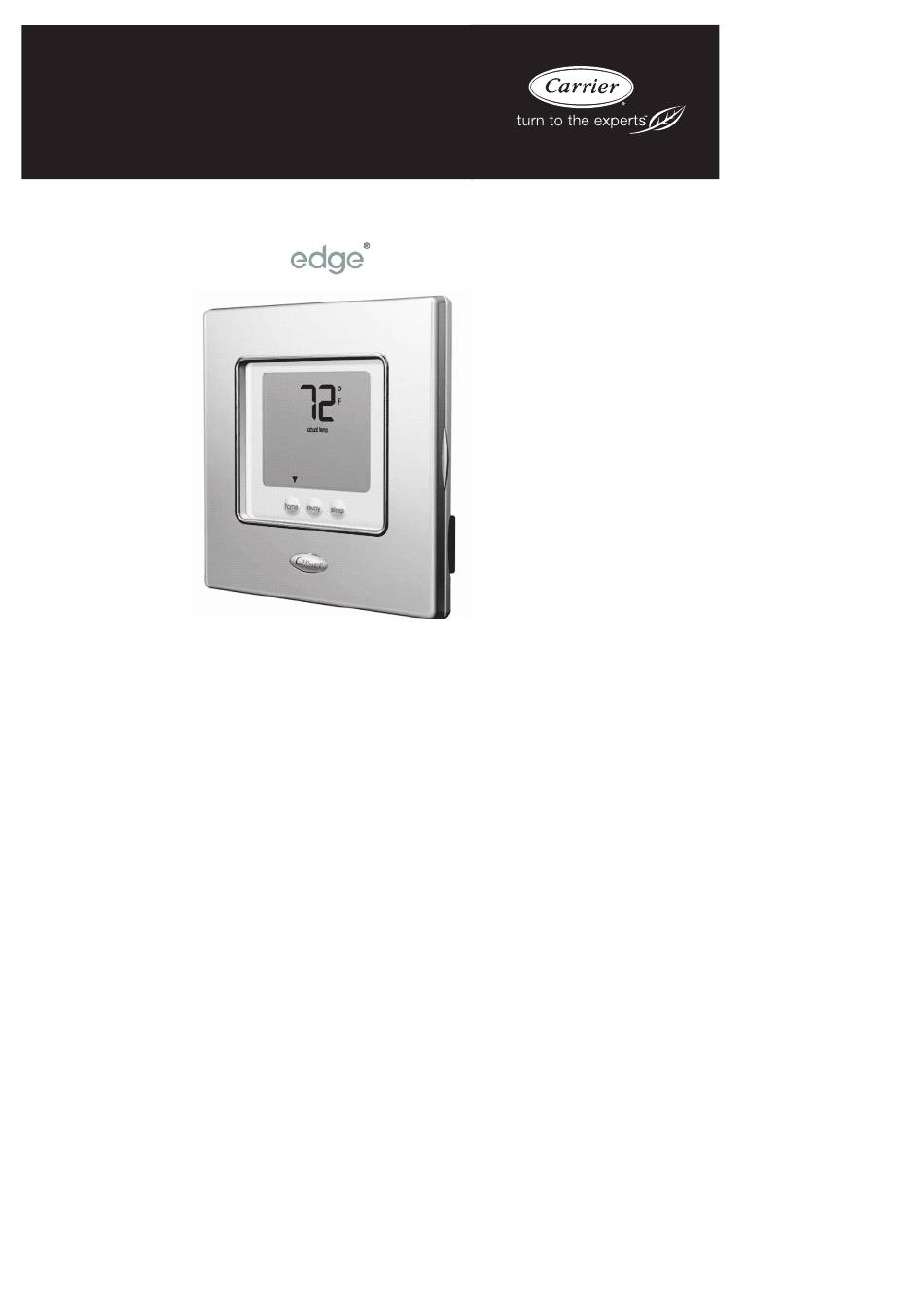

  • Page 1 All manuals and user guides at all-guides.com TP - NHP01 - A, TP - NAC01 - A & TP - NRH01 - B Edger Non - Programmable Thermostat Owner’s Manual...
  • Page 2 All manuals and user guides at all-guides.com...
  • Page 3 All manuals and user guides at all-guides.com YOU WILL LOVE THIS THERMOSTAT. You have the Edger thermostat. This unique device’s state- of- the- art technology makes it easier than ever for you to keep your home comfortable. And with an ultra- thin profile and a selection of attractive faceplates, it is easily the most decorator- friendly thermostat available.

  • Page 4: Table Of Contents

    All manuals and user guides at all-guides.com TABLE OF CONTENTS BUTTON IDENTIFICATION ........ON- SCREEN INDICATORS .
  • Page 5 All manuals and user guides at all-guides.com TABLE OF CONTENTS Using normal humidify ......... . Using auto humidify .
  • Page 6 All manuals and user guides at all-guides.com TABLE OF CONTENTS SPECIAL FEATURES Hybrid Heat (heat pump systems only) ....... Service reminders .
  • Page 7 All manuals and user guides at all-guides.com TABLE OF CONTENTS COMMON TERMS AND WHERE TO FIND THEM Auto changeover ..........Auxiliary heat (heat pump systems only) .

  • Page 8: Button Identification

    All manuals and user guides at all-guides.com BUTTON IDENTIFICATION heat mode cool heat set at check UV light check filter auto check hum pad home away sleep features done...
  • Page 9 All manuals and user guides at all-guides.com BUTTON IDENTIFICATION a. FAN Selects whether the fan operates continuously (on) or only when needed for heating or cooling (auto) b. MODE Selects whether thermostat is set for heating, cooling, emergency heat, auto (heat and cool as needed), or off c.

  • Page 10: On- Screen Indicators

    All manuals and user guides at all-guides.com ON- SCREEN INDICATORS heat mode cool heat set at check UV light check filter auto check hum pad home away sleep features done...
  • Page 11 All manuals and user guides at all-guides.com ON- SCREEN INDICATORS 1. Programming option; indicates which settings are being adjusted 2. Fan mode - on or auto 3. Filter, UV lamp, humidifier pad reminders 4. Indicates whether setting humidify or dehumidify preferences 5.

  • Page 12: Quick Start

    All manuals and user guides at all-guides.com QUICK START Setting or changing the temperatures for heating and cooling Your thermostat is installed with pre- set heating and cooling temperature settings. You can use these or change them so your home is as warm or as cool as you would like it to be.

  • Page 13: Understanding Touch 'N' Go

    All manuals and user guides at all-guides.com QUICK START Understanding Touch ’N’ Go The unique Touch ’N’ Go feature on your thermostat is a revolutionary tool that lets you use a simpler programming option - literally, touch and go - to help you get the maximum comfort control from the entire comfort system.

  • Page 14: Operating The Thermostat

    All manuals and user guides at all-guides.com OPERATING THE THERMOSTAT Using the Touch ’N’ Go feature The Touch ’N’ Go feature on your thermostat involves the home, away and sleep buttons immediately under the display. You can either accept the preset temperature settings for when you are home, away or asleep, or set your own Touch ’N’...
  • Page 15 All manuals and user guides at all-guides.com OPERATING THE THERMOSTAT Use this blank grid to determine how warm or cool you want your home to be when you’re home, away or asleep. Touch ’N’ Go Option Heat Cool Home Away Sleep...

  • Page 16: Setting The Home Temperature

    All manuals and user guides at all-guides.com OPERATING THE THERMOSTAT Setting the home temperature 1. Open the door. 2. Press the home button located under the display on the left. You will see a triangle icon (B) above the home button.
  • Page 17 All manuals and user guides at all-guides.com OPERATING THE THERMOSTAT 8. Press the up or down button until you reach the desired temperature setting. 9. Press and hold the home button for about three seconds. The home arrow will be displayed, indicating that the thermostat has saved your settings.

  • Page 18: Setting The Away Temperature

    All manuals and user guides at all-guides.com OPERATING THE THERMOSTAT Setting the away temperature 1. Press the away button located under the display in the center. You will see a triangle icon (B) above the away button. 2. You will see the heating and cooling temperatures that were set at the factory.
  • Page 19 All manuals and user guides at all-guides.com OPERATING THE THERMOSTAT 7. Press the up or down button until you reach the desired temperature set- ting. 8. Press and hold the away button for about three seconds. The away arrow will be displayed, indicating that the thermostat has saved your settings.

  • Page 20: Setting The Sleep Temperature

    All manuals and user guides at all-guides.com OPERATING THE THERMOSTAT Setting the sleep temperature 1. Press the sleep button located under the display in the center. You will see a triangle icon (B) above the sleep button. 2. You will see the heating and cooling temperatures that were set at the factory.
  • Page 21 All manuals and user guides at all-guides.com OPERATING THE THERMOSTAT 7. Press the up or down button until you reach the desired temperature set- ting. 8. Press and hold the sleep button for about three seconds. The sleep arrow will be displayed, indicating that the thermostat has saved your settings. 9.

  • Page 22: Using The Fan

    All manuals and user guides at all-guides.com OPERATING THE THERMOSTAT Using the fan When the fan is on, it helps distribute air throughout your home for a more even temperature in all spaces. You can set the thermostat so that the fan runs only during your heating and cooling cycles (auto mode) or to run continuously.

  • Page 23: Changing The Humidity Level

    All manuals and user guides at all-guides.com OPERATING THE THERMOSTAT Changing the humidity level Your thermostat offers three humidity options: normal, auto and off. It is set at the factory for “normal humidify,” which is a fixed setting based on how much humidity you want in the home.

  • Page 24: Using Auto Humidify

    All manuals and user guides at all-guides.com OPERATING THE THERMOSTAT 3. Press the up or down button to change the setting. You can set the humidity between 10% and 46%; the dehu- midify range is from 46% to 66%. 4. Close the door. Using auto humidify The auto humidify feature automatically adjusts the amount of humidity according to the outside temperature when an outdoor temperature sensor is installed.
  • Page 25 All manuals and user guides at all-guides.com OPERATING THE THERMOSTAT 1. Open the door. 2. Press the features button twice. The first press will dis- play the outdoor air temperature and the second press will display the humidify settings. The display will in- clude the humidity level and the humidity setting.

  • Page 26: How To Turn Off The Humidify Or Dehumidify Feature

    All manuals and user guides at all-guides.com OPERATING THE THERMOSTAT How to turn off the humidify or dehumidify feature Here’s how to turn off the humidify and/or dehumidify features. 1. Open the door. 2. Press the features button twice. The first press will dis- play the outdoor air temperature and the second press will display the humidify settings.

  • Page 27: Using Emergency Heat (Heat Pump Systems Only)

    All manuals and user guides at all-guides.com OPERATING THE THERMOSTAT Using emergency heat (heat pump systems only) Emergency heat is useful when the automatic auxiliary heat system can’t keep up with demand. (Systems with heat pumps use “auxiliary heat” when it’s too cold outside for the heat pump to heat the house without help.

  • Page 28: Using The Thermostat To Turn The Heating And Cooling System Off

    All manuals and user guides at all-guides.com OPERATING THE THERMOSTAT Using the thermostat to turn the heating and cooling system off Here’s how to use the thermostat to turn the heating and cooling system off. 1. Open the door. 2. Press the mode button on the left repeatedly until the display shows off shows in the upper left.

  • Page 29: Advanced Options

    All manuals and user guides at all-guides.com ADVANCED OPTIONS Advanced options display codes chart You can customize a few thermostat features. This chart shows which features you can change and the codes associated with them. The codes will appear on the display after following the instructions below.

  • Page 30: Clearing The Reset Reminders

    All manuals and user guides at all-guides.com ADVANCED OPTIONS Clearing the reset reminders The thermostat tells you when it’s time to change or service the UV light in the evaporator coil box connected to the furnace (if equipped), humidifier pad (if equipped), and furnace filter.
  • Page 31 All manuals and user guides at all-guides.com ADVANCED OPTIONS 4. Press and hold the done button for about three seconds to remove the reminder. The percentage associated with it will go down to zero. 5. Press the done button. 6. Close the door.

  • Page 32: Changing From Fahrenheit To Celsius

    All manuals and user guides at all-guides.com ADVANCED OPTIONS Changing from Fahrenheit to Celsius Your thermostat is preset to display the temperature in degrees Fahrenheit. You can change this to Celsius. 1. Open the door. 2. Press and hold the features button for about three seconds.

  • Page 33: Adjusting Or Turning Off The Continuous Backlighting

    All manuals and user guides at all-guides.com ADVANCED OPTIONS Adjusting or turning off the continuous backlighting Your thermostat features a continuous low level backlighting until you press any button, which increases the lighting temporarily. You can adjust the intensity of the backlighting or turn if off completely.

  • Page 34: Keypad Lockout

    All manuals and user guides at all-guides.com ADVANCED OPTIONS Keypad lockout The keypad lockout feature lets you partially “lock” the thermostat so that you can change only the temperature or lock it completely, allowing no changes. Here’s how to lock the keypad on either level. 1.

  • Page 35: Unlocking The Keypad

    All manuals and user guides at all-guides.com ADVANCED OPTIONS Unlocking the keypad Here’s how to temporarily unlock the keypad after you have locked it. 1. Open the door. 2. Press and hold the up and down buttons on the right simultaneously for about five seconds.

  • Page 36: Special Features

    SPECIAL FEATURES Hybrid Heat (heat pump with a furnace system only) This thermostat works with the Carrier Hybrid Heat systems offering maximum comfort and economy by automatically controlling whether your system delivers heating with the heat pump, with the furnace, or with both options working together.

  • Page 37: Outdoor Temperature Display

    All manuals and user guides at all-guides.com SPECIAL FEATURES Outdoor temperature display The thermostat automatically displays the outdoor temperature when you press the features button. Auto changeover The thermostat displays one of five modes: heat, cool, Em heat (heat pump version only), heat cool (auto mode) and off.

  • Page 38: What If

    All manuals and user guides at all-guides.com WHAT IF . . . “Aux heat on” is displayed (heat pump and Hybrid Heat systems only) Aux heat on is auxiliary heat. It applies only to the heat pump version. If it is on, you will see aux heat on.

  • Page 39: You Get A Service Reminder Message

    All manuals and user guides at all-guides.com WHAT IF . . . You get a service reminder message Service reminder messages - check UV light, check hum pad, check filter - tell you that it’s time to change the UVC lamp in the evaporator coil box connected to the furnace (when installed), humidifier pad (when installed), and furnace filter.

  • Page 40: Common Terms And Where To Find Them

    All manuals and user guides at all-guides.com COMMON TERMS AND WHERE TO FIND THEM Auto changeover page 36 ........This feature automatically switches your system from heating to cooling - or from cooling to heating - whenever necessary when in auto mode only (heat/cool).
  • Page 41 ..page 35 This Carrier heating and cooling system concept offers maximum comfort and economy. When a Hybrid Heat system is installed, the thermostat automatically controls whether your system delivers heating with the heat pump, with the furnace, or with both options working together.
  • Page 42 All manuals and user guides at all-guides.com COMMON TERMS AND WHERE TO FIND THEM Mode page 36 ..........This term refers to the type of operation your system is performing.
  • Page 43 All manuals and user guides at all-guides.com...
  • Page 44 All manuals and user guides at all-guides.com Copyright 2017 Carrier Corporation, 7310 W Morris St. Indianapolis, IN 46231 OM- TPNACA - 02 Replaces: OM- TPNACA- 01 Edition Date: 04/17 Manufacturer reserves the right to change, at any time, specifications and designs without notice...
