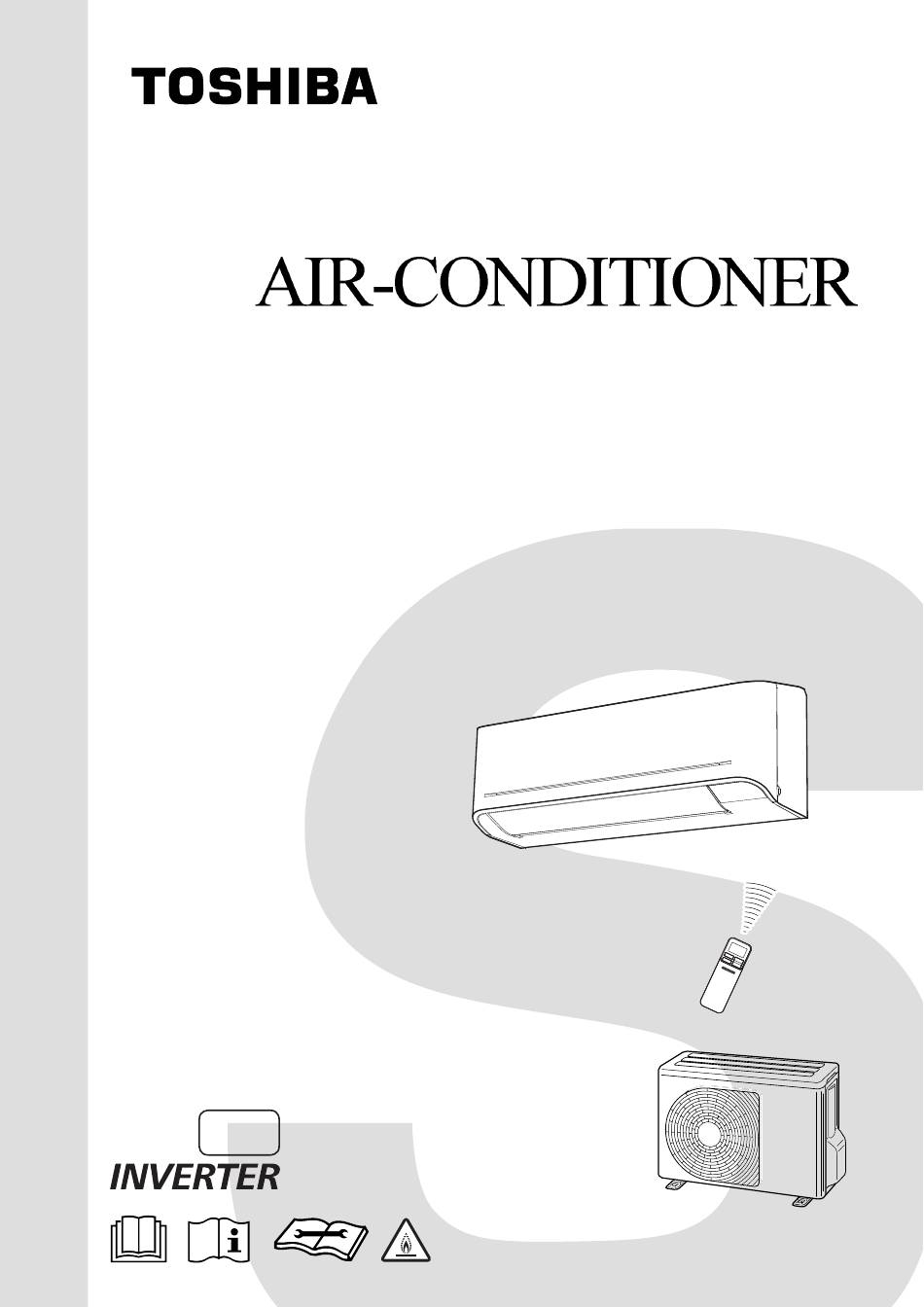

SERVICE MANUAL

Indoor Unit

RAS-B25E2KVG-ND

RAS-B35E2KVG-ND

R32

FILE NO. SVM-24017

SPLIT TYPE

Outdoor Unit

RAS-25E2AVG-ND

RAS-35E2AVG-ND

June, 2024

Table of Contents

Need help?

Do you have a question about the RAS-B25E2KVG-ND and is the answer not in the manual?

Questions and answers

Summary of Contents for Toshiba RAS-B25E2KVG-ND

Page 1 FILE NO. SVM-24017 SERVICE MANUAL SPLIT TYPE Indoor Unit Outdoor Unit RAS-B25E2KVG-ND RAS-25E2AVG-ND RAS-B35E2KVG-ND RAS-35E2AVG-ND June, 2024...
Page 2: Table Of Contents
CONTENTS 1. SAFETY PRECAUTIONS ................3 2. SPECIFICATIONS ..................7 3. REFRIGERANT R32 .................. 9 4. CONSTRUCTION VIEWS ................ 17 5. WIRING DIAGRAM .................. 19 6. SPECIFICATIONS OF ELECTRICAL PARTS ......... 20 7. REFRIGERANT CYCLE DIAGRAM ............21 8. CONTROL BLOCK DIAGRAM ..............23 9.
Page 3: Safety Precautions
1. SAFETY PRECAUTIONS Read the precautions in this manual This appliance is ﬁ lled with R32. carefully before operating the unit. (Flammable Material) Information included in the Operation Service personnel should be handing this equipment Manual and/or Installation Manual. with reference to the Installation Manual. Warning Indications on the Air Conditioner Unit Warning indication Description...
Page 4: New Refrigerant Air Conditioner Installation
CAUTION New Refrigerant Air Conditioner Installation • THIS AIR CONDITIONER ADOPTS THE NEW HFC REFRIGERANT (R32) WHICH DOES NOT DESTROY OZONE LAYER. R32 refrigerant is apt to be affected by impurities such as water, oxidizing membrane, and oils because the working pressure of R32 refrigerant is approx.
Page 5 WARNING • Never modify this unit by removing any of the safety guards or bypassing any of the safety interlock switches. • Do not install in a place which cannot bear the weight of the unit. Personal injury and property damage can result if the unit falls.
Page 6: For Reference
CAUTION • Exposure of unit to water or other moisture before installation may result in an electrical short. Do not store in a wet basement or expose to rain or water. • Do not install in a place that can increase the vibration of the unit. Do not install in a place that can amplify the noise level of the unit or where noise or discharged air might disturb neighbors.
Page 7: Specifications
-15,46/-25,24 -15,46/-25,24 Installation plate Accessory Indoor unit Wireless remote controller Batteries Remote controller holder Toshiba IAQ filter Mounting screw 6(  4x25L) Remote controller holder 2(  3.1x16L) Flat head wood screw Installation manual Owner's manual * The specification may be subject to change without notice for purpose of improvement.
Page 8: Operation Characteristic Curve
2-2. Operation Characteristic Curve <Cooling> <Heating> RAS-B35E2KVG-ND RAS-B35E2KVG-ND RAS-B25E2KVG-ND RAS-B25E2KVG-ND Conditions Conditions Indoor : DB 27 C/WB 19 Indoor : DB 20 C/WB 15 Outdoor : DB 35 C/WB 24 Outdoor : DB 7 C/WB 6 Indoor Air Flow : High...
Page 9: Refrigerant R32
3. REFRIGERANT R32 3. If a refrigeration gas leakage occurs during This air conditioner adopts the new refrigerant HFC (R32) which does not damage the ozone layer. installation/servicing, be sure to ventilate fully. If the refrigerant gas comes into contact with fire, a The next section describes the precautions for air conditioner using the new refrigerant.
Page 10: Processing Of Piping Materials
Table 3-2-1 Thicknesses of annealed copper pipes Thickness (mm) Nominal diameter Outer diameter (mm) R32(R410A) 6.35 0.80 0.80 9.52 0.80 0.80 12.70 0.80 0.80 15.88 1.00 1.00 2. Joints For copper pipes, flare joints or socket joints are used. Prior to use, be sure to remove all contaminants. a) Flare Joints Flare joints used to connect the copper pipes cannot be used for pipings whose outer diameter exceeds 20 mm.
Page 11 d) Flare Processing Make certain that a clamp bar and copper pipe have been cleaned. ØD By means of the clamp bar, perform the flare processing correctly. Use either a flare tool for R32 or conven- tional flare tool. Flare processing dimensions differ according to the type of flare tool.
Page 12 Table 3-2-6 Flare and flare nut dimensions for R22 Dimension (mm) Nominal Outer diameter Thickness Flare nut width diameter (mm) (mm) (mm) 6.35 9.52 13.0 13.5 12.70 16.2 16.0 12.9 15.88 19.7 19.0 16.0 19.05 23.3 24.0 19.2 Fig. 3-2-2 Relations between flare nut and flare seal surface 2.
Page 13: Required Tools
3-3. Tools 3-3-1. Required Tools The service port diameter of packed valve of the outdoor unit in the air-water heat pump using R32 is changed to prevent mixing of other refrigerant. To reinforce the pressure-resisting strength, flare processing dimensions and opposite side dimension of flare nut (For Ø12.7 copper pipe) of the refrigerant piping are lengthened.
Page 14: Recharging Of Refrigerant
3-4. Recharging of Refrigerant When it is necessary to recharge refrigerant, charge the specified amount of new refrigerant according to the following steps. Recover the refrigerant, and check no refrigerant remains in the equipment. When the compound gauge’s pointer has indicated –0.1 Mpa (–76 cmHg), place the handle Low in the fully closed position, and turn off the vacuum pump’s power switch.
Page 15: Brazing Of Pipes
3-5. Brazing of Pipes 3. Types of flux 3-5-1. Materials for Brazing • Noncorrosive flux 1. Silver brazing filler Generally, it is a compound of borax and boric Silver brazing filler is an alloy mainly composed acid. of silver and copper. It is used to join iron, copper It is effective in case where the brazing tem- or copper alloy, and is relatively expensive though perature is higher than 800°C.
Page 16 3-5-3. Brazing As brazing work requires sophisticated techniques, experiences based upon a theoretical knowledge, it must be performed by a person qualified. Flow meter In order to prevent the oxide film from occurring in the pipe interior during brazing, it is effective to Stop valve proceed with brazing while letting dry Nitrogen gas (N2) flow.
Page 17: Construction Views
4. CONSTRUCTION VIEWS 4-1. Indoor Unit Air filter Air filter Front panel Grille inlet 60 60 60 60 Wireless remote controller Installation plate hanger 17.5 Remote controller holder Drain hose (0.6m) Connecting pipe (0.63m) (Flare 6.35mm) Installation plate hanger Connecting pipe (0.58m) (Flare 9.52mm ) Hanger...
Page 18: Installation Dimension
4-2. Outdoor Unit (Unit : mm) Ø6 hole R5.5 Ø6 hole Ø11x14 hole A detail Drawing (Back leg) Ø 11 x 14 Hole Drain outlet B Detail Drawing (Front leg) (For 8 - 10 anchor bolt) Ø Ø FAN-GUARD Ø 436 COVER-PV Liquid side (Flare...
Page 19: Wiring Diagram
5. WIRING DIAGRAM WP044 t° Outdoor Control P.C. Board 250V T3.15A 250V 3 T3.15A 250V CN300 (WHI) Switching Serial Power 3 Communication Supply Circuit Color Indication CN501 CN600 CN601 CN602 CN603 CN700 CN703 CN705 BLK : BLACK RED : RED (GRN) (WHI) (WHI) (WHI) (WHI) (WHI) (YEL) (WHI)
Page 20: Specifications Of Electrical Parts
6. SPECIFICATIONS OF ELECTRICAL PARTS 6-1. Indoor Unit Parts name Type name Specifications Fan Motor (for indoor) SJM-240-35 AC 220~240V, 35W Room temp. sensor (TA-sensor) 10kΩ at 25°C Heat exchanger temp. sensor (TC-sensor) 10kΩ at 25°C Heat exchanger temp. sensor (TCJ-sensor) 10kΩ...
Page 21: Refrigerant Cycle Diagram
7. REFRIGERANT CYCLE DIAGRAM 7-1. Refrigerant Cycle Diagram Temp. measurement INDOOR UNIT Indoor heat exchanger Cross flow fan Max. : 20m Min. : 2m Pressure measurement Chargeless : 15m Deoxidized copper pipe Gauge attaching port Charge : 20g/m Outer dia. : 6.35mm Vacuum pump connecting port Thickness : 0.8mm Sectional shape...
Page 22: Operation Data
7-2. Operation Data <Cooling> Temperature Heat exchanger Model name Standard Indoor Outdoor Compressor Connecting condition(°C) pipe temp. RAS- pressure fan mode fan mode revolution Piping Indoor Outdoor P (MPa) T1 (°C) T2 (°C) (rps) 27/19 35/- High B25E2KVG-ND 14 to 15 41 to 42 High 1.1 to 1.2...
Page 23: Control Block Diagram
8. CONTROL BLOCK DIAGRAM 8-1. Indoor Unit Indoor Unit Control Panel M.C.U Functions Heat Exchanger Sensor (TC) Operation • Louver Control Display Heat Exchanger Sensor (TCJ) Timer • 3-minute Delay at Restart for Compressor Display Temperature Sensor • Motor Revolution Control Hi power Display Infrared Rays Signal Receiver...
Page 24: Outdoor Unit (Inverter Assembly)
8-2. Outdoor Unit (Inverter Assembly) - 24 -...
Page 25: Operation Description
9. OPERATION DESCRIPTION 9-1. Outline of Air Conditioner Control • Detection of inverter input current and current release operation This air conditioner is a capacity-variable type air • Over-current detection and prevention operation to conditioner. Its system can control the speed of compressor motor according to load.
Page 26 9-2. Operation Description 1. Basic operation ...................... 1. Operation control ....................2. Cooling/Heating operation ................3. AUTO operation ....................4. DRY operation ....................2. Indoor fan motor control ..................3. Outdoor fan motor control ..................4. Capacity control ..................... 5. Current release control ..................6.
Page 27: Basic Operation
Item Operation flow and applicable data, etc. Description 1. Basic 1. Operation control operation Receiving the user’s operation condition setup, the operation statuses of indoor/outdoor units are controlled. 1) The operation conditions are selected by the remote controller as shown in the below. 2) A signal is sent by ON button of the remote controller.
Page 28: Cooling/Heating Operation
Item Operation flow and applicable data, etc. Description 1. Basic 2. Cooling/Heating operation operation The operations are performed in the following parts by controls according to cooling/heating conditions. 1) Receiving the operation ON signal of the remote controller, the cooling or heating operation signal starts being transferred form the indoor controller to the outdoor unit.
Page 29: Indoor Fan Motor Control
*5 : Fan speed = (M + –L) x 1/4 + L +1.0 +0.5 (Linear approximation L(W7) from M+ and L) (Table 1) Indoor fan air flow rate Fan speed Mode RAS-B25E2KVG-ND RAS-B35E2KVG-ND level Cooling Heating Cooling Heating Cool Heat...
Page 30 Item Operation flow and applicable data, etc. Description 2. Indoor fan <In heating operation> 1) When setting the fan speed to L, motor control L+, M, M+ or H on the remote controller, the operation is per- formed with the constant speed HEAT ON shown in Fig.
Page 31: Outdoor Fan Motor Control
Item Operation flow and applicable data, etc. Description 3. Outdoor fan The blowing air volume at the outdoor unit side is controlled. 1) The operation command sent motor control from the remote controller is Receiving the operation command from the controller of processed by the indoor unit indoor unit, the controller of outdoor unit controls fan speed.
Page 32: Capacity Control
Item Operation flow and applicable data, etc. Description 4. Capacity The cooling or heating capacity depending on the load is 1) The difference between set control adjusted. temperature on remote controller (Ts) and room temperature (Ta) According to difference between the setup value of tempera- is calculated.
Page 33: Release Protective Control By Temperature Of Indoor Heat Exchanger
Item Operation flow and applicable data, etc. Description 6. Release protective <In cooling/dry operation> 1) When temperature of the indoor control by tempera- heat exchanger drops below 5°C, (Prevent-freezing control for indoor heat exchanger) ture of indoor heat the compressor speed is In cooling/dry operation, the sensor of indoor heat exchanger reduced.
Page 34: Defrost Control (Only In Heating Operation)
Item Operation flow and applicable data, etc. Description 7. Defrost control (This function removes frost adhered to the outdoor The necessity of defrost operation is (Only in heating heat exchanger.) detected by the outdoor heat exchanger temperature (TE) and outdoor air operation) The temperature sensor of the outdoor heat temperature (TO).
Page 35: Louver Control
Item Operation flow and applicable data, etc. Description 8. Louver control This function controls the air direction of the indoor unit. 1) Louver • The position is automatically controlled according to the operation position mode (COOL/HEAT). • The set louver position is stored in memory by the microcomputer, and the louver returns to the stored position when the next operation is performed.
Page 36: Eco Operation
* 10 (DRY max - COOL min) /6 x 3 + COOL min * 9 (DRY max - COOL min) /6 x 2 + COOL min * 8 (DRY max - COOL min) /6 x 1 + COOL min RAS-B35E2KVG-ND RAS-B25E2KVG-ND Cool min (Hz) DRY max (Hz) <Heating operation>...
Page 37: Temporary Operation
Item Operation flow and applicable data, etc. Description 10. Temporary Pressing [RESET] button starts the temporary opera- 1) When pressing [RESET] button, the operation tion of [AUTO] operation. When keeping [RESET] temporary [AUTO] operation starts. button pressed for 10 seconds or more, the temporary 2) When keeping [RESET] button pressed [COOL] operation is performed.
Page 38: Pulse Modulating Valve (P.m.v.) Control
Item Operation flow and applicable data, etc. Description 13. Pulse This function controls throttle amount of the 1) When starting the operation, move the Modulating refrigerant in the refrigerating cycle. valve once until it fits to the stopper. valve (P.M.V.) (Initialize) According to operating status of the air conditioner, control...
Page 39: Self-Cleaning Function
Item Operation flow and applicable data, etc. Description 14. Self-Cleaning 1. Purpose function The Self-Cleaning operation is to minimize the growth of mold, bacteria etc. by running the fan and drying so as to keep the inside of the air conditioner clean. Unit now performing cooling or dry operation Self-Cleaning operation When the cooling or dry operation shuts...
Page 40: Self-Cleaning Function Release
Item Operation flow and applicable data, etc. Description 14. Self-Cleaning function 14-1-1. Self-Cleaning diagram Operation display FCU fan rpm is depend on presetting. (500RPM) FCU louver OPEN OPEN (12.7º) CLOSE ON or OFF ON or OFF Timer display depend on presetting of timer function. depend on presetting of timer function.
Page 41: Remote-A Or B Selection
Item Operation flow and applicable data, etc. Description 15. Remote-A or B Setting the remote controller 1. Purpose selection This operation is to operate only one To separate using of remote controller for each indoor unit using one remote controller. indoor unit in case of 2 air conditioner are installed nearly.
Page 42: Sound Level
Item Operation flow and applicable data,etc Description 17. Silent Silent button on remote controller is pressed. This function is used when the user need Operation Silent 1: to keep silent at outdoor side. It is limit Cooling/heating capacity is limited maximum for maximum compressor speed and CDU 70% of rated.
Page 43: Quiet Mode
Remarks : Quiet mode is unable to work in dry mode. Model RAS-B25E2KVG-ND RAS-B35E2KVG-ND Quiet mode is appropriate to work with less Cool/Heat min (Hz) cooling load and less heating load condition. Quiet Cool (Hz)
Page 44: Comfort Sleep Mode
Item Operation flow and applicable data, etc. Description 21. COMFORT Cooling mode The principles of comfort sleep mode are: SLEEP mode • Quietness for more comfortable. When • The preset temperature will increase as room temperature reach setting temperature show on ECO operation (Item No. 9) •...
Page 45: Short Timer
Item Operation flow and applicable data, etc. Description 24. Short Timer In the normal condition, after switching one circuit Purpose breaker, 3-minute delay time for compressor and To start the unit immediately for the purpose of 1 hour for plasma air purifier are set for the testing, trial...etc, short timer can be used.
Page 46: Auto Restart Function
9-3. Auto Restart Function This indoor unit is equipped with an automatic restarting function which allows the unit to restart operating with the set operating conditions in the event of a power supply being accidentally shut down. The operation will resume without warning three minutes after power is restored. This function is set to work when shipped from the factory.
Page 47: How To Set The Auto Restart Function
9-3-2. How to Set the Auto Restart Function To set the auto restart function, proceed as follows: The power supply to the unit must be on ; the function will not set if the power is off. Press the [RESET] button located in the center of the front panel continuously for three seconds. The unit receives the signal and beeps three times.
Page 48: Remote Controller And Its Functions
9-4. Remote controller and Its Functions 9-4-1. Parts Name of Remote Controller 1 Infrared signal emitter 2 Start/Stop button ( 3 Mode select button ( 4 Temperature button ( 5 Fan speed button ( 6 Swing louver button ( SWING 7 Set louver button ( 8 8°C Heating Operation ( 8°C...
Page 49 4. Hi-POWER OPERATION To automatically control room temperature and airflow for faster cooling or heating operation (except in DRY and FAN ONLY mode). Press : Start and stop the operation. Hi POWER 5. ECO OPERATION To automatically control room temperature to save energy (except in DRY and FAN ONLY mode). Press : Start and stop the operation.
Page 50: Quiet Operation
9. AUTO RESTART FUNCTION SETTING This product is designed so that, after a power failure, it can restart automatically in the same operating mode as before the power failure. Information The product is shipped with Auto Restart function in the ON position. Turn it OFF if this function is not required. How to turn OFF the Auto Restart Function Press and hold the [OPERATION] button on the indoor unit for 3 seconds (3 beep sounds but OPERATION lamp does not blink).
Page 51: Name And Functions Of Indications On Remote Controller
14. MANUAL DEFORST OPERATION To defrosting the heat exchanger of the outdoor unit during Heating operation. Press and hold : for 5 sec. then remote control display will show [ ] as picture 1 for 2 sec. 9-4-3. Name and Functions of Indications on Remote Controller All indications, except for the clock time indicator, are displayed by pressing the button.
Page 52: Installation Procedure
10. INSTALLATION PROCEDURE 10-1. Installation Diagram of Indoor and Outdoor Units For the rear left, bottom left and left piping Wall Hook Installation plate Cut out a piece of SPACER from indoor unit packaging box, roll it and insert between the indoor unit and wall to tilt the indoor unit for better operation.
Page 53: Optional Installation Parts
10-2. Installation 10-2-1. Optional installation parts Part Parts name Q’ty code Refrigerant piping Liquid side : Ø6.35 mm each Gas side : Ø9.52 mm Pipe insulating material (polyethylene foam, 6 mm thick) Putty, PVC tapes each <Fixing bolt arrangement of outdoor unit> 108 mm Air inlet Air outlet...
Page 54: Accessory And Installation Parts
10-2-2. Accessory and installation parts Indoor Unit Part name Part name Installation plate × 1 Wireless remote controller × 1 Battery × 2 Remote controller holder × 1 Mounting screw × 6 Flat head wood screw × 2 Owner’s Manual × 1 Installation Manual ×...
Page 55 10-2-3. Installation/Servicing Tools Changes in the product and components In the case of an air conditioner using R32, in order to prevent any other refrigerant from being charged accidentally, the service port diameter of the outdoor unit control valve (3 way valve) has been changed. (1/2 UNF 20 threads per inch) •...
Page 56: Indoor Unit
10-3-2. Cutting a hole and mounting installation plate 10-3. Indoor Unit 10-3-1. Installation place <Cutting a hole> • A place which provides the spaces around the indoor When installing the refrigerant pipes from the rear. unit as shown in the diagram •...
Page 57: How To Connect Remote Controller For Wire Operation
NOTE: CAUTION • Secure four corners and lower parts of the • If have curtain rails, window cornice or other installation plate with 4 to 6 mounting screws to objects, allow space from the indoor unit should install it. be 65 mm or more. •...
Page 58: Piping And Drain Hose Installation
< For remote controller > *Remark : 1. Recommend to use double insulation lead wire for connect remote controller and air conditioner. Remove cover of remote controller by sliding down and take it out. For wire operation, 1 remote controller can control If batteries are exist, please take them out.
Page 59 <In case of right or left piping> <How to remove the drain hose> • After scribing slits inside of the front panel with a knife or • The drain hose can be removed by removing a making-off pin, cut them with a pair of nippers or an the screw securing the drain hose and then equivalent tool.
Page 60: Indoor Unit Fixing
10-3-6. Drainage CAUTION 1. Run the drain hose sloped downwards. • Bind the auxiliary pipes (two) and connecting cable with facing tape tightly. In case of leftward NOTE piping and rear-leftward piping, bind the auxiliary • Hole should be made at a slight downward slant on pipes (two) only with facing tape.
Page 61: Outdoor Unit
10-4-2. Precautions about installation in Regions 10-4. Outdoor Unit with Snowfall and Cold Temperatures 10-4-1. Installation place • Do not use the supplied drain nipple for draining • A place which provides the spaces around the water. Drain the water from all the drain holes directly. outdoor unit as shown in the diagram •...
Page 62: Draining The Water
Draining the Water 10-4-3. Refrigerant piping connection • Holes are provided on the base plate of the outdoor <Flaring> unit to ensure that the defrost water produced during 1. Cut the pipe with a pipe cutter. heating operations is drained off efficiently. If a centralized drain is required when installing the unit on a balcony or wall, follow the steps below to drain off the water.
Page 63: Air Purge
<Tightening connection> Evacuating Align the centers of the connecting pipes and tighten After the piping has been connected to the indoor unit, the flare nut as far as possible with your fingers . Then you can perform the air purge together at once. tighten the nut with a spanner and torque wrench as shown in the figure.
Page 64: Vacuum Pump
CAUTION • Securely tighten the valve cap with torque in the following table • KEEP IMPORTANT 7 POINTS FOR PIPING WORK Take away dust and moisture (inside of the Cap Size (H) Torque connecting pipes). 14~18 N.m Tighten the connections (between pipes and unit). H17 - H19 Valve Rod (1.4 to 1.8 kgf·m)
Page 65: Electrical Works
10-5. Electrical works The power supply can be selected to connect to indoor unit or outdoor unit. Choose proper way and connect the power supply and connecting cable by follow the instruction as following. RAS-B25E2KVG-ND RAS-B35E2KVG-ND Model Power source 50 Hz, 220 – 240 V Single phase 7.20 A...
Page 66 10-5-2. In Case of Indoor Unit Connect With 1:1 Outdoor Unit Power Supply Input at Outdoor Unit Terminal Block (Recommend) Indoor Unit Outdoor Unit Stripping length of the Connecting cable Connecting cable 1 2 3 connect to 1 2 3 connecting cable Terminal block Earth line...
Page 67 10-5-3. Power supply input Wiring Diagram for 1:1 Outdoor Unit Power input at Outdoor Terminal Block (Recommend) Indoor Terminal Block Outdoor Terminal Block L N GND Power supply input Power input at Indoor Terminal Block (Optional) Indoor Terminal Block GND L N Power supply input Outdoor Terminal...
Page 68 10-5-4. In Case of Indoor Unit Connect With Inverter Multi System (IMS) Indoor Unit Stripping length of the Connecting cable Connecting cable connect to 1 2 3 Connecting cable Terminal block Earth line 50 mm 10 mm 10 mm 70 mm Earth line Connecting cable...
Page 69 10-6. Others Note : 1. Repeat previous step to reset Remote Control to be A. 10-6-1 . Gas leak test 2. Remote Control A have not “A” display. 3. Default setting of Remote Control from factory is A. Check places for indoor unit (Flarenut connection) F ig.
Page 70 10-6-4. Auto Restart Function Setting This product is designed so that, after a power failure, it can restart automatically in the same operating mode as before the power failure. Information The product is shipped with Auto Restart function in the ON position.
Page 71: How To Diagnose The Trouble
11. HOW TO DIAGNOSE THE TROUBLE The pulse motor circuits are mounted to both indoor and outdoor units. Therefore, diagnose troubles according to the trouble diagnosis procedure as described below. (Refer to the check points in servicing written on the wiring diagrams attached to the indoor/outdoor units.) Table 11-1 Troubleshooting Procedure...
Page 72 CAUTION A high voltage (equivalent to the supply voltage) is also energized to ground through the sensors, PMV and other low-voltage circuits. The sensor leads and other wires are covered with insulated tubes for protection. Nevertheless, care must be taken to ensure that these wires are not pinched.
Page 73 K Precautions when inspecting the control section of the outdoor unit NOTE : A large-capacity electrolytic capacitor is used in the outdoor unit controller (inverter). Therefore, if the power supply is turned off, charge (charging voltage DC280 to 380V) remains and discharging takes a lot of time. After turning off the power source, if touching the charging section before discharging, an electrical shock may be caused.
Page 74: First Confirmation
11-1. First Confirmation 11-1-1. Confirmation of Power Supply Confirm that the power breaker operates (ON) normally. 11-1-2. Confirmation of Power Voltage Confirm that power voltage is AC 220–230–240 ± 10%. If power voltage is not in this range, the unit may not operate normally. 11-1-3.
Page 75: Primary Judgment
11-2. Primary Judgment To diagnose the troubles, use the following methods. 1) Judgment by flashing LED of indoor unit 2) Self-diagnosis by service check remote controller 3) Judgment of trouble by every symptom Firstly use the method 1) for diagnosis. Then, use the method 2) or 3) to diagnose the details of troubles. 11-3.
Page 76: Self-Diagnosis By Remote Controller (Check Code)
11-4. Self-Diagnosis by Remote Controller (Check Code) 1. If the lamps are indicated as shown B to E in Table 11-3-1, execute the self-diagnosis by the remote controller. 2. When the remote controller is set to the service mode, the indoor controller diagnoses the operation condi- tion and indicates the information of the self-diagnosis on the display of the remote controller with the check codes.
Page 77 11-4-2 Caution at Servicing 1. After using the service mode of remote controller finished, press the [ ] button to reset the remote controller to normal function. 2. After finished the diagnosis by the remote controller, turn OFF power supply and turn its ON again to reset the air conditioner to normal operation.
Page 78 Block distinction Operation of diagnosis function Action and Judgment Check Check Display flashing Block Cause of operation conditioner code code error status Serial signal 1) Defective wiring of the Indoor unit Flashes when 1) to 3) The outdoor unit never and connecting connecting cable or operates...
Page 79 Block distinction Operation of diagnosis function Action and Judgment Check Check Display flashing Block Cause of operation conditioner code code error status Outdoor P.C. Current on inverter circuit All OFF Flashes after 1. Remove connecting lead wire of the board is over limit in short time.
Page 80 Block distinction Operation of diagnosis function Action and Judgment Check Check Display flashing Block Cause of operation conditioner code code error status Outdoor P.C. Compressor drive output error. All OFF Flashes after 1. Check installation conditions such as board (Relation of voltage, current error is detected packed valve opening, refrigerant 8 times*.
Page 81 Block distinction Operation of diagnosis function Action and Judgment Check Check Display Block Cause of operation conditioner code code flashing error status Compressor does not rotate. All OFF Flashes after 1. Remove connecting lead wire of the The others Because of missed wiring, error is detected compressor, and operate again.
Page 82 Block distinction Operation of diagnosis function Action and Judgment Check Check Display Block Cause of operation conditioner code code flashing error status The others Return signal of the outdoor Indoor unit Flashes when 1. . Check power supply (Rate +10%) operates error is detected (including...
Page 83: Judgment Of Trouble By Every Symptom
11-5. Judgment of Trouble by Every Symptom 11-5-1. Indoor Unit (Including Remote Controller) (1) Power is not turned on (Does not operate entirely) <Primary check> 1. Is the supply voltage normal? 2. Is the normal voltage provided to the outdoor unit? 3.
Page 84 (2) Power is not turned on though Indoor P.C. board is replaced <Confirmation procedure> Turn on power supply. Return the wiring of the power relay is returned to Is it wired as shown in Figure below? Does operation lamp flash? the normal procedure.
Page 85 (3) Only the indoor motor fan does not operate <Primary check> 1. Is it possible to detect the power supply voltage (AC220–240V) between on the terminal block? 2. Does the indoor fan motor operate in cooling operation? (In heating operation, the indoor fan motor does not operate for approximately 10 minutes after it is turned on, to prevent a cold air from blowing in.) Shut off the power supply once.
Page 86: Resistance Value
(4) Indoor fan motor automatically starts to rotate by turning on power supply [For AC fan motor] <Inspection procedure> 1. Remove the front panel. (Remove 2 screws.) 2. Remove the cover of the fan motor lead wires. 3. Check AC voltage with CN31 connector while the fan motor is rotating. NOTE : •...
Page 87 (5) Troubleshooting for remote controller <Primary check> Check that A or B selected on the main unit is matched with A or B selected on the remote controller. There is no beep from the indoor unit Push the [ ] button. The OPERATION lamp of the air conditioner main unit does not light Does the transmission...
Page 88 11-5-2. Wiring Failure (Interconnecting and Serial Signal Wire) (1) Outdoor unit does not operate 1) Is the voltage between of the indoor terminal block varied? Confirm that transmission from indoor unit to outdoor unit is correctly performed based upon the follow- ing diagram.
Page 89 11-6. How to Check Simple the Main Parts <Check procedure> Gas leakage, Discharge temp. error, disconnection of TS/TC gas leakage sensors (Check code 02, 1C) (Check code 03, 1E) Does this model have P.M.V. or not? Valve drive check Is coil of the pulse motor valve Set it correctly.
Page 90 11-7. How to Diagnose Trouble in Outdoor Unit 11-7-1. Summarized Inner Diagnosis of Inverter Assembly Table 11-7-1 Diagnosis/Process flowchart Item Contents Summary Preparation Turn “OFF” the power supply breaker, and remove 3P Remove connector connector which connects of compressor. inverter and compressor. Check •...
Page 91: How To Check Simply The Main Parts
Diagnosis/Process flowchart Item Contents Summary Check Check winding resistance between phases of compres- sor, and resistance between outdoor frames by using a tester. → OK if 20MΩ or more • Is it grounded? Replace control board assembly. • Is it short-circuit ...
Page 92: Check Procedures
(3) Check procedures Table 11-8-1 Procedure Check points Causes Turn off the power supply breaker Check whether or not the fuse (F01) Impulse voltage was applied or the and remove the P.C. board is blown. indoor fan motor short-circuited. assembly from electronic parts base.
Page 93: Board Layout
11-8-2. P .C . Board Layout +12V [1] Sensor characteristic table : Discharge temp. sensor : Room temp. sensor : Heat exchanger temp. sensor : Heat exchanger temp. sensor : Outdoor temp. sensor : Suction temp. sensor TA, TC, TCJ, TO, TS,TE : Outdoor heat exchanger temp.
Page 94 11-8-3. Indoor Unit (Other Parts) Part name Checking procedure Room temp. (TA) sensor Disconnect the connector and measure the resistance value with tester. Heat exchanger (TC,TCJ) (Normal temp.) sensor Temperature 10°C 20°C 25°C 30°C 40°C Sensor TA, TC, TCJ (kΩ) 20.7 12.6 10.0...
Page 95: Checking Procedure
11-8-5. Checking Method for Each Part Part name Checking procedure Electrolytic capacitor 1. Turn OFF the power supply breaker. 2. Discharge all three capacitors completely. 3. Check that safety valve at the bottom of capacitor is not broken. 4. Check that vessel is not swollen or exploded. 5.
Page 96: How To Simply Judge Whether Outdoor Fan Motor Is Good Or Bad
11-9. How to Simply Judge Whether Outdoor Fan Motor is Good or Bad 1. Symptom • Outdoor fan motor does not rotate. • Outdoor fan motor stops within several tens seconds though it started rotating. • Outdoor fan motor rotates or does not rotate according to the position where the fan stopped, etc. Remote controller check code “02 : Outdoor block, 1A : Outdoor fan drive system error”...
Page 97: How To Replace The Main Parts
12. HOW TO REPLACE THE MAIN PARTS WARNING • Since high voltages pass through the electrical parts, turn off the power without fail before proceeding with the repairs. Electric shocks may occur if the power plug is not disconnected. • After the repairs have been completed (after the front panel and cabinet have been installed), perform a test run, and check for smoking, unusual sounds and other abnormalities.
Page 98 Part name Procedures Remarks Front panel Stop operation of the air conditioner and turn Front panel off its main power supply. Open two screw caps and securely remove screws (2 pcs.) at the front panel. Hooks of front panel Screw Screw Screw cap Front panel...
Page 99 Part name Procedures Remarks Horizontal louver 1) Remove shaft of the horizontal louver from the back body. (First remove 2 the center shafts then remove the other shafts.) Drain pan Horizontal louver Fan motor 1) Follow the procedure item 3 and 4 . 2) Loosen the set screw of the cross flow fan.
Page 100 Part name Procedures Remarks Drain pan 1) Follow the procedure item 3 . assembly 2) Remove screw holding the electric part cover. TA sensor Connectors TCJ sensor Fan motor connector Earth line Louver motor connector Screw Electric part cover TC sensor P.C.board Louver motor connector...
Page 101 Part name Procedures Remarks Drain hose 1) Follow the procedure item 3 . 2) The drain hose can be removed by removing the screw securing the drain hose and then pulling out the drain hose. 3) When removing the drain hose, be careful of any sharp edges of steel plate.
Page 102 Part name Procedures Remarks Cross flow fan 1) Follow the procedure item 3 and 4 . 2) Loosen the set screw of the cross flow fan. Heat exchanger 3) Remove 4 fixing screws from the bearing base then remove it from the main unit. 4) Lift up the heat exchanger follow the figure.
Page 103 Part name Procedures Remarks Heat exchanger 1) Follow the procedure in item 3 and 4 . (Evaporator) 2) Remove 2 fixing screws at the left side of the heat exchanger. 3) Remove fixing screw at the upper right side Screws of the heat exchanger.
Page 104 Microcomputer Part name Procedure Remarks Common procedure 1) Turn the power supply off to stop the Replace terminal block, operation of air-conditioner. microcomputer ass’y and the P .C. board ass’y. 2) Remove the front panel. • Remove the 2 fixing screws. 3) Remove the electrical part base.
Page 105 12-2. Outdoor unit Remarks Part name Procedures 1. Detachment Common procedure NOTE Upper cabinet Wear gloves for this job. Otherwise, you may injure your hands on the parts, etc. 1) Stop operation of the air conditioner, and turn off the main switch of the breaker for air conditioner.
Page 106 Remarks Part name Procedures 1. Detachment Front cabinet 1) Perform step 1 in 1. 2) Remove the fixing screws (ST2TØ4 × 10L 2 pcs.) used to secure the front cabinet and inverter cover, the screws (ST2TØ4 × 10L 4 pcs.) used to secure the front cabinet at the bottom, and the fixing screws (ST2TØ4 ×...
Page 107 Part name Procedures Remarks Inverter assembly 1) Perform work of item 1 in 1. 2) Remove screw (ST2TØ4 × 10L 2 pcs.) of the upper part of the front cabinet. • If removing the inverter cover in this condition, P.C. board can be checked. •...
Page 108 Part name Procedures Remarks Control board 1. Disconnect the leads and connectors connected to the other assembly parts from the control board assembly. CN602 CN600 CN603 CN601 CN703 1) Leads • 3 leads (black, white, orange) connected to terminal block. CN300 •...
Page 109 Part name Procedures Remarks Side cabinet 1. Side cabinet (right) 1) Perform step 1 in 2 and all the steps in 3. 2) Remove the fixing screw (ST2TØ4 × 10L 4 pcs.) used for securing the side cabinet to the bottom plate and valve fixing panel 2.
Page 110 Part name Procedures Remarks Compressor 1) Perform work of item 1 of 1 and 2, 3, 4, 5. 2) Extract refrigerant gas. 3) Remove the partition board. (ST2TØ4 × 10L 3 pcs.) 4) Remove the sound-insulation material. 5) Remove terminal cover of the compressor, and disconnect lead wire of the compressor from the terminal.
Page 111 Part name Procedures Remarks Electronic expansion 1. Detachment valve coil 1) Perform step 1 in 1 , all the steps in 2 and 1 in 5 . 2) Turn the coil by 180 degrees then remove by pull it upward. Attachment 1) Insert the coil at position which perpendicular with pipe of PMV then turn...
Page 112 Part name Procedures Remarks TE sensor (outdoor heat exchanging temperature sensor) " • Attachment Install the sensor onto the straight pipe part of the condenser output pipe. TS sensor (Suction pipe temperature sensor) • Attachment Install the senser onto the straight pipe part of the suction pipe. Be careful for the lead direction of the sensor.
Page 113: Exploded Views And Parts List
13. EXPLODED VIEWS AND PARTS LIST 13-1. Indoor Unit ELECTRICAL PARTS ASSEMBLY Location Part Location Part Description Description 43T00912 FRONT PANEL ASSY 43T39442 MOTOR BAND BACK ASSY 43T09613 GRILLE OF AIR INLET ASSY 43T39367 MOTOR BAND FRONT 43T80357 AIR FILTER 43T44869 REFRIGERATION CYCLE ASSY 43T03417...
Page 114 13-2. Indoor Unit (Part-E) Location Part Location Part Description Description 43T50394 TEMPERATURE SENSOR 43TNV466 PC BOARD (WP-050) 43T6V673 TERMINAL(5P-TF) (FOR RAS-B35E2KVG-ND) 43T50413 TA-SENSOR 43T60502 HOUSING-WiFi 43T62340 CORD-CLAMP 43T60605 TEMPERATURE SENSOR 43T6W440 PC BOARD ASSY:WRS-LED 43TNV465 PC BOARD (WP-050) (FOR RAS-B25E2KVG-ND) - 114 -...
Page 115 13-3. Outdoor Unit Location Part Location Part Description Description 43T42380 ASM-BASE(WITH HEATER) 43T41521 COMPRESSOR 43T00459 LEFT CABINET (FOR RAS-25E2AVG-ND) 43T00690 RIGHT CABINET ASSEMBLY 43T47403 BONNET, 6.35 DIA 43T00735 UPPER CABINET ASSEMBLY 43T47404 BONNET, 9.52 DIA 43T00688 FRONT CABINET ASSEMBLY 43T46504 VALVE;PACKED 6.35 DIA 43T00448 FIXING PLATE VALVE...
Page 116 13-4. Outdoor Unit (Part-E) FUSE TE-SENSOR PC BOARD TS-SENSOR TO-SENSOR HOLDER SENSOR HEATSINK TD-SENSOR (TE-SENSOR) HOLDER SENSOR (TS-SENSOR) PC PLATE BASE TUBE (TO-SENSOR) TERMINAL HOLDER SENSOR (TD-SENSOR) Location Part Location Part Description Description 43T62351 HEATSINK 43T50360 TC-SENSOR(TO) 43TN9697 PC BOARD 43T50336 TEMPERATURE SENSOR (FOR RAS-25E2AVG-ND)
Page 117 CARRIER AIR CONDITIONING (THAILAND) CO., LTD. 144/9 MOO 5, BANGKADI INDUSTRIAL PARK, TIVANON ROAD, TAMBOL BANGKADI, AMPHUR MUANGPATHUMTHANI, PATHUMTHANI 12000, THAILAND...
