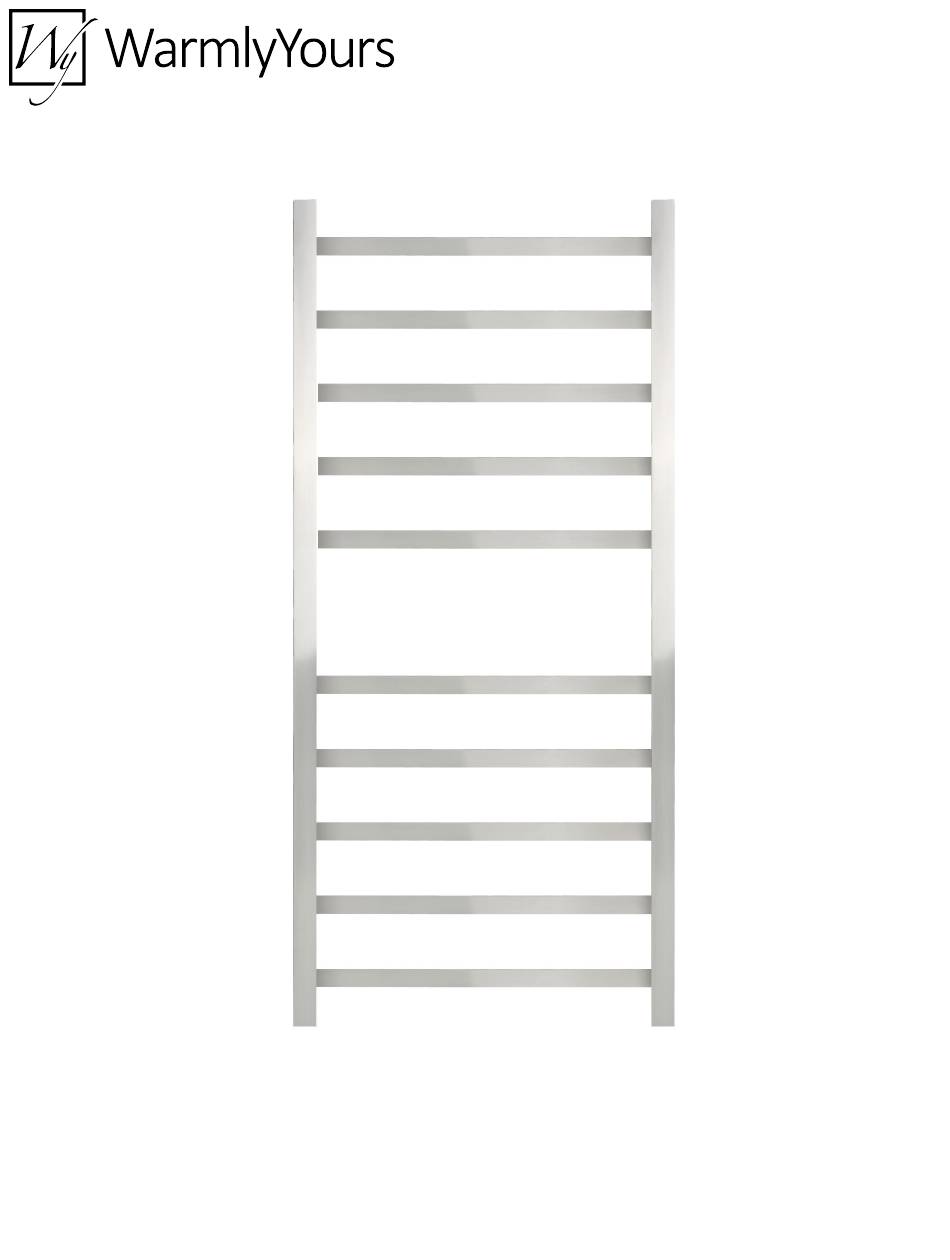

- Page 1 TW-MT-10PS-HP Installation & Operation Manual for WarmlyYours Metropolitan Dual Connection Towel Warmers...
- Page 2 allation instruction 0005-51220-0000 ” 4 PCS 0005-51820-0000 Wallplate, stainless, with grommet and ground 0005-58200-0001 570 mm 0005-51200-0001 Screw wallplate, stainless 6/32 0005-57500-0001 Bracket Assembly Instructions (continued) 0005-58820-0000 Tube, stainless, round, electrical 0005-58120-0001 4PCS structions carefully before installation 4 PCS 3PCS 0005-51900-0000 Wrench, hex, 2.5 0005-51200-0000...
-
Page 3: Tools Required
E68 Radiator Installation Instruction Installation Instructions (Plug-in) tools required 1-2. TOOLS REQUIRED Ø8mm Installation instruction INSTALLATION INSTRUCTIONS - Review instructions carefully before installation - Review instructions carefully before installation - installation should be completed by a suitably qualified person - Installation should be completed by a qualified person - please dispose of packaging in a responsible manner - Please dispose of packaging in a resposible manner ”... - Page 4 Installation Instructions (Plug-in)
- Page 5 Bracket Assembly Instructions (continued) Plug-In Model Only Plug the cord into a properly grounded outlet. Do NOT use an extension cord to make the connection between the towel warmer plug and outlet. Step 1 Hold the towel warmer in place while tightening the hex-head screws D at the base of each section of tubing A using the smaller Allen wrench L provided to secure the towel warmer in place.
- Page 6 Bracket Assembly Instructions (continued) Step 3 Measure for bracket positions using the template if desired. At least two brackets must be attached to a stud. Step 4 Affix brackets C and H to the wall using screw G and drywall anchor F where necessary. Repeat Step 4 for the remaining brackets.
- Page 7 Hardwire Assembly and Wiring ( Diagram E) Φ8mm Φ8mm Φ8mm Φ8mm Φ8mm Φ8mm Φ8mm...
- Page 8 TO HOUSE GROUND NEUTRAL (WHITE) CONNECT TO HOUSE GROUND ENSURE THE SYSTEM IS GROUNDED * WE RECOMMEND TO ISOLATE THE YELLOW 3 WAY WIRE FROM THE OTHER WIRES USING A SOLDERLESS WIRE NUT CONNECTOR. nstallation Support • (800) 875-5285 • www.WarmlyYours.com...
- Page 9 Code (NEC) and Canadian Electrical Code (CEC), and all applicable local building and electrical codes. Controls sold under the WarmlyYours.com Inc. name are warranted for one year from the date of sale. Any suspected defect must be reported by registered letter immediately upon discovery. The determination of such a defect must be made by WarmlyYours.
