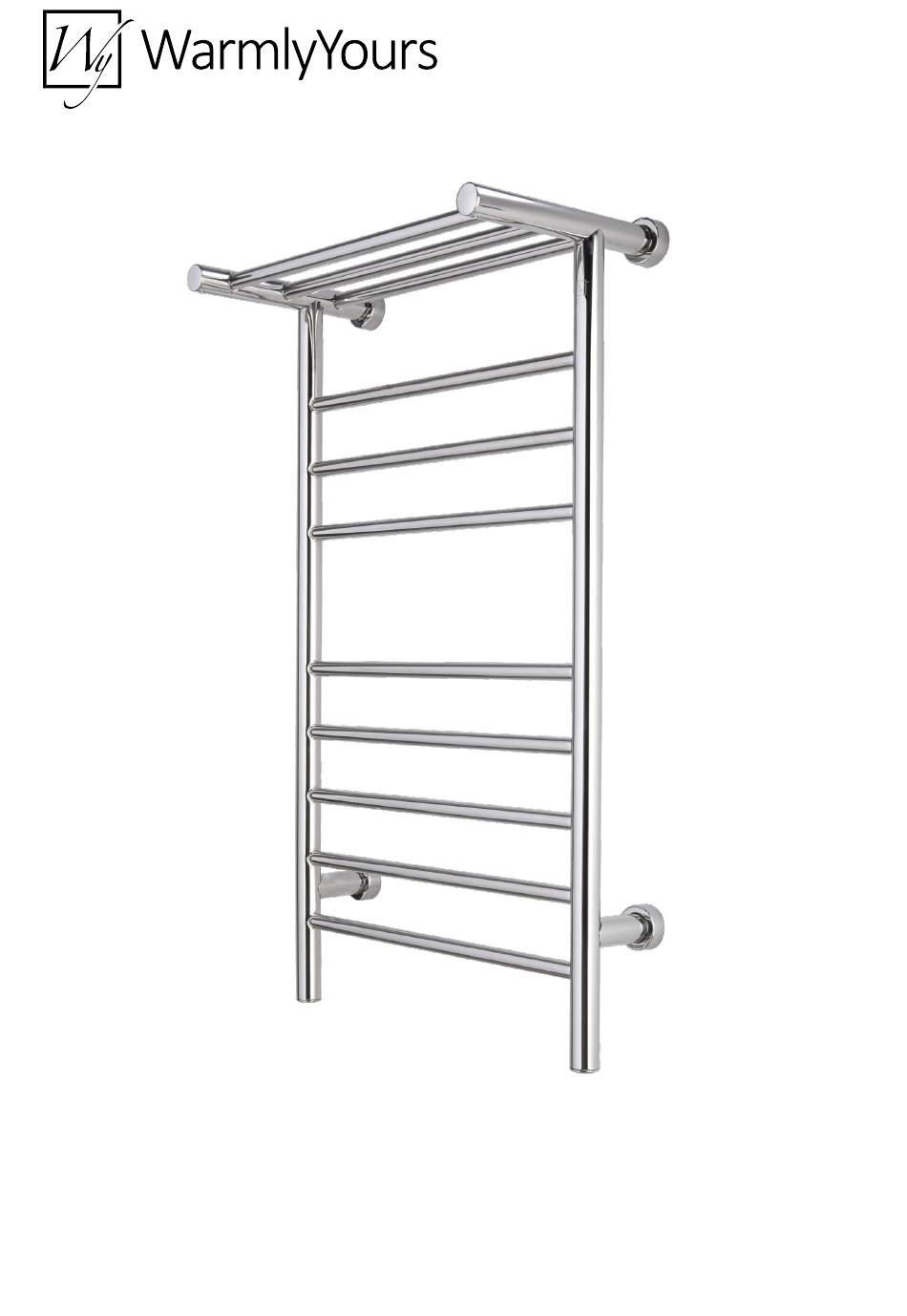

- Page 1 TW-SUM08KS-HP TW-SUM08PS-HP Installation & Operation Manual for WarmlyYours Summit Dual Connection Towel Warmers...
-
Page 2: Safety Information
Thank you for choosing your finely crafted WarmlyYours Towel Warmer. Now you can add luxury and comfort to your bathroom with the soothing embrace of a warm towel or bathrobe upon stepping from the shower. The radiant heat from the Towel Warmer warms your towel. - Page 3 Affixing the Towel Warmer to the Wall STEP 1 Draw a diagram of the preferred location of the brackets on the Towel Warmer box to create a template (see Step 2 for template instructions). At least two of the four brackets must be attached directly to a stud. The Summit Plug-In model must be installed less than 6 feet (183cm) from a properly grounded outlet to ensure the plug can reach.
- Page 4 Affixing the Towel Warmer to the Wall - cont’d Note: Dimensions shown are distances between the center of anchor points. This example shows 16 inches (406mm) on center construction. Your situation may vary depending on your stud spacing. WARNING: Locations of the anchor points may vary. Measure all dimensions prior to rough-in and installation.
- Page 5 Affixing the Towel Warmer to the Wall (continued) Diagram B: Rough-In Diagram Note: Dimensions shown are distances between the center of anchor points. This example shows 16 inches (406mm) on center construction. Your situation may vary depending on stud spacing. WARNING: Locations of anchor points may vary.
- Page 6 Bracket Assembly Instructions Plug-In Model Only Plug the cord into a properly grounded outlet. Do NOT use an extension cord to make the connection between the towel warmer plug and outlet. Step 1 Hold the towel warmer in place while tightening the hex-head screws H at the base of each section of tubing A using the Allen wrench F provided to secure the towel warmer in place.
- Page 7 Installation Instructions (Plug-in)
- Page 8 Installation Instructions (Plug-in)
-
Page 9: Parts List
Bracket Assembly Instructions (continued) Parts List Power Leg Plug Summit Power Leg Part Number Description Quantity Partslist ID 0005-58100-0000 Bracket, Round, Mounting, Full 0005-58200-0004 Screw, Set, Allen, Socket, M5*4 0005-58500-0000 Anchor, Wall 0005-58200-0003 Screw, Bracket Mounting, ST4.2*40, Phillips 0005-58110-0001 Bracket, Mounting, Power Leg, 3/4 size 0005-51900-0000 Wrench, Hex, 2.5mm 0005-58790-0000... - Page 10 Bracket Assembly Instructions (continued) Step 3 Measure for bracket positions using the template if desired. At least two brackets must be attached to a stud. Step 4 Affix brackets A and E to the wall using screw D and drywall anchor C where necessary.
- Page 11 Hardwire Assembly and Wiring ( Diagram E) step step 1 step 2 step 1 step 1 step 2 step 2 step step 3.1 step 3.1 step 3.1 step 4 step 4 step 4 step 6 step 6 Φ8mm Φ8mm Φ8mm step 1 step 2 step 3.2...
-
Page 12: Operation
With a Control You may want to pair your towel warmer with a compatible WarmlyYours timer or switch. Make sure to refer to the installation manual of the control for proper operation and installation. If you have any questions, call (800) 875-5285. -
Page 13: Connection Method
Product Construction - Towel Warmer The towel warmer is constructed from 304 stainless steel with a wall thickness of between 0.6 mm and 1.0 mm. The towel warmer is heated by a UL listed wire. The mounting brackets are manufactured from stainless steel and finished to match the finish of the specific model. - Page 14 Any suspected defect must be reported by registered letter immediately upon discovery. The determination of such a defect must be made by WarmlyYours. com Inc. or its authorized representative only. This warranty is null and void if the product is improperly installed, improperly operated, or abused.
