Summary of Contents for WarmlyYours TW-E2CP

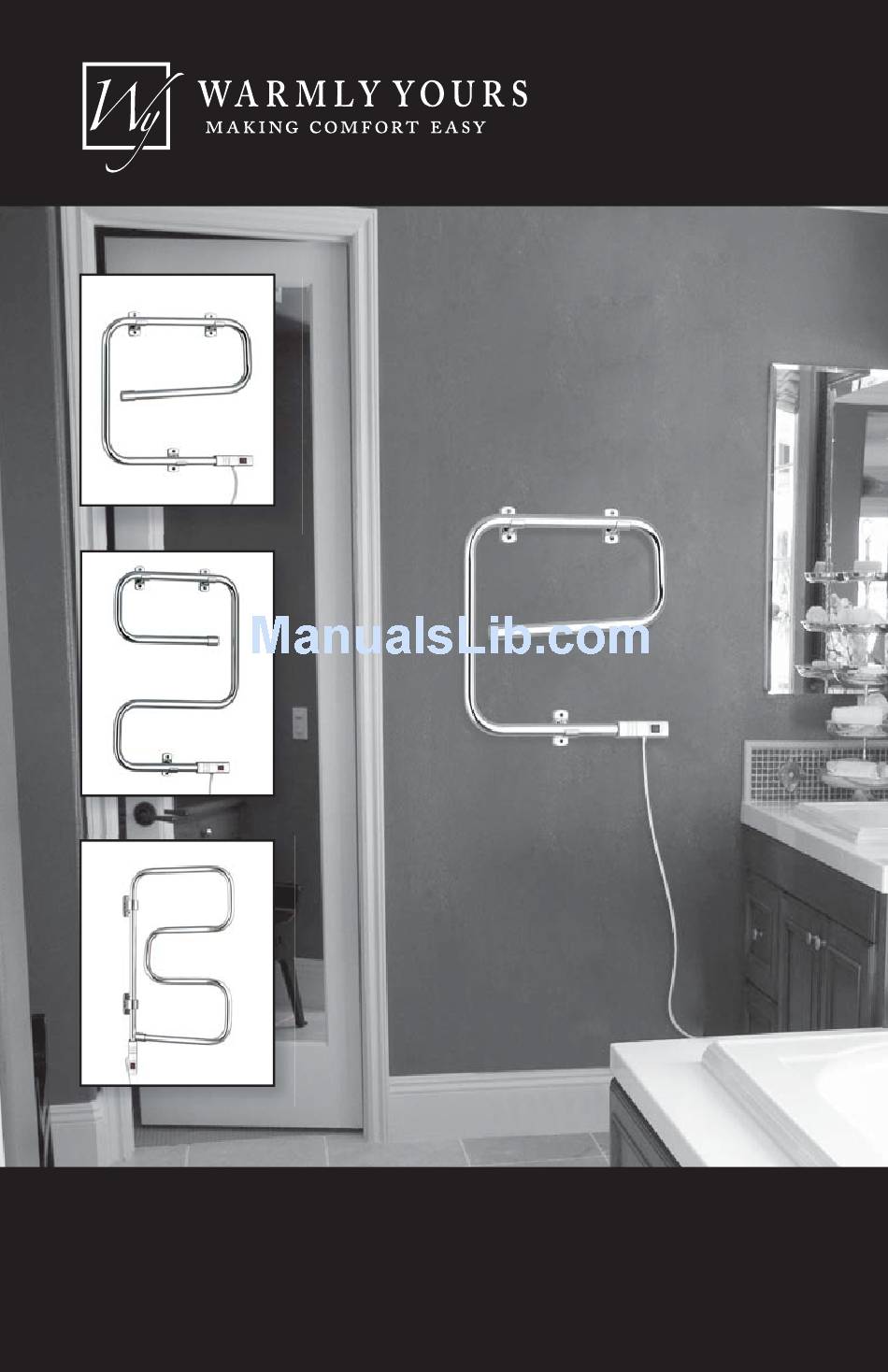

- Page 1 Installation & Operation Manual for WarmlyYours Towel Warmers...
-
Page 2: Safety Information
Thank you for choosing a fi nely crafted Towel Warmer from the Elements™ Collection by WarmlyYours. Now you can enjoy the luxury of a warm towel everyday. These models are so easy to install and use. Just plug the Towel Warmer unit into a standard 120V outlet, pre-heat your towel warmer and enjoy a warm, dry towel or bathrobe upon stepping from the shower. -
Page 3: Installation
INSTALLATION This appliance must be installed in accordance with the instructions in the manual and the NEC guidelines relating to electrical fi xtures in bathrooms. We recommend that the Towel Warmer be plugged into a GFCI protected circuit. Install the Towel Warmer as close to an electrical outlet as possible. If an extension cord becomes necessary, always use a grounded 3-wire extension cord. - Page 4 Affi xing the Towel Warmer to the Wall NOTE: Install the Towel Warmer no less than 1 foot from the fl oor and near an electrical outlet. The electrical outlet must be properly grounded. Position the brackets on the Towel Warmer to ensure that the Towel Warmer is fi...
- Page 5 Step 6 With the brackets now in place, adjust the Towel Warmer to desired position and fully tighten the screws into place. Step 7 Plug the Towel Warmer into a GFCI 120V, 15A electrical outlet. Enjoy!
- Page 6 Affi xing the Towel Warmer to the Wall - cont’d WARNING Measure all dimensions prior to rough-in and installation. Elements™ model: TW-E2CP Stud 14” (356mm) Recommended † Anchor Points Anchor Points 2” (51mm) ” (622mm) Anchor Points * Note: Anchor points must be attached to a stud.
- Page 7 Affi xing the Towel Warmer to the Wall - cont’d WARNING Measure all dimensions prior to rough-in and installation. Elements™ model: TW-E3CP Stud 11” (279mm) Recommended † Anchor Points Anchor Points 2” (51mm) ” (632mm) Anchor Points * Note: Anchor points must be attached to a stud. †...
- Page 8 Affi xing the Towel Warmer to the Wall - cont’d WARNING Measure all dimensions prior to rough-in and installation. Elements™ model: TW-E4PCP Stud Anchor Points 12” (305mm) Recommended † Anchor Points 2” (51mm) Pin Hole ” (200mm) * Note: Anchor points must be attached to a stud. †...
- Page 9 Bracket Assembly and Installation Diagrams WARNING Measure all dimensions prior to rough-in and installation. Elements™ model: TW-E2CP Do NOT use Stud Drywall Anchors on stud Drywall Anchors Quantity 6 Brackets Quantity 3 Install this bracket with holder side facing downward.
- Page 10 - cont’d Bracket Assembly and Installation Diagrams WARNING Measure all dimensions prior to rough-in and installation. Elements™ model: TW-E3CP Do NOT use Drywall Anchors Stud on stud Drywall Anchors Quantity 6 Brackets Quantity 3 Screws Quantity 6 Install this bracket with holder side facing downward.
- Page 11 - cont’d Bracket Assembly and Installation Diagrams WARNING Measure all dimensions prior to rough-in and installation. Elements™ model: TW-E4PCP Anchor Bolt Bolt Quantity 4 Quantity 4 Half Clamp Quantity 4 Washer Quantity 4 Quantity 4 Bracket Half Sleeve Quantity 1 Quantity 2 Quantity 4 Stud...
-
Page 12: Operation
Bracket Assembly and Installation Diagrams OPERATION All models of the Elements™ Towel Warmer Collection include an easy and accessible “on/off” button. Turn the power “on” by pressing the red “on/off” button located on the unit. Refer to Diagram A. The “on” setting is indicated by an “I” and the “off” setting is indicated by “O.”... -
Page 13: Specifications
SPECIFICATIONS TW-E2CP Elements™ 23.6”W x 25.6’H x 3.5”D 0.50 TW-E3CP Elements™ 19.7”Wx25.6”Hx 3.5”D 0.50 TW-E4PCP Elements™ 16.3”Wx28.5”Hx3.5”D 0.50 Product Construction - Towel Warmer The Towel Warmer is constructed with continuous 1” heavy gauge SPHC steel tubing. The fi nished assembly is chrome plated and is heated by a UL listed wire which is designed for rapid and safe heating. -
Page 14: Safety Guidelines
WarmlyYours.com Inc. for this product, the National Electric Code (NEC), and all applicable local building and electrical codes. Controls sold under the WarmlyYours.com Inc. name are warranted for one year from the date of sale. Any suspected defect must be reported by registered letter immediately upon discovery. - Page 15 OF USE. THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE FACE OF THIS DOCUMENT. NO AGENT OR REPRESENTATIVE OF WARMLYYOURS.COM INC. HAS ANY AUTHORITY TO EXTEND OR MODIFY THIS WARRANTY UNLESS SUCH EXTENSION OR MODIFICATION IS MADE IN WRITING BY A CORPORATE OFFICER.
