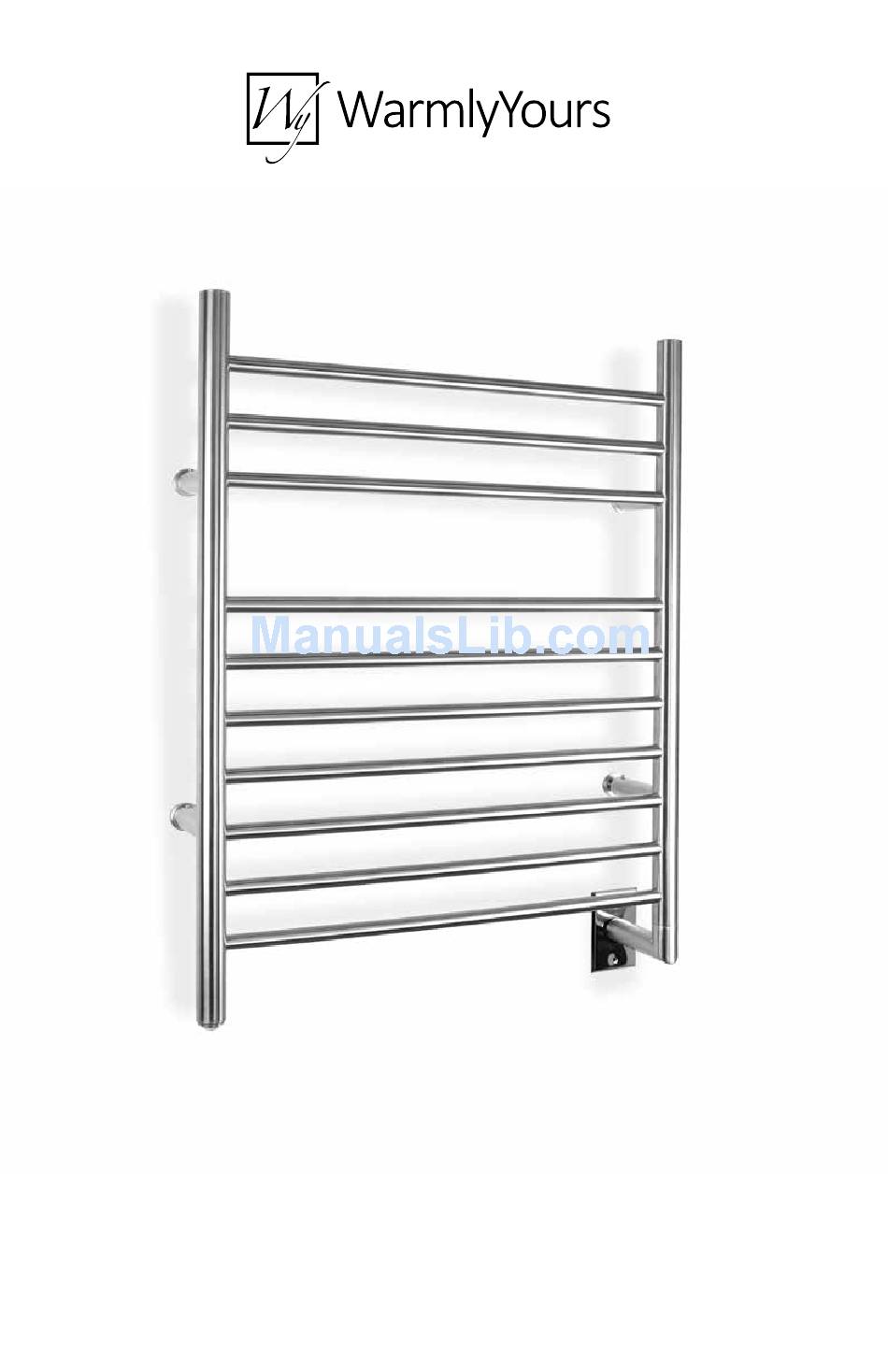

- Page 1 Hardwired Model Shown WarmlyYours Infinity Towel Warmer Installation & Operation Manual...
-
Page 2: Safety Information
Overloading the towel warmer will cause the unit to become extremely hot and may result in a burn if touched. (See page 10 for additional information.) • Infinity towel warmers are cULus listed for use in US and Canadian markets. • Never use an extension cord (for plug-in model). - Page 3 At least two of the four brackets must be attached directly to a stud. The Infinity Plug-In model must be installed less than 6 feet (183cm) from a properly grounded outlet to ensure the plug can reach. Make sure to measure the distance from where to plug is attached to the towel warmer to the electrical outlet.
- Page 4 1. Affixing the Towel Warmer to the Wall (continued) Note: Dimensions shown are distances between the center of anchor points. This example shows 16 inches on center construction. Your situation may vary depending on stud spacing. WARNING: Locations of electrical box and anchor points may vary. Measure all dimensions prior to rough-in and installation.
- Page 5 1. Affixing the Towel Warmer to the Wall (continued) Diagram B: Rough-In Diagram Note: Dimensions shown are distances between the center of anchor points. This example shows 16 inches on center construction. Your situation may vary depending on stud spacing. WARNING: Locations of electrical box and anchor points may vary.
- Page 6 2. Bracket Assembly Instructions Diagram C: Bracket Assembly Diagrams - Infinity...
- Page 7 Wrench, hex key, 8mm e. 0005-57900-0002 Wrench, hex key, 6mm f. 0005-57500-0001 Anchor, drywall, #8, white g. 0005-57200-0001 Screw, #8, 50x4.2mm, flat h. 0005-57200-0002 Screw, set, 6mm, hex i. 0005-57810-0000 Collar i. 0005-57820-0000 Wall plate AK05-57820-0001 Parts Kit Assy., Infinity, TW-F10BS-HW...
- Page 8 2. Bracket Assembly Instructions (continued) Step 1 Measure for bracket positions using the template if desired. At least two brackets must be attached to a stud. Step 2 Affix brackets A to the wall using screw g and drywall anchor f where necessary. Repeat Step 2 for the three remaining brackets.
- Page 9 2. Bracket Assembly Instructions (continued) Step 8 Hardwired Model Only (continued) Ensure the rubber seal is in position and sealed correctly inside the collar. Refer to Diagram E. Slide the brushed stainless collar over the tube until it is touching the face of the O-ring on the cover plate. Hardwired Model Skip Steps 9-10.
-
Page 10: Electrical Considerations
3. Electrical Considerations Diagram F: Wiring Diagram (hardwired models only) 2” x 4” ELECTRICAL 120V TIMER BOX FOR TIMER LINE (black) 120V ac HOT NEUTRAL NEUTRAL (white) LOAD GROUND (blue) TOWEL WARMER BLACK or BLUE (Hot) GREEN/YELLOW (Ground) WHITE or BROWN (Neutral) HOT LOAD (black or blue) -
Page 11: Operation
4. OPERATION Plug-In Model With your Infinity Plug-In model secured to the wall and plugged into a grounded outlet, you are now ready to enjoy your towel warmer. Use the ON/ OFF switch located on the bottom left side (when facing the towel warmer) to control when you want the unit to warm. -
Page 12: Specifications
The unit must be plugged into an outlet that is properly grounded. For automatic control of the plug-in unit, a timer can be used. The Infinity hardwired model is fed electricity into the towel warmer via a section of stainless steel tubing. The tubing can rotate to facilitate wiring. - Page 13 Any suspected defect must be reported by registered letter immediately upon discovery. The determination of such a defect must be made by WarmlyYours. com Inc. or its authorized representative only. This warranty is null and void if the product is improperly installed, improperly operated, or abused.
