weintek cMT-G01X Series Installation Instructions

cMT-G01X series
1 Installation and Startup Guide
This document covers the installation of cMT-G01X Series, for the detailed specifications and
operation, please refer to Datasheet, Brochure and EasyBuilder Pro User Manual. Please read all
warnings, precautions, and instructions on the device carefully before use.
Install Environment:
The HMI product has been tested to conform to European CE requirements.
Electrical This means that the circuitry is designed to resist the effects of electrical
Environment noise. This does not guarantee noise immunity in severe cases. Proper wire
routing and grounding will insure proper operation.
(1) Make sure that the units are installed correctly and that the operating
limits are followed. Avoid installing units in environments where severe
mechanical vibration or shocks are present.
(2) Do not operate the unit in areas subject to explosion hazards due to
Environmental flammable gases, vapors or dusts.
Considerations (3) Do not install the unit where acid gas, such as SO2 exists.
(4) This device should be mounted in the vertical position and for use on the
flat surface enclosure.
(5) For use in Pollution Degree 2 Environment and dry location.
(6) Relative Humidity: 10% ~ 90% (non-condensing)
Operating Altitude
(Atmospheric Below 3,000 m (9842.52 ft.), atmospheric pressure is 70.1 kPa.
Pressure)
IP rating IP 20
Cleaning Clean the device using dry cloths. Do not use liquid or spray detergents for
Considerations cleaning.
Protection impairment if used in a manner not specified by the manufacturer.
Warning Déficit de protection si utilisé d'une manière non spécifiée par le fabricant.
Unpacking the Unit
2
Unpack and check the delivery. If damage is found, notify the supplier.
NOTE: Place the unit on a stable surface during installation. Dropping it or letting it fall may
cause damage.
The package includes:
(1) Installation Instruction, 2-sided A4 *1
(2) cMT-G01X *1
(3) Power Connector *1

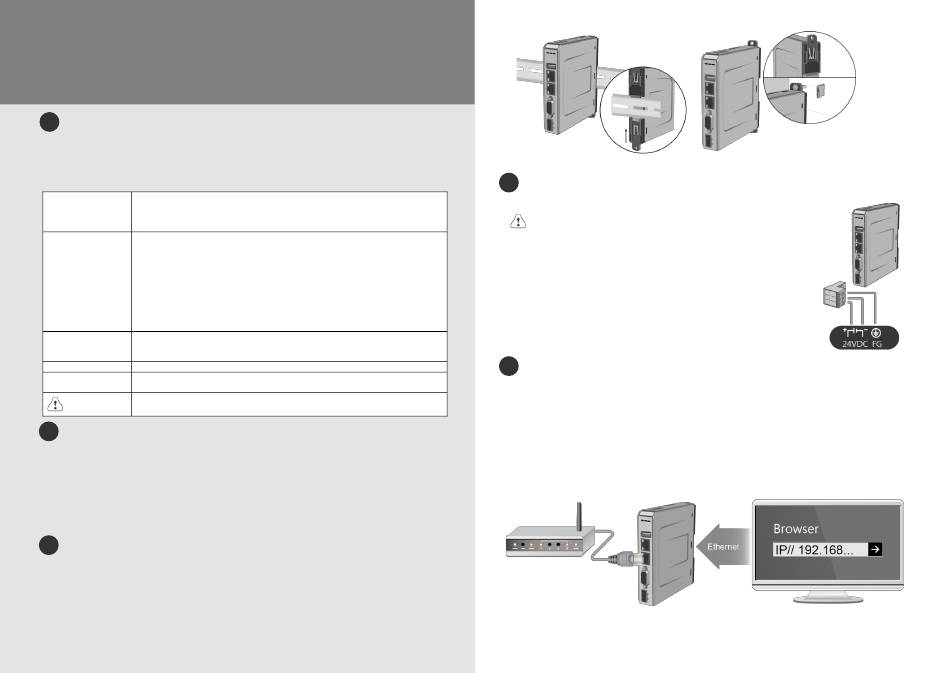

3 Installation Instructions
Rail mounting: DIN rail 35mm
Panel mounting: Use two M4 or #8 panhead screws, mounting hole size is 4.6mm
Plan for adequate space around the unit and inside the enclosure, for ventilation and cables. Consider
the heat from other devices inside the enclosure. The ambient temperature around the unit must be
-20 ~ 55°C
Installation Instruction
4
Power Connections
Power Connector Specifications:
Wire AWG: 24~12
Wiring Conductor Minimum Temperature: 75°C
Screw Torque: 4.5 lbf-in (max.)
Copper conduct only.
Spécifications du connecteur d'alimentation:
AWG de fil: 24~12
Température minimale du conducteur de câblage: 75°C
Couple de vis: 4.5 lbf-in (max.)
Conducteur en cuivre seulement
NOTE: Connect positive DC line to the '+' terminal
and the DC ground to the '-' terminal.
5
System Settings
The cMT-G01X can be connected in the following ways:
Using Ethernet 1 Connection: Connect the cMT-G01X to the router using an RJ-45 Ethernet cable.
Launch EasyBuilder Pro on the PC, follow section 6 instructions to access the download window, and
find the cMT-G01X to obtain its IP address. Enter this IP address in a web browser to access the
system settings page, where the default password "111111" can be used to log in and configure the
device.
Using Ethernet 2 Connection: Connect the cMT-G01X to the PC using an RJ-45 Ethernet cable,
and set the PC's IP address to 192.168.100.2. In a web browser on the PC, enter the IP address
192.168.100.1. After successfully connecting to the cMT-G01X, the system settings page will be
accessible, where the default password "111111" can be used to log in and configure the device.
