weintek iR-ETN40P Series Installation Instruction

iR-ETN40P series
1
Installation and Startup Guide
This document covers the installation of iR-ETN40P, for the detailed specifications and operation,
please refer to Datasheet, Brochure and Remote I/O User Manual. Please read all warnings,
precautions, and instructions on the device carefully before use.
Install Environment:
The product has been tested to conform to European CE requirements. This
Electrical means that the circuitry is designed to resist the effects of electrical noise. This
does not guarantee noise immunity in severe cases. Proper wire routing and
Environment
grounding will insure proper operation.
(1) Make sure that the units are installed correctly and that the operating limits
are followed.
(2) Avoid installing units in environments where severe mechanical vibration or
shocks are present.
(3) Do not operate the unit in areas subject to explosion hazards due to
flammable gases, vapors or dusts, or where acid gas, such as SO2 exists.
Environmental
(4) This device should be mounted in the vertical position and for use on the flat
Considerations
surface enclosure.
(5) This device should be installed in an end-use fire / electrical enclosure.
(6) This device is intended for use in a Pollution Degree 2 industrial
environment and dry location, at altitudes up to 2000 m (6561 ft) without
derating.
(7) Relative Humidity: 10% ~ 90% (non-condensing)
Protection impairment if used in a manner not specified by the manufacturer.
Warning
Déficit de protection si utilisé d'une manière non spécifiée par le fabricant.
2
Unpacking the Unit
Unpack and check the delivery. If damage is found, please contact the supplier.
NOTE: Place the unit on a stable surface during installation. Dropping it or letting it fall may
cause damage.
The package includes:
(1) Installation Instruction, 2-sided A4 *1
(2) iR-ETN40P *1
(3) Power Connector *1
(4) 14pin Terminal *4

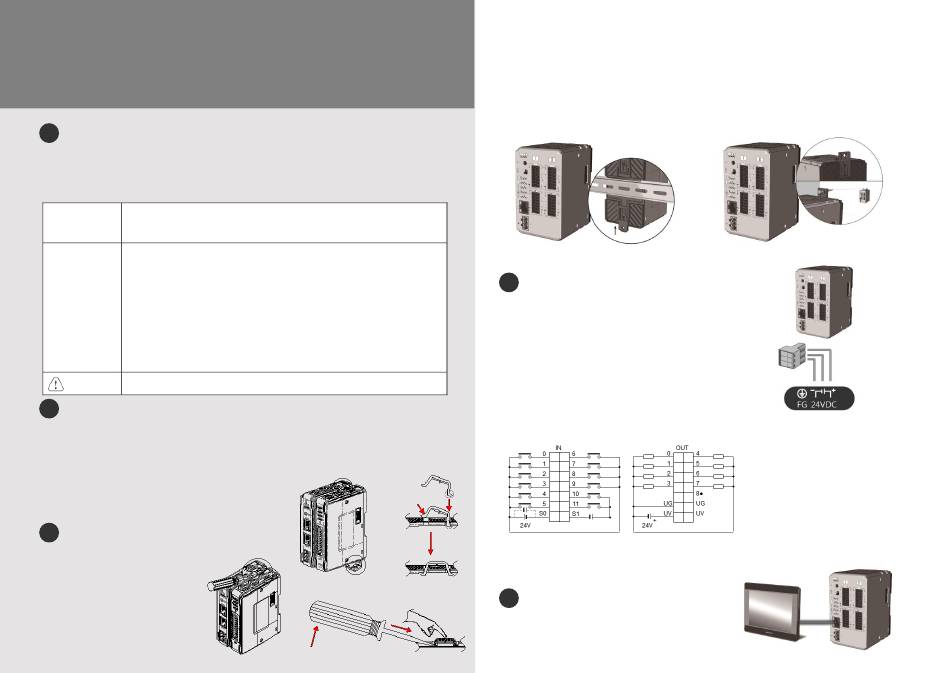

3 Installation Instructions
Clip assembly: Insert one side of the
clip into the hole on the case. Press
down firmly in the direction shown in
the figure on the right until hearing
the clip snap into the case.
Clip removal: Insert a flathead
screwdriver into the gap on the clip
and then lift up the screwdriver.
Installation Instruction
Placing a finger on the clip when lifting the screwdriver can prevent the clip from jumping away. The
clip can also be removed directly by hand.
Rail mounting: DIN rail 35mm.
Panel mounting: Use two M4 or #8 panhead screws, mounting hole size is 4.6mm
Plan for adequate space around the unit and inside the enclosure, for ventilation and cables. Consider
the heat from other devices inside the enclosure. The ambient temperature around the unit must be
-10 ~ 60℃
NOTE: Please do not touch any of the connectors when the unit is powered up and running.
4
Connector and Wiring
Power Connector Specifications:
Wire AWG: 28~12
Wiring Conductor Minimum Temperature: 65°C
Wire Strip Length: 7~8 mm
Connect positive DC line to the '+'
NOTE:
terminal and the DC ground to the '-' terminal.
I/O Terminal Specifications:
Wire AWG: 24~16
Wire Strip Length: 9~10 mm
Wiring Example
DI: 24x24VDC (Sourcing or Sinking) DO: 24VDC (Sourcing)
0.5A per channel (Max 4A all channel)
Communication Connections
5
Please use a CAT.5 (or higher) Ethernet cable.
