weintek MT8071iER1 Series Installation Instruction

MT8071iER1 series
Installation and Startup Guide
1
This document covers the installation of MT8071iER1 Series HMI, for the detailed specifications and
operation, please refer to Brochure and EasyBuilder Pro User Manual.
Install Environment:
NEMA Rating The HMI product is NEMA 4 rated (Indoor Use Only).
The HMI product has been tested to conform to European CE requirements. This
Electrical means that the circuitry is designed to resist the effects of electrical noise. This does
not guarantee noise immunity in severe cases. Proper wire routing and grounding
Environment
will insure proper operation.
(1) Make sure that the displays are installed correctly and that the operating limits
are followed. Avoid installing units in environments where severe mechanical
vibration or shocks are present.
(2) Do not operate the unit in areas subject to explosion hazards due to flammable
gases, vapors or dusts.
Environmental
(3) Do not install the unit where acid gas, such as SO2 exists.
Considerations
(4) This device should be mounted in the vertical position and for use on the flat
surface enclosure.
(5) Conform to UL508 (ISBN 0-7629-0404-6) machine safety for use in Pollution
Degree 2 Environment.
(6) Relative Humidity: 10% ~ 90% (non-condensing)
Unpacking the Unit
2
Unpack and check the delivery. If damage is found, notify the supplier.
NOTE: Place the operator panel on a stable surface during installation. Dropping it or letting it
fall may cause damage.
(1) Installation Instruction, 2-sided A4 *1
(2) Rear-Mount HMI *1
(3) Power Connector *1
(4) Fuse 1.25A/250V 5*20mm *1
(5) USB Stick Clamp & Tying Strap *1

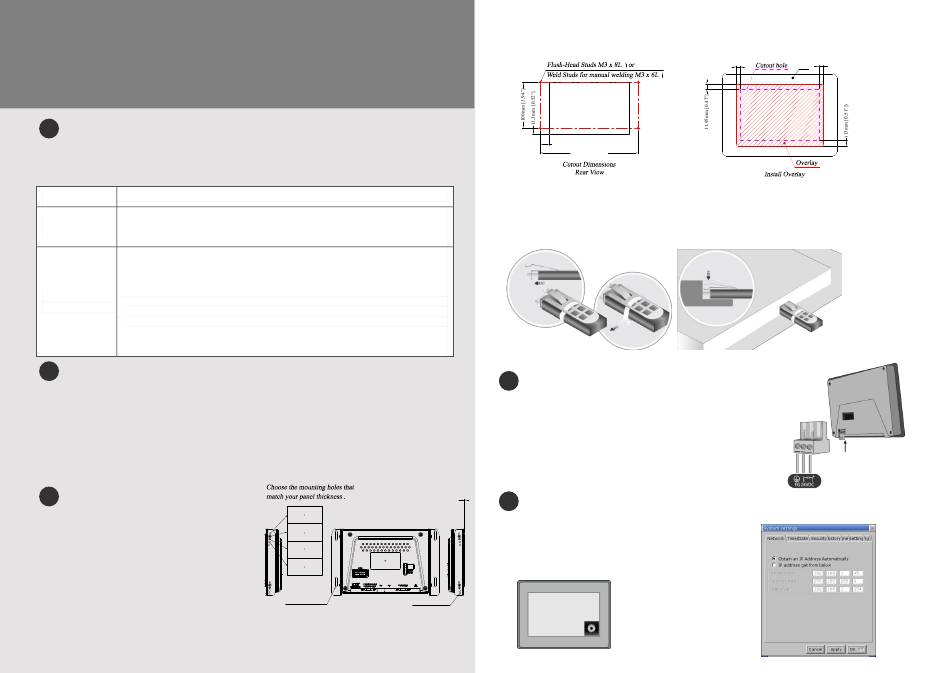

Installation Instructions
3
1. Around the cutout on the control cabinet, draw the
reference lines for positioning the overlay. Panel
Cutout: 174.6mm x 113.6mm
2. Select the mounting holes according to the wall
thickness of control cabinet and secure the
mounting brackets onto both sides of the HMI unit.
3. Secure the HMI to the cabinet by four studs.
4. Affix the overlay (user-prepared) to the cabinet
front surface.
189.6mm [7.46"]
Installation Instruction
189.6mm [7.46"]
b
a
g
c e f
d
M3 x 0.5P x 8L
HEX NUTS M3 x 0.5 P
Panel Thickness Range
1.5mm [0.06"]
1.5mm [0.06"]
1.9mm [0.07"] 3.5mm [0.13"]
2mm [0.08"]
2.4mm [0.09"]
2.5mm [0.1"]
2.9mm [0.11"]
3mm [0.12"]
3.5mm [0.13"]
Ø 4mm [Ø 0.16"]
Ø 3.7mm [Ø 0.15"]
MT8070iER:
174.6mm [6.87"] W x 113.6mm [4.47"] H
Maximum Wall Thickness : 3.5 mm [ 0.13"]
M3 x 0.5P x 8L
HEX NUTS M3 x 0.5 P
Panel Thickness Range
1.5mm [0.06"]
1.5mm [0.06"]
3.5mm [0.13"]
1.9mm [0.07"]
2mm [0.08"]
2.4mm [0.09"]
2.5mm [0.1"]
2.9mm [0.11"]
3mm [0.12"]
3.5mm [0.13"]
20.15mm [0.79"]
213.6mm [8.41"]
USB Stick Clamp Usage
Combining the USB Stick with the clamp and the tying strap can prevent USB stick from disconnecting
with HMI when strong vibration is present.
1. Insert the USB connector to the clamp and tie them together with the tying strap.
2. Press the spring and insert the USB stick into HMI.
4
Power Connections
NOTE:
1. Connect positive DC line to the '+' terminal and the DC
ground to the '-' terminal.
2. When downloading project using a USB cable, do not
connect HMI with PLC and PC simultaneously, for electric
potential difference may result in damage to HMI or PC.
(9.85mm [0.39"])
8.1mm [0.32"] wall
5
System Settings
When HMI is powered up and displays image,
click the system setting button.
(Default System Password: 111111)
It is necessary to connect the HMI to
your network through a RJ-45 cable.
192.55mm [7.58"]
8.1mm [0.32"] (9.85mm [0.39"])
wall
Go to the Network tab, you may choose
to auto get DHCP IP, or designate your
own IP.
