EDAR122202
Multi-Split Type Air Conditioners
- Heat Pump -
3/4/5MXM-R Series

Advertisement

loading
Need help?

Need help?

Do you have a question about the 3MXM-R Series and is the answer not in the manual?

Questions and answers

Related Manuals for Daikin 3MXM-R Series

Summary of Contents for Daikin 3MXM-R Series

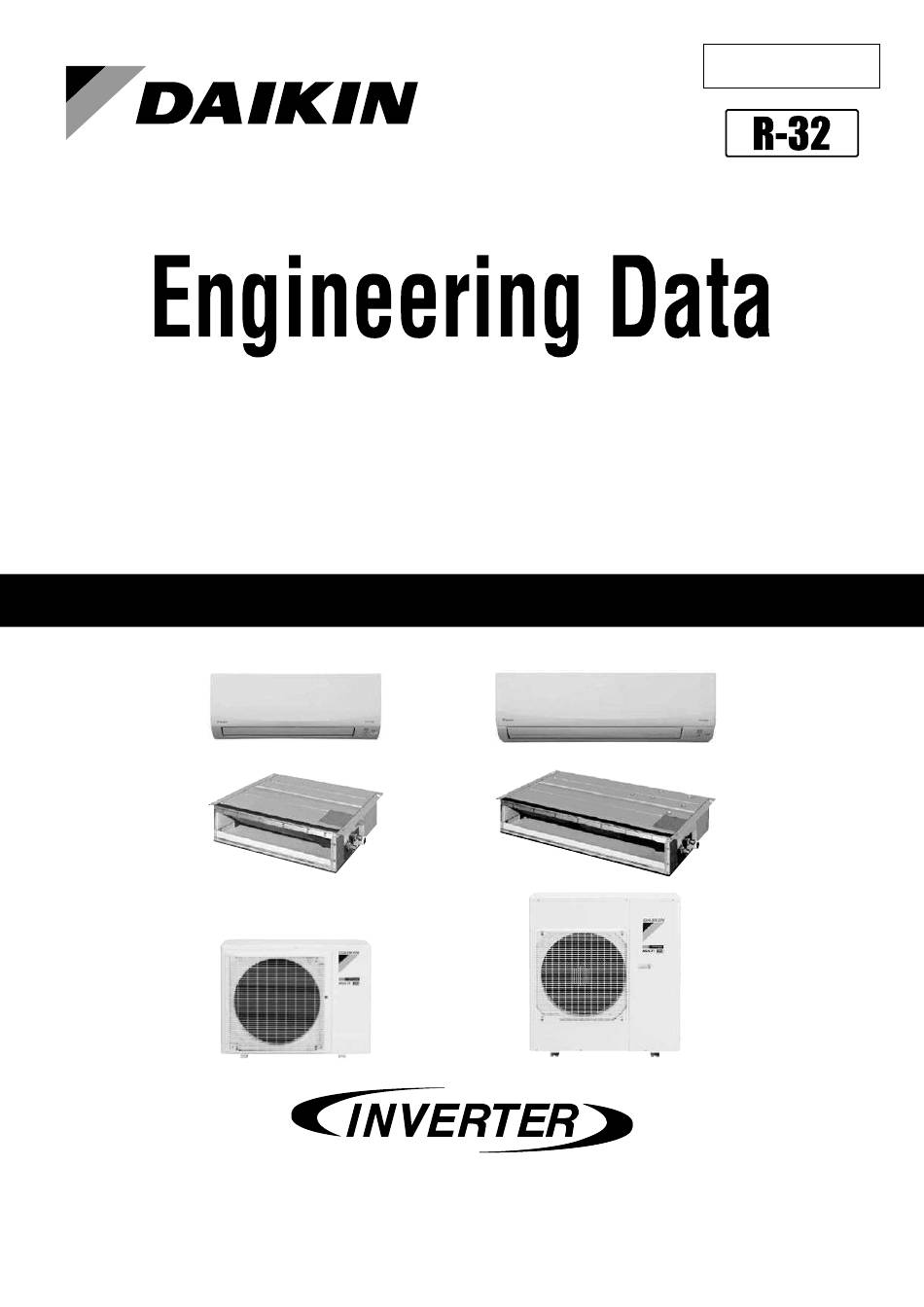

  • Page 1 EDAR122202 Multi-Split Type Air Conditioners - Heat Pump - 3/4/5MXM-R Series...
  • Page 3 EDAR122202 Part 1 Multi-Split Type Air Conditioners 3/4/5MXM-R Series ..1 1. Power Supply ..................3 2. Functions....................4 3. Specifications ..................7 3.1 Indoor Unit....................7 3.2 Outdoor Unit ...................11 3.3 Combination Capacity: 3MXM70RVM2..........13 3.4 Combination Capacity: 4MXM80RVM2..........15 3.5 Combination Capacity: 4MXM100RVM2..........17 3.6 Combination Capacity: 5MXM110RVM2..........21 4.
  • Page 4 EDAR122202 Part 3 Operation Manual ............209 1. CTXM Series..................210 1.1 Manual Contents and Reference Page ..........210 1.2 Safety Precautions ................211 1.3 Names of Parts..................213 1.4 Preparation before Operation...............221 1.5 AUTO · DRY · COOL · HEAT · FAN Operation ........223 1.6 Adjusting the Airflow Direction and Rate ..........225 1.7 INTELLIGENT EYE Operation .............227 1.8 COMFORT AIRFLOW Operation ............231...
  • Page 5 EDAR122202 Part 1 Multi-Split Type Air Conditioners 3/4/5MXM-R Series CTXM20RVM2 CDXP25RVM2 3MXM70RVM2 CTXM25RVM2 CDXP35RVM2 4MXM80RVM2 CTXM35RVM2 CDXM50RVM2 4MXM100RVM2 CTXM50RVM2 CDXM60RVM2 5MXM110RVM2 CTXM60RVM2 CDXM71RVM2 CTXM71RVM2 1. Power Supply ..................3 2. Functions....................4 3. Specifications ..................7 3.1 Indoor Unit....................7 3.2 Outdoor Unit ...................11 3.3 Combination Capacity: 3MXM70RVM2..........13 3.4 Combination Capacity: 4MXM80RVM2..........15 3.5 Combination Capacity: 4MXM100RVM2..........17...
  • Page 6 EDAR122202 10.Sound Level ..................117 10.1 Measuring Location ................117 10.2 Indoor Unit....................118 10.3 Outdoor Unit ..................123 11.Electric Characteristics................125 Multi-Split Type Air Conditioners 3/4/5MXM-R Series...
  • Page 7 EDAR122202 Power Supply 1. Power Supply Indoor Unit Outdoor Unit Power Supply Wall Mounted Type CTXM20RVM2 3MXM70RVM2 1 phase, 220 - 230 - 240 V, 50 Hz 4MXM80RVM2 1 phase, 220 - 230 V, 60 Hz CTXM25RVM2 4MXM100RVM2 5MXM110RVM2 CTXM35RVM2 CTXM50RVM2 CTXM60RVM2 CTXM71RVM2...
  • Page 8 Functions EDAR122202 2. Functions Category Functions Category Functions Basic Functions Inverter (with inverter power control) Health & Deodorizing filter (enzyme blue)     Cleanliness Operation limit for cooling — — Dust collection filter (PM2.5) (option)   Operation limit for heating —...
  • Page 9 EDAR122202 Functions Category Functions Category Functions Basic Functions Inverter (with inverter power control)  Health & Deodorizing filter (enzyme blue) — Cleanliness Operation limit for cooling — Dust collection filter (PM2.5) (option) — Operation limit for heating — Titanium apatite deodorizing filter —...
  • Page 10 Functions EDAR122202 Category Functions Category Functions Basic Functions Inverter (with inverter power control) Health & Deodorizing filter (enzyme blue) —  Cleanliness Operation limit for cooling Dust collection filter (PM2.5) — Refer to P. 114 Operation limit for heating Titanium apatite deodorizing filter —...
  • Page 11 EDAR122202 Specifications 3. Specifications Indoor Unit Wall Mounted Type 50 Hz, 220 - 230 - 240 V / 60 Hz, 220 - 230 V CTXM20RVM2 CTXM25RVM2 Model Cooling Heating Cooling Heating Capacity  2.0 kW Class 2.5 kW Class Front Panel Colour White White 9.3 (328)
  • Page 12 Specifications EDAR122202 50 Hz, 220 - 230 - 240 V / 60 Hz, 220 - 230 V CTXM60RVM2 CTXM71RVM2 Model Cooling Heating Cooling Heating Capacity  6.0 kW Class 7.1 kW Class Front Panel Colour White White 19.5 (689) 20.0 (706) 20.0 (706) 19.7 (696) 15.8 (558)
  • Page 13 EDAR122202 Specifications Duct Connected Type 50 Hz, 220 - 230 - 240 V / 60 Hz, 220 - 230 V CDXP25RVM2 CDXP35RVM2 Model Cooling Heating Cooling Heating Capacity  2.5 kW Class 3.5 kW Class 8.7 (307) 8.7 (307) 8.7 (307) 8.7 (307) 8.0 (282) 8.0 (283)
  • Page 14 Specifications EDAR122202 50 Hz, 220 - 230 - 240 V / 60 Hz, 220 - 230 V CDXM71RVM2 Model Cooling Heating Capacity  7.1 kW Class 16.0 (565) 16.0 (565) 14.8 (523) 14.8 (523) m³/min Airflow Rate (cfm) 13.5 (477) 13.5 (477) 11.2 (395) 11.2 (395)
  • Page 15 EDAR122202 Specifications Outdoor Unit 50 Hz, 220 - 230 - 240 V / 60 Hz, 220 - 230 V 3MXM70RVM2 4MXM80RVM2 Model Cooling Heating Cooling Heating Capacity  — — Power Consumption  — — Running Current  — — Casing Colour Ivory White Ivory White...
  • Page 16 Specifications EDAR122202 50 Hz, 220 - 230 - 240 V / 60 Hz, 220 - 230 V 4MXM100RVM2 5MXM110RVM2 Model Cooling Heating Cooling Heating Capacity  — — Power Consumption  — — Running Current  — — Casing Colour Ivory White Ivory White Waffle Fin / ...
  • Page 17 EDAR122202 Specifications Combination Capacity: 3MXM70RVM2 Cooling [50 Hz, 220 V] Capacity of each indoor unit Combination of Power Each capacity (kW) Total capacity (kW) Total input (kW) Total current (A) indoor unit factor (%) A room B room C room Rating (min ~ max) Rating...
  • Page 18 Specifications EDAR122202 Heating [50 Hz, 220 V] Capacity of each indoor unit Combination of Power Each capacity (kW) Total capacity (kW) Total input (kW) Total current (A) indoor unit factor (%) A room B room C room Rating (min ~ max) Rating (min ~ max) Rating...
  • Page 19 EDAR122202 Specifications Combination Capacity: 4MXM80RVM2 Cooling [50 Hz, 220 V] Capacity of each indoor unit Combination of Power Each capacity (kW) Total capacity (kW) Total input (kW) Total current (A) indoor unit factor (%) A room B room C room D room Rating (min ~ max) Rating (min ~ max)
  • Page 20 Specifications EDAR122202 Heating [50 Hz, 220 V] Capacity of each indoor unit Combination of Power Each capacity (kW) Total capacity (kW) Total input (kW) Total current (A) indoor unit factor (%) A room B room C room D room Rating (min ~ max) Rating (min ~ max)
  • Page 21 EDAR122202 Specifications Combination Capacity: 4MXM100RVM2 Cooling [50 Hz, 220 V] Capacity of each indoor unit Combination of Power Each capacity (kW) Total capacity (kW) Total input (kW) Total current (A) indoor unit factor (%) A room B room C room D room Rating (min ~ max) Rating (min ~ max)
  • Page 22 Specifications EDAR122202 Capacity of each indoor unit Combination of Power Each capacity (kW) Total capacity (kW) Total input (kW) Total current (A) indoor unit factor (%) A room B room C room D room Rating (min ~ max) Rating (min ~ max) Rating (min ~ max) Rating...
  • Page 23 EDAR122202 Specifications Heating [50 Hz, 220 V] Capacity of each indoor unit Combination of Power Each capacity (kW) Total capacity (kW) Total input (kW) Total current (A) indoor unit factor (%) A room B room C room D room Rating (min ~ max) Rating (min ~ max)
  • Page 24 Specifications EDAR122202 Capacity of each indoor unit Combination of Power Each capacity (kW) Total capacity (kW) Total input (kW) Total current (A) indoor unit factor (%) A room B room C room D room Rating (min ~ max) Rating (min ~ max) Rating (min ~ max) Rating...
  • Page 25 EDAR122202 Specifications Combination Capacity: 5MXM110RVM2 Cooling [50 Hz, 220 V] Capacity of each indoor unit Power Combination of Each capacity (kW) Total capacity (kW) Total input (kW) Total current (A) factor indoor unit A room B room C room D room E room Rating (min ~ max) Rating (min ~ max) Rating (min ~ max) Rating 2.00 2.00...
  • Page 26 Specifications EDAR122202 Capacity of each indoor unit Power Combination of Each capacity (kW) Total capacity (kW) Total input (kW) Total current (A) factor indoor unit A room B room C room D room E room Rating (min ~ max) Rating (min ~ max) Rating (min ~ max) Rating 3.5+3.5+7.1 2.73...
  • Page 27 EDAR122202 Specifications Capacity of each indoor unit Power Combination of Each capacity (kW) Total capacity (kW) Total input (kW) Total current (A) factor indoor unit A room B room C room D room E room Rating (min ~ max) Rating (min ~ max) Rating (min ~ max) Rating 2.0+2.0+2.5+2.5+5.0 1.57...
  • Page 28 Specifications EDAR122202 Heating [50 Hz, 220 V] Capacity of each indoor unit Power Combination of Each capacity (kW) Total capacity (kW) Total input (kW) Total current (A) factor indoor unit A room B room C room D room E room Rating (min ~ max) Rating (min ~ max) Rating (min ~ max) Rating 2.80 2.80...
  • Page 29 EDAR122202 Specifications Capacity of each indoor unit Power Combination of Each capacity (kW) Total capacity (kW) Total input (kW) Total current (A) factor indoor unit A room B room C room D room E room Rating (min ~ max) Rating (min ~ max) Rating (min ~ max) Rating 3.5+5.0+6.0 2.90...
  • Page 30 Specifications EDAR122202 Capacity of each indoor unit Power Combination of Each capacity (kW) Total capacity (kW) Total input (kW) Total current (A) factor indoor unit A room B room C room D room E room Rating (min ~ max) Rating (min ~ max) Rating (min ~ max) Rating 2.0+2.0+2.5+3.5+3.5 1.78...
  • Page 31 EDAR122202 Dimensions 4. Dimensions Indoor Unit 4.1.1 Wall Mounted Type CTXM20/25/35RVM2 3D110759 CTXM50/60RVM2 3D110781 Multi-Split Type Air Conditioners 3/4/5MXM-R Series...
  • Page 32 Dimensions EDAR122202 CTXM71RVM2 3D110782 4.1.2 Duct Connected Type CDXP25/35RVM2 3D109029A Multi-Split Type Air Conditioners 3/4/5MXM-R Series...
  • Page 33 EDAR122202 Dimensions CDXM50RVM2 3D109030A CDXM60/71RVM2 3D109031A Multi-Split Type Air Conditioners 3/4/5MXM-R Series...
  • Page 34 Dimensions EDAR122202 4.1.3 Wired Remote Controller BRC073A5 — Wired Remote Controller (Option) for CTXM, CDXP, CDXM Series — C: 3P421433 Multi-Split Type Air Conditioners 3/4/5MXM-R Series...
  • Page 35 EDAR122202 Dimensions Outdoor Unit 3MXM70RVM2 C: 3D108772 4MXM80RVM2 C: 3D108775 Multi-Split Type Air Conditioners 3/4/5MXM-R Series...
  • Page 36 Dimensions EDAR122202 4MXM100RVM2 C: 3D108773 5MXM110RVM2 C: 3D108777 Multi-Split Type Air Conditioners 3/4/5MXM-R Series...
  • Page 37 EDAR122202 Wiring Diagrams 5. Wiring Diagrams Indoor Unit 5.1.1 Wall Mounted Type CTXM20/25/35RVM2 Multi-Split Type Air Conditioners 3/4/5MXM-R Series...
  • Page 38 Wiring Diagrams EDAR122202 CTXM50/60/71RVM2 Multi-Split Type Air Conditioners 3/4/5MXM-R Series...
  • Page 39 EDAR122202 Wiring Diagrams 5.1.2 Duct Connected Type CDXP25/35RVM2, CDXM50/60/71RVM2 Multi-Split Type Air Conditioners 3/4/5MXM-R Series...
  • Page 40 Wiring Diagrams EDAR122202 Outdoor Unit 3MXM70RVM2 Multi-Split Type Air Conditioners 3/4/5MXM-R Series...
  • Page 41 EDAR122202 Wiring Diagrams 4MXM80/100RVM2 Multi-Split Type Air Conditioners 3/4/5MXM-R Series...
  • Page 42 Wiring Diagrams EDAR122202 5MXM110RVM2 Multi-Split Type Air Conditioners 3/4/5MXM-R Series...
  • Page 43 EDAR122202 Piping Diagrams 6. Piping Diagrams Indoor Unit 6.1.1 Wall Mounted Type CTXM20/25/35RVM2 CTXM50/60RVM2 4D110792 4D099370E CTXM71RVM2 4D099371D Multi-Split Type Air Conditioners 3/4/5MXM-R Series...
  • Page 44 Piping Diagrams EDAR122202 6.1.2 Duct Connected Type CDXP25/35RVM2, CDXM50/60/71RVM2 4D139855 Multi-Split Type Air Conditioners 3/4/5MXM-R Series...
  • Page 45 EDAR122202 Piping Diagrams Outdoor Unit 3MXM70RVM2 3D109942 4MXM80RVM2 3D109943 Multi-Split Type Air Conditioners 3/4/5MXM-R Series...
  • Page 46 Piping Diagrams EDAR122202 4MXM100RVM2 3D109944 5MXM110RVM2 3D109945 Multi-Split Type Air Conditioners 3/4/5MXM-R Series...
  • Page 47 EDAR122202 Capacity Tables 7. Capacity Tables 3MXM70RVM2 Cooling [50 Hz, 220 V] Indoor air temp.:°CWB Outdoor 14°C 16°C 18°C 19°C 22°C 24°C Combination air temp. (Capacity) °CDB 22.0 3.44 0.66 3.60 0.67 3.76 0.68 3.83 0.69 4.07 0.71 4.23 0.72 25.0 3.34 0.68...
  • Page 48 Capacity Tables EDAR122202 Indoor air temp.:°CWB Outdoor 14°C 16°C 18°C 19°C 22°C 24°C Combination air temp. (Capacity) °CDB 25+35 22.0 6.71 1.77 7.02 1.80 7.32 1.84 7.48 1.85 7.94 1.90 8.25 1.94 25.0 6.52 1.83 6.83 1.86 7.14 1.90 7.29 1.92 7.75 1.97...
  • Page 49 EDAR122202 Capacity Tables Indoor air temp.:°CWB Outdoor 14°C 16°C 18°C 19°C 22°C 24°C Combination air temp. (Capacity) °CDB 20+25+35 22.0 7.53 1.66 7.88 1.69 8.22 1.72 8.40 1.74 8.91 1.79 9.26 1.82 25.0 7.32 1.72 7.67 1.75 8.01 1.78 8.19 1.80 8.71 1.85...
  • Page 50 Capacity Tables EDAR122202 Heating [50 Hz, 220 V] Outdoor air temp.:°CWB Indoor -15°C -10°C -5°C 0°C 6°C 10°C 15°C Combination air temp. (Capacity) °CDB 16.0 2.05 0.87 2.26 0.90 2.44 0.93 2.56 0.96 3.96 1.06 4.30 1.10 4.74 1.14 18.0 2.00 0.88 2.21...
  • Page 51 EDAR122202 Capacity Tables Outdoor air temp.:°CWB Indoor -15°C -10°C -5°C 0°C 6°C 10°C 15°C Combination air temp. (Capacity) °CDB 35+35 16.0 4.14 1.99 4.56 2.07 4.91 2.14 5.15 2.21 7.97 2.44 8.68 2.52 9.55 2.62 18.0 4.03 2.02 4.46 2.09 4.83 2.16 5.07...
  • Page 52 Capacity Tables EDAR122202 Symbols: Notes: : Total capacity (kW) 1. Capacities are based on the following conditions. Corresponding refrigerant piping length: 5 m : Power input (kW) Level difference: 0 m indicates the standard condition 3D138657 3D138814 Multi-Split Type Air Conditioners 3/4/5MXM-R Series...
  • Page 53 EDAR122202 Capacity Tables 4MXM80RVM2 Cooling [50 Hz, 220 V] Indoor air temp.: °CWB Outdoor 14°C 16°C 18°C 19°C 22°C 24°C Combination air temp. (Capacity) °CDB 22.0 3.51 0.82 3.67 0.84 3.83 0.85 3.91 0.86 4.15 0.89 4.31 0.90 25.0 3.41 0.85 3.57 0.87...
  • Page 54 Capacity Tables EDAR122202 Indoor air temp.: °CWB Outdoor 14°C 16°C 18°C 19°C 22°C 24°C Combination air temp. (Capacity) °CDB 20+60 22.0 8.01 2.51 8.37 2.56 8.74 2.61 8.92 2.64 9.47 2.71 9.84 2.76 25.0 7.78 2.61 8.15 2.65 8.52 2.70 8.70 2.73 9.25...
  • Page 55 EDAR122202 Capacity Tables Indoor air temp.: °CWB Outdoor 14°C 16°C 18°C 19°C 22°C 24°C Combination air temp. (Capacity) °CDB 50+60 22.0 8.71 2.52 9.11 2.57 9.51 2.62 9.71 2.65 10.31 2.72 10.71 2.77 25.0 8.47 2.61 8.87 2.66 9.27 2.71 9.47 2.74 10.06...
  • Page 56 Capacity Tables EDAR122202 Indoor air temp.: °CWB Outdoor 14°C 16°C 18°C 19°C 22°C 24°C Combination air temp. (Capacity) °CDB 20+25+60 22.0 9.33 2.38 9.76 2.43 10.19 2.48 10.40 2.50 11.04 2.57 11.47 2.62 25.0 9.08 2.47 9.50 2.52 9.93 2.56 10.14 2.58 10.79...
  • Page 57 EDAR122202 Capacity Tables Indoor air temp.: °CWB Outdoor 14°C 16°C 18°C 19°C 22°C 24°C Combination air temp. (Capacity) °CDB 35+35+35 22.0 8.45 2.48 8.84 2.53 9.22 2.58 9.42 2.60 10.00 2.68 10.38 2.72 25.0 8.21 2.57 8.60 2.62 8.99 2.67 9.18 2.69 9.76...
  • Page 58 Capacity Tables EDAR122202 Indoor air temp.: °CWB Outdoor 14°C 16°C 18°C 19°C 22°C 24°C Combination air temp. (Capacity) °CDB 20+25+25+35 22.0 9.48 2.44 9.91 2.49 10.34 2.54 10.56 2.56 11.21 2.63 11.65 2.68 25.0 9.21 2.53 9.65 2.58 10.08 2.62 10.30 2.65 10.95...
  • Page 59 EDAR122202 Capacity Tables Heating [50 Hz, 220 V] Outdoor air temp.:°CWB Indoor -15°C -10°C -5°C 0°C 6°C 10°C 15°C Combination air temp. (Capacity) °CDB 16.0 2.08 0.99 2.29 1.03 2.47 1.08 2.83 1.13 4.00 1.21 4.35 1.25 4.79 1.30 18.0 2.02 1.00 2.24...
  • Page 60 Capacity Tables EDAR122202 Outdoor air temp.:°CWB Indoor -15°C -10°C -5°C 0°C 6°C 10°C 15°C Combination air temp. (Capacity) °CDB 25+35 16.0 4.16 2.63 4.59 2.74 4.95 2.86 5.67 2.99 8.01 3.20 8.71 3.31 9.59 3.44 18.0 4.05 2.66 4.49 2.77 4.87 2.89 5.58...
  • Page 61 EDAR122202 Capacity Tables Outdoor air temp.:°CWB Indoor -15°C -10°C -5°C 0°C 6°C 10°C 15°C Combination air temp. (Capacity) °CDB 20+20+50 16.0 5.04 2.16 5.56 2.25 6.01 2.35 6.88 2.46 9.71 2.63 10.56 2.72 11.63 2.83 18.0 4.92 2.19 5.45 2.28 5.90 2.37 6.77...
  • Page 62 Capacity Tables EDAR122202 Outdoor air temp.:°CWB Indoor -15°C -10°C -5°C 0°C 6°C 10°C 15°C Combination air temp. (Capacity) °CDB 25+25+60 16.0 5.31 1.97 5.86 2.05 6.33 2.14 7.25 2.24 10.24 2.40 11.13 2.48 12.26 2.58 18.0 5.18 1.99 5.74 2.07 6.22 2.16 7.14...
  • Page 63 EDAR122202 Capacity Tables Outdoor air temp.:°CWB Indoor -15°C -10°C -5°C 0°C 6°C 10°C 15°C Combination air temp. (Capacity) °CDB 20+25+25+25 16.0 5.18 1.84 5.71 1.92 6.17 2.00 7.06 2.09 9.97 2.24 10.84 2.31 11.94 2.41 18.0 5.05 1.86 5.59 1.94 6.06 2.02 6.95...
  • Page 64 Capacity Tables EDAR122202 4MXM100RVM2 Cooling [50 Hz, 220 V] Indoor air temp.:°CWB Outdoor 14°C 16°C 18°C 19°C 22°C 24°C Combination air temp. (Capacity) °CDB 22.0 3.62 0.90 3.79 0.91 3.95 0.93 4.04 0.94 4.28 0.97 4.45 0.98 25.0 3.52 0.93 3.69 0.95 3.85...
  • Page 65 EDAR122202 Capacity Tables Indoor air temp.:°CWB Outdoor 14°C 16°C 18°C 19°C 22°C 24°C Combination air temp. (Capacity) °CDB 20+50 22.0 8.58 2.47 8.97 2.52 9.37 2.57 9.56 2.59 10.15 2.67 10.55 2.71 25.0 8.34 2.56 8.73 2.61 9.13 2.66 9.32 2.68 9.91 2.76...
  • Page 66 Capacity Tables EDAR122202 Indoor air temp.:°CWB Outdoor 14°C 16°C 18°C 19°C 22°C 24°C Combination air temp. (Capacity) °CDB 35+50 22.0 8.79 2.47 9.19 2.52 9.60 2.57 9.80 2.59 10.40 2.67 10.80 2.71 25.0 8.55 2.56 8.95 2.61 9.35 2.66 9.55 2.68 10.16 2.76...
  • Page 67 EDAR122202 Capacity Tables Indoor air temp.:°CWB Outdoor 14°C 16°C 18°C 19°C 22°C 24°C Combination air temp. (Capacity) °CDB 20+20+20 22.0 8.42 2.04 8.80 2.08 9.19 2.12 9.38 2.14 9.96 2.20 10.35 2.24 25.0 8.19 2.11 8.57 2.15 8.96 2.19 9.15 2.21 9.73 2.27...
  • Page 68 Capacity Tables EDAR122202 Indoor air temp.:°CWB Outdoor 14°C 16°C 18°C 19°C 22°C 24°C Combination air temp. (Capacity) °CDB 20+25+60 22.0 9.71 2.47 10.15 2.51 10.60 2.56 10.82 2.59 11.49 2.66 11.93 2.71 25.0 9.44 2.55 9.88 2.60 10.33 2.65 10.55 2.67 11.22 2.75...
  • Page 69 EDAR122202 Capacity Tables Indoor air temp.:°CWB Outdoor 14°C 16°C 18°C 19°C 22°C 24°C Combination air temp. (Capacity) °CDB 20+60+60 22.0 10.35 2.52 10.82 2.57 11.30 2.62 11.54 2.65 12.25 2.72 12.72 2.77 25.0 10.06 2.61 10.54 2.66 11.01 2.71 11.25 2.74 11.96 2.81...
  • Page 70 Capacity Tables EDAR122202 Indoor air temp.:°CWB Outdoor 14°C 16°C 18°C 19°C 22°C 24°C Combination air temp. (Capacity) °CDB 25+35+71 22.0 10.12 2.47 10.58 2.51 11.05 2.56 11.28 2.59 11.97 2.66 12.44 2.71 25.0 9.84 2.55 10.30 2.60 10.77 2.65 11.00 2.67 11.69 2.75...
  • Page 71 EDAR122202 Capacity Tables Indoor air temp.:°CWB Outdoor 14°C 16°C 18°C 19°C 22°C 24°C Combination air temp. (Capacity) °CDB 35+50+60 22.0 10.30 2.50 10.77 2.55 11.24 2.60 11.48 2.62 12.19 2.69 12.66 2.74 25.0 10.01 2.59 10.49 2.64 10.96 2.69 11.19 2.71 11.90 2.78...
  • Page 72 Capacity Tables EDAR122202 Indoor air temp.:°CWB Outdoor 14°C 16°C 18°C 19°C 22°C 24°C Combination air temp. (Capacity) °CDB 20+20+25+50 22.0 10.26 2.58 10.73 2.63 11.20 2.68 11.43 2.71 12.14 2.78 12.61 2.83 25.0 9.98 2.67 10.44 2.72 10.91 2.77 11.15 2.80 11.85 2.87...
  • Page 73 EDAR122202 Capacity Tables Indoor air temp.:°CWB Outdoor 14°C 16°C 18°C 19°C 22°C 24°C Combination air temp. (Capacity) °CDB 20+25+25+50 22.0 10.27 2.58 10.74 2.63 11.21 2.68 11.45 2.71 12.15 2.78 12.62 2.83 25.0 9.98 2.67 10.46 2.72 10.93 2.77 11.16 2.80 11.87 2.87...
  • Page 74 Capacity Tables EDAR122202 Indoor air temp.:°CWB Outdoor 14°C 16°C 18°C 19°C 22°C 24°C Combination air temp. (Capacity) °CDB 25+25+25+25 22.0 9.96 2.56 10.41 2.61 10.87 2.66 11.10 2.68 11.78 2.75 12.24 2.80 25.0 9.68 2.65 10.14 2.70 10.59 2.75 10.82 2.77 11.51 2.85...
  • Page 75 EDAR122202 Capacity Tables Indoor air temp.:°CWB Outdoor 14°C 16°C 18°C 19°C 22°C 24°C Combination air temp. (Capacity) °CDB 35+35+35+35 22.0 9.98 2.56 10.44 2.61 10.89 2.66 11.12 2.68 11.81 2.75 12.26 2.80 25.0 9.70 2.65 10.16 2.70 10.62 2.75 10.84 2.77 11.53 2.85...
  • Page 76 Capacity Tables EDAR122202 Heating [50 Hz, 220 V] Outdoor air temp.:°CWB Indoor -15°C -10°C -5°C 0°C 6°C 10°C 15°C Combination air temp. (Capacity) °CDB 16.0 2.37 1.14 2.65 1.18 2.89 1.23 3.31 1.28 4.54 1.38 4.94 1.43 5.44 1.49 18.0 2.31 1.15 2.59...
  • Page 77 EDAR122202 Capacity Tables Outdoor air temp.:°CWB Indoor -15°C -10°C -5°C 0°C 6°C 10°C 15°C Combination air temp. (Capacity) °CDB 20+71 16.0 5.48 2.79 6.13 2.91 6.70 3.02 7.67 3.16 10.51 3.41 11.44 3.52 12.59 3.66 18.0 5.35 2.83 6.00 2.94 6.58 3.05 7.55...
  • Page 78 Capacity Tables EDAR122202 Outdoor air temp.:°CWB Indoor -15°C -10°C -5°C 0°C 6°C 10°C 15°C Combination air temp. (Capacity) °CDB 50+60 16.0 5.76 2.61 6.43 2.71 7.03 2.82 8.05 2.95 11.04 3.18 12.01 3.29 13.22 3.42 18.0 5.61 2.64 6.30 2.74 6.91 2.85 7.93...
  • Page 79 EDAR122202 Capacity Tables Outdoor air temp.:°CWB Indoor -15°C -10°C -5°C 0°C 6°C 10°C 15°C Combination air temp. (Capacity) °CDB 20+25+25 16.0 5.36 2.49 5.98 2.59 6.54 2.69 7.49 2.81 10.27 3.03 11.17 3.14 12.30 3.26 18.0 5.22 2.52 5.86 2.61 6.43 2.72 7.37...
  • Page 80 Capacity Tables EDAR122202 Outdoor air temp.:°CWB Indoor -15°C -10°C -5°C 0°C 6°C 10°C 15°C Combination air temp. (Capacity) °CDB 20+50+71 16.0 6.32 2.37 7.06 2.46 7.72 2.56 8.84 2.68 12.12 2.89 13.18 2.98 14.51 3.10 18.0 6.16 2.39 6.91 2.49 7.58 2.58 8.70...
  • Page 81 EDAR122202 Capacity Tables Outdoor air temp.:°CWB Indoor -15°C -10°C -5°C 0°C 6°C 10°C 15°C Combination air temp. (Capacity) °CDB 25+50+50 16.0 6.09 2.46 6.80 2.56 7.43 2.66 8.51 2.78 11.66 3.00 12.69 3.11 13.97 3.23 18.0 5.93 2.49 6.66 2.59 7.30 2.69 8.38...
  • Page 82 Capacity Tables EDAR122202 Outdoor air temp.:°CWB Indoor -15°C -10°C -5°C 0°C 6°C 10°C 15°C Combination air temp. (Capacity) °CDB 20+20+20+35 16.0 6.04 2.33 6.75 2.42 7.38 2.51 8.45 2.63 11.58 2.84 12.60 2.93 13.87 3.05 18.0 5.89 2.35 6.61 2.45 7.25 2.54 8.32...
  • Page 83 EDAR122202 Capacity Tables Outdoor air temp.:°CWB Indoor -15°C -10°C -5°C 0°C 6°C 10°C 15°C Combination air temp. (Capacity) °CDB 20+20+35+60 16.0 6.40 2.19 7.15 2.28 7.82 2.37 8.95 2.48 12.27 2.67 13.35 2.76 14.70 2.87 18.0 6.24 2.21 7.00 2.30 7.68 2.39 8.81...
  • Page 84 Capacity Tables EDAR122202 Outdoor air temp.:°CWB Indoor -15°C -10°C -5°C 0°C 6°C 10°C 15°C Combination air temp. (Capacity) °CDB 20+35+35+35 16.0 6.18 2.30 6.90 2.39 7.54 2.49 8.64 2.60 11.84 2.81 12.88 2.90 14.18 3.02 18.0 6.02 2.33 6.76 2.42 7.41 2.51 8.50...
  • Page 85 EDAR122202 Capacity Tables Outdoor air temp.:°CWB Indoor -15°C -10°C -5°C 0°C 6°C 10°C 15°C Combination air temp. (Capacity) °CDB 35+35+35+35 16.0 6.24 2.27 6.97 2.36 7.62 2.45 8.73 2.57 11.96 2.77 13.01 2.86 14.33 2.98 18.0 6.08 2.30 6.83 2.39 7.49 2.48 8.59...
  • Page 86 Capacity Tables EDAR122202 5MXM110RVM2 Cooling [50 Hz, 220 V] Indoor air temp.: °CWB Outdoor 14°C 16°C 18°C 19°C 22°C 24°C Combination air temp. (Capacity) °CDB 22.0 3.67 0.86 3.84 0.88 4.01 0.90 4.09 0.90 4.34 0.93 4.51 0.95 25.0 3.57 0.89 3.74 0.91...
  • Page 87 EDAR122202 Capacity Tables Indoor air temp.: °CWB Outdoor 14°C 16°C 18°C 19°C 22°C 24°C Combination air temp. (Capacity) °CDB 20+50 22.0 9.01 3.19 9.43 3.25 9.84 3.31 10.04 3.34 10.66 3.44 11.08 3.50 25.0 8.76 3.30 9.18 3.37 9.59 3.43 9.79 3.46 10.41...
  • Page 88 Capacity Tables EDAR122202 Indoor air temp.: °CWB Outdoor 14°C 16°C 18°C 19°C 22°C 24°C Combination air temp. (Capacity) °CDB 35+50 22.0 9.91 3.19 10.36 3.25 10.82 3.31 11.04 3.34 11.72 3.44 12.18 3.50 25.0 9.63 3.30 10.09 3.37 10.54 3.43 10.77 3.46 11.45...
  • Page 89 EDAR122202 Capacity Tables Indoor air temp.: °CWB Outdoor 14°C 16°C 18°C 19°C 22°C 24°C Combination air temp. (Capacity) °CDB 20+20+20 22.0 8.79 2.05 9.19 2.09 9.60 2.13 9.80 2.15 10.40 2.21 10.80 2.25 25.0 8.55 2.13 8.95 2.17 9.35 2.21 9.55 2.23 10.16...
  • Page 90 Capacity Tables EDAR122202 Indoor air temp.: °CWB Outdoor 14°C 16°C 18°C 19°C 22°C 24°C Combination air temp. (Capacity) °CDB 20+25+60 22.0 12.02 3.19 12.57 3.25 13.12 3.31 13.40 3.34 14.22 3.44 14.77 3.50 25.0 11.69 3.30 12.24 3.37 12.79 3.43 13.06 3.46 13.89...
  • Page 91 EDAR122202 Capacity Tables Indoor air temp.: °CWB Outdoor 14°C 16°C 18°C 19°C 22°C 24°C Combination air temp. (Capacity) °CDB 20+60+60 22.0 12.91 3.19 13.50 3.25 14.09 3.31 14.38 3.34 15.27 3.44 15.86 3.50 25.0 12.55 3.30 13.14 3.37 13.73 3.43 14.02 3.46 14.91...
  • Page 92 Capacity Tables EDAR122202 Indoor air temp.: °CWB Outdoor 14°C 16°C 18°C 19°C 22°C 24°C Combination air temp. (Capacity) °CDB 25+35+60 22.0 12.16 3.19 12.72 3.25 13.28 3.31 13.55 3.34 14.39 3.44 14.95 3.50 25.0 11.82 3.30 12.38 3.37 12.94 3.43 13.22 3.46 14.05...
  • Page 93 EDAR122202 Capacity Tables Indoor air temp.: °CWB Outdoor 14°C 16°C 18°C 19°C 22°C 24°C Combination air temp. (Capacity) °CDB 35+35+60 22.0 12.24 3.19 12.80 3.25 13.36 3.31 13.64 3.34 14.48 3.44 15.05 3.50 25.0 11.90 3.30 12.46 3.37 13.02 3.43 13.30 3.46 14.14...
  • Page 94 Capacity Tables EDAR122202 Indoor air temp.: °CWB Outdoor 14°C 16°C 18°C 19°C 22°C 24°C Combination air temp. (Capacity) °CDB 20+20+20+35 22.0 11.91 3.19 12.46 3.25 13.00 3.31 13.27 3.34 14.09 3.44 14.64 3.50 25.0 11.58 3.30 12.12 3.37 12.67 3.43 12.94 3.46 13.76...
  • Page 95 EDAR122202 Capacity Tables Indoor air temp.: °CWB Outdoor 14°C 16°C 18°C 19°C 22°C 24°C Combination air temp. (Capacity) °CDB 20+20+35+35 22.0 11.94 3.19 12.49 3.25 13.03 3.31 13.31 3.34 14.13 3.44 14.67 3.50 25.0 11.61 3.30 12.16 3.37 12.70 3.43 12.98 3.46 13.80...
  • Page 96 Capacity Tables EDAR122202 Indoor air temp.: °CWB Outdoor 14°C 16°C 18°C 19°C 22°C 24°C Combination air temp. (Capacity) °CDB 20+25+25+60 22.0 12.75 3.19 13.34 3.25 13.92 3.31 14.22 3.34 15.09 3.44 15.68 3.50 25.0 12.40 3.30 12.98 3.37 13.57 3.43 13.86 3.46 14.74...
  • Page 97 EDAR122202 Capacity Tables Indoor air temp.: °CWB Outdoor 14°C 16°C 18°C 19°C 22°C 24°C Combination air temp. (Capacity) °CDB 20+35+35+50 22.0 12.60 3.20 13.18 3.26 13.76 3.32 14.05 3.35 14.91 3.45 15.49 3.51 25.0 12.25 3.31 12.83 3.37 13.41 3.44 13.70 3.47 14.56...
  • Page 98 Capacity Tables EDAR122202 Indoor air temp.: °CWB Outdoor 14°C 16°C 18°C 19°C 22°C 24°C Combination air temp. (Capacity) °CDB 25+25+35+50 22.0 12.61 3.20 13.19 3.26 13.77 3.32 14.06 3.35 14.92 3.45 15.50 3.51 25.0 12.26 3.31 12.84 3.37 13.42 3.44 13.71 3.47 14.57...
  • Page 99 EDAR122202 Capacity Tables Indoor air temp.: °CWB Outdoor 14°C 16°C 18°C 19°C 22°C 24°C Combination air temp. (Capacity) °CDB 20+20+20+20+20 22.0 12.83 3.20 13.41 3.26 14.00 3.32 14.29 3.35 15.17 3.45 15.76 3.51 25.0 12.47 3.31 13.06 3.37 13.64 3.44 13.94 3.47 14.82...
  • Page 100 Capacity Tables EDAR122202 Indoor air temp.: °CWB Outdoor 14°C 16°C 18°C 19°C 22°C 24°C Combination air temp. (Capacity) °CDB 20+20+20+25+60 22.0 13.08 3.17 13.68 3.23 14.27 3.30 14.57 3.33 15.47 3.42 16.07 3.48 25.0 12.71 3.29 13.31 3.35 13.91 3.41 14.21 3.44 15.11...
  • Page 101 EDAR122202 Capacity Tables Indoor air temp.: °CWB Outdoor 14°C 16°C 18°C 19°C 22°C 24°C Combination air temp. (Capacity) °CDB 20+20+25+35+35 22.0 12.89 3.20 13.48 3.26 14.07 3.32 14.36 3.35 15.25 3.45 15.84 3.51 25.0 12.53 3.31 13.12 3.37 13.71 3.44 14.00 3.47 14.89...
  • Page 102 Capacity Tables EDAR122202 Indoor air temp.: °CWB Outdoor 14°C 16°C 18°C 19°C 22°C 24°C Combination air temp. (Capacity) °CDB 20+25+35+35+35 22.0 12.90 3.20 13.49 3.26 14.08 3.32 14.37 3.35 15.26 3.45 15.85 3.51 25.0 12.54 3.31 13.13 3.37 13.72 3.44 14.01 3.47 14.90...
  • Page 103 EDAR122202 Capacity Tables Heating [50 Hz, 220 V] Outdoor air temp.: °CWB Indoor –15°C –10°C –5°C 0°C 6°C 10°C 15°C Combination air temp. (Capacity) °CDB 16.0 2.39 1.05 2.66 1.07 2.90 1.10 3.07 1.13 4.58 1.29 4.99 1.33 5.49 1.38 18.0 2.33 1.06...
  • Page 104 Capacity Tables EDAR122202 Outdoor air temp.: °CWB Indoor –15°C –10°C –5°C 0°C 6°C 10°C 15°C Combination air temp. (Capacity) °CDB 20+71 16.0 6.27 3.90 6.98 4.00 7.60 4.10 8.06 4.20 12.03 4.78 13.09 4.94 14.41 5.14 18.0 6.11 3.94 6.83 4.04 7.47 4.14...
  • Page 105 EDAR122202 Capacity Tables Outdoor air temp.: °CWB Indoor –15°C –10°C –5°C 0°C 6°C 10°C 15°C Combination air temp. (Capacity) °CDB 50+60 16.0 6.66 3.87 7.41 3.96 8.08 4.07 8.57 4.17 12.78 4.74 13.91 4.90 15.31 5.10 18.0 6.49 3.91 7.26 4.01 7.93 4.11...
  • Page 106 Capacity Tables EDAR122202 Outdoor air temp.: °CWB Indoor –15°C –10°C –5°C 0°C 6°C 10°C 15°C Combination air temp. (Capacity) °CDB 20+25+25 16.0 5.35 2.93 5.95 3.00 6.48 3.08 6.88 3.16 10.27 3.59 11.17 3.71 12.30 3.87 18.0 5.21 2.96 5.83 3.04 6.37 3.11...
  • Page 107 EDAR122202 Capacity Tables Outdoor air temp.: °CWB Indoor –15°C –10°C –5°C 0°C 6°C 10°C 15°C Combination air temp. (Capacity) °CDB 20+50+71 16.0 6.80 3.16 7.57 3.24 8.24 3.33 8.75 3.41 13.05 3.88 14.20 4.01 15.63 4.17 18.0 6.63 3.20 7.41 3.28 8.10 3.36...
  • Page 108 Capacity Tables EDAR122202 Outdoor air temp.: °CWB Indoor –15°C –10°C –5°C 0°C 6°C 10°C 15°C Combination air temp. (Capacity) °CDB 25+35+71 16.0 6.80 3.43 7.57 3.51 8.24 3.61 8.75 3.69 13.05 4.20 14.20 4.34 15.63 4.52 18.0 6.63 3.46 7.41 3.55 8.10 3.64...
  • Page 109 EDAR122202 Capacity Tables Outdoor air temp.: °CWB Indoor –15°C –10°C –5°C 0°C 6°C 10°C 15°C Combination air temp. (Capacity) °CDB 35+50+60 16.0 6.80 3.22 7.57 3.30 8.24 3.39 8.75 3.47 13.05 3.95 14.20 4.08 15.63 4.25 18.0 6.63 3.25 7.41 3.33 8.10 3.42...
  • Page 110 Capacity Tables EDAR122202 Outdoor air temp.: °CWB Indoor –15°C –10°C –5°C 0°C 6°C 10°C 15°C Combination air temp. (Capacity) °CDB 20+20+25+35 16.0 6.63 3.28 7.38 3.36 8.04 3.45 8.53 3.54 12.73 4.03 13.85 4.16 15.25 4.33 18.0 6.47 3.32 7.23 3.40 7.90 3.49...
  • Page 111 EDAR122202 Capacity Tables Outdoor air temp.: °CWB Indoor –15°C –10°C –5°C 0°C 6°C 10°C 15°C Combination air temp. (Capacity) °CDB 20+25+25+35 16.0 6.67 3.27 7.42 3.35 8.09 3.44 8.58 3.52 12.80 4.01 13.93 4.14 15.34 4.31 18.0 6.50 3.30 7.27 3.38 7.94 3.47...
  • Page 112 Capacity Tables EDAR122202 Outdoor air temp.: °CWB Indoor –15°C –10°C –5°C 0°C 6°C 10°C 15°C Combination air temp. (Capacity) °CDB 20+35+35+50 16.0 6.80 3.01 7.57 3.09 8.24 3.17 8.75 3.24 13.05 3.69 14.20 3.82 15.63 3.97 18.0 6.63 3.04 7.41 3.12 8.10 3.20...
  • Page 113 EDAR122202 Capacity Tables Outdoor air temp.: °CWB Indoor –15°C –10°C –5°C 0°C 6°C 10°C 15°C Combination air temp. (Capacity) °CDB 25+25+35+71 16.0 6.80 2.77 7.57 2.84 8.24 2.91 8.75 2.98 13.05 3.40 14.20 3.51 15.63 3.65 18.0 6.63 2.80 7.41 2.87 8.10 2.94...
  • Page 114 Capacity Tables EDAR122202 Outdoor air temp.: °CWB Indoor –15°C –10°C –5°C 0°C 6°C 10°C 15°C Combination air temp. (Capacity) °CDB 20+20+20+20+60 16.0 6.80 2.61 7.57 2.68 8.24 2.75 8.75 2.81 13.05 3.20 14.20 3.31 15.63 3.44 18.0 6.63 2.64 7.41 2.70 8.10 2.77...
  • Page 115 EDAR122202 Capacity Tables Outdoor air temp.: °CWB Indoor –15°C –10°C –5°C 0°C 6°C 10°C 15°C Combination air temp. (Capacity) °CDB 20+20+25+25+35 16.0 6.80 2.78 7.57 2.85 8.24 2.92 8.75 2.99 13.05 3.41 14.20 3.52 15.63 3.66 18.0 6.63 2.81 7.41 2.88 8.10 2.95...
  • Page 116 Capacity Tables EDAR122202 Outdoor air temp.: °CWB Indoor –15°C –10°C –5°C 0°C 6°C 10°C 15°C Combination air temp. (Capacity) °CDB 20+25+25+35+50 16.0 6.80 2.46 7.57 2.52 8.24 2.59 8.75 2.65 13.05 3.01 14.20 3.12 15.63 3.24 18.0 6.63 2.48 7.41 2.55 8.10 2.61...
  • Page 117 EDAR122202 Capacity Tables Capacity Correction Factor by the Length of Refrigerant Piping (Reference) The cooling capacity and the heating capacity of the unit have to be corrected in accordance with the length of refrigerant piping — the distance between the indoor unit and the outdoor unit. <—...
  • Page 118 Operation Limit EDAR122202 8. Operation Limit 3MXM70RVM2, 4MXM80/100RVM2, 5MXM110RVM2 3D090106A Multi-Split Type Air Conditioners 3/4/5MXM-R Series...
  • Page 119 EDAR122202 Fan Characteristics 9. Fan Characteristics External Static Pressure CDXP25/35RVM2 3D051853H CDXM50RVM2 3D045762L Multi-Split Type Air Conditioners 3/4/5MXM-R Series...
  • Page 120 Fan Characteristics EDAR122202 CDXM60/71RVM2 3D045763K Multi-Split Type Air Conditioners 3/4/5MXM-R Series...
  • Page 121 EDAR122202 Sound Level 10. Sound Level 10.1 Measuring Location Indoor Unit Wall Mounted Type Duct Connected Type DUCT DUCT MICROPHONE MICROPHONE Outdoor Unit MICROPHONE Notes: 1. Operation sound is measured in an anechoic chamber. 2. The operation sound measuring method is based on JIS standard. Multi-Split Type Air Conditioners 3/4/5MXM-R Series...
  • Page 122 Sound Level EDAR122202 10.2 Indoor Unit 10.2.1 Wall Mounted Type CTXM20RVM2 3D110830 CTXM25RVM2 3D110831 Multi-Split Type Air Conditioners 3/4/5MXM-R Series...
  • Page 123 EDAR122202 Sound Level CTXM35RVM2 3D110832 CTXM50RVM2 3D098954D Multi-Split Type Air Conditioners 3/4/5MXM-R Series...
  • Page 124 Sound Level EDAR122202 CTXM60RVM2 3D098956D CTXM71RVM2 3D098975D Multi-Split Type Air Conditioners 3/4/5MXM-R Series...
  • Page 125 EDAR122202 Sound Level 10.2.2 Duct Connected Type CDXP25/35RVM2 3D051866F CDXM50RVM2 3D046245J Multi-Split Type Air Conditioners 3/4/5MXM-R Series...
  • Page 126 Sound Level EDAR122202 CDXM60/71RVM2 3D046246H Multi-Split Type Air Conditioners 3/4/5MXM-R Series...
  • Page 127 EDAR122202 Sound Level 10.3 Outdoor Unit 3MXM70RVM2 3D140153 4MXM80RVM2 3D140163 Multi-Split Type Air Conditioners 3/4/5MXM-R Series...
  • Page 128 Sound Level EDAR122202 4MXM100RVM2 3D140164 5MXM110RVM2 3D140165 Multi-Split Type Air Conditioners 3/4/5MXM-R Series...
  • Page 129 EDAR122202 Electric Characteristics 11. Electric Characteristics Power Supply Compressor Outdoor Unit Hz - Volts Voltage Range 50 - 220 0.17 Max. 50 Hz 264 V 50 - 230 0.16 Min. 50 Hz 198 V 3MXM70RVM2 50 - 240 18.0 0.15 60 - 220 0.17 Max.
  • Page 130 Electric Characteristics EDAR122202 Multi-Split Type Air Conditioners 3/4/5MXM-R Series...
  • Page 131 EDAR122202 Part 2 Installation Manual 1. CTXM-R Series ...................128 1.1 Wall Mounted Type CTXM20/25/35/50/60/71RVM2 ......128 2. CDXP, CDXM Series ................136 2.1 Duct Connected Type CDXP25/35RVM2, CDXM50/60/71RVM2 ..136 3. Remote Controllers ................148 3.1 <BRC073A5> Wired Remote Controller for CTXM, CDXP, CDXM Series..................148 4.
  • Page 132 CTXM-R Series EDAR122202 1. CTXM-R Series Wall Mounted Type CTXM20/25/35/50/60/71RVM2 3P529268-5C Installation Manual...
  • Page 133 EDAR122202 CTXM-R Series 3P529268-5C Installation Manual...
  • Page 134 CTXM-R Series EDAR122202 3P529268-5C Installation Manual...
  • Page 135 EDAR122202 CTXM-R Series 3P529268-5C Installation Manual...
  • Page 136 CTXM-R Series EDAR122202 3P529268-5C Installation Manual...
  • Page 137 EDAR122202 CTXM-R Series 3P529268-5C Installation Manual...
  • Page 138 CTXM-R Series EDAR122202 3P529268-5C Installation Manual...
  • Page 139 EDAR122202 CTXM-R Series 3P529268-5C Installation Manual...
  • Page 140 CDXP, CDXM Series EDAR122202 2. CDXP, CDXM Series Duct Connected Type CDXP25/35RVM2, CDXM50/60/71RVM2 3P529268-7C Installation Manual...
  • Page 141 EDAR122202 CDXP, CDXM Series 3P529268-7C Installation Manual...
  • Page 142 CDXP, CDXM Series EDAR122202 3P529268-7C Installation Manual...
  • Page 143 EDAR122202 CDXP, CDXM Series 3P529268-7C Installation Manual...
  • Page 144 CDXP, CDXM Series EDAR122202 3P529268-7C Installation Manual...
  • Page 145 EDAR122202 CDXP, CDXM Series 3P529268-7C Installation Manual...
  • Page 146 CDXP, CDXM Series EDAR122202 3P529268-7C Installation Manual...
  • Page 147 EDAR122202 CDXP, CDXM Series 3P529268-7C Installation Manual...
  • Page 148 CDXP, CDXM Series EDAR122202 3P529268-7C Installation Manual...
  • Page 149 EDAR122202 CDXP, CDXM Series 3P529268-7C Installation Manual...
  • Page 150 CDXP, CDXM Series EDAR122202 3P529268-7C Installation Manual...
  • Page 151 EDAR122202 CDXP, CDXM Series 3P529268-7C Installation Manual...
  • Page 152 Remote Controllers EDAR122202 3. Remote Controllers <BRC073A5> Wired Remote Controller for CTXM, CDXP, CDXM Series 4P457318-2E Installation Manual...
  • Page 153 EDAR122202 Remote Controllers 4P457318-2E Installation Manual...
  • Page 154 Remote Controllers EDAR122202 4P457318-2E Installation Manual...
  • Page 155 EDAR122202 Remote Controllers 4P457318-2E Installation Manual...
  • Page 156 Remote Controllers EDAR122202 4P457318-2E Installation Manual...
  • Page 157 EDAR122202 Remote Controllers 4P457318-2E Installation Manual...
  • Page 158 Remote Controllers EDAR122202 4P457318-2E Installation Manual...
  • Page 159 EDAR122202 Remote Controllers 4P457318-2E Installation Manual...
  • Page 160 Remote Controllers EDAR122202 4P457318-2E Installation Manual...
  • Page 161 EDAR122202 Remote Controllers 4P457318-2E Installation Manual...
  • Page 162 Remote Controllers EDAR122202 4P457318-2E Installation Manual...
  • Page 163 EDAR122202 Remote Controllers 4P457318-2E Installation Manual...
  • Page 164 Remote Controllers EDAR122202 4P457318-2E Installation Manual...
  • Page 165 EDAR122202 Remote Controllers 4P457318-2E Installation Manual...
  • Page 166 Remote Controllers EDAR122202 4P457318-2E Installation Manual...
  • Page 167 EDAR122202 Remote Controllers 4P457318-2E Installation Manual...
  • Page 168 Remote Controllers EDAR122202 4P457318-2E Installation Manual...
  • Page 169 EDAR122202 Remote Controllers 4P457318-2E Installation Manual...
  • Page 170 Remote Controllers EDAR122202 4P457318-2E Installation Manual...
  • Page 171 EDAR122202 Remote Controllers 4P457318-2E Installation Manual...
  • Page 172 Remote Controllers EDAR122202 4P457318-2E Installation Manual...
  • Page 173 EDAR122202 Remote Controllers 4P457318-2E Installation Manual...
  • Page 174 Remote Controllers EDAR122202 4P457318-2E Installation Manual...
  • Page 175 EDAR122202 Remote Controllers 4P457318-2E Installation Manual...
  • Page 176 Remote Controllers EDAR122202 4P457318-2E Installation Manual...
  • Page 177 EDAR122202 Remote Controllers 4P457318-2E Installation Manual...
  • Page 178 Remote Controllers EDAR122202 4P457318-2E Installation Manual...
  • Page 179 EDAR122202 Remote Controllers 4P457318-2E Installation Manual...
  • Page 180 Outdoor Unit EDAR122202 4. Outdoor Unit 3MXM70RVM2, 4MXM80/100RVM2 3P529268-9C Installation Manual...
  • Page 181 EDAR122202 Outdoor Unit 3P529268-9C Installation Manual...
  • Page 182 Outdoor Unit EDAR122202 3P529268-9C Installation Manual...
  • Page 183 EDAR122202 Outdoor Unit 3P529268-9C Installation Manual...
  • Page 184 Outdoor Unit EDAR122202 3P529268-9C Installation Manual...
  • Page 185 EDAR122202 Outdoor Unit 3P529268-9C Installation Manual...
  • Page 186 Outdoor Unit EDAR122202 3P529268-9C Installation Manual...
  • Page 187 EDAR122202 Outdoor Unit 3P529268-9C Installation Manual...
  • Page 188 Outdoor Unit EDAR122202 3P529268-9C Installation Manual...
  • Page 189 EDAR122202 Outdoor Unit 3P529268-9C Installation Manual...
  • Page 190 Outdoor Unit EDAR122202 3P529268-9C Installation Manual...
  • Page 191 EDAR122202 Outdoor Unit 3P529268-9C Installation Manual...
  • Page 192 Outdoor Unit EDAR122202 3P529268-9C Installation Manual...
  • Page 193 EDAR122202 Outdoor Unit 3P529268-9C Installation Manual...
  • Page 194 Outdoor Unit EDAR122202 3P529268-9C Installation Manual...
  • Page 195 EDAR122202 Outdoor Unit 3P529268-9C Installation Manual...
  • Page 196 Outdoor Unit EDAR122202 5MXM110RVM2 3P529268-11C Installation Manual...
  • Page 197 EDAR122202 Outdoor Unit 3P529268-11C Installation Manual...
  • Page 198 Outdoor Unit EDAR122202 3P529268-11C Installation Manual...
  • Page 199 EDAR122202 Outdoor Unit 3P529268-11C Installation Manual...
  • Page 200 Outdoor Unit EDAR122202 3P529268-11C Installation Manual...
  • Page 201 EDAR122202 Outdoor Unit 3P529268-11C Installation Manual...
  • Page 202 Outdoor Unit EDAR122202 3P529268-11C Installation Manual...
  • Page 203 EDAR122202 Outdoor Unit 3P529268-11C Installation Manual...
  • Page 204 Outdoor Unit EDAR122202 3P529268-11C Installation Manual...
  • Page 205 EDAR122202 Outdoor Unit 3P529268-11C Installation Manual...
  • Page 206 Outdoor Unit EDAR122202 3P529268-11C Installation Manual...
  • Page 207 EDAR122202 Outdoor Unit 3P529268-11C Installation Manual...
  • Page 208 Outdoor Unit EDAR122202 3P529268-11C Installation Manual...
  • Page 209 EDAR122202 Outdoor Unit 3P529268-11C Installation Manual...
  • Page 210 Outdoor Unit EDAR122202 3P529268-11C Installation Manual...
  • Page 211 EDAR122202 Outdoor Unit 3P529268-11C Installation Manual...
  • Page 212 Outdoor Unit EDAR122202 Installation Manual...
  • Page 213 EDAR122202 Part 3 Operation Manual 1. CTXM Series..................210 1.1 Manual Contents and Reference Page ..........210 1.2 Safety Precautions ................211 1.3 Names of Parts..................213 1.4 Preparation before Operation...............221 1.5 AUTO · DRY · COOL · HEAT · FAN Operation ........223 1.6 Adjusting the Airflow Direction and Rate ..........225 1.7 INTELLIGENT EYE Operation .............227 1.8 COMFORT AIRFLOW Operation ............231 1.9 ECONO / OUTDOOR UNIT QUIET Operation........232...
  • Page 214 CTXM Series EDAR122202 1. CTXM Series Manual Contents and Reference Page Wall Mounted Type Model Series 20/25/35 Class 50/60/71 Class Safety Precautions Names of Parts Preparation before Operation AUTO · DRY · COOL · HEAT · FAN Operation Adjusting the Airflow Direction and Rate  INTELLIGENT EYE Operation COMFORT AIRFLOW Operation ECONO / OUTDOOR UNIT QUIET Operation...
  • Page 215 EDAR122202 CTXM Series Safety Precautions 3P529266-4C Operation Manual...
  • Page 216 CTXM Series EDAR122202 3P529266-4C Operation Manual...
  • Page 217 EDAR122202 CTXM Series Names of Parts 1.3.1 20/25/35 Class 3P529266-4C Operation Manual...
  • Page 218 CTXM Series EDAR122202 3P529266-4C Operation Manual...
  • Page 219 EDAR122202 CTXM Series 3P529266-4C Operation Manual...
  • Page 220 CTXM Series EDAR122202 3P529266-4C Operation Manual...
  • Page 221 EDAR122202 CTXM Series 1.3.2 50/60/71 Class 3P529266-4C Operation Manual...
  • Page 222 CTXM Series EDAR122202 3P529266-4C Operation Manual...
  • Page 223 EDAR122202 CTXM Series 3P529266-4C Operation Manual...
  • Page 224 CTXM Series EDAR122202 3P529266-4C Operation Manual...
  • Page 225 EDAR122202 CTXM Series Preparation before Operation 3P529266-4C Operation Manual...
  • Page 226 CTXM Series EDAR122202 3P529266-4C Operation Manual...
  • Page 227 EDAR122202 CTXM Series AUTO · DRY · COOL · HEAT · FAN Operation 3P529266-4C Operation Manual...
  • Page 228 CTXM Series EDAR122202 3P529266-4C Operation Manual...
  • Page 229 EDAR122202 CTXM Series Adjusting the Airflow Direction and Rate 3P529266-4C Operation Manual...
  • Page 230 CTXM Series EDAR122202 3P529266-4C Operation Manual...
  • Page 231 EDAR122202 CTXM Series INTELLIGENT EYE Operation 1.7.1 20/25/35 Class 3P529266-4C Operation Manual...
  • Page 232 CTXM Series EDAR122202 3P529266-4C Operation Manual...
  • Page 233 EDAR122202 CTXM Series 1.7.2 50/60/71 Class 3P529266-4C Operation Manual...
  • Page 234 CTXM Series EDAR122202 3P529266-4C Operation Manual...
  • Page 235 EDAR122202 CTXM Series COMFORT AIRFLOW Operation 3P529266-4C Operation Manual...
  • Page 236 CTXM Series EDAR122202 ECONO / OUTDOOR UNIT QUIET Operation 3P529266-4C Operation Manual...
  • Page 237 EDAR122202 CTXM Series 1.10 SUPER POWERFUL / HEAT PLUS Operation 3P529266-4C Operation Manual...
  • Page 238 CTXM Series EDAR122202 3P529266-4C Operation Manual...
  • Page 239 EDAR122202 CTXM Series 1.11 ON/OFF TIMER Operation 3P529266-4C Operation Manual...
  • Page 240 CTXM Series EDAR122202 3P529266-4C Operation Manual...
  • Page 241 EDAR122202 CTXM Series 3P529266-4C Operation Manual...
  • Page 242 CTXM Series EDAR122202 1.12 WEEKLY TIMER Operation 3P529266-4C Operation Manual...
  • Page 243 EDAR122202 CTXM Series 3P529266-4C Operation Manual...
  • Page 244 CTXM Series EDAR122202 3P529266-4C Operation Manual...
  • Page 245 EDAR122202 CTXM Series 3P529266-4C Operation Manual...
  • Page 246 CTXM Series EDAR122202 3P529266-4C Operation Manual...
  • Page 247 EDAR122202 CTXM Series 3P529266-4C Operation Manual...
  • Page 248 CTXM Series EDAR122202 1.13 Note for Multi System 3P529266-4C Operation Manual...
  • Page 249 EDAR122202 CTXM Series 3P529266-4C Operation Manual...
  • Page 250 CTXM Series EDAR122202 1.14 Care and Cleaning 1.14.1 20/25/35 Class 3P529266-4C Operation Manual...
  • Page 251 EDAR122202 CTXM Series 3P529266-4C Operation Manual...
  • Page 252 CTXM Series EDAR122202 3P529266-4C Operation Manual...
  • Page 253 EDAR122202 CTXM Series 3P529266-4C Operation Manual...
  • Page 254 CTXM Series EDAR122202 3P529266-4C Operation Manual...
  • Page 255 EDAR122202 CTXM Series 1.14.2 50/60/71 Class 3P529266-4C Operation Manual...
  • Page 256 CTXM Series EDAR122202 3P529266-4C Operation Manual...
  • Page 257 EDAR122202 CTXM Series 3P529266-4C Operation Manual...
  • Page 258 CTXM Series EDAR122202 3P529266-4C Operation Manual...
  • Page 259 EDAR122202 CTXM Series 3P529266-4C Operation Manual...
  • Page 260 CTXM Series EDAR122202 1.15 Troubleshooting 3P529266-4C Operation Manual...
  • Page 261 EDAR122202 CTXM Series 3P529266-4C Operation Manual...
  • Page 262 CTXM Series EDAR122202 3P529266-4C Operation Manual...
  • Page 263 EDAR122202 CTXM Series 3P529266-4C Operation Manual...
  • Page 264 CTXM Series EDAR122202 3P529266-4C Operation Manual...
  • Page 265 EDAR122202 CTXM Series 1.16 Quick Reference 3P529266-4C Operation Manual...
  • Page 266 CDXP, CDXM Series EDAR122202 2. CDXP, CDXM Series 3P529266-5C Operation Manual...
  • Page 267 EDAR122202 CDXP, CDXM Series 3P529266-5C Operation Manual...
  • Page 268 CDXP, CDXM Series EDAR122202 3P529266-5C Operation Manual...
  • Page 269 EDAR122202 CDXP, CDXM Series 3P529266-5C Operation Manual...
  • Page 270 CDXP, CDXM Series EDAR122202 3P529266-5C Operation Manual...
  • Page 271 EDAR122202 CDXP, CDXM Series 3P529266-5C Operation Manual...
  • Page 272 CDXP, CDXM Series EDAR122202 3P529266-5C Operation Manual...
  • Page 273 EDAR122202 CDXP, CDXM Series 3P529266-5C Operation Manual...
  • Page 274 CDXP, CDXM Series EDAR122202 3P529266-5C Operation Manual...
  • Page 275 EDAR122202 Optional Remote Controller 3. Optional Remote Controller <BRC073A5> Wired Remote Controller for CTXM, CDXP, CDXM Series 4P457312-2D Operation Manual...
  • Page 276 Optional Remote Controller EDAR122202 4P457312-2D Operation Manual...
  • Page 277 EDAR122202 Optional Remote Controller 4P457312-2D Operation Manual...
  • Page 278 Optional Remote Controller EDAR122202 4P457312-2D Operation Manual...
  • Page 279 EDAR122202 Optional Remote Controller 4P457312-2D Operation Manual...
  • Page 280 Optional Remote Controller EDAR122202 4P457312-2D Operation Manual...
  • Page 281 EDAR122202 Optional Remote Controller 4P457312-2D Operation Manual...
  • Page 282 Optional Remote Controller EDAR122202 4P457312-2D Operation Manual...
  • Page 283 EDAR122202 Optional Remote Controller 4P457312-2D Operation Manual...
  • Page 284 Optional Remote Controller EDAR122202 4P457312-2D Operation Manual...
  • Page 285 EDAR122202 Optional Remote Controller 4P457312-2D Operation Manual...
  • Page 286 Optional Remote Controller EDAR122202 4P457312-2D Operation Manual...
  • Page 287 EDAR122202 Optional Remote Controller 4P457312-2D Operation Manual...
  • Page 288 Optional Remote Controller EDAR122202 4P457312-2D Operation Manual...
  • Page 289 EDAR122202 Optional Remote Controller 4P457312-2D Operation Manual...
  • Page 290 Optional Remote Controller EDAR122202 4P457312-2D Operation Manual...
  • Page 291 EDAR122202 Optional Remote Controller 4P457312-2D Operation Manual...
  • Page 292 Optional Remote Controller EDAR122202 4P457312-2D Operation Manual...
  • Page 293 EDAR122202 Optional Remote Controller 4P457312-2D Operation Manual...
  • Page 294 Optional Remote Controller EDAR122202 4P457312-2D Operation Manual...
  • Page 295 EDAR122202 Optional Remote Controller 4P457312-2D Operation Manual...
  • Page 296 Optional Remote Controller EDAR122202 4P457312-2D Operation Manual...
  • Page 297 EDAR122202 Optional Remote Controller 4P457312-2D Operation Manual...
  • Page 298 Optional Remote Controller EDAR122202 4P457312-2D Operation Manual...
  • Page 299 EDAR122202 Optional Remote Controller 4P457312-2D Operation Manual...
  • Page 300 Optional Remote Controller EDAR122202 4P457312-2D Operation Manual...
  • Page 301 EDAR122202 Optional Remote Controller 4P457312-2D Operation Manual...
  • Page 302 Optional Remote Controller EDAR122202 4P457312-2D Operation Manual...
  • Page 303 EDAR122202 Optional Remote Controller 4P457312-2D Operation Manual...
  • Page 304 Optional Remote Controller EDAR122202 4P457312-2D Operation Manual...
  • Page 305 EDAR122202 Optional Remote Controller 4P457312-2D Operation Manual...
  • Page 306 Optional Remote Controller EDAR122202 4P457312-2D Operation Manual...
  • Page 307 EDAR122202 Optional Remote Controller 4P457312-2D Operation Manual...
  • Page 308 Optional Remote Controller EDAR122202 4P457312-2D Operation Manual...
  • Page 309 EDAR122202 Optional Remote Controller 4P457312-2D Operation Manual...
  • Page 310 Optional Remote Controller EDAR122202 4P457312-2D Operation Manual...
  • Page 311 EDAR122202 Optional Remote Controller 4P457312-2D Operation Manual...
  • Page 312 Optional Remote Controller EDAR122202 4P457312-2D Operation Manual...
  • Page 313 EDAR122202 Optional Remote Controller 4P457312-2D Operation Manual...
  • Page 314 Optional Remote Controller EDAR122202 4P457312-2D Operation Manual...
  • Page 315 EDAR122202 Optional Remote Controller 4P457312-2D Operation Manual...
  • Page 316 Optional Remote Controller EDAR122202 4P457312-2D Operation Manual...
  • Page 317 EDAR122202 Optional Remote Controller 4P457312-2D Operation Manual...
  • Page 318 Optional Remote Controller EDAR122202 4P457312-2D Operation Manual...
  • Page 319 EDAR122202 Optional Remote Controller 4P457312-2D Operation Manual...
  • Page 320 Optional Remote Controller EDAR122202 4P457312-2D Operation Manual...
  • Page 321 EDAR122202 Optional Remote Controller <BRC086A11> Wireless Remote Controller for CDXP, CDXM Series 3P477582-2 Operation Manual...
  • Page 322 Optional Remote Controller EDAR122202 3P477582-2 Operation Manual...
  • Page 323 EDAR122202 Optional Remote Controller 3P477582-2 Operation Manual...
  • Page 324 Optional Remote Controller EDAR122202 3P477582-2 Operation Manual...
  • Page 325 EDAR122202 Optional Remote Controller 3P477582-2 Operation Manual...
  • Page 326 Optional Remote Controller EDAR122202 3P477582-2 Operation Manual...
  • Page 327 EDAR122202 Optional Remote Controller 3P477582-2 Operation Manual...
  • Page 328 Optional Remote Controller EDAR122202 3P477582-2 Operation Manual...
  • Page 329 EDAR122202 Optional Remote Controller 3P477582-2 Operation Manual...
  • Page 330 Optional Remote Controller EDAR122202 3P477582-2 Operation Manual...
  • Page 331 EDAR122202 Optional Remote Controller 3P477582-2 Operation Manual...
  • Page 332 Optional Remote Controller EDAR122202 3P477582-2 Operation Manual...
  • Page 333 EDAR122202 Optional Remote Controller 3P477582-2 Operation Manual...
  • Page 334 Optional Remote Controller EDAR122202 3P477582-2 Operation Manual...
  • Page 335 EDAR122202 Optional Remote Controller 3P477582-2 Operation Manual...
  • Page 336 Optional Remote Controller EDAR122202 3P477582-2 Operation Manual...
  • Page 337 EDAR122202 Part 4 Options 1. Option List ...................334 1.1 Indoor Unit....................334 1.2 Outdoor Unit ..................335 2. Control Devices...................336 2.1 <BRP067A42> Remote Control PC-Board Set ........336 2.2 <BRP980B42> Remote Control PC-Board Set ........340 2.3 <KRP413BB1S> Wiring Adaptor for Timer Clock / Remote Controller ................344 2.4 <BRCW901A03/08>...
  • Page 338 Option List EDAR122202 1. Option List Indoor Unit CTXM Series Reference Page Option Name 20/25/35 Class 50/60/71 Class Installation Operation Manual Manual BRP067A42 — — Remote control PC-board set — BRP980B42 — Wired remote controller 3 BRC073A5 1 BRC073A5 2 Length 3 m BRCW901A03 Wired remote controller cord...
  • Page 339 EDAR122202 Option List CDXM Series Reference Page Option Name 50 Class 60/71 Class Installation Operation Manual Manual Wired type 1 BRC073A5 Remote controller (required) Wireless type BRC086A11 — Length 3 m BRCW901A03 Wired remote controller cord — (shielded wire) Length 8 m BRCW901A08 Wiring adaptor for timer clock / remote controller 2 KRP413BB1S...
  • Page 340 Control Devices EDAR122202 2. Control Devices <BRP067A42> Remote Control PC-Board Set Options...
  • Page 341 EDAR122202 Control Devices Options...
  • Page 342 Control Devices EDAR122202 Options...
  • Page 343 EDAR122202 Control Devices 1P518834-1 Options...
  • Page 344 Control Devices EDAR122202 <BRP980B42> Remote Control PC-Board Set Options...
  • Page 345 EDAR122202 Control Devices Options...
  • Page 346 Control Devices EDAR122202 Options...
  • Page 347 EDAR122202 Control Devices 1P518836-1 Options...
  • Page 348 Control Devices EDAR122202 <KRP413BB1S> Wiring Adaptor for Timer Clock / Remote Controller Options...
  • Page 349 EDAR122202 Control Devices Options...
  • Page 350 Control Devices EDAR122202 Options...
  • Page 351 EDAR122202 Control Devices 3P248024-2H Options...
  • Page 352 Control Devices EDAR122202 <BRCW901A03/08> Wired Remote Controller Cord 3P201487-1 Options...
  • Page 353 EDAR122202 Control Devices <DCS302CA61> Central Remote Controller 2.5.1 Installation Manual Options...
  • Page 354 Control Devices EDAR122202 Options...
  • Page 355 EDAR122202 Control Devices Options...
  • Page 356 Control Devices EDAR122202 Options...
  • Page 357 EDAR122202 Control Devices 2P162816-1 Options...
  • Page 358 Control Devices EDAR122202 2.5.2 Operation Manual Options...
  • Page 359 EDAR122202 Control Devices Options...
  • Page 360 Control Devices EDAR122202 Options...
  • Page 361 EDAR122202 Control Devices Options...
  • Page 362 Control Devices EDAR122202 Options...
  • Page 363 EDAR122202 Control Devices Options...
  • Page 364 Control Devices EDAR122202 Options...
  • Page 365 EDAR122202 Control Devices Options...
  • Page 366 Control Devices EDAR122202 Options...
  • Page 367 EDAR122202 Control Devices Options...
  • Page 368 Control Devices EDAR122202 Options...
  • Page 369 EDAR122202 Control Devices Options...
  • Page 370 Control Devices EDAR122202 Options...
  • Page 371 EDAR122202 Control Devices Options...
  • Page 372 Control Devices EDAR122202 Options...
  • Page 373 EDAR122202 Control Devices Options...
  • Page 374 Control Devices EDAR122202 Options...
  • Page 375 EDAR122202 Control Devices Options...
  • Page 376 Control Devices EDAR122202 Options...
  • Page 377 EDAR122202 Control Devices Options...
  • Page 378 Control Devices EDAR122202 Options...
  • Page 379 EDAR122202 Control Devices Options...
  • Page 380 Control Devices EDAR122202 Options...
  • Page 381 EDAR122202 Control Devices Options...
  • Page 382 Control Devices EDAR122202 Options...
  • Page 383 EDAR122202 Control Devices 3P124623-8D Options...
  • Page 384 Control Devices EDAR122202 <DCS301BA61> Unified ON/OFF Controller 2.6.1 Installation Manual Options...
  • Page 385 EDAR122202 Control Devices Options...
  • Page 386 Control Devices EDAR122202 1P162827-1A Options...
  • Page 387 EDAR122202 Control Devices 2.6.2 Operation Manual Options...
  • Page 388 Control Devices EDAR122202 2P167410-1 Options...
  • Page 389 EDAR122202 Control Devices <DST301BA61> Schedule Timer Controller 2.7.1 Installation Manual Options...
  • Page 390 Control Devices EDAR122202 Options...
  • Page 391 EDAR122202 Control Devices 3P162015-1A Options...
  • Page 392 Control Devices EDAR122202 2.7.2 Operation Manual Options...
  • Page 393 EDAR122202 Control Devices Options...
  • Page 394 Control Devices EDAR122202 Options...
  • Page 395 EDAR122202 Control Devices Options...
  • Page 396 Control Devices EDAR122202 Options...
  • Page 397 EDAR122202 Control Devices Options...
  • Page 398 Control Devices EDAR122202 Options...
  • Page 399 EDAR122202 Control Devices Options...
  • Page 400 Control Devices EDAR122202 Options...
  • Page 401 EDAR122202 Control Devices Options...
  • Page 402 Control Devices EDAR122202 Options...
  • Page 403 EDAR122202 Control Devices Options...
  • Page 404 Control Devices EDAR122202 Options...
  • Page 405 EDAR122202 Control Devices 3P124623-5C Options...
  • Page 406 Control Devices EDAR122202 <KRP928BB2S> Interface Adaptor for DIII-NET (Residential Air Conditioner) Options...
  • Page 407 EDAR122202 Control Devices 3P248024-1J Options...
  • Page 408 Control Devices EDAR122202 Connection to Remote Control PC-board 3P248024-3D Options...
  • Page 409 EDAR122202 Options for Indoor Unit 3. Options for Indoor Unit <KDT25N32/50/63> Insulation Kit for High Humidity 3P131323-1E Options...
  • Page 410 Options for Outdoor Unit EDAR122202 4. Options for Outdoor Unit <KPW5G112> Air Direction Adjustment Grille Options...
  • Page 411 EDAR122202 Options for Outdoor Unit 3P556046-1 Options...
  • Page 412 Options for Outdoor Unit EDAR122202 <KKP945A4> Drain Plug 3P089958-1B Options...
  • Page 416 Improper installation can result in water or refrigerant leakage, electrical shock, fire or explosion. Use only those parts and accessories supplied or specified by Daikin. Ask a qualified installer or contractor to install those parts and accessories. Use of unauthorised parts and accessories or improper installation of parts and accessories can result in water or refrigerant leakage, electrical shock, fire or explosion.

This manual is also suitable for:

4mxm-r series5mxm-r series3mxm70rvm24mxm80rvm24mxm100rvm25mxm110rvm2 ... Show all
