G4 PanelPreview Overview

Supported Panels And Resolutions

Supported Panels And Resolutions
Model
MVP-7500
MVP-8400
NXD/NXT-CV7
NXD/NXT-CA/CV12 800 x 600
NXD/NXT-CA/CV15 1024 x 768
NXD/NXT-CV17
NXP-TPI4

Navigating G4 PanelPreview

The G4 PanelPreview menu bar consists of three menu options, File, View and Help
Additionally, the panel pages and buttons will react via your mouse and keyboard input.

G4 PanelPreview Work Area

The G4 PanelPreview work area is a single window that can be scaled down, actual size or full
screen.
Menu Bar
External
Buttons
View
Preview Window

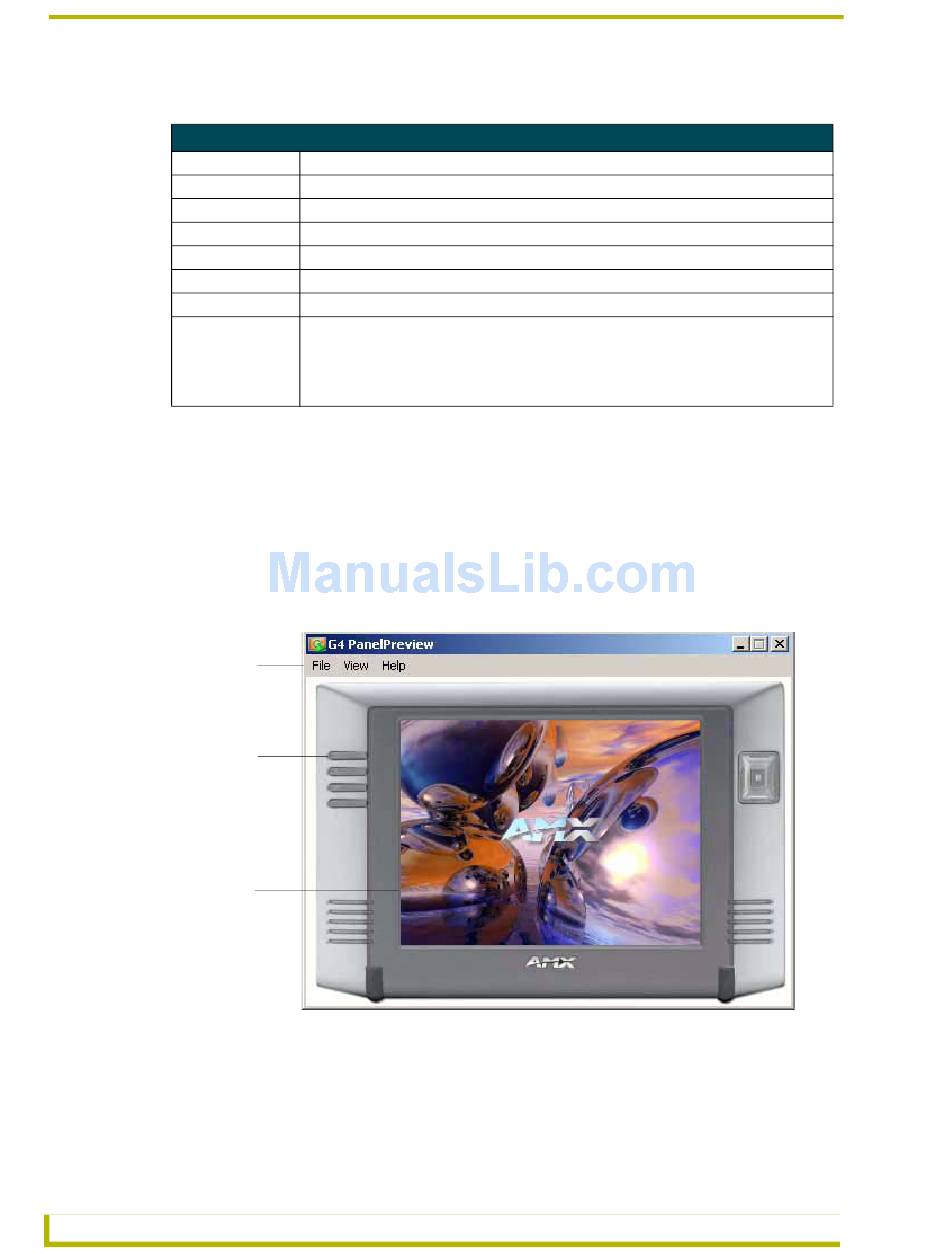

FIG. 1 G4 PanelPreview Work Area
