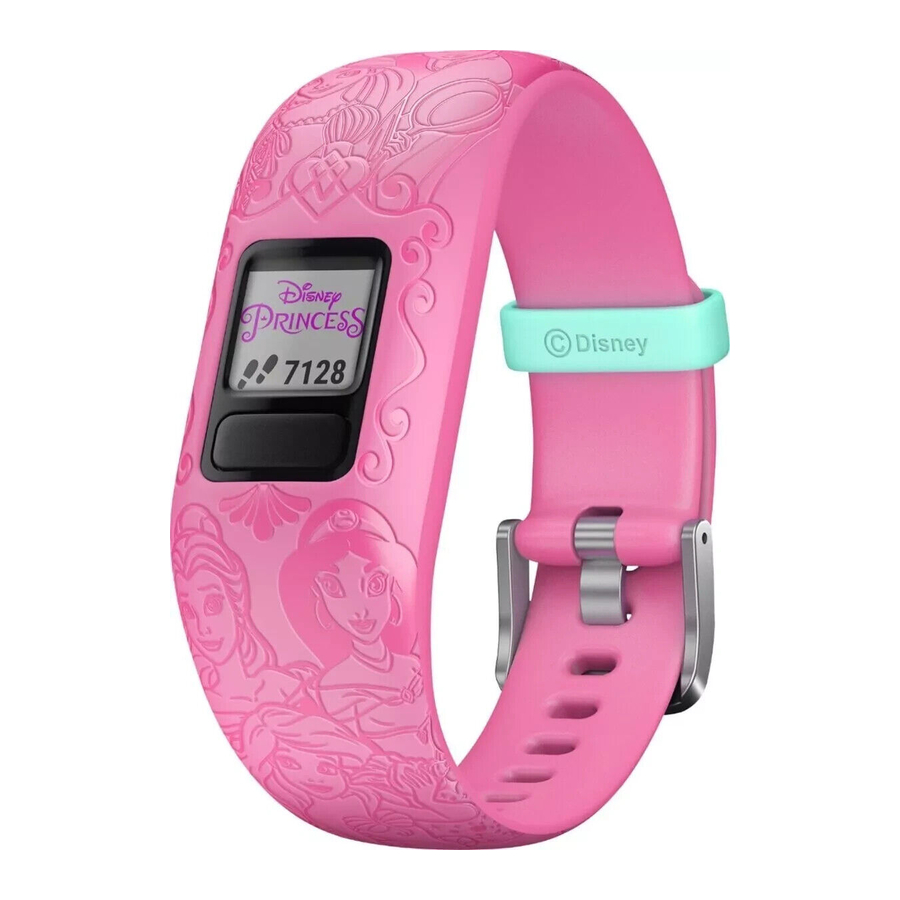

Garmin VIVOFIT JR. 2 Manual

Introduction

See the Important Safety and Product Information guide in the previous pages for product warnings and other important information.

Always consult your physician before you begin or modify any exercise program.

Pairing with Your Smartphone
Before you can pair your vívofit jr. 2 device with a smartphone, at least one parent or guardian must have a Garmin Connect account.

Your device must be paired directly through the vívofit jr. app, instead of from the Bluetooth^® settings on your smartphone.

From the app store on your smartphone, install and open the vívofit jr. app.
Log on using your Garmin Connect username and password.
Follow the instructions in the app to set up your family and add each child.
On the vívofit jr. 2 device, hold the key ① until appears.

The device enters pairing mode.
Follow the instructions in the app to complete the setup process.

NOTE: You can pair multiple mobile devices, such as a tablet or another parent's smartphone. See the owner's manual for more information.

vívofit jr. App
The free vívofit jr. app lets you track your children's daily steps, active minutes, and sleep data.

Activity tracking: Allows you to track your children's daily steps, active minutes, and sleep data.

Chore progress: Allows you to create and manage chores, award coins for chore completion, and redeem coins for custom rewards.

Adventure map: Allows you to view your children's progress each day they reach the 60 minute activity goal, revealing adventures.

Leaderboard: Allows you to compare steps for the whole family and connections from your Garmin Connect community.

Settings: Allows you to customize your device and user settings, including alert tones, icons, profile pictures, and more.

Device Overview

Icons

Icons represent the device features. You can press the key to scroll through the features.

	The current date. The device updates the time and date when you send data to your smartphone.
	The total number of steps taken for the day.
	The total number of active minutes for the day and progress toward the 60 minute activity goal.
	The number of chores completed and assigned for the day.
	The total number of coins earned.
	New level. You can earn moves and complete missions on the adventure map.

You can hold the key for 1 second, and release it to view the menu
TIP: You can press the key to scroll through the menu options.

	Sends data to your Bluetooth enabled smartphone.
	Displays task timer options.
	Starts the stopwatch.
	Starts a Toe-to-toe challenge.
	Displays device information.
	Returns to the previous screen.

Using the Task Timer

You can use your device to start a countdown timer.

Hold the key to view the menu.
Hold .
Press the key to scroll through the task timer options.
Hold the key to select and start a timer. The device beeps, the timer begins counting down, and the device sends a notification to the nearest paired smartphone. When 3 seconds remain, the device beeps until the time expires.

TIP: You can hold the key to stop the timer.

Task Timer Options

Your device comes preloaded with task timers that can be used for common activities. For example, you can use the 2-minute timer for brushing your teeth or any other task that takes 2 minutes. Each task is timed for a preset number of minutes.

Duration	Example Activity
2 min.	Brushing teeth
5 min.	Sharing toys
10 min.	Finish eating
15 min.	Reading
20 min.	Lesson or practice
30 min.	Screen time

Starting a Toe-to-toe Challenge

You can start a 2-minute, Toe-to-toe challenge with yourself or with a friend.

information NOTE: This procedure describes a two player , step challenge, and both players must start a challenge on their vívofit jr. 2 device. During a single-player challenge, the timer starts when you hold .

Hold the key to view the menu.
Hold .
Select to challenge another vívofit jr. 2 player in range (3 m).
When the player name appears, hold . The device counts down for 3 seconds before the timer starts.
Get steps for 2 minutes. When 3 seconds remain, the device beeps until the time expires.
Bring the devices in range (3 m). The devices display the steps for each player and first or second place.

Players can start another challenge or exit the menu.

Move Bar

Sitting for prolonged periods of time can trigger undesirable metabolic state changes. The move bar reminds you to keep moving. After one hour of inactivity, the move bar ① appears. Additional segments ② appear after every 15 minutes of inactivity.

You can reset the move bar by walking a short distance.

Device Information

Specifications
Operating temperature range: From -10º to 45ºC (from 14º to 113ºF)

Getting the Owner's Manual
Go to www.garmin.com/manuals/vivofitjr2.

IMPORTANT SAFETY AND PRODUCT INFORMATION

Failure to heed the following warnings could result in an accident or medical event resulting in death or serious injury.

Choking Hazard
This product contains small parts. This product is not for children under 3 years.

Battery Warnings
A coin cell battery is used in this device. If these guidelines are not followed, batteries may experience a shortened life span or may present a risk of damage to the device, fire, chemical burn, electrolyte leak, and/or injury.

Do not disassemble, modify, remanufacture, puncture or damage the device or batteries.
Do not expose the device or batteries to fire, explosion, or other hazard.
Do not place in high temperature environments, such as a clothes dryer.
Do not use a sharp object to remove the removable batteries.
KEEP BATTERIES AWAY FROM CHILDREN.
NEVER PUT BATTERIES IN MOUTH. Swallowing can lead to chemical burns, perforation of soft tissue, and death. Severe burns can occur within 2 hours of ingestion. Seek medical attention immediately.

Health Warnings

Always consult your physician before beginning or modifying any exercise program.
The Garmin device, accessories, and related data are intended to be used only for recreational purposes and not for medical purposes, and are not intended to diagnose, monitor, treat, cure, or prevent any disease or condition.
Garmin activity trackers rely on sensors that track your movement and other metrics. The data and information provided by these devices is intended to be a close estimation of your activity and metrics tracked, but may not be completely accurate, including step, sleep, distance, and calorie data.

information NOTICE
Failure to heed the following notice could result in personal or property damage, or negatively impact the device functionality.

Battery Notices

Do not immerse or expose batteries to water or other liquids.
Do not leave the device exposed to a heat source or in a high-temperature location, such as in the sun in an unattended vehicle. To prevent the possibility of damage, remove the device from the vehicle or store it out of direct sunlight, such as in the glove box.
Do not operate the device outside of the temperature ranges specified in the printed manual in the product packaging.
When storing the device for an extended time period, store within the temperature ranges specified in the printed manual in the product packaging.
Replaceable coin cell batteries may contain perchlorate material.

Special handling may apply. Contact your local waste disposal department to dispose of the device/batteries in accordance with applicable local laws and regulations.
