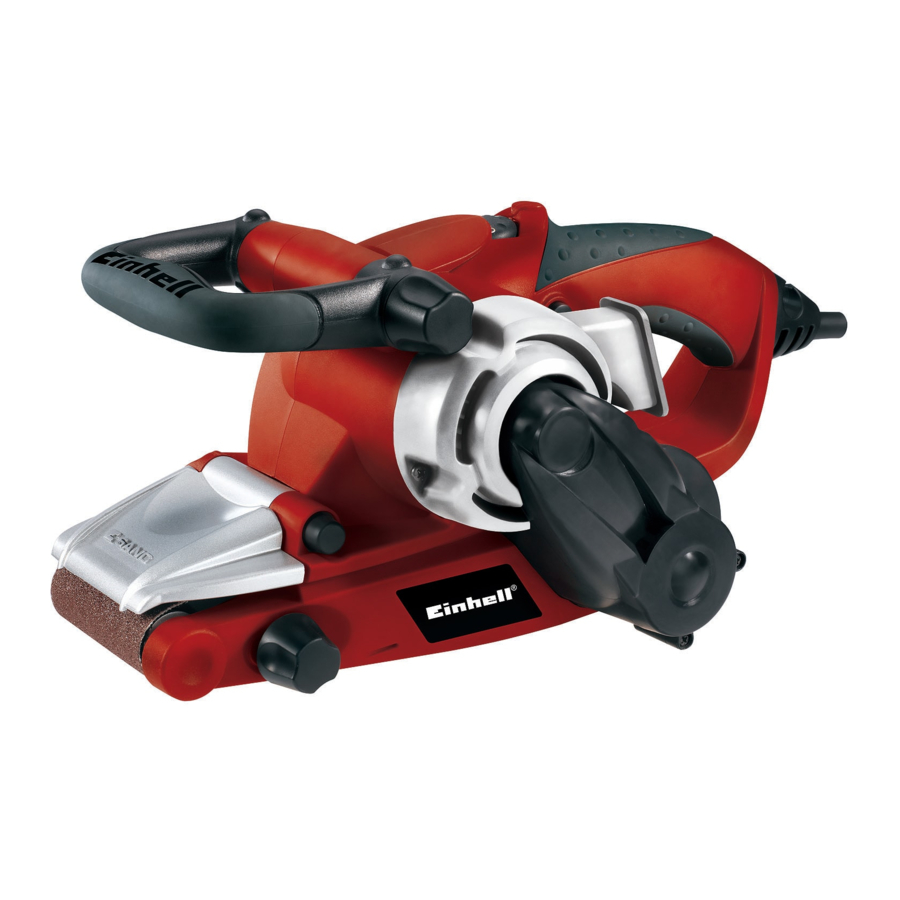

EINHELL TE-BS 8540 E Manual

Safety regulations

The corresponding safety information can be found in the enclosed booklet.

Read all safety regulations and instructions. Any errors made in following the safety regulations and instructions may result in an electric shock, fire and/or serious injury.

Keep all safety regulations and instructions in a safe place for future use.

Layout and items supplied

Layout (Fig. 1/2)

1. Screw to adjust the additional handle
2. Additional handle
3. Setting wheel for belt speed
4. Locking button
5. ON/OFF switch
6. Connection for dust bag
7. Pushbutton for moving sanding/grinding belt cover
8. Setting for sanding/grinding belt adjustment
9. Moving sanding/grinding belt cover
10. Drive rollers
11. Sanding/grinding plate
12. Clamping lever for sanding/grinding belt
13. Sanding/Grinding belt
14. Dust collection box
15. Dust extractor adapter
16. Handle

Items supplied
Please check that the article is complete as specified in the scope of delivery. If parts are missing, please contact our service center or the sales outlet where you made your purchase at the latest within 5 working days after purchasing the product and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the service information at the end of the operating instructions.

• Open the packaging and take out the equipment with care.
• Remove the packaging material and any packaging and/or transportation braces (if available).
• Check to see if all items are supplied.
• Inspect the equipment and accessories for transport damage.
• If possible, please keep the packaging until the end of the guarantee period.

The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suffocating!

• Original operating instructions
• Safety instructions

Proper use

The belt sander/grinder is designed for sanding/ grinding wood, iron, plastic and similar materials using the appropriate sanding/grinding belt.

The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

Technical data

Mains voltage: 230 V~ 50 Hz

Power input: 850 W

Belt speed: 300-400 m/min

Sanding/Grinding belt size: 75 x 533 mm

Protection class: II/

Weight: 3.2 kg

Sound and vibration Sound and vibration values were measured in accordance with EN 60745.

L_pA sound pressure level 88 dB(A)

K_pA uncertainty 3 dB

L_WA sound power level 99 dB(A)

K_WA uncertainty 3 dB

Wear ear-muffs.
The impact of noise can cause damage to hearing.

Total vibration values (vector sum of three directions) determined in accordance with EN 60745.

Handle
Vibration emission value a_h ≤ 2.5 m/s²

K uncertainty = 1.5 m/s²

Additional handle
Vibration emission value a_h ≤ 2.5 m/s² K uncertainty = 1.5 m/s²

The specified vibration value was established in accordance with a standardized testing method. It may change according to how the electric equipment is used and may exceed the specified value in exceptional circumstances.

The specified vibration value can be used to compare the equipment with other electric power tools.

The specified vibration value can be used for initial assessment of a harmful effect.

Keep the noise emissions and vibrations to a minimum.

• Only use appliances which are in perfect working order.
• Service and clean the appliance regularly.
• Adapt your working style to suit the appliance.
• Do not overload the appliance.
• Have the appliance serviced whenever necessary.
• Switch the appliance off when it is not in use.
• Wear protective gloves.

Residual risks
Even if you use this electric power tool in accordance with instructions, certain residual risks cannot be rules out. The following hazards may arise in connection with the equipment's construction and layout:

1. Lung damage if no suitable protective dust mask is used.
2. Damage to hearing if no suitable ear protection is used.
3. Health damage caused by hand-arm vibrations if the equipment is used over a prolonged period or is not properly guided and maintained.

Before starting the equipment

Before you connect the equipment to the mains supply make sure that the data on the rating plate are identical to the mains data.

Always pull the power plug before making adjustments to the equipment.

Dust extraction

Installing the dust extractor adapter
(Figure 3/Item 15)

Slide the dust extractor adapter (15) on to the connection for the dust extractor (6).

You can then connect a suitable dust extractor (a) to the dust extractor adapter (15) (dust extractor not supplied).

This will provide excellent dust extraction on the workpiece.

Check that all the parts are properly connected.

The vacuum cleaner you use for the extraction work must be suitable for the workpiece material.

Installing the dust collection box
(Figure 4/Item 14)

Push the dust collection box (14) to the dust extractor connection (6). Remove the dust collection box in reverse order.

The dust is extracted directly via the grinding/sanding belt into the dust container.

For health safety reasons it is imperative that you use a dust container or a dust extraction system via the dust extraction adaptor!

Adjusting the additional handle

(Fig. 5/Item 2)

Slacken the screw (1) and move the additional handle (2) to its optimal position. Lock the additional handle (2) in place by tightening the screw (1).

Changing the sanding / grinding belt

(Fig. 6-7/Item 13)

• Pull the clamping lever (12) to the outside to relieve the tension in the sanding/grinding belt.
• Pull the used sanding/grinding belt off the drive rollers.
• Slide the new sanding/grinding belt on to the drive rollers.
• Ensure that the direction of the sanding/grinding belt (arrows on the inside of the sanding/ grinding belt) is identical to the direction of the belt sander/grinder (arrow over the rear drive roller).
• Press the clamping lever (12) to the rear to tension the sanding/grinding belt.

Adjusting the position of the belt

(Fig. 8/Item 8)

• Hold the belt sander/grinder with the sanding/ grinding plate at the top.
• Switch on the belt sander/grinder.
• By turning the setting screw (8) the belt position should be set so that the sanding/grinding belt is at the center of the two drive rollers.

Moving sanding/grinding belt cover

(Fig. 9 – 10/Item 9)

The moving sanding/grinding belt cover may only be swung upwards if the pushbutton (7) has been pressed.

• Press the pushbutton (7) and at the same time swing the cover (9) upwards.
• Release the pushbutton.
• The cover will lock in its end position.
• To swing the cover back down again, press the pushbutton (7) again. The cover can then be swung downwards.

Starting up

Switching ON/OFF

(Fig. 11)

To switch on:
Press the ON/OFF switch (5).

Continuous operation:
Secure the switch (5) with the locking button (4).

To switch off:
Press the ON/OFF switch (5) briefly.

The machine can be operated on a temporary or permanent setting.

Setting the belt speed

(Fig. 12/Item 3)

You can select the belt speed by turning the setting knob (3).

PLUS direction: Increase belt speed

MINUS direction: Reduce belt speed

Instructions for use

Never hold the workpiece you wish to sand/grind in your hands. Secure the workpiece on a sturdy surface or using a vise.

• Allow the belt sander/grinder to start before you place it on the workpiece.
• Do not switch off the belt sander/grinder as long as the sanding/grinding belt is in contact with the workpiece.
• Always hold the belt sander/grinder with both hands whilst it is in use.
• Always sand wood in the direction of the grain.

Replacing the power cable

If the power cable for this equipment is damaged, it must be replaced by the manufacturer or its after-sales service or similarly trained personnel to avoid danger.

Cleaning, maintenance and ordering of spare parts

Always pull out the mains power plug before starting any cleaning work.

Cleaning

• Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure.
• We recommend that you clean the device immediately each time you have finished using it.
• Clean the equipment regularly with a moist cloth and some soft soap. Do not use cleaning agents or solvents; these could attack the plastic parts of the equipment. Ensure that no water can seep into the device. The ingress of water into an electric tool increases the risk of an electric shock.

Carbon brushes

In case of excessive sparking, have the carbon brushes checked only by a qualified electrician.

The carbon brushes should not be rep laced by anyone but a qualified electrician.

Maintenance

There are no parts inside the equipment which require additional maintenance.

Ordering spare parts and accessories

Please provide the following information when ordering spare parts:

• Type of unit
• Article number of the unit
• ID number of the unit
• Spare part number of the required spare part For our latest prices and information please go to www.isc-gmbh.info

Tip! For good results we recommend high-quality accessories from ! www.kwb.eu welcome@kwb.eu

Storage

Store the equipment and accessories in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30°C. Store the electric tool in its original packaging.

Service information

We have competent service partners in all countries named on the guarantee certificate whose contact details can also be found on the guarantee certificate. These partners will help you with all service requests such as repairs, spare and wearing part orders or the purchase of consumables.

Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables.

* Not necessarily included in the scope of delivery!

In the effect of defects or faults, please register the problem on the internet at www.isc-gmbh.info. Please ensure that you provide a precise description of the problem and answer the following questions in all cases:

• Did the equipment work at all or was it defective from the beginning?
• Did you notice anything (symptom or defect) prior to the failure?
• What malfunction does the equipment have in your opinion (main symptom)?

Describe this malfunction.

To make a claim under the guarantee, please register the defective device at: www.isc-gmbh.info.
