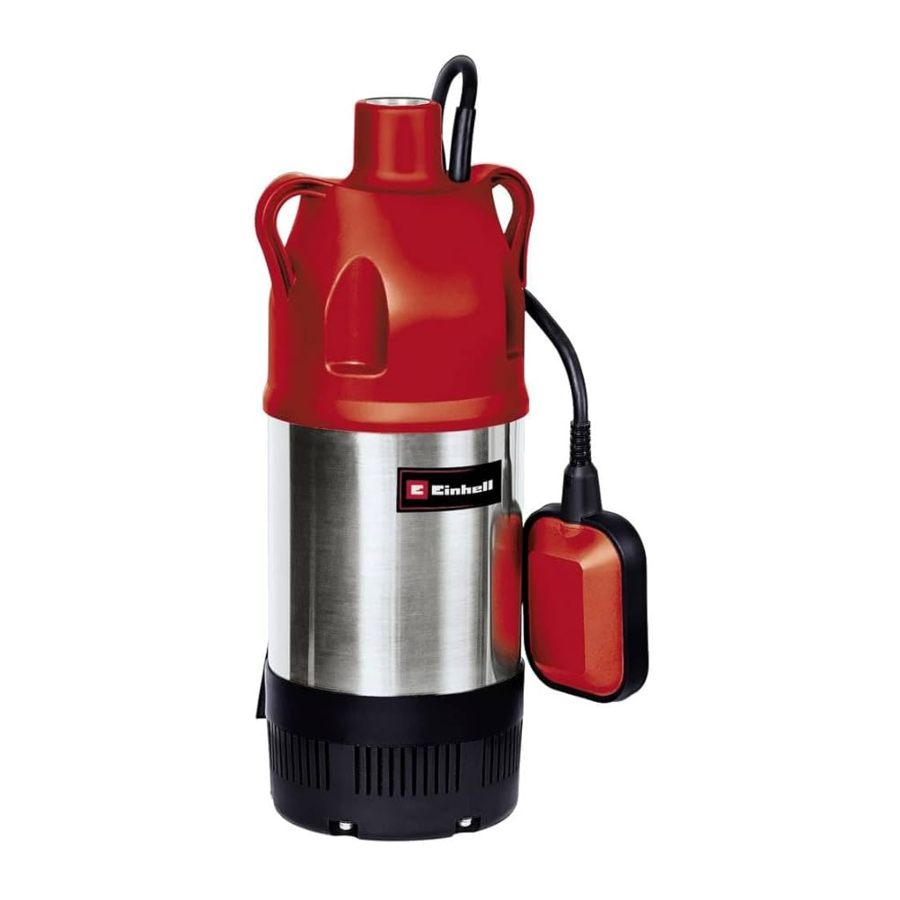

EINHELL GC-DW 900 N Manual

Layout and items supplied

Layout

Read the operating instructions to reduce the risk of inquiry

(Fig. 1)

1. Pressure connector ca. 33,3 mm (G1) IG/ internal winding
2. Suspension eyes
3. Fastener for floating switch
4. Floating switch
5. Intake cage

Items supplied

Please check that the article is complete as specified in the scope of delivery. If parts are missing, please contact our service center or the sales outlet where you made your purchase at the latest within 5 working days after purchasing the product and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the service information at the end of the operating instructions.

• Open the packaging and take out the equipment with care.
• Remove the packaging material and any packaging and/or transportation braces (if available).
• Check to see if all items are supplied.
• Inspect the equipment and accessories for transport damage.
• If possible, please keep the packaging until the end of the guarantee period.

The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suffocating!

• Submersible pressure pump
• Original operating instructions

Proper use

The equipment you have purchased is designed to pump water with a maximum temperature of 35°C. This equipment must never be used for other liquids, especially not for engine fuels, cleaning agents and other chemically-based products!

The equipment can be used wherever you want to move water, e.g. in the house, in the garden, and for many other applications. It must not be used to operate swimming pools!

If you want to use the equipment in bodies of water with a natural, muddy bottom, place the equipment in a slightly elevated position, e.g. on bricks.

The equipment is not designed for continuous operation, e.g. as a circulating pump in a pond. In this case the equipment's anticipated life will be greatly shortened because the equipment was not designed for continuous loading.

The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

The water may be contaminated by escaping lubricating oil/lubricant.

Technical data

See warranty card of your country.

Before starting the equipment

Before you connect the equipment to the mains supply make sure that the data on the rating plate are identical to the mains data.

Installation

The equipment can be installed either:

• Stationary with a rigid pipe line or
• Stationary with a flexible hose line
• Connect the pressure hose or pipe to the pressure connector (1) using a suitable connector.
• The appliance must be fastened to the hanging loops with a rope (Fig. 1/Item 2).

Notice!
Before you use the pump, clarify any possible special conditions which need to be fulfilled for the installation!

For example, additional safety measures may be needed if damage to property could result from a power failure, soiling or a defective gasket.

Examples of such safety measures: Pumps running in parallel on a separately protected power circuit, moisture sensors for switching off the pumps, and similar safety arrangements. Be sure to consult a professional plumber if you have any doubt.

The maximum pumping rate is possible only with the largest possible line diameter; if smaller hoses or pipes are connected, the pumping rate will be reduced.

The pump shaft should be large enough.

Mains connection

The equipment you have purchased comes with an earthing-pin plug. The equipment is designed for connection to a socket outlet with earthing contact for 230 V ~ 50 Hz. Make sure that the socket-outlet is sufficiently fused (at least 6 A) and in good working order. Insert the power plug in the socket-outlet and the equipment is ready for operation.

To rule out danger, this work must be left strictly to a specialist electrician or Customer Service.

Operation

You can put the equipment into operation after you have thoroughly read the installation and operating instructions. Pay attention to the following points:

• Make sure that the equipment is set up securely.
• Check that the discharge line is fitted correctly.
• Make sure that the electrical connection is 230 V ~ 50 Hz.
• Check that the electrical socket-outlet is in good working order.
• Make sure that no moisture or water can ever reach the power connection.
• Make sure that the equipment does not run dry.
• To switch off the equipment, pull the power plug out of the socket outlet.

Note!

1. Lower the pump into the well or shaft using the securing cable.
2. Ensure that the pump is at least 20 cm under the surface of the water and approx. 30 cm above the bottom.
3. Connect the mains plug to the socket.

Setting the On/Off switching point:
The ON/OFF switching point of the floating switch can be adjusted by shifting the floating switch in the floating switch notched holder. (Fig. 1/Item 3)

• The floating switch must be fitted so that the switching point height: ON and the switch point height: OFF can be reached easily and with little force. Check this by placing the equipment in a container filled with water and carefully raising and lowering the floating switch with your hand. You can then see whether the equipment switches on and off.
• Make sure that the distance between the floating switch head and the cable holder is not too smaller than 10 cm. If the distance is too small, there is no guarantee that the equipment will work correctly.
• When adjusting the floating switch, make sure that the floating switch does not touch the bottom before the equipment is switched off.

  Risk of dry running.

Replacing the power cable

If the power cable for this equipment is damaged, it must be replaced by the manufacturer or its after-sales service or similarly trained personnel to avoid danger.

Cleaning, maintenance and ordering of spare parts

• Unplug the power plug prior to any maintenance work.
• For mobile applications, the equipment should be cleaned with clear water after every usage.
• For stationary installation, it is recommended that you check the floating switch for proper operation every three months.
• Use a water jet to remove any lint or fibrous particles that may have become trapped in the housing.
• Remove sludge from the shaft bottom and clean the shaft walls every 3 months.
• Use clear water to remove deposits from the floating switch.

Cleaning the paddle wheel

If a lot of deposits collect in the housing, the bottom part of the equipment must be dismantled as follows:

1. Disconnect the intake cage from the housing.
2. Clean the paddle wheel with clear water.

   Do not put down or rest the equipment on the paddle wheel!
3. Assemble in reverse order.

Maintenance

There are no parts inside the equipment which require additional maintenance.

Ordering replacement parts

Please quote the following data when ordering replacement parts:

• Type of machine
• Article number of the machine
• Identification number of the machine
• Replacement part number of the part required

Storage

Store the equipment and accessories in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30°C. Store the electric tool in its original packaging.

Troubleshooting guide

Safety regulations

When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

Read all safety regulations and instructions.
Any errors made in following the safety regulations and instructions may result in an electric shock, fi re and/or serious injury.
Keep all safety regulations and instructions in a safe place for future use.

The pump must be powered via an earthleakage circuit breaker (RCD) with a rated fault current of no more than 30 mA (according to VDE 0100 Part 702 and 738).

The equipment is not designed for use in swimming pools and paddling pools of any kind or other bodies of water in which people or animals may be present during operation. It is prohibited to operate the equipment if a person or animal is in the danger area. Ask your electrician!

• Before you put the equipment into operation, arrange for a specialist to check that the earthing, protective multiple earthing or residual-current operated circuit-breaker circuit comply with the safety regulations of the power supply company and work correctly.
• The electrical plug-in connections must be protected from wet conditions.
• If there is a risk of flooding, place the plug-in connections in an area which is safe from flooding.
• Strictly avoid pumping aggressive liquids and abrasive substances.
• Protect the equipment from frost.
• Protect the equipment from dry running.
• Take suitable measures to keep the equipment out of the reach of children.
