Summary of Contents for Roberts Sound 49

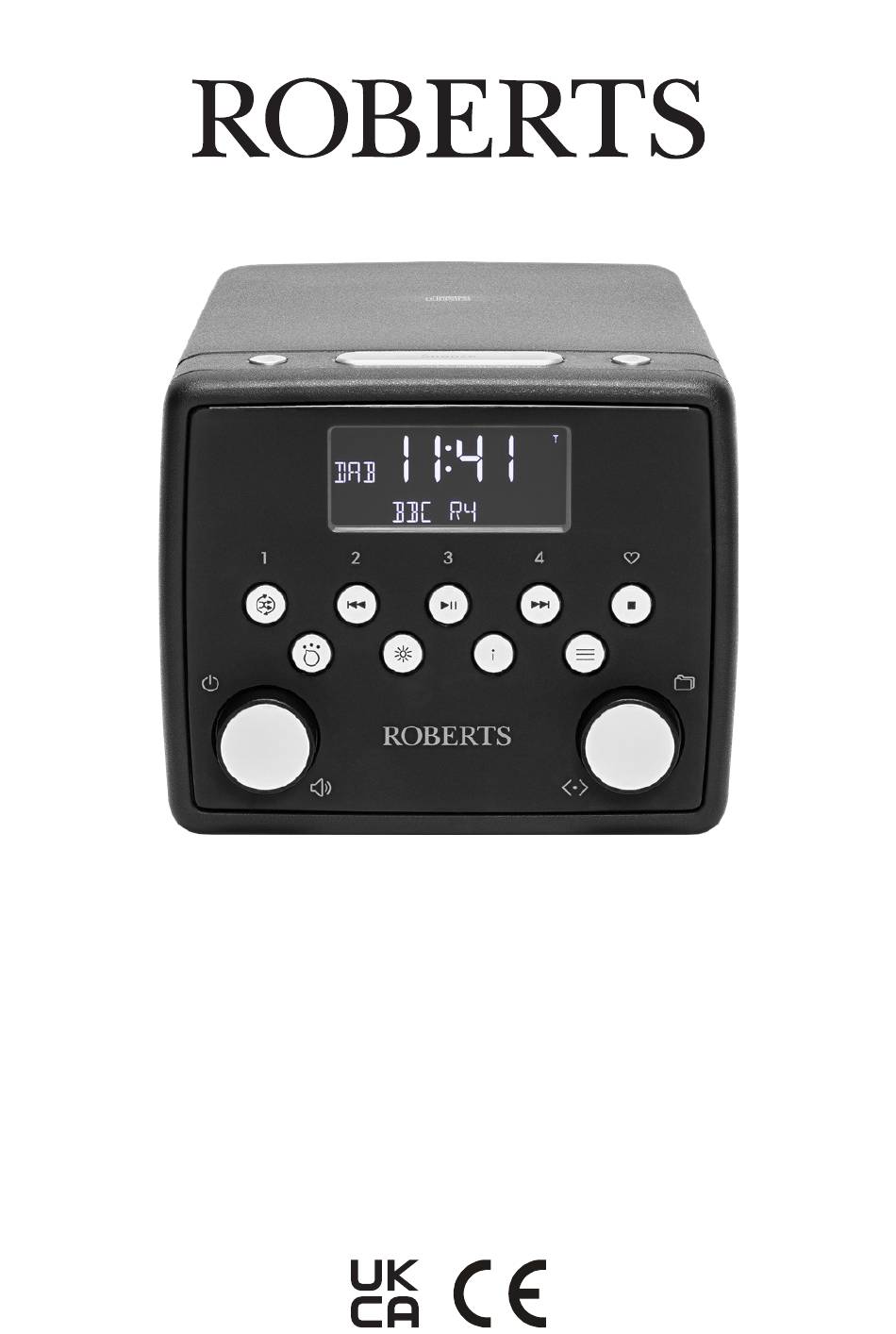

- Page 1 Sound 49 ® DAB+/FM RDS / USB / Bluetooth CD Player USER GUIDE Version 1...
-
Page 2: Safety Precautions
Safety Precautions − Read all the instructions carefully before using the unit and keep them for future reference. − Check that the voltage marked on the rating label matches your mains voltage. − The unit must be placed on a flat stable surface and should not be subjected to vibrations. -
Page 3: Mains Adapter
C AU T I O N RISK OF ELECTRIC SHOCK DO NOTOPEN The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the unit’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock . -
Page 4: Service & Maintenance
electromagnetic interference. If you do, it may adversely affect the operating performance of the unit, and cause a distorted sound. Supervision − Children should be supervised to ensure that they do not play with the unit. − Never let anyone especially children push anything into the holes, slots or any other openings in the case - this could result in a fatal electric shock. -
Page 5: Product Overview
Product Overview 1. CD Door 9. Preset 3/ Play, Pause Button Alarm 1 Button 10. Info Button 3. Display 4. Preset 1/ Repeat, Random, 11. Preset 4/ Skip Forward Button Shuffle Button 12. Snooze Button Mode Button Alarm 2 Button Standby button/ Volume Favorite/ Stop button... - Page 6 17. Speakers 20. Headphone Jack 18. Power Input socket 21. AUX IN Socket 19. USB socket (5V 1A output) 22. Aerial Unpacking Remove all items from the packaging. Retain the packaging. If you dispose of it, please do so according to local regulations. The following items are included: Main Unit Mains Adapter...
-
Page 7: Power Source
Power Source Mains Power 1. Unwind the mains adapter cable to its full length. Connect the end of the cable to the DC socket " " at the rear of the unit and then connect the mains adapter to the mains socket. Make sure the mains adapter is firmly inserted into the mains socket. -
Page 8: Display Backlight
Display Backlight There are five backlight levels to choose. To set the backlight level, repeatedly press the button, the corresponding brightness of the display will change between five brightness levels. System Settings To access system menu, first press button. In DAB radio, FM radio or Bluetooth modes it is necessary to also turn dial until the display shows "SYSTEM". -
Page 9: Factory Reset
Auto Update Your radio can be set to automatically update the time from DAB radio or FM radio or you can switch this feature off if you want to manually set the time. In the menu select "TIME/DATE - AUTO UPDATE". Then choose "FROM RADIO"... -
Page 10: Software Version
Software Version For checking the DAB Software version: − Press button to access menu, turn the to select "SYSTEM" and press the to confirm. − Then turn the to select "SW VERSION" and press the to confirm. − Press the button repeatedly to exit menu. -
Page 11: Manual Tune
Manual Tune As well as the normal method of scanning, you can also manually tune to a particular channel / frequency. This can be useful for adjusting your antenna to achieve the best possible reception and scanning a particular channel to update the station list. 1. -
Page 12: Signal Strength
Signal Strength The display will show a slide bar to indicate the signal strength, the stronger the signal, the longer the bar will be from left to right. Programme Type This describes the “style” or “genre” of the programme that is being broadcast. -
Page 13: Manual Scan
FM operation Switching from DAB to FM mode To switch the unit to FM mode, press the button repeatedly to select FM mode. The display will show the station name (or frequency if RDS not available). Auto Scan To serach for an FM station, turn the dial in the desired direction, then press the dial to scan the frequency band in forward or reverse scanning. -
Page 14: Audio Type
2. Turn dial to select "AUTO" or "MONO" and then press the same dial to confirm. FM display modes Press button, the display will switch through the following display modes. The information of each display mode is displayed on the lower segment of the display. - Page 15 Radio Presets Stations Presetting Stations (DAB/FM mode) Under DAB and FM radio mode, you can store up to 10 of your favorite stations to the memory. This will enable you to access your favorite stations quickly and easily. 1. To store a preset #(1-4), tune in to the station that you would like to save, then press and hold preset buttons 1-4 for longer than 2 seconds, the display will show “PRESET STORED”...
- Page 16 CD Operation Press the button repeatedly to select CD mode. Playback 1. Lift up the top CD door to open the disc tray. 2. Place the CD with the label side up into the CD compartment, and then push down the CD door to close the disc tray. The CD will playback automatically.
-
Page 17: Usb Operation
on the disc will be played randomly. Press buttons to playback the previous/next random track. - After all the tracks have played once, the playback will stop automatically. 4. Press the button once more again, the repeat and random function will turn off. USB Operation 1. -
Page 18: Charge Your Device
3. Activate your Bluetooth device and select the search mode. 4. “Sound 49” will appear on your Bluetooth device list. 5. Select “Sound 49” and enter “0000” for the password if necessary. 6. To disconnect the Bluetooth function, press the... -
Page 19: Auxiliary Input
Auxiliary Input 1. There is an AUX IN socket located at the back of the unit. Analogue audio sound signals from other audio sources can be input to the unit through this socket. 2. Connect the input to another audio device via an AUX cable (not included). -
Page 20: Alarm Setup
Alarms and Snooze T he product supports two wake-up alarms with snooze facility. Alarm Setup 1. Press and hold / button to enter alarm 1/2 setup menu. 2. Turn dial to select the option below, then press same dial to confirm. On time 00:00 (manually set up the time) Source... -
Page 21: Using Headphones (Not Included)
Snooze To temporarily silence a sounding alarm, press Snooze button with snooze period approx. 9 mins and with " " icon shown on display. The radio returns to standby for the set time period. When the countdown reaches 0 (zero) the alarm is triggered again. Press Snooze button again during snooze period to fully cancel a sounding alarm and switch the radio to standby. -
Page 22: Storing Discs
Storing discs vertically in a case, stacking discs or placing objects on discs outside of their cases may cause warping. Specifications Brand Roberts Model Sound 49 Power Supply Input: AC 100-240V ~ 50-60Hz 0.6A max. Output: DC 5.0V, 2.0A Power Consumption 10.0W... - Page 23 Power Adapter information Manufacturer’s name and address: ShenZhen Rongweixin Technology Co., Ltd No.8, Tianyang 3rd Road, Dongfang Community, SongGang Street, Baoan District, Shenzhen, Guangdong, P.R.China Model Number: R122-0502000BD Input Voltage and 100-240V ~ 50-60Hz 0.6A Frequency: Output Voltage: DC 5.0V Output Current: 2.0A Output Power:...
