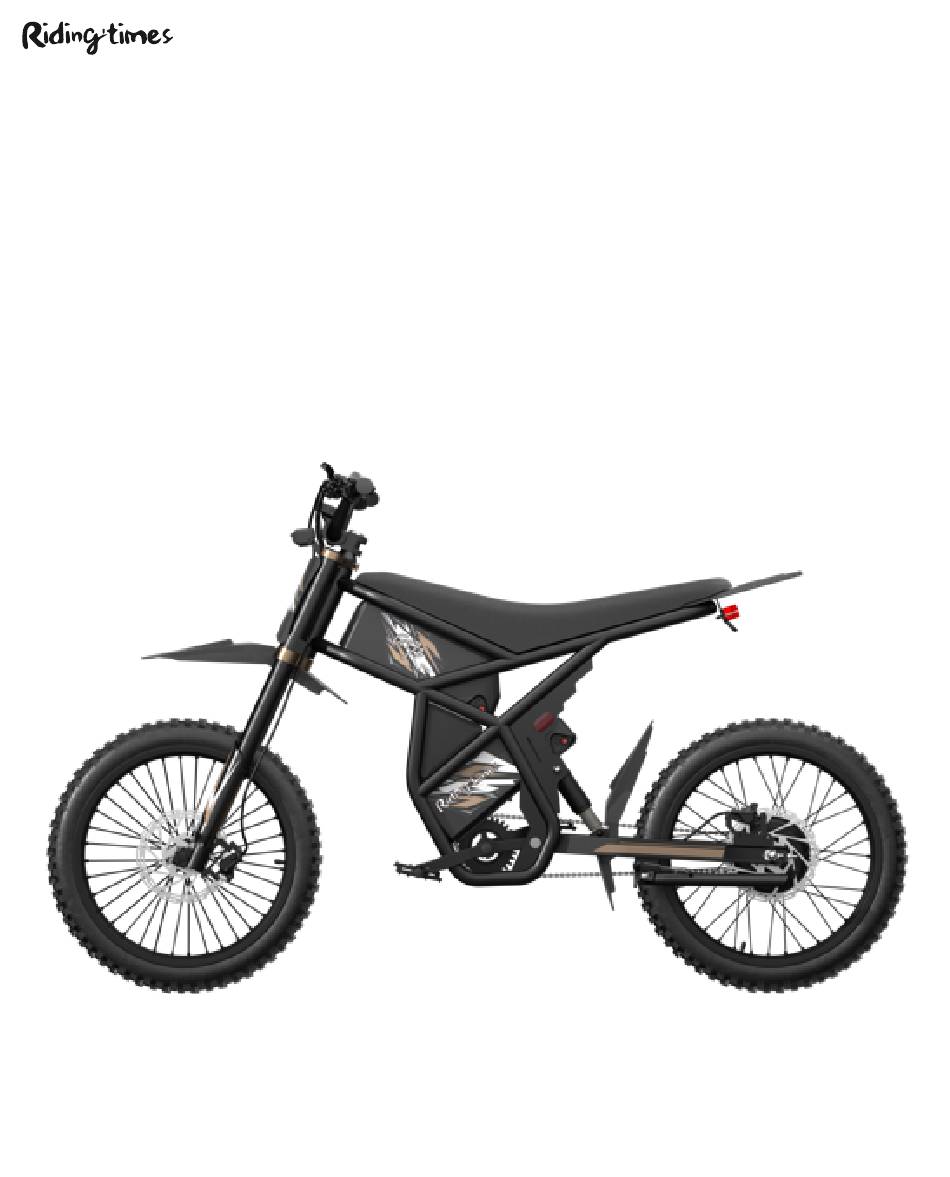

  • Page 1 GT73Pro Electric Bike User's Manual Original Instructions This image is for reference onlyBefore using this product, please read this manual Important! Please read carefully and keep it for future reference...
  • Page 2 Welcome Join the Riding'times community of riders wherever you are! This is just the beginning of your adventure with us! We look forward to hearing about your experience and seeing you online on our social networks: Facebook Group Name:Riding'times Global Group Group Link: https://www.facebook.com/groups/1331441984237849...

  • Page 3: Customer Service

    CUSTOMER SERVICE Our product technology is already very mature, with 20 years of trade, we have distributors all over the world who can provide you with the most localized and professional technical support within 24 hours. Unsere Produkttechnologie ist sehr ausgereift, mit 20 Jahren Handel haben wir weltweit Vertreter, die Ihnen innerhalb von 24 Stunden die bestmögliche lokalisierte und professionelle technische Unterstützung bieten.
  • Page 4 CERTIFICATIONS Federal Communications Commission (FCC) Compliance Statement for USA This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation .
  • Page 5 The Directive determines the framework for there turn and recycling of used batter es and accumulators as applicable throughout the European Union. This label is applied to various batteries to indicate that the battery is not to be thrown away, but rather reclaimed upon end of life per this Directive. in accordance with the European Directive 2006/66/EC, batteries and accumulators are labeled to indicate that they are to be collected separately and recycled at end of life.
  • Page 6 Bike frames and parts have limitations, and extreme riding should not be performed. GT73Pro assumes no liability for any accident, injuries,or property damage incurred as a result of rider’s use or misuse of GT73Pro bicycles, including any damages resulting from or arising out of off-road usage.
  • Page 7 • Take extra precaution when riding in wet conditions. Decrease speeds and prepare for increased braking distance. Pedals and grips will be slippery in wet conditions. • NEVER operate your bicycle when you are under the influence of alcohol or drugs, including prescribed or over the counter medications.
  • Page 8 STICKER AREA...

  • Page 9: Table Of Contents

    CONTENTS 1. Components Diagram ---------------------------------------------------------------- 2. Assemble Electric Bike ---------------------------------------------------------------- 3. Technical Parameters ---------------------------------------------------------------- 4. Battery Instructions ------------------------------------------------------------------- 5. Instructions of the Dashboard ------------------------------------------------------ 6. Considerations ------------------------------------------------------------------------- 7. Maintenance and Cleaning ---------------------------------------------------------- 8.Oil brake maintenance --------------------------------------------------------------- 9. Troubleshooting Instructions ------------------------------------------------------ 10.

  • Page 10: Components Diagram

    1.COMPONENTS DIAGRAM * Please read and know the instructions described in the user manual carefully before using the electric bicycle and keep it for future reference. * Please do not dispose of this product casually, it needs to be disposed of in accordance with local recycling regulations.

  • Page 11: Assemble Electric Bike

    2.ASSEMBLE ELECTRIC BIKE 2.1. Take out of the electric bike from the box. Figure 1 2.2. Assemble the handlebar: Put the handlebar into the center of the vertical bar , fasten the screws by using NO.4 Allen Wrench Figure 2...
  • Page 12 2.3. Assemble the pedal plate: Take out of the left and right pedal plate, “L “is for left side and “R” is for the right side, put the pedal plate on the crank, fasten it by using the open spanner . Figure2.3.
  • Page 13 2.5. First use the No. 4 Allen key to loosen the front fork shaft hole screw to 1/2 2.6. Use the No. 8 Allen key to remove the thru-axle Strength 8-10Nm...
  • Page 14 2.7. Install the front wheel (First align the front wheel with the front fork hole, install the thru-axle, use a No. 8 Allen key to tighten the screws slightly Strength 8-10Nm, and finally tighten the 4 pieces screws at front lower place with a No. 4 Allen key) 2.8.
  • Page 15 2.9. Replace the shock absorber. After assembling the entire vehicle, remove the shock absorber from the car and replace it with the 1200LBS shock absorber in the matching box to avoid affecting the riding experience of the electric bicycle.

  • Page 16: Technical Parameters

    3.PRODUCT PARAMETERS/FEATURES 3.1PRODUCT PARAMETERS GT73PRO ELECTRIC BIKE SHEET Model GT73PRO Product name Electric bike battery model 60V/36AH Battery weight About5.8 KG*2 charger 67.2V/3A*2 Charging time Single charger 5.5-6.5 display Digital display instrument LED brake Front and rear oil brakes + electronic brakes...

  • Page 17: Product Features

    3.2.PRODUCT FEATURES 3.2.1. Speed mode: 3.2.2. Braking method: power-off braking. 3.2.3. Tail light: The light is always on when turned on, and highlighted when the brake is applied. 3.2.4. MOS tube breakdown protection: Before the controller is powered on or during operation, if the D and S poles of the upper arm or lower arm of a phase MOS tube are short-circuited, the controller will stop driving and have no output.

  • Page 18: Battery Instructions

    4.BATTERY INSTRUCTIONS 4.1 Battery charging This bicycle is an external lithium battery that can be removed and charged. When the battery is low, open the key and remove the battery. Grasp the battery tightly with both hands to prevent it from falling off, take out the charger, insert the input terminal into the power supply, and insert the output terminal 4-core into the battery charging port.
  • Page 19 4.3 CAUTIONS 4.3.1 Do not use or leave the pack at very high temperatures (for example in strong direct sunlight or a vehicle in extremely hot conditions). 4.3.2 Do not use it in a location where static electricity is great, otherwise the safety devices in the pack may be damaged, which will cause hidden trouble safety.

  • Page 20: Instructions Of The Dashboard

    5.INSTRUCTIONS OF DASHBOARD 5.1. Specifications 60V power supply Rated working current 20mA Maximum working current 50mA Power outage leakage current<1uA The working current of the power supply controller is 2A Working temperature -30~60 ℃ Storage temperature -30~70 ℃ 5.2. Overview of Instrument/Button Functions and Distribution of Functional Areas ●...
  • Page 21 5.3. Instrument operation instructions 1. Power on/off First, turn on the power switch lock and press and hold the " " button for 2 seconds to turn on the power and enter the P mode (Figure 5-1). After 2 seconds, turn off the power and press the brake to enter the normal mode (Figure 5-2).
  • Page 22 3. Set mode: 3.1. Enter/Exit Settings Interface: Simultaneously press and hold the "+" and "-" keys (Figure 5-4) 3.2. Function menu switching: In the setting interface state, click on the "M" menu to select; 3.3. Function menu parameter switching: In the function menu interface state, click the "+"...

  • Page 23: Considerations

    6.CONSIDERATIONS Please use it safely, and do not plug or unplug the display when it is powered on. · Please avoid bumping as far as possible. · Please do not alter the background parameter settings of the display at will otherwise normal riding cannot be guaranteed ·...

  • Page 24: Maintenance And Cleaning

    7.MAINTENANCE AND CLEANING If your bike is very dirty, please clean it with water or mild detergent and nonabrasive sponge driving. Do not use high pressure to wash the bicycle. Never wash the bearing points or electronic components of the electric bicycle directly. Do not use irritant chemicals or alcohol wipes to clean the bike.
  • Page 25 1. Adjust the screw to the middle position 2. Remove the brake, remove another piece, and insert the gear plug 3. Remove the brake oil seal screw Insert the long hose into the oil injection barrel, connect the hose and the oil hole with the oil injection nozzle, and tighten the screws manually.
  • Page 26 7. Insert the short hose into the oil filling barrel, connect the hose and the oil cylinder with the M4 oil filling nozzle connector, and then tighten the screws by hand. 8. Use another oil filling cylinder to extract 20ml of new engine oil 9.
  • Page 27 During the last pump, a little oil is left in the oil filling barrel. Replace the oil filling cylinder with the exhaust gas cylinder. When pulling out the oil filling barrel, wrap it with a cloth to prevent oil from overflowing. Apply as much pressure as possible on the brake side.
  • Page 28 Bleed the air from this end of the handbrake lever and extract the air from the tube. Repeat extraction several times until no bubbles or very few bubbles are visible in the tube. After the last injection, loosen the interface and tighten the oil seal screw. Use a paper towel to wipe off...

  • Page 29: Troubleshooting Instructions

    9.TROUBLESHOOTING INSTRUCTIONS Buzzer Alorm Sound Count Description Serial Number Fault Description Decision outcomes Number of sounds The signal wire between the controller and Motor Hall Failure the motor isn't connected properly Throttle not returning to zero,or bad gas pedal Note that when restarting the controller Fault Gas pedal will be displayed by default and will disappear when the selif-test passes.
  • Page 30 Display error code Fault code Fault name Fault name Fault code Motor phase line short circuit/MOS Brake failure tube failure Arrears protection Controller failure Controller/instrument communication Electric Hall failure failure Handle failure...

  • Page 31: Warranty

    10.WARRANTY (1). Warranty information · For the faults caused by the quality of the product under normal use, the company will be responsible for providing a limited warranty during the warranty period. · The warranty period of the product is 12 months. (Battery, motor and controller warranty is 6 months) (2).
