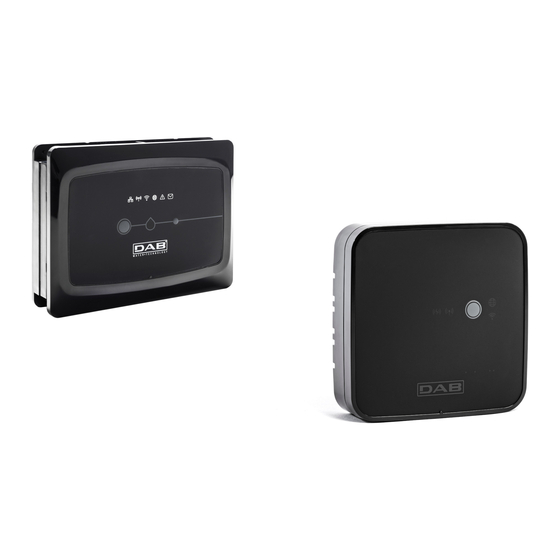

DAB DConnect Box Instruction For Installation And Maintenance
DAB DConnect Box Instruction For Installation And Maintenance

DAB DConnect Box Instruction For Installation And Maintenance

Kit modbus
Hide thumbs Also See for DConnect Box:

Advertisement

Quick Links

ISTRUZIONI PER L'INSTALLAZIONE E LA MANUTENZIONE (IT)
INSTRUCTIONS FOR INSTALLATION AND MAINTENANCE (EN)
INSTRUCTIONS POUR L´INSTALLATION ET LA MAINTENANCE (FR)
DConnect Box
KIT Modbus

Advertisement

loading
Need help?

Need help?

Do you have a question about the DConnect Box and is the answer not in the manual?

Questions and answers

Summary of Contents for DAB DConnect Box

  • Page 1 ISTRUZIONI PER L'INSTALLAZIONE E LA MANUTENZIONE (IT) INSTRUCTIONS FOR INSTALLATION AND MAINTENANCE (EN) INSTRUCTIONS POUR L´INSTALLATION ET LA MAINTENANCE (FR) DConnect Box KIT Modbus...
  • Page 3 Il grafico seguente fornisce una rappresentazione grafica della tipologia di rete da realizzare tramite DConnect + BMS. Figura 1 Il DConnect Box accessoriato con il dispositivo aggiuntivo per MODBUS RTU, rappresenta l’interfaccia fra le pompe e il supervisore BMS: raccoglie le informazioni delle Pompe elettroniche DAB elencate nel paragrafo 3.6 Product Type e le...
  • Page 4 DConnect Box. 2.2. Cablaggio Collegare l’accessorio di interfaccia ad una qualsiasi porta USB del DConnect Box. Si rimanda al manuale del DConnect Box in merito al collegamento delle pompe. Collegare l’accessorio di interfaccia Modbus con il controllore Modbus RTU come segue.
  • Page 5 ITALIANO Indirizzo Slave Function Code Dati Registri successivi 4000 0025 DConnectBox Read holding Offset Family + Offset Position + Offset Parameter Address register 0x4000 0x0000 0x0000 Tabella 5 3.3. Status La tabella seguente elenca i registri Modbus RTU dei parametri della pompa (Function Code 0x03). IMPORTANTE: la pompa restituisce valori corretti in conformità...
  • Page 6 ITALIANO Offset Parametro Descrizione 8 En. NC reset 9 Reset Fault 10 Low Press. NO 11 Low Press. NC 12 Low pr. NO MR 13 Low pr. NC MR 0 disabled / inactive 1 float NO / active 2 Float NC 3 P aux NO 4 P aux NC 5 Enable NO...
  • Page 7 ITALIANO Offset Parametro Descrizione 0 inactive Low press ● 1 active 0 inactive Min press ● 1 active Tabella 6 Note: R = Read / Parametro in lettura W = Write / Parametro in scrittura R W = Read and Write / Parametro in lettura o scrittura 3.4.
  • Page 8 ● 1 reset DConnect Box Tabella 7 (*) tale comando identifica fisicamente l’apparato tramite lampeggio del display o suoni acustici nel caso del DConnect Box. (**) tali comandi vanno eseguiti in successione affinché vengano attuati. 3.4.1. Modifica parametri da WebAPP Per configurare il sistema in modo più...
  • Page 9 ITALIANO Errors Active Driver Plus ADAC MCE-P Esyline Ebox Type Inconsistent fl. sw. status error Inconsistent lvl prb. status error Incons. pressostats status error Depth sensor error 1-16,20,21,29, 1-16,17,20, Internal error 1-16,17,22 1-16,17 38,39,50, error 21,22,23,24,26 51,54,55,63 Warnings Active Driver Plus ADAC MCE-P Esyline Ebox...
  • Page 10 0x0000 Tabella 10 NOTA: il DConnect Box gestisce fino ad un massimo di 8 pompe ma in base alla complessità dell’installazione tale numero potrebbe variare. Si consiglia di contattare il Customer Service DAB per un numero di pompe elevato. 3.8. Esempi 3.8.1.
  • Page 11 ITALIANO * YYYY CRC16 calcolato. b. Successivamente modificare la baudrate a 9600 bps. Indirizzo Function Offset Value Slave Code 2060 0064 YYYY * DConnectBox Preset Offset Family + Offset Position + Offset Parameter Address Multiple 0x2000 0x0000 0x0060 HEX = 0x0064 default Registers 2061...
  • Page 12 ITALIANO DConnectBox Write input Offset Family + Offset Position + Offset 3.3 / 0.1 = 33 Address registers Parameter 0x1000 0x0100 0x001C 0x0021 Tabella 16 Nota: (MS_Measure System impostato come International) * YYYY CRC16 calcolato.
  • Page 13 ENGLISH 1. Introduction This manual is intended to illustrate the correct use of the MODBUS interface for BMS to be applied to the DConnect Box device. The additional interface (60198693 - DConnect BMS Modbus RTU RS485 adapter KIT) allows all the electronic pumps and electrical panels that can be associated with the DConnect to be inserted into a MODBUS RTU supervision system.
  • Page 14: Modbus Configuration

    2. Modbus Configuration 2.1. DConnect Box Update The use of the optional Modbus RTU interface involves the software update of the DConnect Box. To do this, make sure that there is an Internet connection via Ethernet or WiFi. Please refer to the https://internetofpumps.com...
  • Page 15 ENGLISH Slave Address Function Code Data Subsequent Logs 4000 0025 DConnectBox Read holding Offset Family + Offset Position + Offset Parameter Address register 0x4000 + 0x0000 + 0x0000 Table 5 3.3. Status The following table lists the Modbus RTU registers of the pump parameters (Function Code 0x03). IMPORTANT: the pump returns correct values in accordance with the selected measurement system ("MS Measure System"...
  • Page 16 ENGLISH Offset Parameter Description 7 En. NO reset 8 En. NC reset 9 Reset Fault 10 Low Press. NO 11 Low Press. NC 12 Low pr. NO MR 13 Low pr. NC MR 0 disabled / inactive 1 float NO / active 2 Float NC 3 P aux NO 4 P aux NC...
  • Page 17 1 x DConnect Box Reset Table 7 (*) this command physically identifies the device by flashing the display or acoustic sounds in the case of the DConnect Box. (**) these commands must be executed in succession in order for them to be implemented.
  • Page 18 ENGLISH Figure 3 3.5. System Status and Errors Errors Active Driver Plus ADAC MCE-P Esyline Ebox Type Shot circuit HV 18,19,20 18,19,20 18,19 13,83,84 error Voltage error 21,23,24,25,26,27,38 21,23,24,25,26,27 25,27,28,29,30,31 17,18,19, error Input overload 28,29,30 28,29,30 32,33, error Operation mode change error Keys error error...
  • Page 19 3.7. Adding a new product and replacing it Each product family can contain up to 16 devices virtually. Once connected to the DConnect Box, a pump will receive a unique serial number and will occupy the first free position of the 16 available. This position will remain occupied even if the pump is...
  • Page 20 Table 10 NOTE: the DConnect Box manages up to a maximum of 8 pumps but depending on the complexity of the installation this number may vary. It is advisable to contact DAB Customer Service for a large number of pumps.
  • Page 21 ENGLISH 3.8.2. Parameter reading Consider a system consisting of two ADACs and an Esybox. Request for the pressure in Bar of the first ADAC: Slave Address Function Code Data 1020 YYYY * DConnectBox Address Read holding registers Offset Family + Offset Position + Offset Parameter 0x1000 + 0x0000 + 0x0020 Table 13 Note: (MS_Measure System set as International)
  • Page 22 FRANÇAIS 1. Introduction This manual is intended to illustrate the correct use of the MODBUS interface for BMS to be applied to the DConnect Box device. The additional interface (60198693 - DConnect BMS Modbus RTU RS485 adapter KIT) allows all the electronic pumps and electrical panels that can be associated with the DConnect to be inserted into a MODBUS RTU supervision system.
  • Page 23 2. Modbus Configuration 2.1. DConnect Box Update The use of the optional Modbus RTU interface involves the software update of the DConnect Box. To do this, make sure that there is an Internet connection via Ethernet or WiFi. Please refer to the https://internetofpumps.com...
  • Page 24 FRANÇAIS Slave Address Function Code Data Subsequent Logs 4000 0025 DConnectBox Read holding Offset Family + Offset Position + Offset Parameter Address register 0x4000 + 0x0000 + 0x0000 Table 5 3.3. Status The following table lists the Modbus RTU registers of the pump parameters (Function Code 0x03). IMPORTANT: the pump returns correct values in accordance with the selected measurement system ("MS Measure System"...
  • Page 25 FRANÇAIS Offset Parameter Description 7 En. NO reset 8 En. NC reset 9 Reset Fault 10 Low Press. NO 11 Low Press. NC 12 Low pr. NO MR 13 Low pr. NC MR 0 disabled / inactive 1 float NO / active 2 Float NC 3 P aux NO 4 P aux NC...
  • Page 26 1 x DConnect Box Reset Table 7 (*) this command physically identifies the device by flashing the display or acoustic sounds in the case of the DConnect Box. (**) these commands must be executed in succession in order for them to be implemented.
  • Page 27 FRANÇAIS Figure 3 3.5. System Status and Errors Errors Active Driver Plus ADAC MCE-P Esyline Ebox Type Shot circuit HV 18,19,20 18,19,20 18,19 13,83,84 error Voltage error 21,23,24,25,26,27,38 21,23,24,25,26,27 25,27,28,29,30,31 17,18,19, error Input overload 28,29,30 28,29,30 32,33, error Operation mode change error Keys error error...
  • Page 28 3.7. Adding a new product and replacing it Each product family can contain up to 16 devices virtually. Once connected to the DConnect Box, a pump will receive a unique serial number and will occupy the first free position of the 16 available. This position will remain occupied even if the pump is...
  • Page 29 Table 10 NOTE: the DConnect Box manages up to a maximum of 8 pumps but depending on the complexity of the installation this number may vary. It is advisable to contact DAB Customer Service for a large number of pumps.
  • Page 30 FRANÇAIS 3.8.2. Parameter reading Consider a system consisting of two ADACs and an Esybox. Request for the pressure in Bar of the first ADAC: Slave Address Function Code Data 1020 YYYY * DConnectBox Address Read holding registers Offset Family + Offset Position + Offset Parameter 0x1000 + 0x0000 + 0x0020 Table 13 Note: (MS_Measure System set as International)
  • Page 31 266319, Qingdao (Shandong) - China Hungary mailto:info.china@dabpumps.com Tel. +36 93501700 DAB PUMPS OCEANIA PTY LTD DAB PUMPS DE MÉXICO, S.A. DE C.V. 426 South Gippsland Hwy, Av Amsterdam 101 Local 4 Dandenong South VIC 3175 – Australia Col. Hipódromo Condesa, info.oceania@dwtgroup.com...
