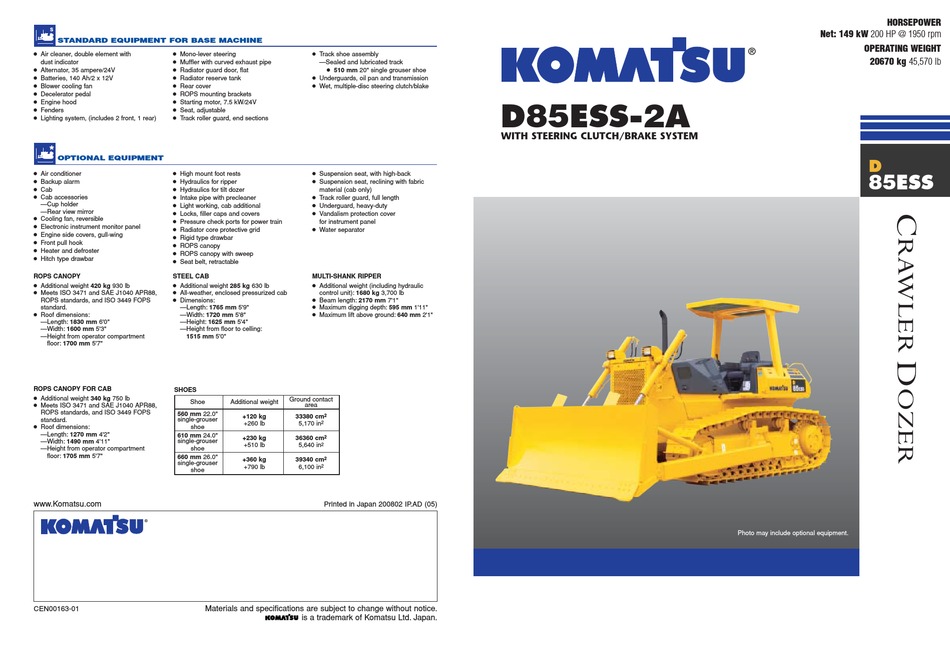

Komatsu D85ESS-2A Brochure

STANDARD EQUIPMENT FOR BASE MACHINE
● Air cleaner, double element with ● Mono-lever steering
● Muffler with curved exhaust pipe
dust indicator
● Alternator, 35 ampere/24V ● Radiator guard door, flat
● Batteries, 140 Ah/2 x 12V ● Radiator reserve tank
● Blower cooling fan ● Rear cover
● Decelerator pedal ● ROPS mounting brackets
● Engine hood ● Starting motor, 7.5 kW/24V
● Fenders ● Seat, adjustable
● Lighting system, (includes 2 front, 1 rear) ● Track roller guard, end sections
OPTIONAL EQUIPMENT
● Air conditioner ● High mount foot rests
● Backup alarm ● Hydraulics for ripper
● Cab ● Hydraulics for tilt dozer
● Cab accessories ● Intake pipe with precleaner
—Cup holder ● Light working, cab additional
—Rear view mirror
● Locks, filler caps and covers
● Cooling fan, reversible
● Pressure check ports for power train
● Electronic instrument monitor panel
● Radiator core protective grid
● Engine side covers, gull-wing
● Rigid type drawbar
● Front pull hook
● ROPS canopy
● Heater and defroster
● ROPS canopy with sweep
● Hitch type drawbar
● Seat belt, retractable
ROPS CANOPY STEEL CAB
● Additional weight 420 kg 930 lb ● Additional weight 285 kg 630 lb
● Meets ISO 3471 and SAE J1040 APR88, ● All-weather, enclosed pressurized cab
● Dimensions:
ROPS standards, and ISO 3449 FOPS
standard. —Length: 1765 mm 5'9"
● Roof dimensions:
—Width: 1720 mm 5'8"
—Length: 1830 mm 6'0" —Height: 1625 mm 5'4"
—Width: 1600 mm 5'3" —Height from floor to celling:
—Height from operator compartment 1515 mm 5'0"
floor: 1700 mm 5'7"
ROPS CANOPY FOR CAB
SHOES
● Additional weight 340 kg 750 lb
Shoe
● Meets ISO 3471 and SAE J1040 APR88,
ROPS standards, and ISO 3449 FOPS
560 mm 22.0"
standard. single-grouser
● Roof dimensions:
shoe
—Length: 1270 mm 4'2"
610 mm 24.0"
single-grouser
—Width: 1490 mm 4'11"
shoe
—Height from operator compartment
floor: 1705 mm 5'7"
660 mm 26.0"
single-grouser
shoe
www.Komatsu.com
CEN00163-01 Materials and specifications are subject to change without notice.
● Track shoe assembly
—Sealed and lubricated track
● 510 mm 20" single grouser shoe
● Underguards, oil pan and transmission
● Wet, multiple-disc steering clutch/blake
● Suspension seat, with high-back
● Suspension seat, reclining with fabric
material (cab only)
● Track roller guard, full length
● Underguard, heavy-duty
● Vandalism protection cover
for instrument panel
● Water separator
MULTI-SHANK RIPPER
● Additional weight (including hydraulic
control unit): 1680 kg 3,700 lb
● Beam length: 2170 mm 7'1"
● Maximum digging depth: 595 mm 1'11"
● Maximum lift above ground: 640 mm 2'1"
Ground contact
Additional weight
area
+120 kg 33380 cm 2
+260 lb 5,170 in 2
+230 kg 36360 cm 2
+510 lb 5,640 in 2
+360 kg 39340 cm 2
+790 lb 6,100 in 2
Printed in Japan 200802 IP.AD (05)
is a trademark of Komatsu Ltd. Japan.
D85ESS-2A
WITH STEERING CLUTCH/BRAKE SYSTEM
HORSEPOWER
Net: 149 kW 200 HP @ 1950 rpm
OPERATING WEIGHT
20670 kg 45,570 lb
D
85ESS

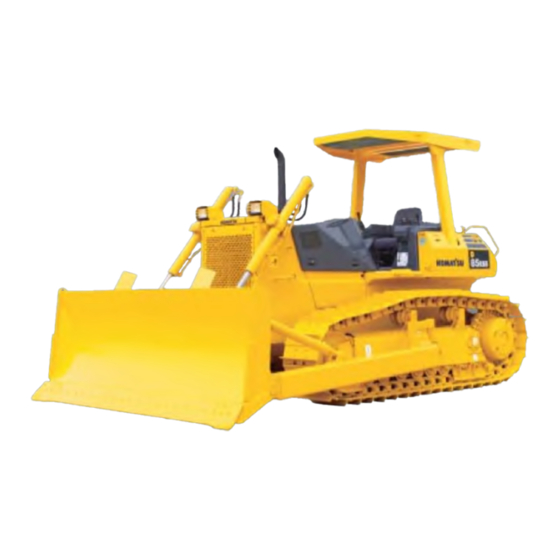

Photo may include optional equipment.
