CEN00372-00
Materials and specifications are subject to change without notice
Printed in Japan 200904 IP. AD (10)
is a trademark of Komatsu Ltd. Japan
D375A
-6
HORSEPOWER
Gross: 474 kW 636 HP @ 1800 rpm
Net: 455 kW 610 HP @ 1800 rpm
OPERATING WEIGHT
71640 kg 157,940 lb
D
375

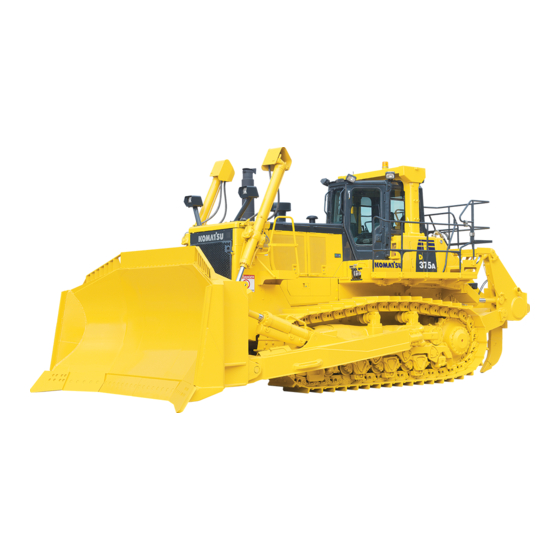

Photo may include optional equipment.
A
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Komatsu D375A-6
Summary of Contents for Komatsu D375A-6
- Page 1 HORSEPOWER Gross: 474 kW 636 HP @ 1800 rpm Net: 455 kW 610 HP @ 1800 rpm OPERATING WEIGHT 71640 kg 157,940 lb D375A www.Komatsu.com Printed in Japan 200904 IP. AD (10) Photo may include optional equipment. CEN00372-00 Materials and specifications are subject to change without notice is a trademark of Komatsu Ltd.
- Page 2 D375A D375A CRAWLER DOZER R A W L E R O Z E R ROUND HORSEPOWER D375A-5 Crawler Dozer Gross: 474 kW 636 HP @ 1800 rpm New hexagonal designed cab includes: Net: 455 kW 610 HP @ 1800 rpm Spacious interior Comfortable ride with new cab damper mounting and K-bogie undercarriage OPERATING WEIGHT...
- Page 3 D375A D375A CRAWLER DOZER R A W L E R O Z E R ONTROL EATURES Power Train Electronic Control System Smooth operation D375A-6 uses a newly designed power train electronic control system. The controller registers the amount of operator control (movements of lever and operation of switches) and machine condition signals from each sensor, and calculates to accurately control torque converter, transmission, steering clutches and brakes for optimized machine operation.
- Page 4 D375A D375A CRAWLER DOZER R A W L E R O Z E R RODUCTIVITY EATURES Rippers (optional) The variable giant ripper features a long sprocket center-to-ripper point distance, making ripping operation easy and effective while maintaining high penetration force. K-Bogie undercarriage system The variable giant ripper is a parallelogram single shank ripper ideal for ripping tough New K-Bogie undercarriage system combines prior...
- Page 5 D375A D375A CRAWLER DOZER R A W L E R O Z E R AINTENANCE ORKING NVIRONMENT Preventative Maintenance Preventative maintenance is the only way to ensure long service life from your equipment. That’s why Komatsu designed the D375A-6 with conveniently located maintenance points to make necessary inspections and maintenance quick and easy. Photo may include optional equipment.
- Page 6 D375A D375A CRAWLER DOZER R A W L E R O Z E R AFETY & AINTENANCE EATURES PECIFICATIONS Komatsu designs our bulldozers with safety in mining operations. Following safety features are optionally available for D375A-6. Highly mounted headlights Jump-start connectors are also provided ENGINE STEERING SYSTEM in the box in case the batteries run out.
- Page 7 D375A CRAWLER DOZER DIMENSIONS SEMI-U DOZER WITH GIANT RIPPER 2500 mm 8'2" 4695 mm 15'5" 4265 mm 2265 mm 7'5" 3980 mm 13'1" 10485 mm 34'5" 3460 mm 11'4" 1485 mm 4'10" 1100 mm 3'7" 4285 mm 14'1" Ground Clearance: 610 mm 2'0" OPERATING WEIGHT Tractor weight .
- Page 8 D375A R A W L E R O Z E R STANDARD EQUIPMENT Alternator, 60 ampere/24 V Hinged front mask Radiator reserve tank Back-up alarm Hinged underguards with front pull hook ROPS brackets Batteries, 170 Ah/2 x 12 V Horn, warning Segmented sprockets Blower cooling fan Hydraulics for dozer...
Need help?
Do you have a question about the D375A-6 and is the answer not in the manual?
Questions and answers
Схематическая сборка агрегатов модуля[фрикционы коробка]
The schematic assembly of the module components for the Komatsu D375A-6 friction box includes:
- Lock-up clutch unit:
- Clutch plate (28) meshed with drive case (15)
- Clutch discs (33) meshed with turbine boss (31)
- Clutch piston (30) sliding inside housing (14), which is united with the drive case
- Stator clutch unit:
- Clutch discs (29) meshed with boss (25) splined to stator shaft (20)
- Clutch plate (28) supported on clutch housing (26) and rear housing (17) with pins
- Clutch piston (30) sliding inside rear housing (17)
- Stator assembly:
- Stator (18), united with stator shaft (20) and stator boss (25), fixed to rear housing (17) via the stator clutch unit
- PTO unit:
- Input shaft (10)
- Idler gear (12)
- Scavenging pump drive gear (35)
- Cooling fan pump and work equipment pump drive gear (41)
- Power train pump drive gear (38)
These components interact within the friction box to manage power transmission and hydraulic functions.
