Crawler dozer

Advertisement

STANDARD EQUIPMENT
● Alternator 50 ampere/24V
● Hydraulic track adjusters
● Back up alarm
● Hydrostatic Steering System (HSS)
● Batteries 140 Ah/2 x 12V
● Lighting system (including two front
● Blower fan
and rear lights)
● Decelerator pedal
● Muffler with rain cap
● Dry-type air cleaner with dust evacuator
● Palm lever steering control
● Radiator reserve tank
and dust indicator
● Engine hood
● Rear cover
● Final drive case wear guard
● Segmented sprockets
● Front pull hook
● Shoes:
● Hinged front mask, perforated
560 mm 22" single-grouser (EX)
910mm 36" single-grouser (PX)
OPTIONAL EQUIPMENT
● Air conditioner
● Mirror, rearview
● Alternator 75 ampere/24 V
● Panel cover
● AM-FM radio with cassette
● Seat belt
● Batteries 200 Ah/2 x 12V
● Shoes:
● Engine side covers
610 mm 24" Single grouser shoe (EX)
● Fire extinguisher
660 mm 26" Single grouser shoes (EX)
● First-aid kit
910 mm 36" Swamp shoes (PX)
● Heater and defroster
● Starting motor 11 kW/24V
● Light for ripper point
● Sun visor
● Lunchon box
● Suspension seat, turn, fabric material
ROPS canopy (without cab):*
Steel cab:*
Weight. . . . . . . . . . . . . . . . . . 437 kg 970 lb
Weight. . . . . . . . . . . . . . . . . . 410 kg 910 lb
Roof dimensions
Dimensions:
Length . . . . . . . . . . . . . . . 1368 mm 4'6"
Length . . . . . . . . . . . . . . . 1758 mm 5'9"
Width . . . . . . . . . . . . . . . . 1850 mm 6'1"
Width . . . . . . . . . . . . . . . . 1323 mm 4'4"
Height from
Height from compartment
compartment floor . . . . . . 1768 mm 5'10"
floor to ceiling . . . . . . . . . . 1592 mm 5'3"
*Meets ISO 3449 FOPS standard.
*Meets ISO 3471 and SAE J1040 APR88 ROPS
standards, as well as ISO 3449 FOPS standard.
ROPS for cab:*
Weight. . . . . . . . . . . . . . . . . . 371 kg 820 lb
Roof dimensions
Length . . . . . . . . . . . . . . . . 650 mm 2'2"
Width . . . . . . . . . . . . . . . 1774 mm 5'10"
Height from
compartment floor . . . . . . . 1754 mm 5'9"
*Meets ISO 3471 and SAE J1040 APR88 ROPS
standards.
www.Komatsu.com
Materials and specifications are subject to change without notice.
CEN00052-02
● Starting motors 7.5 kW/24 V
● Suspension seat and reclining
● TORQFLOW transmissions
● Track frames
● Track roller guards, full length (EX),
center and end section (PX)
● Warning horn
● Water separator
● Thermos
● Tool kit
● Vandalism protection kit
Multi-shank ripper (EX):
Hydraulically controlled parallelogram ripper
with three shanks.
Weight (including hydraulic
control unit) . . . . . . . . . 2500 kg 5,520 lb
Beam length . . . . . . . . . . . . . 2246 mm 7'4"
Maximum lift above ground . . 564 mm 1'10"
Maximum digging depth . . . . . 653 mm 2'2"
Printed in Japan 200805 IP.AD (10)
is a trademark of Komatsu Ltd. Japan.
D85EX
-15E0
D85PX
-15E0
HORSEPOWER
Gross: 199 kW 266 HP @ 1900 rpm
Net: 197 kW 264 HP @ 1900 rpm
OPERATING WEIGHT
D85EX-15E0: 28100 kg 61,950 lb
D85PX-15E0: 27650 kg 60,960 lb

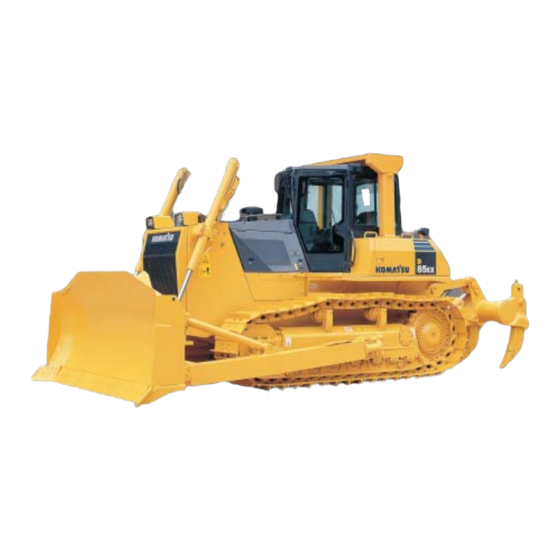

Photo may include optional equipment.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D85EX-15EO and is the answer not in the manual?

Questions and answers

Summary of Contents for Komatsu D85EX-15EO

  • Page 1 HORSEPOWER Gross: 199 kW 266 HP @ 1900 rpm STANDARD EQUIPMENT Net: 197 kW 264 HP @ 1900 rpm ● Alternator 50 ampere/24V ● Hydraulic track adjusters ● Starting motors 7.5 kW/24 V ● Back up alarm ● Hydrostatic Steering System (HSS) ●...
  • Page 2 -15E0 D85EX/PX- CRAWLER DOZER 15E0 R A W L E R O Z E R ROUND HORSEPOWER Gross: 199 kW 266 HP @ 1900 rpm Net: 197 kW 264 HP @ 1900 rpm New hexagonal designed cab includes: OPERATING WEIGHT ●...
  • Page 3: Human-Machine Interface

    -15E0 D85EX/PX- CRAWLER DOZER 15E0 R A W L E R O Z E R (PCCS) OMMAND ONTROL YSTEM Power train electronic control system Smooth and soft operation Komatsu’s new ergonomically designed control system “PCCS” creates an operating “complete operator control” . environment with D85EX/PX utilizes a newly designed power train electronic control system.
  • Page 4: Working Environment

    -15E0 D85EX/PX- CRAWLER DOZER 15E0 R A W L E R O Z E R RODUCTIVITY EATURES ORKING NVIRONMENT Work equipment Operator comfort Large blade Operator comfort is essential for safe and productive work. Comfortable ride with new cab damper mounting The D85EX/PX provides a quiet, comfortable environment D85EX/PX’s cab mount uses a new cab damper which Capacities of 5.2 m...
  • Page 5: Preventative Maintenance

    -15E0 D85EX/PX- CRAWLER DOZER 15E0 R A W L E R O Z E R AINTENANCE LEAN ILENT ESIGN Preventative maintenance Clean engine Use of recyclable parts The SAA6D125E-5 engine is EPA (Environmental Recyclable parts are used, considering the effects on the Protection Agency) Tier 3 and EU stage 3 emission environment.
  • Page 6: Specifications

    -15E0 D85EX/PX- CRAWLER DOZER 15E0 R A W L E R O Z E R PECIFICATIONS DIMENSIONS D85EX-15E0 D85PX-15E0 ENGINE STEERING SYSTEM A 2000 mm 6'7" 2250 mm 7'5" Model ......Komatsu SAA6D125E-5 PCCS lever controls for all directional movements.
