Komatsu D39EX-22 Brochure

STANDARD EQUIPMENT FOR BASE MACHINE
Engine and related items Undercarriage
● Air cleaner, dry, double element type with ● Idler cushions
● Sprockets, bolt-on
caution lamp on monitor
● Decelerator pedal ● Track roller guards, end section
● Engine, KOMATSU SAA4D107E-1, ● Track shoe assembly w/sealed and
net output of 79 kW 105 HP direct lubricated link assembly:
injection, turbocharged, air-to-air —D39EX-22: 460 mm 18.1" single
aftercooler, EPA Tier 3 emissions certified grouser shoes
● Fan, hydraulic driven, electronic control
—D39PX-22: 635 mm 25.0" single
● Fuel pre-filter (10 micron) and fuel filter
grouser shoes
(2 micron) Guards and covers
● Intake pipe with precleaner ● Crankcase guard and underguard
● Radiator mask grid ● Engine hood and side panels
● Radiator reserve tank ● ROPS/FOPS*
● Ribbon heater ● Sprocket inner guard
● Water separator
Operator environment
● Cup holder
Electric system
● Alternator, 35 amp (24 V) ● Electronic monitor panel with on-board
● Back-up alarm
diagnostics
● Batteries, large capacity 92 Ah ● Foot rest, high mounted
● Starting motor, 5.5 kW ● Horn
● Seat belt, 76 mm 3" retractable
Power train and controls
● Brake pedal ● Seat, low back vinyl, suspension type
● Counter rotation
Dozer assembly
● Electronically controlled Hydrostatic ● Variable pitch and power angle tilt dozer
Transmission (HST) with Quick-shift and assembly, inside arms (EX: 2710 mm
variable speed settings 8'11" blade, PX: 3250 mm 10'8" blade)
● Palm Command Control System (PCCS)
with electronic control for travel control
● Reverse speed presets
OPTIONAL EQUIPMENT
Track shoe assembly with sealed and Dozer assembly
● D39PX-22 – 2980 mm 9'9" blade
lubricated link assembly
● D39PX-22
Track roller guards
● Track roller guards, segmented, full
– 700 mm 27.6" single grouser, link
Track rail assembly with Abrasion length
Resistant (AR) bushings and sealed and Operator environment
● 12 amp (12V) power port (cab only)
lubricated link assembly
● D39EX-22 ● Cab machine
– 460 mm 18.1" single grouser, – Cigarette lighter (24 V, standard for cab)
shoe with AR link – Lunch box holder (standard for cab)
– 510 mm 20" single grouser, – Provision for radio (cab only)
with AR link – Seat, suspension type, fabric, high back
● D39PX-22
– Seat, suspension type, fabric low back
– 635 mm 25.0" single grouser, – Seat, air suspension type, fabric high
with AR link back
● Lunch box holder (option for canopy)
– 700 mm 27.6" single grouser,
with AR link
www.Komatsu.com
Materials and specifications are subject to change without notice.
CEN00321-00
Hydraulics and controls
● Accumulator for Proportional Pressure
Control (PPC)
● Hydraulics for PAT dozer
● Palm Command Control System (PCCS)
with Proportional Pressure Control (PPC)
for blade control
Vandalism protection
● Filler cap locks and cover locks
● Instrument panel lock and cover
(canopy only)
Other standard equipment
● Grease gun holder
● High altitude arrangement (no fuel
adjustment up to 2300 m 7,546 ft)
● Lighting package - (3 front, 1 rear
cab/canopy)
● Marks and plates, English
● Pullhook, front
*ROPS cab or ROPS canopy must be ordered for
all machines. Cab and canopy FOPS Level 2.
ROPS/FOPS meets all OSHA/MSHA standards
and regulations criteria.
Dozer assembly and rear-mounted equipment are
not included in base machine price.
Rear equipment and hydraulics
● Rear, hydraulics (D39EX/PX-22)
● Ripper, multi-shank (D39EX-22 only)
● Hitch
ROPS canopy and ROPS cab equipment
● ROPS cab (includes air conditioner with
heater, defroster, pressurizer)
– Optional radio, AM/FM, cassette
● ROPS canopy with lower heater
Operator environment
● Forestry guards for cab and canopy
Printed in Japan 200803 IP.AD (10)
is a trademark of Komatsu Ltd. Japan.
D39E X-22
D39PX-22
NET HORSEPOWER
79 kW 105 HP @ 2200 rpm
OPERATING WEIGHT
D39EX-22: 9040 kg 19,930 lb
D39PX-22: 9480 kg 20,900 lb
D
39

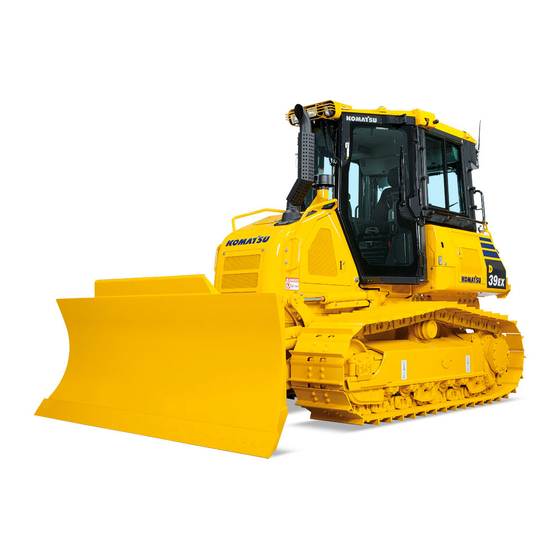

Photo may include optional equipment.
