STANDARD EQUIPMENT FOR BASE MACHINE
● Air cleaner, double element with
● Fenders
● High mount foot rests
dust indicator
● Alternator, 35 ampere/24V
● Joystick steering
● Backup alarm
● Lighting system, (includes 2 front, 1 rear)
● Batteries, 140 Ah/2 x 12V
● Muffler with curved exhaust pipe
● Blower cooling fan
● Pre-cleaner
● Decelerator pedal
● Pressure check ports for power train
● Engine hood
● Radiator mask hinged (Heavy duty)
● Engine side covers, gull-wing
● Radiator reserve tank
OPTIONAL EQUIPMENT
● Additional rear light
● Fire extinguisher
● Air conditioner
● Hardened pulley
● Air intake and exhaust pipe extension
● Heater and defroster
● Canvas canopy
● Panel cover and lock
● Drawbar
● Seat belt (78mm 3")
● Dust-proof grille
● Steel fan (Engine output; net 150 HP
● Electric dust indicator
when installed)
STEEL CAB
ROPS CANOPY FOR CAB
● Additional weight 285 kg 630 lb
● Additional weight 250 kg 550 lb
● All-weather, enclosed pressurized cab
● Meets ISO 3471, SAE J/ISO 3471 ROPS
● Dimensions:
standards, and ISO 3449 FOPS
—Length: 1765 mm 5'9"
standard.
● Roof dimensions:
—Width: 1720 mm 5'8"
—Height: 1625 mm 5'4"
—Length: 1270 mm 4'2"
—Height from floor to ceiling:
—Width: 1490 mm 4'11"
1515 mm 5'0"
—Height from operator compartment
floor: 1705 mm 5'7"
MULTI-SHANK RIPPER
● Additional weight (including hydraulic
control unit): 1645 kg 3,630 lb
● Beam length: 2170 mm 7'1"
● Maximum digging depth: 655 mm 2'2"
● Maximum lift above ground: 575 mm 1'10"
SHOES
Ground contact
Shoe
Additional weight
area
560 mm 22"
+120 kg
30520 cm
2
single-grouser
2
+265 lb
4,731 in
shoe
610 mm 24.0"
+240 kg
33245 cm
2
single-grouser
+530 lb
5,153 in
2
shoe
www.Komatsu.com
CEN00338-01(P)
Materials and specifications are subject to change without notice.
● Rear cover
● Segment sprocket
● Starting motor, 11.0 kW/24V
● Suspension reclining seat
● Track roller guard, end sections
● Track shoe assembly
—Heavy-duty sealed and lubricated track
—510 mm 20.1" single grouser shoe
● Supplementary air heater
● Webasto heater kit
SINGLE SHANK RIPPER
● Additional weight 1260 kg 2780 lb
● Beam length 964 mm 3'2"
● Maximum digging depth: 655 mm 2'2"
● Maximum lift above ground: 575 mm 1'10"
Printed in Japan 200809 IP.AD (10)
is a trademark of Komatsu Ltd. Japan.
D63E-12
HORSEPOWER
Gross: 127 kW 170 HP @ 1800 rpm
Net: 116 kW 155 HP @ 1800 rpm
OPERATING WEIGHT
18500 kg 40,790 lb
D
63E

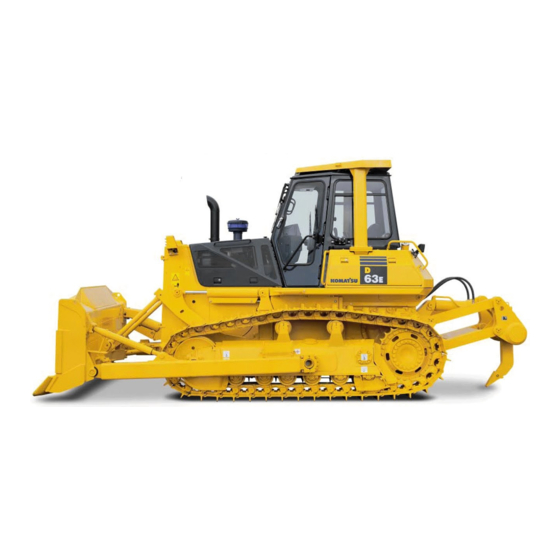

Photo may include optional equipment.
