Komatsu D275AX-5E0 Brochure

Komatsu D275AX-5E0 Brochure

Crawler dozer

Advertisement

Quick Links

STANDARD EQUIPMENT
● Alternator 75 ampere/24V
● Hydraulic track adjusters
● Backup alarm
● Hydrostatic Steering System (HSS)
● Batteries 170 Ah/2 x 12V
● Lighting system (including four front
● Blower fan
and two rear lights)
● Decelerator pedal
● Lockup torque converter
● Dry-type air cleaner with dust evacuator
● Muffler with rain cap
● Palm lever steering control
and dust indicator
● Final drive case wear guard
● Radiator reserve tank
● Hinged front mask
● ROPS brackets
● Hinged underguard with front pull hook
● Segmented sprockets
OPTIONAL EQUIPMENT
● Air conditioner with heater and defroster
● Panel cover
● Alternator 90 ampere/24 V
● Perforated engine side covers
● Batteries 200 Ah/2 x 12V
● Perforated single door radiator mask
● Counterweight
● Pusher plate
● Cushion dozer
● Radio, stereo
● Cushion push block
● Seat
● Fire extinguisher
Air suspension seat
● Hitch
Suspension seat
● Hydraulics for ripper
—Fabric seat
● Light for ripper point
—Fabric seat, high backrest
● Mirror, rearview
● Seat belt
ROPS:*
Multi-shank ripper:
Weight . . . . . . . . . . . . . . . . 605 kg 1,330 lb
Hydraulically controlled parallelogram ripper
Dimensions
with three shanks. Ripping angle infinitely
Width . . . . . . . . . . . . . . . . 1980 mm 6'6"
adjustable.
Height from
Weight (including hydraulic
compartment floor . . . . . . . 1835 mm 6'0"
control unit) . . . . . . . . . 4462 kg 9,840 lb
*Meets ISO 3471 and SAE J/ISO 3471 ROPS
Beam length . . . . . . . . . . . . . 2495 mm 8'2"
standards.
Maximum lift above ground . . . 955 mm 3'2"
Maximum digging depth . . . . 900 mm 2'11"
Steel cab:*
Weight . . . . . . . . . . . . . . . . 455 kg 1,000 lb
Dimensions:
Length. . . . . . . . . . . . . . . 1790 mm 5'10"
Width . . . . . . . . . . . . . . . . 1455 mm 4'9"
Height from compartment
floor to ceiling . . . . . . . . . . 1530 mm 5'0"
*Meets ISO 3449 FOPS standard.
www.Komatsu.com
Materials and specifications are subject to change without notice.
CEN00098-01
● Seven-roller track frames
● Shoes, 610 mm 24" extreme service,
single-grouser
● Starting motors 11 kW/24 V
● Suspension seat
● TORQFLOW transmission
● Track roller guards
● Warning horn
● Shoes:
—710 mm 28"
—760 mm 30"
● Spill guard for Semi-U dozer
● Spill guard for Full-U dozer
● Sun visor
● Track shoe slip control system
● Vandalism protection kit
Variable giant ripper:
Variable, parallelogram single-shank ripper
ideal for ripping up tough material. Ripping
angle is infinitely adjustable. Ripping depth is
adjustable in three stages by a hydraulically
controlled pin puller.
Weight (including hydraulic
control unit) . . . . . . . . . 3600 kg 7,940 lb
Beam length . . . . . . . . . . . . . 1252 mm 4'1"
Maximum lift above ground . . 870 mm 2'10"
Maximum digging depth . . . . 1300 mm 4'3"
Printed in Japan 200712 IP.AD (10)
is a trademark of Komatsu Ltd. Japan.
D275AX
-5E0
HORSEPOWER
Gross: 337 kW 452 HP @ 2000 rpm
Net: 335 kW 449 HP @ 2000 rpm
OPERATING WEIGHT
51,530 kg 113,600 lb

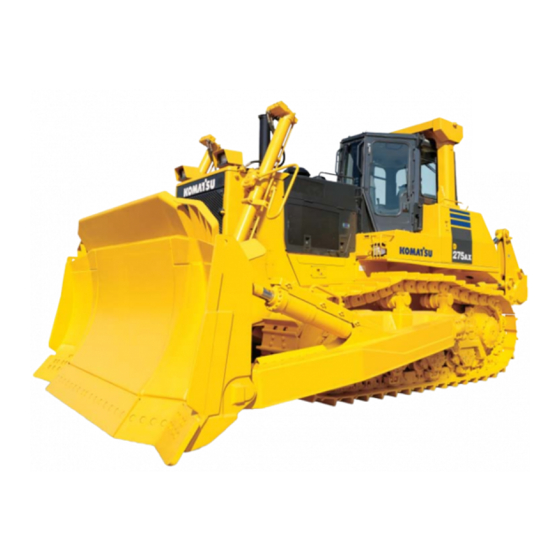

Photo may include optional equipment.

Advertisement

loading
Need help?

Need help?

Do you have a question about the D275AX-5E0 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Komatsu D275AX-5E0

  • Page 1 HORSEPOWER Gross: 337 kW 452 HP @ 2000 rpm Net: 335 kW 449 HP @ 2000 rpm STANDARD EQUIPMENT OPERATING WEIGHT ● Alternator 75 ampere/24V ● Hydraulic track adjusters ● Seven-roller track frames 51,530 kg 113,600 lb ● Backup alarm ●...
  • Page 2 D275AX-5 D275AX -5E0 D275AX CRAWLER DOZER CRAWLER DOZER -5E0 R A W L E R O Z E R ROUND HORSEPOWER Gross: 337 kW 452 HP @ 2000 rpm Net: 335 kW 449 HP @ 2000 rpm New hexagonal designed cab includes: OPERATING WEIGHT Komatsu-integrated design ●...
  • Page 3 D275AX -5E0 D275AX CRAWLER DOZER -5E0 R A W L E R O Z E R PCCS Power Train Electronic Control System PALM COMMAND CONTROL SYSTEM Smooth and soft operation D275AX-5E0 utilizes a newly designed power train electronic control system. The controller registers the amount of operator Komatsu’s new ergonomically designed control system “PCCS”...
  • Page 4 D275AX -5E0 D275AX CRAWLER DOZER -5E0 R A W L E R O Z E R RODUCTIVITY EATURES Undercarriage K-Bogie system New K-Bogie undercarriage system retains prior advantages, with new additional features. Fulcrum of major bogie Current features: ● Effective length of track on ground is consistent. Shoe slippage is minimized;...
  • Page 5: Preventative Maintenance

    D275AX -5E0 D275AX CRAWLER DOZER -5E0 R A W L E R O Z E R AINTENANCE ORKING NVIRONMENT Operator Comfort Preventative Maintenance Operator comfort is essential for productive work. The Comfortable ride with new cab damper mounting Preventative maintenance is the only way to ensure long service life from your equipment. That’s why Komatsu designed the D275AX-5E0 with conveniently located maintenance points to make necessary inspections and maintenance quick and easy.
  • Page 6 D275AX -5E0 D275AX CRAWLER DOZER -5E0 R A W L E R O Z E R PECIFICATIONS DIMENSIONS SIGMADOZER WITH GIANT RIPPER FINAL DRIVES 2260 mm 7'5" ENGINE 4440 mm 14'7" Double-reduction final drive of spur and planetary gear sets to Model .
