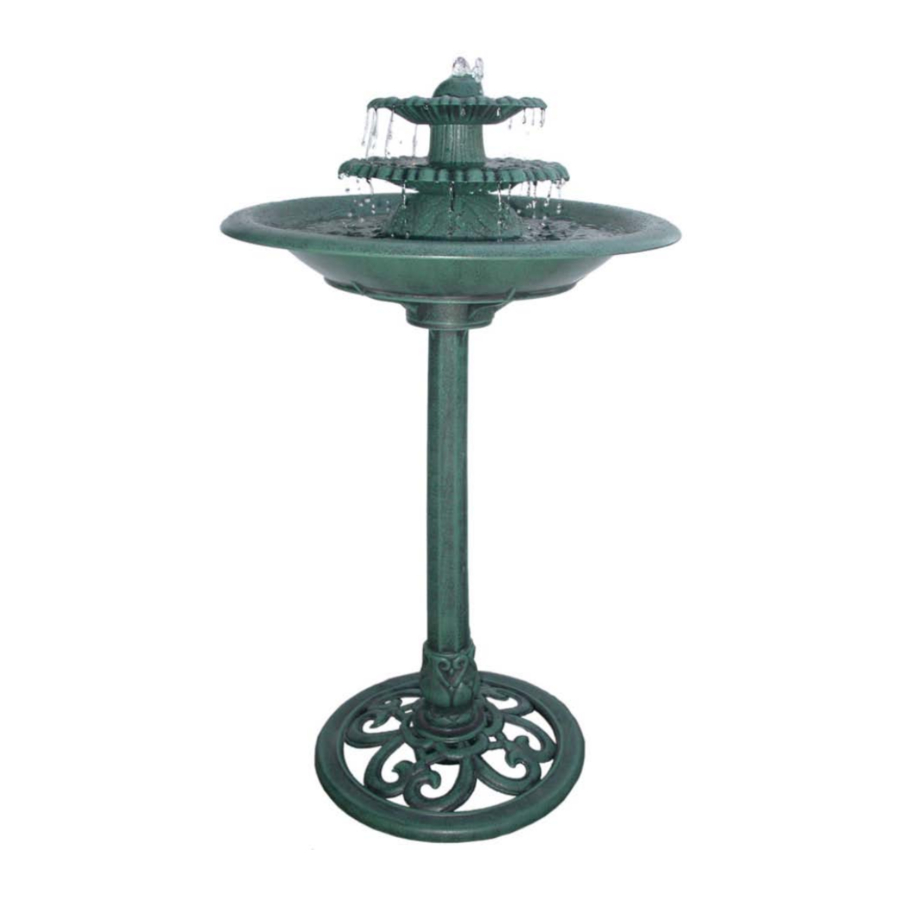

Alpine TEC 106 Manual

Assembling & Using Your Product

Unpack all components carefully. Please check to ensure all parts have been removed from the packaging. Decide on a suitable location to begin assembling.

Parts:

1. Top Head Piece (1)
2. Small Dish (1)
3. Dish Cover (1)
4. Big Dish (1)
5. Pump Cover (1)
6. Metal Connector (1)
7. Pump (1)

8. Pump Housing (1)
9. Basin (1)
10. Leg (1)
11. Bottom Leg Connector (1)
12. Base (1)
13. Screws/Washer (3)

Diagram 1-1

Assembly:
Please refer to diagrams during assembly.

Diagram 1-2

• Feed the pump cable through the Leg (Part 10), Bottom Leg Connector (Part 11), and Base (Part 12). Now screw together the basin (Part 9), Leg (Part 10), Bottom Leg Connector (Part 11), and Base (Part 12).
• Place the pump (Part 7) and pump housing (Part 8) onto the basin and tighten with the three screws and washers (Part 13).
• Screw the metal connector (Part 6) to the pump housing (Part 8). First connect the metal connector (Part 6) and pump (Part 7), then place the pump cover (Part 5) over the pump (Part 7).
• Place the Big Dish (Part 4) on top of the pump cover (Part 5), then the dish cover (Part 3) over the big dish (Part 4), the small dish (Part 2) over the dish cover (Part 3), and lock in place by screwing the top head piece (Part 1).

• Gently pour water into the fountain, being careful not to overflow and cause splashing. Make sure the water completely submerges the pump and the water runs clear during operation. Plug pump cord into your local power supply & make sure that there is no water around the plug. Always keep the power source in a dry place.
• NOTE: We recommend that you use distilled water to prevent any build-up. The first time you operate the pump it can take up to 5 minutes for the air to be completely expelled and water to flow properly.

Trouble Shooting & Caution

If you have any questions and/or problems, please contact the retail store you purchased this fountain.

• If your pump fails to run
  • Check the circuit breaker or try a different outlet to make sure the pump is receiving electrical power.
  • Check the pump discharge and tubing for any kinks and/or obstructions
  • Any buildup obstructing the water flow can be flushed with a garden hose
  • Check the rotor by removing the front cover & plate to access the impellor area. Turn the rotor and make sure that the rotor is not jammed or broken
• If your pump "spews"
  • Check the water level to make sure the pump is completely submerged and there if enough water in the basin to operate your fountain. Not having enough water will cause your pump to spew
• If your pump is making abnormal loud noises
  • Disconnect the pump from the electrical power supply and remove the front cover & plate
  • Carefully grip the impellor and gently pull the impellor/rotor assembly out of the pump housing
  • Rinse the impellor/rotor assembly and clean the cavity with clean water. If breakage or damage is found, contact your local retailer for parts

• Always unplug the pump from the electrical outlet before cleaning & handling
• Uses with clean water only, do not place the fountain and/or parts in any other liquid.
• Periodically change water & clean the pump to keep free from micro-organisms
• Disconnect and store the unit in a dry place if not in use for an extended period of time
• Do not operate with water above 90°F or 30°C
• Do not lift, carry or pull the pump by the power cord o Do not exceed the maximum voltage & wattage on transformer or pump
• NEVER LET THE PUMP RUN DRY
