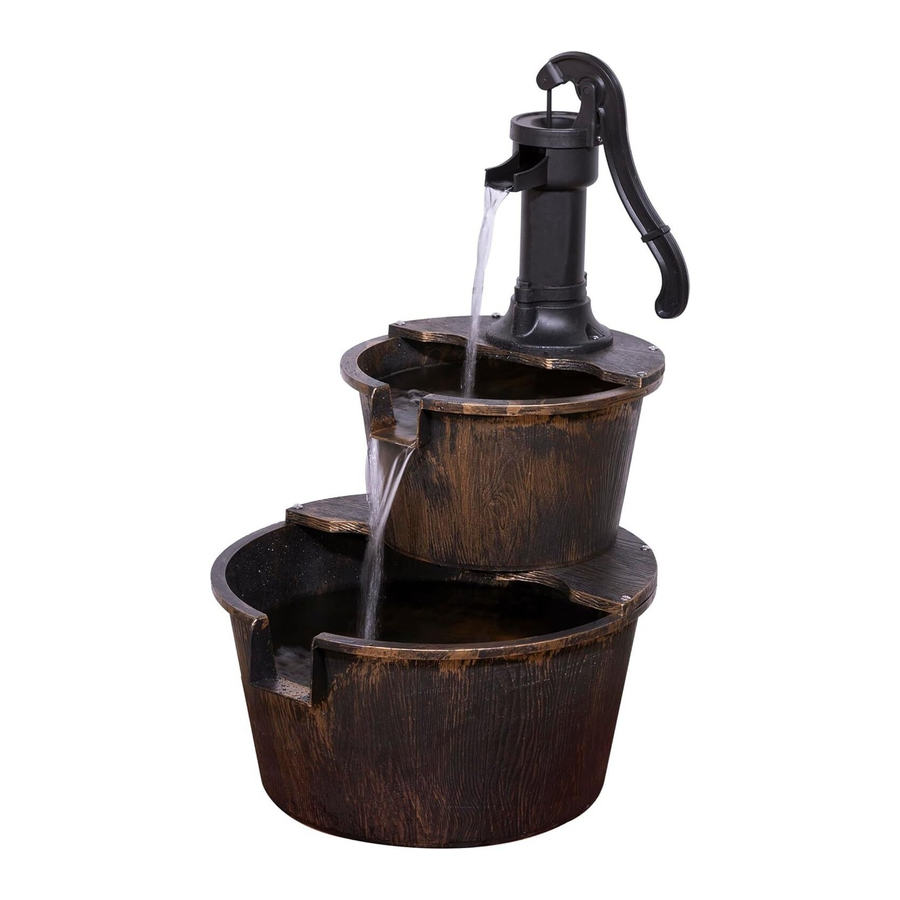

Alpine TIZ194BZ Manual

WHAT'S INCLUDED

FEATURES

SPECIFICATIONS

ASSEMBLING & USING YOUR PRODUCT

Unpack all components carefully. Please check to ensure all parts have been removed from the packaging. *Some splashing may occur when the product is in use.

1. Attach the Small Bucket to the Large Panel of the fountain base by attaching the two self-tapping screws through provided holes on the bottom of the Large Panel and mounting holes on the bottom of the Small Bucket

2. Remove the pump from its packaging and adjust the flow control to the lowest setting to avoid splashing until the fountain is completely assembled.

3. Place the pump into the Large Bucket, and then place the Small Bucket with the attached Large Panel on top. The metal Support bar will rest under the Large Panel on top of the Large Bucket. This will be secured once the screws are tight. Use four of the Small Screws to secure the Large Panel to the large Bucket
   Note: Be sure the cord is routed through the cord slot.

4. Attach the pump Handle to the Pump Body by lining up the screw holes and securing a Large Screw.

5. Now attach the Pump Body to the Small Panel with the final two Large Screws and attach the Small Panel to the top of the Small Bucket with the last of the four Small Screws.

6. Next Install the Tubing into the fountain. The first one will connect from the bottom of the Pump Body to the bottom of the Small Bucket. The Second Tube will connect under the bottom of the Small Bucket to the actual Pump.

7. Gently pour water into the fountain basin, being careful not to overflow and cause splashing. Make sure the water completely submerges the pump and the water runs clear during operation.
   NOTE: We recommend that you use distilled water to prevent scale build-up. The first time you operate the pump it can take up to 5 minutes for the air to be completely expelled and water begins to flow properly

8. Plug the pump your local power supply. Make sure that there is no water around the plug & always keep the power source in a dry place.

9. Congratulations, your fountain is now complete. Don't forget to add water regularly as water will evaporate over time.

9. Congratulations, your fountain is now complete. Don't forget to add water regularly as water will evaporate over time.

TROUBLESHOOTING

If you have any questions and/or problems, please contact the retail store you purchased this fountain.

If your pump fails to run

• Check the circuit breaker or try a different outlet to make sure the pump is receiving electrical power.
• Check the pump discharge and tubing for any kinks and/or obstructions
• Any buildup obstructing the water flow can be flushed with a garden hose
• Check the rotor by removing the front cover & plate to access the impeller area. Turn the rotor and make sure that the rotor is not jammed or broken

If your pump "spews"

• Check the water level to make sure the pump is completely submerged and there is enough water in the basin to operate your fountain. Not having enough water will cause your pump to spew

If your pump is making abnormal loud noises

• Disconnect the pump from the electrical power supply and remove the front cover & plate
• Carefully grip the impeller and gently pull the impeller/rotor assembly out of the pump housing
• Rinse the impeller/rotor assembly and clean the cavity with clean water. If breakage or damage is found, contact your local retailer for parts.

• Always unplug the pump from the electrical outlet before cleaning & handling
• Use with clean water only, do not place the fountain and/or parts in any other liquid.
• Periodically change water & clean the pump to keep free from microorganisms
• Disconnect and store the unit in a dry place if not in use for an extended period of time, or during freezing weather.
• Do not operate the fountain in temperatures below 41°F/5°C.
• Do not operate with water above 90°F/30°C.
• Do not lift, carry or pull the pump by the power cord.
• Do not exceed the maximum voltage & wattage on transformer.
• NEVER LET THE PUMP RUN DRY.
