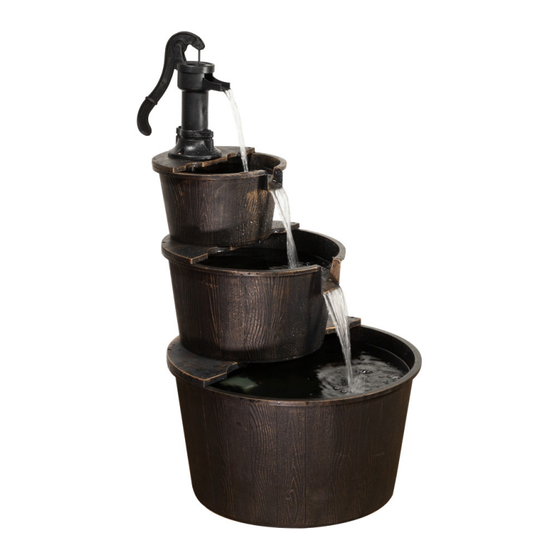

- Page 1 Owner’s Manual USA Item No: TEC234BR UK Item No.: TEC234BR-UK Three Tier Barrel Pump Fountain - Brown Questions? Please See Contact Details on the Back! v12.0...
-
Page 3: Table Of Contents
CONTENTS Contents ..............1 What’s Included ............2 Features ..............3 Specifications .............. 3 Assembling & Using Your Product ....... 4 Replacement Parts ............8 Troubleshooting ............9 Caution ..............10 Limited Warranty Information ........11 Notes ................. 12... -
Page 4: What's Included
WHAT’S INCLUDED Large Bucket Medium Bucket Small Bucket Small Body Pump Large Medium Panel Pump Handle Panel Panel Tubing Pump Screws *Pump may be packaged separately in an outer box located in the outer Styrofoam packaging. -
Page 5: Features
FEATURES FEATURES Realistic faux wood barrels Durable plastic construction Includes ETL listed pump SPECIFICATIONS Power Water Tubing Inner Country Requirement Capacity Diameter 120 V, 60 Hz 11.9 gal 0.51" 230V, 50 Hz 45 L 13 mm... -
Page 6: Assembling & Using Your Product
Remove the pump from its packaging and adjust the flow control to the lowest setting to avoid splashing until the fountain is completely assembled Alpine Quick Tip #1 Turn to the Right / Clockwise to turn down the water flow. - Page 7 ASSEMBLING & USING YOUR PRODUCT Place the pump into the Large Bucket, and then place the Medium Bucket with the attached Large Panel on top of it. the Use four of the Screws to secure the Large Panel to the Large Bucket.
- Page 8 ASSEMBLING & USING YOUR PRODUCT Now attach the Pump Body to the Small Panel with the Screws and attach the Small Panel to the top of the Small Bucket with four Screws. Next Install the Tubing into the fountain. Each Piece will attach from Top to bottom of each bucket.
- Page 9 ASSEMBLING & USING YOUR PRODUCT Gently pour water into the fountain basin, being careful not to overflow and cause splashing. Make sure the water completely submerges the pump and the water runs clear during operation. NOTE: We recommend that you use distilled water to prevent scale build-up.
-
Page 10: Replacement Parts
10. Congratulations, your fountain is now complete. Don’t forget to add water regularly as water will evaporate over time. REPLACEMENT PARTS For parts or additional help with your new product,please contact Alpine customer service. ALSO AVAILABLE FROM ALPINE Americana® Fountain Care Touch-Up Country... -
Page 11: Troubleshooting
TROUBLESHOOTING For any questions or problems, contact the retail store the fountain was purchased from. If the pump fails to run 1. Check the circuit breaker or plug into a different outlet to be sure the pump is receiving electrical power. 2. -
Page 12: Caution
CAUTION • Always unplug the pump from the electrical outlet before cleaning or handling. • Use with clean water only. Do not place the fountain and/or its parts in any other liquid. • Periodically change the water and clean the pump to keep it free of microorganisms. -
Page 13: Limited Warranty Information
LIMITED WARRANTY INFORMATION Thank you for choosing an Alpine product! We aim to please with our wide range of products including Fountains, Birdbaths, Statuary, Pond Supplies & More. All of our products are constructed from the highest quality materials. In the event that we have not achieved our usual standard of excellence, we will repair or replace, at our discretion, within the warranty period. -
Page 14: Notes
NOTES... - Page 16 Purchased your product online? We would really appreciate it if you can share your experience with others by reviewing our product on the website from which you purchased. Copyright © Alpine Corporation 2022...
