Tivoli Audio ONE Manual

Unpacking

Please save the carton and original packing should you ever need to ship your radio, as shipping damage is not covered by the factory warranty.

Packed with your Model One you should find one each:

• External Power Supply and accompanying plugs
• FM Telescopic Antenna

Please contact your dealer or Tivoli Audio if any of these items are missing.

Guide to Features

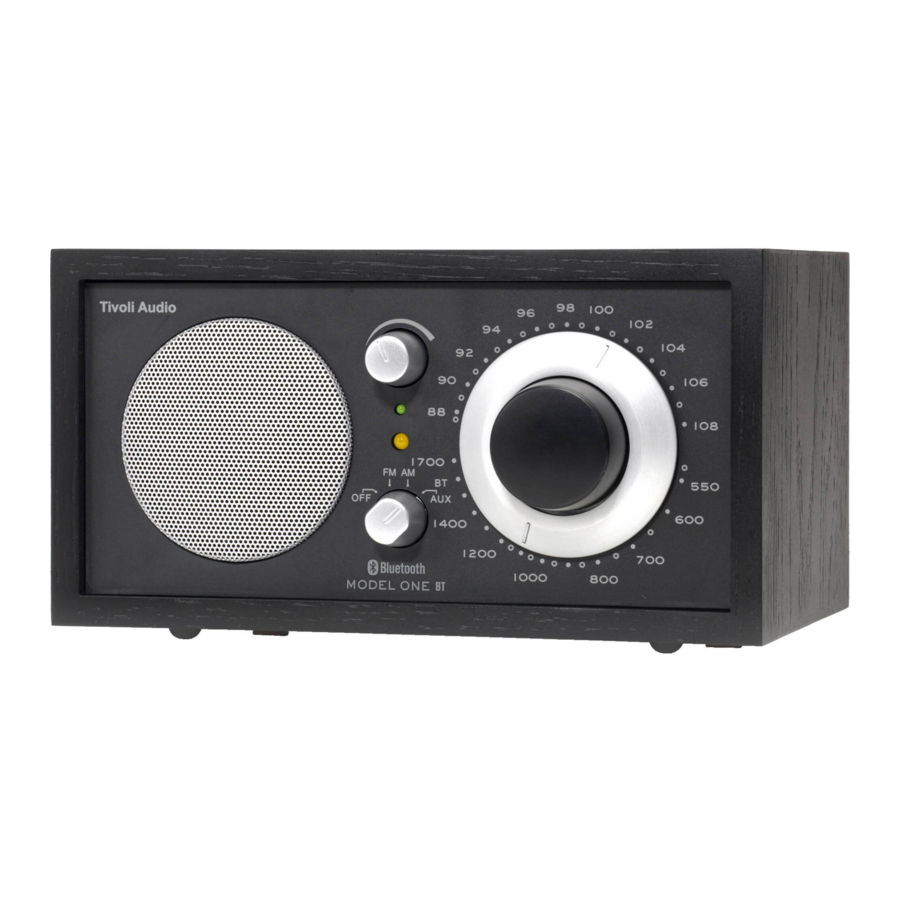

Front Panel

1. VOLUME KNOB: Rotate the volume knob to the right to increase the volume or to the left to decrease the volume. This knob also controls the volume of the headphone output.
2. OFF/FM/AM/AUX KNOB: Turn the knob one click to the right to hear the FM band, two clicks to the right to hear the AM band, or three clicks to the right to select the auxiliary input.
3. TUNING KNOB: Rotate the analog tuning dial to the right or to the left to adjust the FM (upper half of dial) or AM (lower half of dial) frequency range.
4. TUNING INDICATOR: Brightest when best tuning has been achieved. Some listenable AM stations will not light the tuning indicator and should be tuned by ear for the clearest signal. This light may or may not remain lit when in the AUX position depending upon the position of the AM dial.
5. POWER INDICATOR: Glows when the source knob is in any position other than Off.

Rear Panel

1. 12VDC/1.5A: This input is for use with an optional 1.5A fused, 12VDC adapter, for operation in a boat or camper. The connector must be 5.5mm/2.1mm center positive.
2. FM ANTENNA SWITCH: Switch between internal and external FM antennas. This switch has no affect on AM reception. In some cases, FM reception may be improved by setting this antenna switch to External.
3. EXTERNAL FM CONNECTION: When listening to FM, depending on your country, slide the included wire antenna over this F connector, or adjust this telescoping antenna and position it for best reception. In strong FM signal locations, reducing the antenna's length may provide better reception. When the unit is not in use or when listening to AM, keep the antenna retracted to protect it. This antenna has no affect on AM reception. For more, see the section marked "Reception".
4. EXTERNAL AM CONNECTION: In some cases, AM reception may be improved by connecting an external AM antenna (not included) to this jack, which accepts a 3.5 mm male stereo mini connector. For more, see the section marked Reception.
5. HEADPHONE OUT: Connect a headset (not included) to this variable stereo output for private listening. The headset will mute the primary speaker. The headset's volume is adjusted using the volume knob. This stereo output accepts a 3.5 mm stereo male mini connector. Avoid using headphones at high volume levels to prevent possible hearing damage.
6. AUX IN: To hear audio from another device, such as a CD player, MP3 player, or computer, connect said device's audio output to this stereo input and switch the front source knob to Aux. Switching to the Aux position does not turn on the connected device. This stereo input accepts a 3.5 mm stereo male mini connector. The left and right stereo signal is summed to mono. Note you may need to adjust the volume level differently for an auxiliary device than the level used for radio listening.
7. REC OUT: You can record from the Model One radio by connecting a cassette deck's audio input (or other recording device) to this fixed level stereo output. You can also use the Model One radio as a high performance analog tuner by connecting it to the audio input of a preamplifier or integrated amplifier. The primary speaker will not be muted when using this output. This jack accepts a 3.5 mm stereo male mini connector.

Cleaning

Never use any harsh cleansers or solvents on your radio. Avoid spray-on waxes. Unplug the Model One radio prior to cleaning. The face may be cleaned with a slightly damp, soft cloth. Painting or staining the wood cabinet will void your warranty.
NOTE: Tivoli Audio cabinets use real wood veneers. Since natural wood varies greatly, it is not possible to achieve an exact wood color/grain match between models. You may also notice the wood darken over time with exposure to sunlight. Again, this is normal for real wood.
It is also possible dyed veneers such as blue, red, etc., could fade from exposure to sunlight. This is not covered under the warranty.

Specifications

Specifications subject to change without notice.
Tivoli Audio reserves the right to make product changes without notice

Important Safety Instructions

RISK OF ELECTRIC SHOCK
DO NOT OPEN

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This symbol is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5.
   To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Operate this product only from the type of power source indicated on the rear panel. For products using an external power supply, use an exact replacement if lost or damaged. For products operating from battery power, refer to the user manual.
15. Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:
    1. When the power supply cord or plug is damaged.
    2. If liquid has been spilled or objects have fallen into the product.
    3. If the product has been exposed to water or rain.
    4. If the product does not operate normally by following the operating instructions.
    5. If the product has been dropped or damaged in any way.
    6. When the product exhibits a distinctive change in performance.
16. When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer, product is in proper operating condition.
17. Upon completion of any service, ask the service technician to perform safety checks to confirm the product is in proper operating condition.
18. Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.
19. The recommended operating temperature range is 5ºC to 40ºC (41ºF -104ºF).
20. The 12VDC input is suited for operating this product in a boat or camper using an optional 12VDC, 1A fused adapter.
21. Keep this product a safe distance away from naked flame, such as a lit candle.
22.
    The mains are not disconnected in the off position, but the circuits are de-powered.
23. As the main plug is used to disconnect the system from the mains, connect the system to an easily accessible AC outlet.

THE AFFIXED MODEL ONE TELESCOPING EXTERNAL ANTENNA IS NOT INTENDED TO BE DETACHED.
