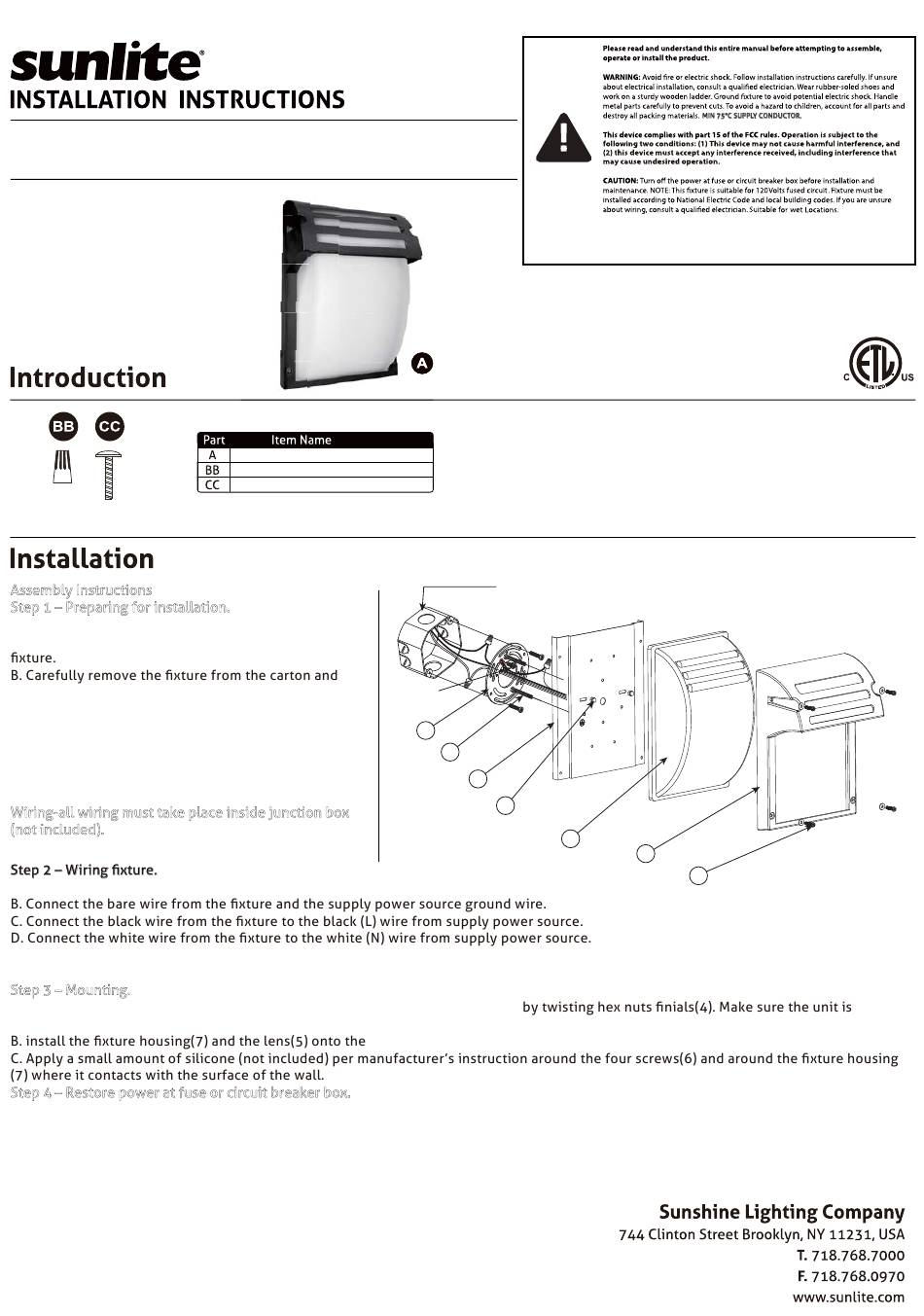

Sunlite 88688-SU LFX Installation Instructions

HALF CIRCLE WALL SCONCE | 88688-SU LFX/WS/SCT/HCL/9W/GL/BK
Assembly Instructions
Step 1 – Preparing for installation.
A. Disconnect electrical power at fuse or circuit breaker
box before installing or servicing any part of this
check that all parts are included.
C. Disassemble mounting bracket (1) from the
backboard (3) by removing all necessary components
per illustration shown.
D. Install mounting bracket (1) to the junction box (not
included).
Wiring-all wiring must take place inside junction box
(not included).
A. Make all wire connections to appropriate wire. Secure with wire nuts (provided).
E. Pull on each wire lead to make sure connections are secure. Make certain no bare wires are exposed outside of wire connectors. Tuck all
connections neatly into the junction box.
Step 3 – Mounting.
A. Place the backboard (3) on the mounting bracket(1), install the backboard (3)
tightened against the wall.
Step 4 – Restore power at fuse or circuit breaker box.
HALF CIRCLE WALL SCONCE
Wire Nuts
4X30MM Screws
GROUND
SCREW
backboard (3) by twisting the four screws(6).
JUNCTION BOX
1
2
3
4
5
Before beginning assembly and installation of product, make sure all parts are present.
Compare parts with package contents list and diagram above. If any part is missing or
damaged, do not attempt to assemble, install or operate the product. Contact customer
service for replacement parts.
7
6
