Sunlite 81491-SU Installation Instructions

LED SCT Vanity Fixture | 18", 24", 36", 48"
WARNINGS & CAUTIONS: Risk of fire or electric shock, avoid fire or electric shock. Turn off the power at fuse or circuit breaker box before installation and maintenance to
avoid electric shock. Before installation thoroughly review encolsed installation manual. Use for 120-277 Volt fused circuits,This product must be installed in accordance
with the applicable installation code by a person familiar with the construction and operation of the product and the hazards involved. If you do not have sufficient
electrical wiring experience, please consult a qualified electrician. Consult a qualified electrician to ensure correct branch circuit conductor. Do not make or alter any open
holes in an enclosure of wiring or electrical components during installation. If the product is damaged, do not attempt installation and do not use. Not for emergency
lighting. Operating temperature -20°C - 40°C(-4°F - 104°F). Suitable for damp locations.
*The lamp may not be compatible with all dimmers. Go to www.Sunlite.com/Dimmers to find dimmer compatibility information.
Installation
1. Preparing for installation
A. Disconnect electrical power at fuse or circuit breaker box before installing or servicing any part of this fixture.

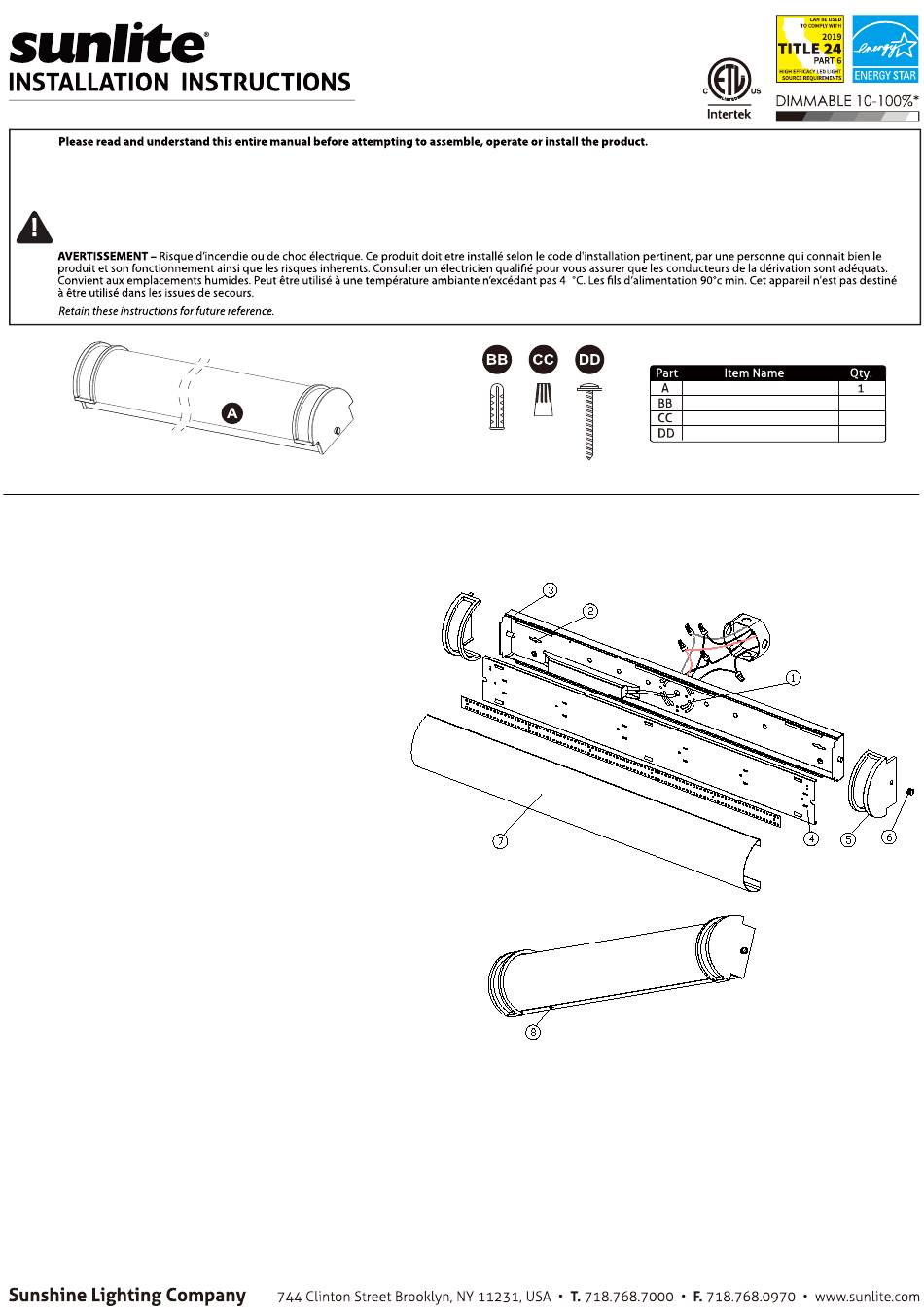

B. Carefully remove the fixture from the carton, and check that all parts are included, as shown in figure.
2. Mounting & Wiring (All wiring must take place inside junction box)
CAUTION: Make sure power is off at fuse or circuit breaker box. Check power
wires for damage or scrapes. If power supply wires are within three inches
of the ballast power supply, use wire suitable for at least 90°C (194°F).
Note: Most dwellings built before 1985 have supply wire rated to 60°C.
Consult a qualified electrician before installing.
A. Position the back plate mounting channel (1) against the wall
covering the junction box (not included) and secure with the
two screws included. Mark placement of mounting
keyhole slots (2).
B. Drill appropriate sized holes or install wall anchors
(BB) to accept mounting screws.
C. Connect the power source ground wire to the green or
bare copper wire from the fixture assembly.
D. Using wire nuts (CC), connect white supply wire to white fixture
lead. Connect black supply wire to black fixture lead. Connect
"Dim 0-10V" supply wire to purple fixture lead. Connect "Dim
ground" supply wire to grey fixture lead. Do not mix wires. Pull
on each wire lead to make sure connections are secure. Make
certain no bare wires are exposed outside of wire connectors.
E. Tuck all connections neatly into junction box (not included).
F. Fasten channel securely to the wall.
G. Install the fixture housing (3) to the channel by sliding the slots
in the housing over the screws (4) in the channel and tighten-
ing the screws.
H. Slide the CCT switch(8) to select from 3000K, 4000K, 5000K.
3. Diffuser Assembly
A. Slide the diffuser (7) into the installed end, and install the other end with thumbscrew to secure diffuser in place.
B. Install one end (5) using the thumbscrew (6).
4. Restore power at fuse or circuit breaker box.
Care and maintenance – Use dry and clean cloth to wipe the surface of the fixture
Replacement- This LED product has no bulb to replace.
0
4' LED Wraparound fixture
Drywall Anchors
Wire Nuts
4X40MM Screws
v2022
2
5
4
