INSTALLATION INSTRUCTIONS
LED ROADWAY LIGHT |
Introduction
An internal power-factor-corrected switch-mode supply allows it to be used from any nominal 120V-277V, 60Hz AC supply
without any variation in light output.
Installation

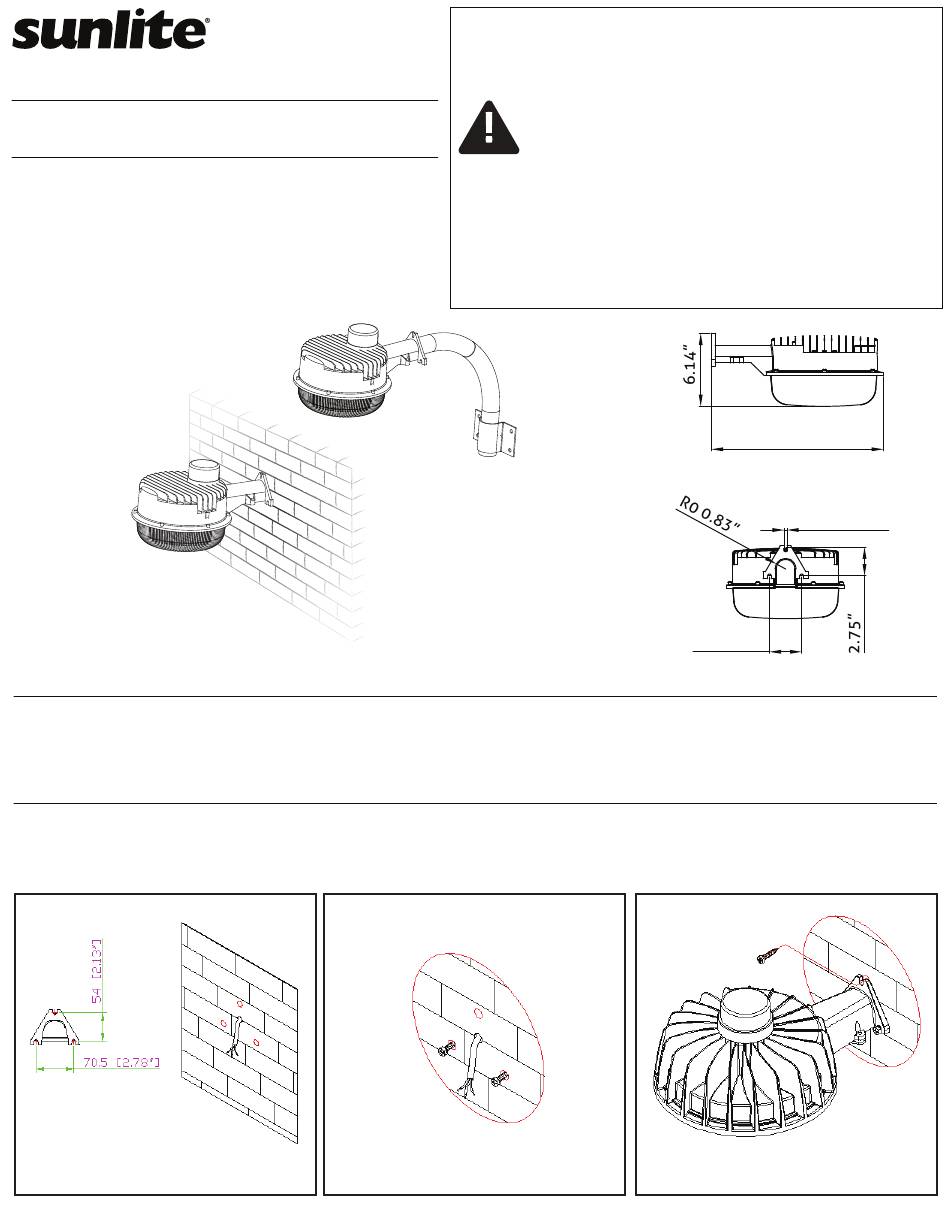

Refer to the following diagram when you install the fixture. Two installation methods, directly fix to the mounting surface or fix
to the mounting surface with an arm.
Surface Mounting
1
First refer to the size of the diagram to
drill holes in the wall.
1 of 2
49148-SU | LFX/RL/MW/SCT/PC
49149-SU | LFX/RL/HMW/SCT/PC
Images are for illustrative purposes only. Actual fixture design is as illustrated above.
2
Fix two screws to the hole
Please read and understand this entire manual before attempting to assemble,
operate or install the product.
WARNINGS: Avoid fire or electric shock. Follow installation instructions carefully.
If unsure about electrical installation, consult a qualified electrician. Wear
rubber-soled shoes and work on a sturdy wooden ladder. Ground fixture to avoid
potential electric shock. Handle metal parts carefully to prevent cuts. To avoid a
hazard to children, account for all parts and destroy all packing materials. Operat-
ing temperatures of -40°C to 45°C (-40°F to 113°F). Suitable for outdoor /wet
locations.
CAUTION: Turn off the power at fuse or circuit breaker box before installation and
maintenance to avoid electric shock. This product uses an input 120-277V AC
driver of wide range voltage, but the actual working voltage depends on the input
voltage of the photocell that is installed on the product. Normally the input
voltage of the photocell is 120V/208V/240V/277V Single range, and also has
120-277VAC wide range. please pay attention when installation.Fixture must be
installed according to national electric code and local building codes. If you are
unsure about wiring consult a qualified electrician.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.
Retain these instructions for future maintenance reference.
2.75"
3
Hook the lamp by two screws. Attach the
top screw. Finally tighten all screws.
14.48"
R 0.19"
Advertisement
Table of Contents
Related Manuals for Sunlite 49148-SU
Summary of Contents for Sunlite 49148-SU
- Page 1 Handle metal parts carefully to prevent cuts. To avoid a hazard to children, account for all parts and destroy all packing materials. Operat- ing temperatures of -40°C to 45°C (-40°F to 113°F). Suitable for outdoor /wet 49148-SU | LFX/RL/MW/SCT/PC LED ROADWAY LIGHT | locations.
- Page 2 Surface Mounting (Continued) Pass the wire through the hole of the cover plate. Connect the wire to the same Put the cover plate into the U-slot, tight- color (correspond to wire N, L and G) Installation completed. en the screws. together with a wire connector.
