Kuryakyn 3192 Installation Instructions

Nova horizontal side mount license plate holder

Advertisement

Quick Links

INSTALLATION INSTRUCTIONS
N OVA H O R I Z O N TA L S I D E M O U N T L I C E N S E P L AT E H O L D E R
3192 CHROME OR 3193 GLOSS BLACK
THANK YOU FOR CHOOSING KURYAKYN!
Protect yourself and others from possible injury and property damage or loss. Pay close attention to all instructions, warnings,
cautions, and notices regarding the installation, use, and care of this product.
THIS INDICATION ALERTS YOU TO THE FACT THAT IGNORING THE CONTENTS DESCRIBED HEREIN CAN RESULT
IN POTENTIAL DEATH OR SERIOUS INJURY.
THIS INDICATION ALERTS YOU TO THE FACT THAT IGNORING THE CONTENTS DESCRIBED HEREIN CAN RESULT
IN MINOR OR MODERATE POTENTIAL INJURY.
THIS INDICATION ALERTS YOU TO THE FACT THAT IGNORING THE CONTENTS DESCRIBED HEREIN MAY
NEGATIVELY AFFECT PRODUCT PERFORMANCE AND FUNCTIONALITY OR DAMAGE THE PRODUCT ITSELF OR
THE PRODUCT TO WHICH IT IS BEING ATTACHED.
ENSURE THAT THE FOLLOWING PARTS HAVE BEEN INCLUDED IN THE KIT:
1
Lighted Curved Horizontal Side Mount
License Plate Holder
1
Hardware Kit, containing:
1
License Plate Attachment
2
10-24 x 3/8" Hex Flat Head Screws
1
5/16 -18 x 1" Flange Hex Head
1
Alcohol Pad
YOU WILL ALSO NEED:
Socket set, combination wrench set, hex wrench set, tin snips, test light, wire crimper
THESE INSTALLATION INSTRUCTIONS CONTAIN IMPORTANT INFORMATION. ENSURE THE END USER RECEIVES
THIS COPY AND IS AWARE OF ITS IMPORTANCE FOR FUTURE USE.
Note: The lighted side mount license plate holder is
compatible with any model but you must order the correct
splined mount to meet your specific needs (sold separately).
Note: The following installation instructions assume that you
have already installed the appropriate splined adapter for
your specific application.
YOUR LOCAL ORDINANCES MAY HAVE SPECIFIC
REQUIREMENTS ON THE APPROVED ANGLE OF THE
PLATE MOUNT. BE SURE THE LICENSE PLATE IS AT THE
APPROVED ANGLE AND MEETS ALL LOCAL ORDINANCES.
THE ADDITION OF A SIDE-MOUNTED LICENSE PLATE MAY
AFFECT CORNERING CLEARANCE IN SOME SITUATIONS.
STEP 1
Read and understand all steps in the instructions before
starting the installation. Park the motorcycle on a hard, level
surface and turn off the ignition. Let motorcycle cool.
STEP 2
Refer to PIC 1. Locate the License Plate Holder. Remove
the back plate from the license plate frame.
PAGE 1
303190
DPF-MRK-003 REV B 8/16/19
1
Lighting Hardware Kit, containing:
4 4" Black Nylon Cable Ties
1 Dielectric Grease Pack
4 Female T-Tap Scotch Lock Connectors
4 Male Connectors
1 1" X 3" Foam Adhesive Tape
FRAME
FOAM TAPE
DIELECTRIC
GREASE
LICENSE
PLATE
ATTACHMENT
FLAT HEAD
SCREWS
BACK PLATE
FLANGE HEX
HEAD SCREW
CABLE TIES
MALE
CONNECTORS
KURYAKYN.COM
866 277 9598 | INFO@KURYAKYN.COM
454 COUNTY ROAD VV SOMERSET, WI 54025

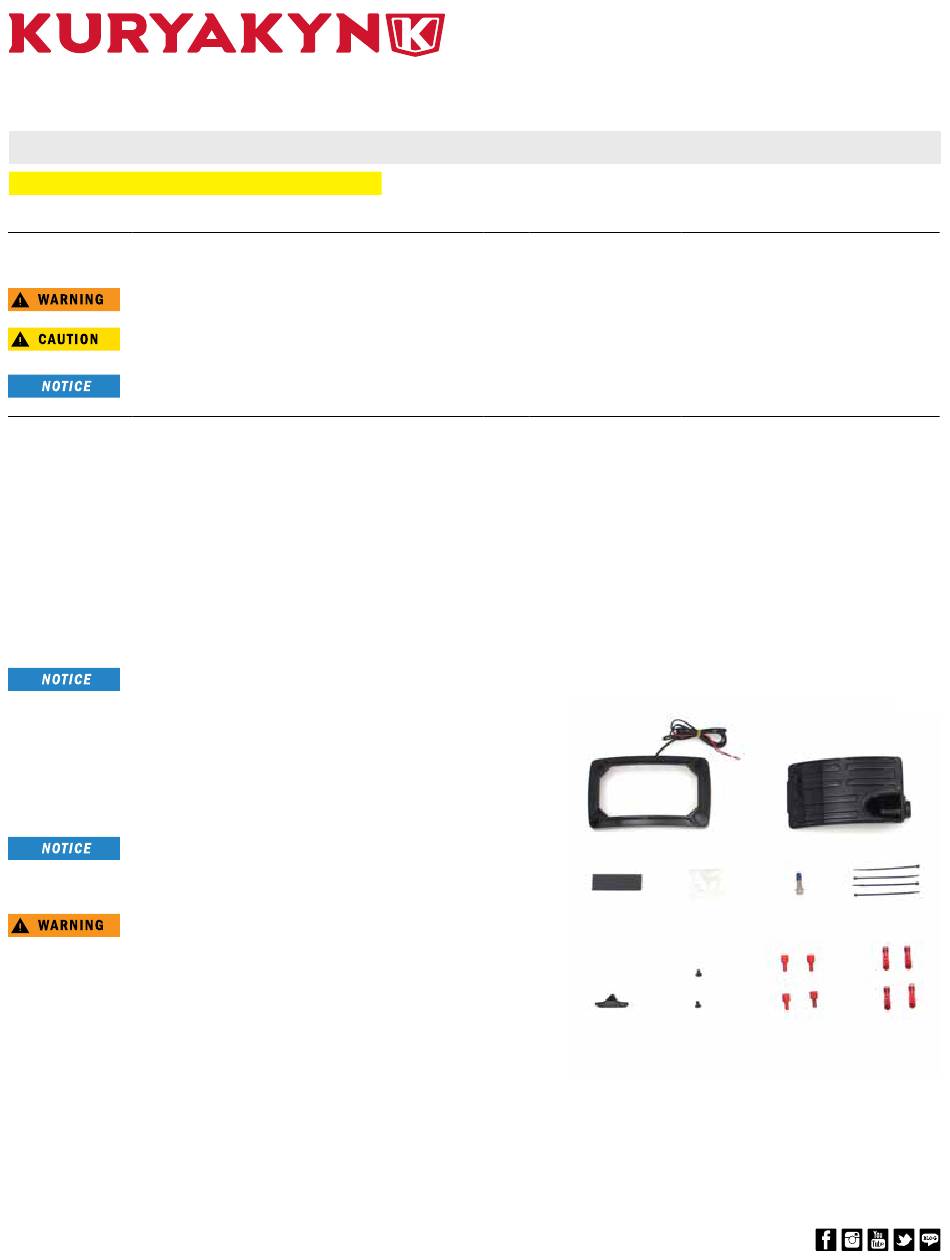

PIC 1
T-TAP
