DELUXE OUTDOOR SHOWER MIXER
INSTALLATION INSTRUCTIONS
Before installing, read entire Outdoor Shower Installation Instructions. Observe all
local building and safety codes.
Unpack and inspect the product for any shipping damages. If you find damages, do
not install. Contact Customer Service at 1.866.855.2284. If you need assistance or
have questions while installing your shower, contact Customer Service.
Because wall construction and materials vary from home to home, Signature
Hardware does not provide mounting hardware for all of our outdoor products. The
appropriate mounting hardware can be purchased from your local hardware store.
We recommend consulting a professional if you are unfamiliar with installing outdoor
and plumbing fixtures. Signature Hardware accepts no liability for any damage to the
shower, installation surface, or for personal injury during installation.
PARTS LIST:
A. 6" Shower Head
B. Shower Riser
C. ½" Ball Valve
D. ½" x 6" Pipe Nipple
E. ½" x 2-½" Pipe Nipple
F. ½" 90 Degree Elbow
G. ½" x 2-½" Pipe Nipple
H. ½" Ball Valve (3)
I. ½" x 36" Lower Riser Pipe
J. ½" x 1-½" Pipe Nipple
TOOLS AND MATERIALS:
Adjustable Wrench
Mounting Hardware
INSTALLATION

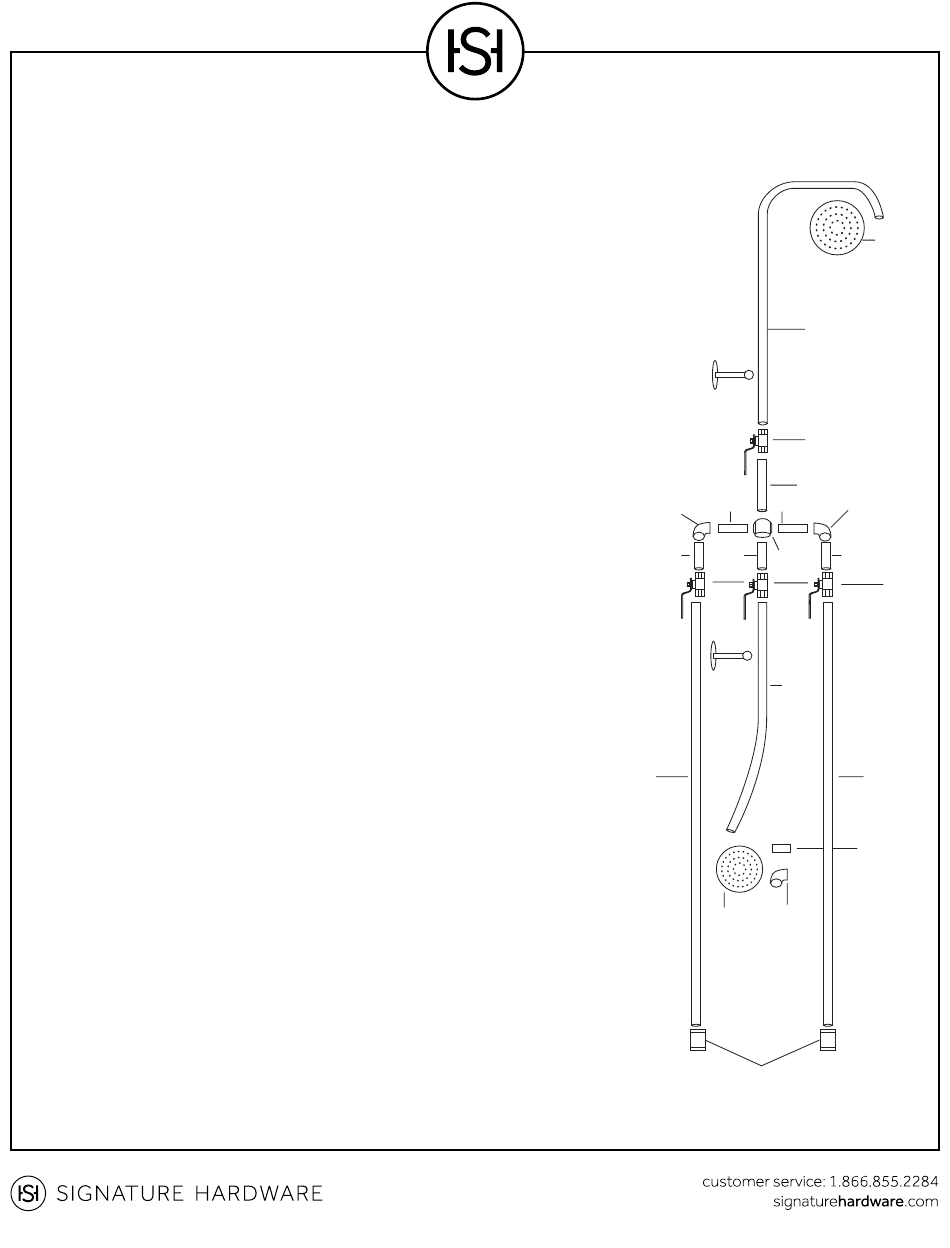

1. Assemble the shower according to the installation diagram.
2. Hold the shower in the desired mounting location. Mark the location of the
mounting holes in the wall support flanges. Attach the shower to the mounting
surface with the appropriate mounting hardware.
3. Connect the water supply to the outlets on the lower riser pipes. Turn on the water
supply to check for leaks. Let the water flow through the shower head for
approximately 30 seconds to clear out debris and dirt. If leakage occurs, tighten
connections with your adjustable wrench as necessary. If problems persist,
contact Customer Service at 1-866-855-2284.
K. ½" Coupling (2)
L. ½" 45 Degree Elbow
M. ½" x 24" Foot Shower Pipe
N. Lower Wall Support
O. 4" Shower Head
P. ½" x 36" Lower Riser Pipe
Q. ½" x 2-½" Pipe Nipple
R. ½" 90 Degree Elbow
S. ½" x 2-½" Pipe Nipple
T. Upper Wall Support
Pencil
Drill
R
Q
P
Deluxe Outdoor Shower Mixer Installation Instructions
A
B
T
C
D
F
S E
G
H
N
M
I
J
L
O
K
