Smittybilt SB2802 Installation Instructions

NOTE: Carefully read entire instructions thoroughly before attempting to assemble and/or
install this product. These steps are in conjunction with vehicles with the O.E.M. front
bumper. Similar steps can be used with other after-market bumpers.
92-5570 Winch Plate
½"-13 x 1 ½ " bolt
½" lock washer
½" flat washer
12 mm x 40 mm bolt
12mm flat washer
12mm lock washer
Installation:

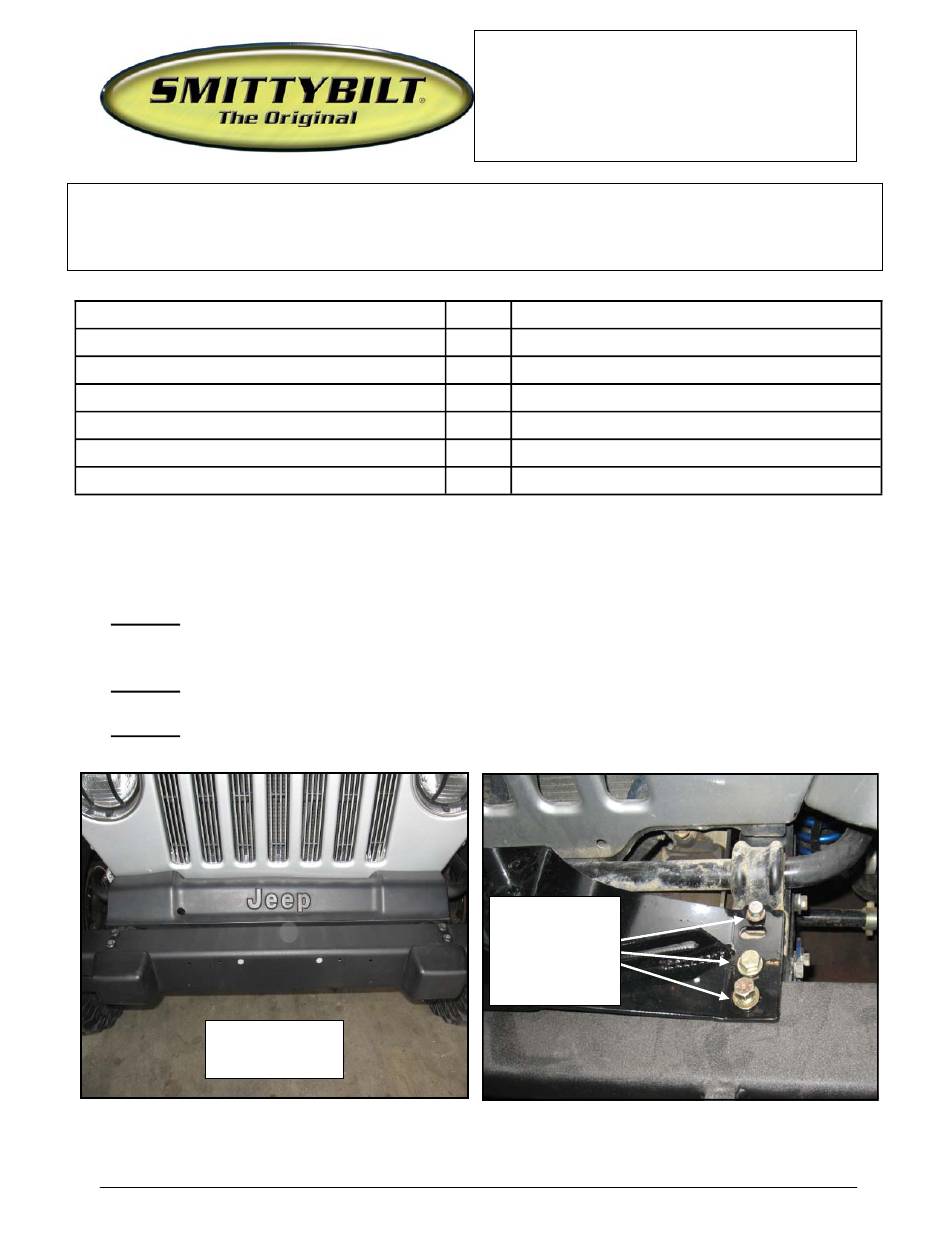

STEP 1: Remove the front plastic frame/stabilizer bar cover. (Fig A)
NOTE: The stabilizer cover will not be re-used.
STEP 2: Remove front bumper hardware and tow hooks (if equipped). (Fig B)
STEP 3: Remove the front (only) stabilizer mounting bolt. (Fig B) When mounting winch
plate (92-5570) plate you will use the included 10 x 50mm bolts.
Remove front
stabilizer cover.
(Fig A)
For Technical Support/Warranty Information please call 310-762-9944
Smittybilt, 1600 Walnut Parkway, Compton, CA 90220
Installation Instructions:
Winch Plate (Part# SB2802)
87-06 Jeep Wranglers
1 90-2014 Winch Plate Spacer
4 10 x 25 mm bolt (For Fairlead)
4 10 mm lock washer
4 10 mm flat washer
2 10 x 50 mm bolt
2 10 mm lock nut
2
Remove top
bumper bolts
and front
stabilizer
mounting bolt.
Revised 1.22.09
4
(Fig B)
2
2
2
2
2
