Jonti-Craft 2871JC Instructions

Instructions for:
2871JC & 2872JC Sand & Water
Table w/ Clear Tub
Hardware Package HAST
Qty Description
(16) XAUR 2" Decorative Screw
(1) XAUS 4mm Hex Wrench
(1) XAOF Sand and Water Table Cap
(1) XEZI Sand and Water Tub Valve
(2) XAHJ Spacer Washer (Larger Inside Dia.)
(1) XAHK Bottom Spacer Washer (Smaller Inside Dia.)

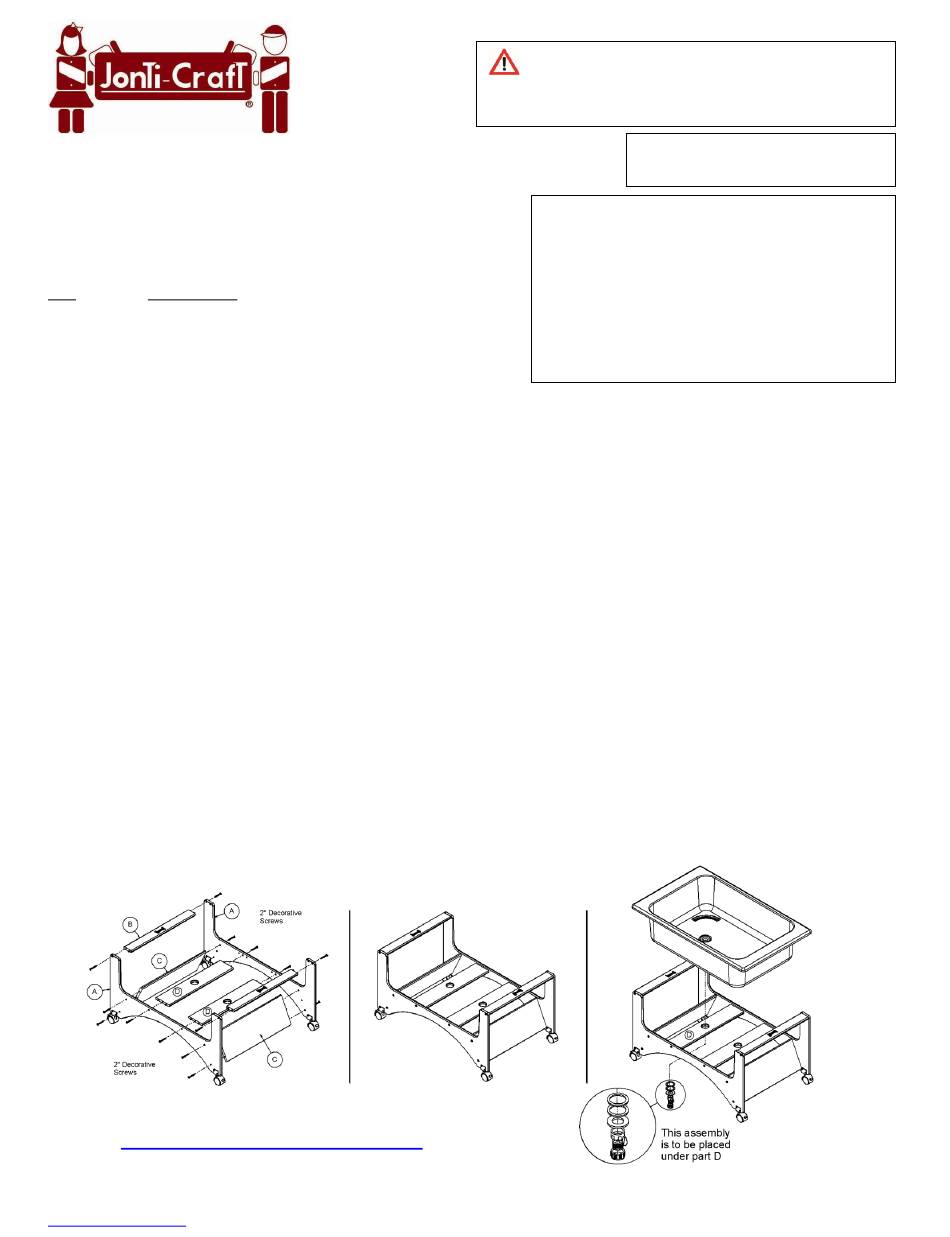

Assembly Instructions:
1. Remove the cover and the plastic tub (not shown on drawing) and set aside.
2. Place one side "A" flat on the floor with all of the holes facing up.
3. Assemble the unit by placing all parts "B", "C", and "D" in the appropriate holes using the alignment
dowels to temporarily hold the assembly together.
4. Place the other side "A" with all of the holes facing down on top of parts "B", "C", and "D" by aligning
the dowels pins with the holes in the side to hold them temporarily in place.
5. Install the screws in the holes in the side and tighten all of the screws securely with the provided 4mm
hex key wrench.
6. Carefully turn the whole unit over and repeat step #5.
7. Place the table upright and install the plastic tub in the table frame, making sure the spout on the tub
goes into the hole on one of the under-tub supports "D".
8. Install the spacer washers over the spout and thread the valve on the spout. Tighten the valve. When
done properly, the spacers will still be able to turn freely.
9. Thread the cap on the valve and tighten. NOTE: If leaking occurs around valve unscrew the
valve and remove one of the rubber washers from the valve and retighten.
10. Set the cover on the tub.
If you experience any difficulties when assembling this product, please contact the Jonti-Craft Customer
Relations Team at (800) 543-4149 or sales@jonti-craft.com. All other requests for assistance must be
directed to your Jonti-Craft Dealer.
General Care & Maintenance Guidelines:
www.jonti-craft.com/generalcare
DHAST – Rev. K – 24 August 2017
800-543-4149
507-342-5169
www.jonti-craft.com
WARNING:
CHOKING HAZARD- Assembly hardware contains
small parts. Adult assembly required.
Required Tool:
4mm Hex Wrench (provided)
Attention: Liquids must be drained from
the table daily and the tub dried with a
soft cloth to prevent mold growth and
damage to the table. To avoid damage to
the cover and support pieces, allow any
remaining moisture to dry prior to
putting the cover on. Dry off any
moisture on the wood frame of the unit
using a soft cloth.
Jonti-Craft, Inc.
171 Hwy 68
P.O. Box 30
Wabasso, MN 56293
