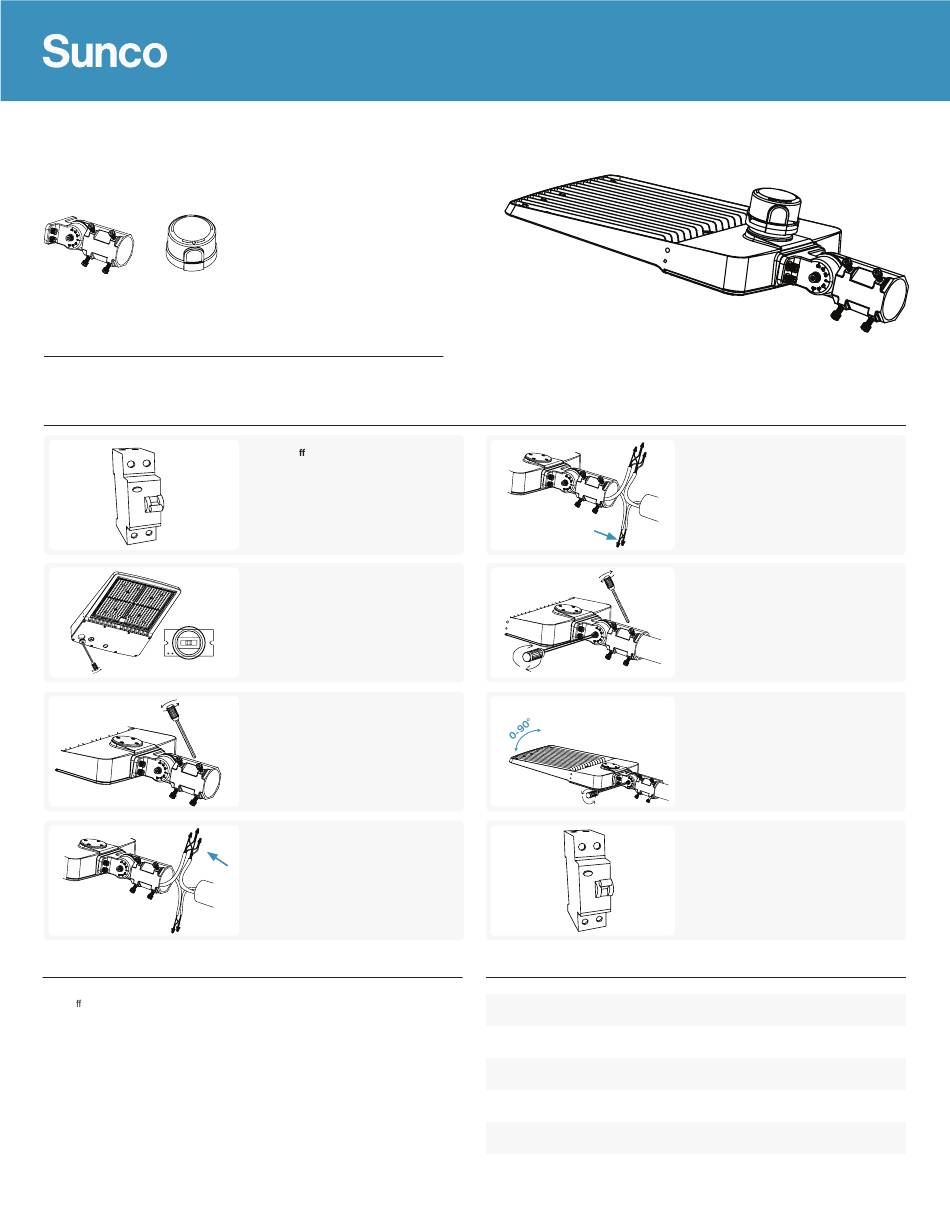

Sunco SB D2D-150W-5K-4PK Installation Manual

LED SHOEBOX LIGHT
Installation Manual
COMPONENTS
x1 x1
Adjustable Slip Dusk-to-Dawn
Fitter (AM) Photocell Sensor
IMPORTANT SAFETY INSTRUCTIONS
• Please review instructions carefully before proceeding.
• Risk of fire. Consult a qualified electrician to ensure correct branch conductor.
EASY INSTALLATION
WARNING
To reduce the risk of fire, electric shock, or physical injury:
• Turn o circuit breaker before installing this fixture.
• This product must be installed in accordance with the applicable installation code by a
person familiar with the construction and operation of the product and hazards involved.
• Min. 75°C supply conductors.
• Abide by related regional and local laws or regulations.
• Proper grounding is required to ensure safety.
• Do not cover the fixture with thermally insulating material.
• Check for shipping damage before installing. If the product is damaged, do not use it.
• Keep fixture away from corrosive substances.
• This fixture is wet rated. Suitable for outdoor environments ranging from -31°F-122°F
(without motion sensor), -22°F-122°F (with motion sensor).
• Clean the fixture regularly to ensure proper operation. Do not clean with harsh solvents.
• Use safety precautions and abide by regional and local laws or regulations.
• This product is not compatible with timing devices.
• This product is not compatible with third party photo sensors.
• This product is not compatible with third party sensors.
• This product is not compatible with occupancy sensors.
Adjustable Mount
1. Turn o circuit breaker
before installation.
Note: To adjust wattage, remove
0.75" plug from location shown
in image.
• Once desired wattage is
reached, re-insert plug.
• Tighten until secure.
2. Loosen all 4 Allen Screws
until bracket can easily slide
onto light pole.
3. Connect to fixture wires to supply
wires using wire nuts:
a. Black to Black (Live)
b. White to White (Neutral)
c. Ground to Ground
Required Tools: Drill, Ladder, Allen Wrench, Wire Stripper
SPECIFICATIONS
Voltage
Wattage
Moisture Rating
Housing Material
Weight
Warranty
Note: If using dimming function,
connect dimming wires:
a. Dim+ (Pink)/DC+
b. Dim- (Purple)/DC-
4 Secure Allen Screws until fixture
does not rotate or slide.
Note: If desired, you may adjust
fixture until preferred orientation
is achieved (0-90°).
5. Turn on circuit breaker and test light.
120V-277V
150W
Wet Rated
Aluminum
7.2 lbs
7 years
