Insignia NS-HDRAD Quick Setup Manual

Congratulations on your purchase of a
high-quality Insignia product. Your
NS-HDRAD represents the state of the art
in HD Radio technology and is designed
for reliable and trouble-free performance.
Package contents
• HD Radio™ Tabletop
• AC power adapter
• User Guide
• Quick Setup Guide

Installing the batteries

Note: You only need to install batteries if you want
to use your boombox on the go.
1 Open the battery compartment on the back of
your radio.
2 Place four AA size alkaline batteries (not
included) in the battery compartment.
Make sure to match the + and - on the battery
to the + and - signs in the battery compartment.
3 Close the battery compartment until it clicks
into place.

Connecting the AC adapter

1 Plug the small connector at the end of the
power cord into the DC IN jack on the back of
your radio.
2 Plug the AC adapter into a 120/240V, 50/60Hz
power outlet.

Turning on your radio

• Press (power) on the front of your radio.

Selecting the mode (source)

• Press SOURCE repeatedly on the front of your
radio to toggle between Tuner and AUX. The
source you select appears on the display.

Volume control

• After you select the mode you want, press
VOLUME+ or – to set the volume to a comfort-
able level.

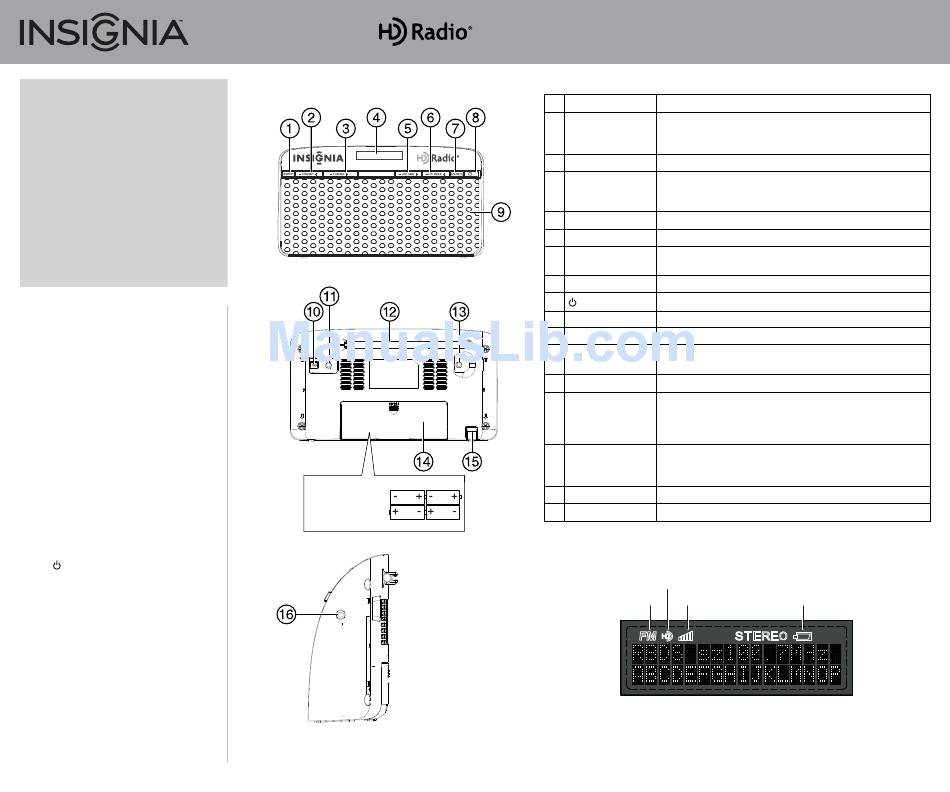

Features

Front view

Back view

Insert four AA
batteries in this
compartment.

Side view

HD Radio™ Tabletop I NS-HDRAD
# Component Description
1 MEMORY button Press to save preset FM radio stations. After pressing the MEMORY
button, press PRESET+ or PRESET– to set the preset number. You
can save up to 20 presets.
2 PRESET–/+ button Press to tune the FM radio to a preset station.
3 TUNING–/+ button Press to go to a lower or higher radio frequency. Press for more
than one second to auto scan for the next lower or higher radio
station.
4 LCD display Displays mode and frequency.
5 VOLUME–/+ button Press to raise or lower the volume.
6 HD SEEK–/+ button Press to go to the next or previous HD Radio station or an HD
Radio multicast station.
7 SOURCE button Press repeatedly to toggle the mode between Tuner and AUX.
8 (power) button Press to turn on your HD Radio Tabletop or put it into POWER OFF.
9 Speakers Provides sound from your radio.
10 DC IN jack Connect the AC Adapter to this jack.
11 AUX IN jack Connect an external sound source, such as an MP3 player, to this
jack.
12 FM Antenna Raise to improve the FM radio signal.
13 Pigtail antenna Plug a wire antenna into this socket. The pigtail antenna (located
socket (35 mm) behind the battery compartment door) is optional and is to be
used to improve reception when the signal is weak. The FM
antenna is disabled when the pigtail antenna is connected.
14 Battery compartment Open to install four AA batteries in the battery compartment. Be
door sure to observe the correct battery polarity as shown in the
compartment.
15 Foot Supports the tabletop radio.
16 Headphone jack Connect a pair of headphones to this jack with a 3.5 mm plug.
LCD display
HD Radio
signal
FM signal Signal strength
Quick Setup Guide
Battery life
