Summary of Contents for Insignia NS-HDRAD2

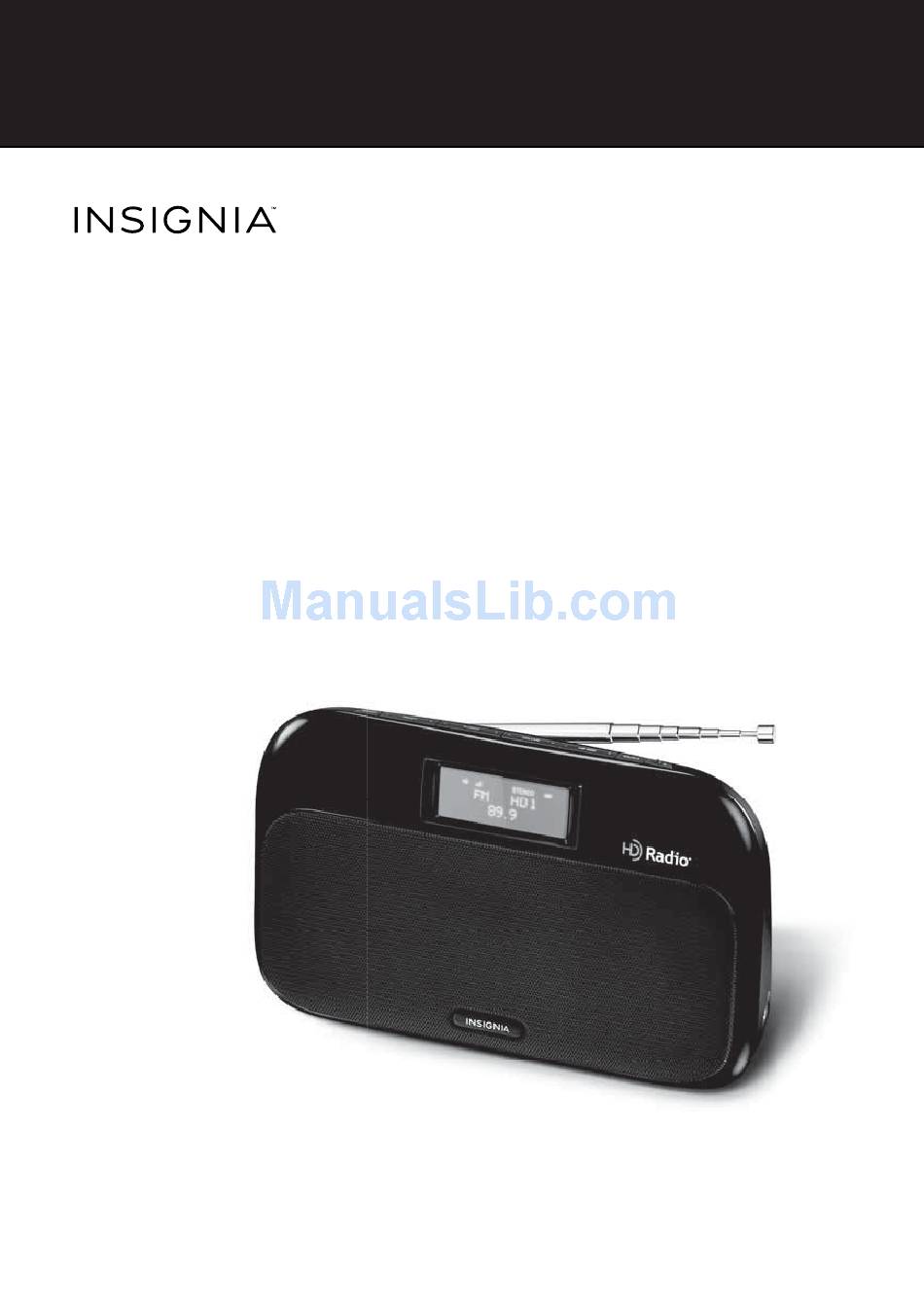

- Page 1 USER GUIDE Tabletop HD Radio Receiver NS-HDRAD2 Before using your new product, please read these instructions to prevent any damage.
-
Page 2: Table Of Contents
Legal notices........... .14 ONE-YEAR LIMITED WARRANTY - INSIGNIA ..... . .15 Introduction Congratulations on your purchase of a high-quality Insignia product. -
Page 3: Safety Information
NS-HDRAD2 Tabletop HD Radio Receiver Safety information CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN This symbol indicates that dangerous voltage constituting a risk of electric shock is present within your radio. This label is located on the back of your radio. -
Page 4: Features
NS-HDRAD2 Tabletop HD Radio Receiver 13 Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. - Page 5 NS-HDRAD2 Tabletop HD Radio Receiver Front and Side Views Item Description LCD display Displays mode and frequency. Speakers Provides sound from your radio. Headphone jack Connect headphones here with a 3.5 mm plug. www.insigniaproducts.com...
-
Page 6: Top View
NS-HDRAD2 Tabletop HD Radio Receiver Top View MEMORY PRESET TUNING VOLUME HD SEEK SOURCE MEMORY PRESET TUNING VOLUME HD SEEK SOURCE Item Description MEMORY Press to save preset FM radio stations. After pressing the MEMORY button, press PRESET+ or PRESET– to set the preset number. You can save up to 20 presets. -
Page 7: Back View
NS-HDRAD2 Tabletop HD Radio Receiver Back View DC 5.9 V Insert four AA batteries in this compartment. Item Description DC IN jack Connect the AC Adapter to this jack. FM Antenna Raise to improve the FM radio signal. Battery compartment Open to install four AA batteries. - Page 8 NS-HDRAD2 Tabletop HD Radio Receiver LCD Display STEREO RBDS sz100. 7MHz Preset 04 Empty Understanding radio modes Your radio has three radio modes: Analog (FM), HD Radio digital, and RBDS (Radio Broadcast Data System). The three radio modes are automatically changed when the receiving frequency is changed.
-
Page 9: Setting Up Your Tabletop Hd Radio
NS-HDRAD2 Tabletop HD Radio Receiver Setting up your Tabletop HD Radio Powering your radio Your Tabletop HD Radio can be powered by either the included AC adapter, or with four AA sized alkaline batteries (not included). Your tabletop radio only operates on batteries if the AC adapter is unplugged. -
Page 10: Using Your Tabletop Hd Radio
NS-HDRAD2 Tabletop HD Radio Receiver Using your Tabletop HD Radio Turning your radio on and off • Press (power). Selecting the source • Press SOURCE to toggle between Tuner and AUX. The source you select appears on the display. Tuner mode is the default mode when you turn your radio on. -
Page 11: Using Headphones
NS-HDRAD2 Tabletop HD Radio Receiver Using HD Radio Technology Tuning to an HD Radio station • In tuner mode, press the HD SEEK+ or HD SEEK– button to seek the next or previous HD Radio station or HD Radio multicast station. “... -
Page 12: Troubleshooting
NS-HDRAD2 Tabletop HD Radio Receiver Troubleshooting Problem Solution • Make sure that the power cord is fully inserted in the power My radio won’t turn on. outlet and firmly connected to the DC IN jack on the back. • If running on batteries, make sure the batteries are not dead. -
Page 13: Specifications
NS-HDRAD2 Tabletop HD Radio Receiver Maintaining • To prevent fire or shock hazard, disconnect your radio from the AC power source when cleaning. • The finish on your radio may be cleaned with a dust cloth and cared for as other furniture, Use caution when cleaning and wiping the plastic parts. -
Page 14: Legal Notices
NS-HDRAD2 Tabletop HD Radio Receiver Legal notices FCC Part 15 This device complies with Part 15 of the FCC Rules. Operation of this product is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 15: One-Year Limited Warranty - Insignia
Products and parts replaced under this warranty become the property of Insignia and are not returned to you. If service of Products or parts are required after the Warranty Period expires, you must pay all labor and parts charges. This warranty lasts as long as you own your Insignia Product during the Warranty Period. - Page 16 FOR THE BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT, INCLUDING, BUT NOT LIMITED TO, LOST DATA, LOSS OF USE OF YOUR PRODUCT, LOST BUSINESS OR LOST PROFITS. INSIGNIA PRODUCTS MAKES NO OTHER EXPRESS WARRANTIES WITH RESPECT TO THE PRODUCT, ALL EXPRESS AND...
- Page 17 1-877-467-4289 (U.S. and Canada) or 01-800-926-3000 (Mexico) INSIGNIA is a trademark of Best Buy and its affiliated companies. Distributed by Best Buy Purchasing, LLC V1 ENGLISH ©2015 Best Buy. All rights reserved. 15-0849 Made in China.
